Sayfa 1-41 - Isuzu EPC

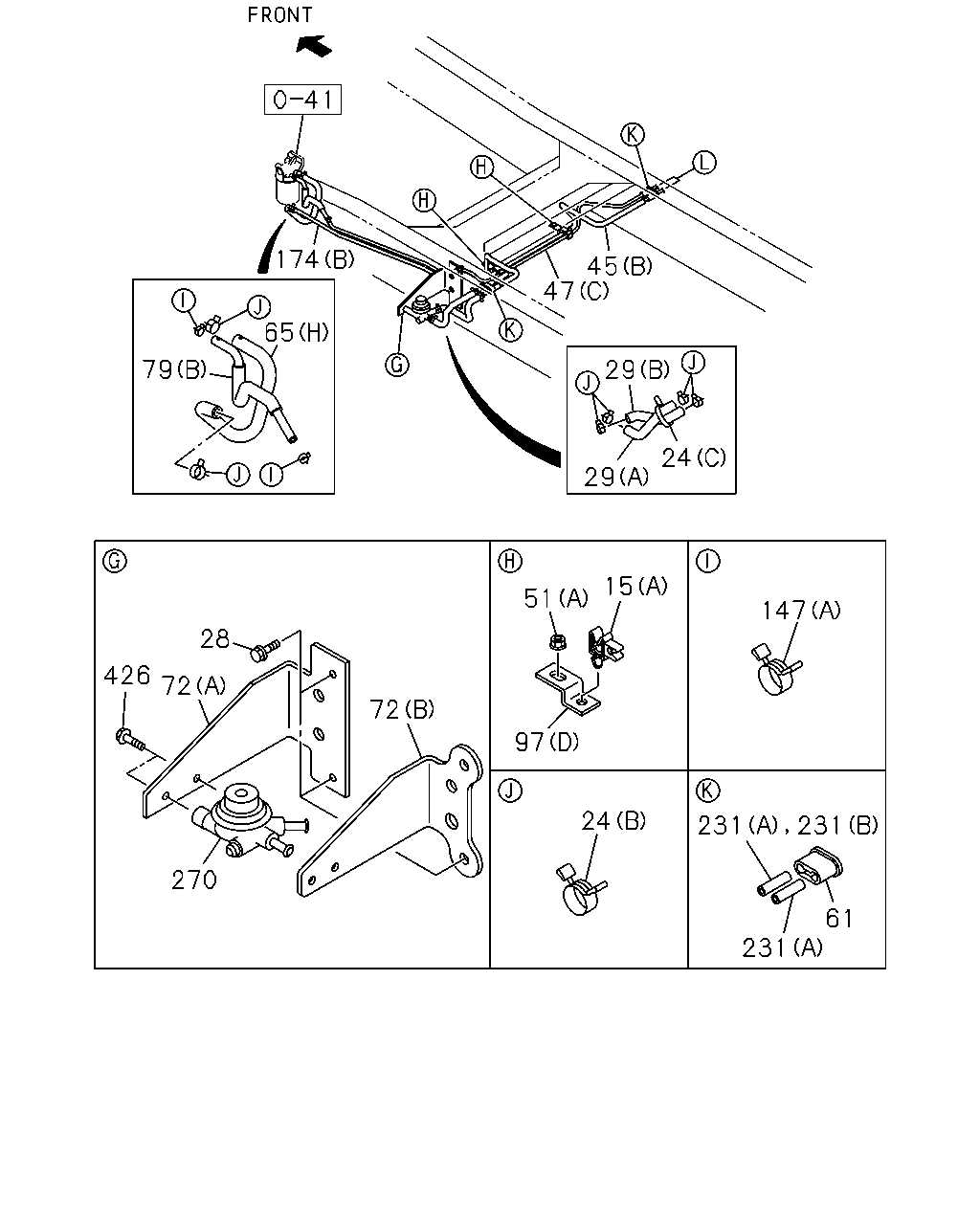

1-41 — FUEL PIPING; CHASSIS (#80350) — 439 parça

174 45 47 65 79 29 24 29 15 51 147 28 426 72 72 97 24 231 270 61 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0803-	●	●
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	0803-		●
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> 02.559 (D) L=170.3	1-09987-182-0	01	1	0803-0807	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (A) L=250	5-09707-030-1	01	1	0803-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-0803	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0803-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-		●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0803-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=200	8-98081-038-0	01	1	0803-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0803-	●
29	03.163 HOSE; FUEL (E)	8-98099-503-0	01	1	0803-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98099-502-0	01	1	0803-	●
29	03.163 HOSE; FUEL (C)	8-98099-502-0	01	1	0803-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-98105-710-0	01	1	0803-	●
29	03.163 HOSE; FUEL (D)	8-98105-710-0	01	1	0803-		●
29	03.163 HOSE; FUEL FRAME-KICK UP<7EW> (B)	8-98063-744-1	01	1	0803-	●
29	03.163 HOSE; FUEL FRAME-KICK UP<7EW> (A)	8-98090-380-0	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW> (B)	8-98063-733-0	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY EXC. FRAME-KICK UP<7EW> (A)	8-97389-579-3	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	0803-		●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98110-833-0	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-98063-734-0	01	1	0803-	●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B)	8-98020-778-3	01	1	0803-	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98020-778-3	01	1	0803-		●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98064-630-0	01	1	0803-1005	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98064-630-0	01	1	0803-1005		●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1006-1309	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98163-294-0	01	1	1006-1309		●
47	03.163 PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1310-	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0803-	●	●
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	01	1	0803-	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0803-		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0803-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0803-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (H)	8-97389-773-1	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (F)	8-98112-357-1	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (G)	8-98112-358-2	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FRAME-KICK UP<7EW> (A)	8-97389-772-0	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-1	01	1	0810-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-0	01	1	0803-0809	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-1	01	1	0810-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-0	01	1	0803-0809	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) (A)	8-98028-752-2	01	1	0803-0803	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) (B)	8-98107-370-0	01	1	0804-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN FRAME-KICK UP<7EW> (B)	8-97389-776-1	01	1	0803-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98064-802-0	01	1	0803-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98064-802-0	01	1	0803-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98147-758-0	01	1	1006-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1006-		●
97	03.162 BRACKET; CLIP FRAME-KICK UP<7EW> (D)	8-98034-748-1	02	1	0803-	●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98006-480-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0803-		●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98039-929-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0803-		●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98064-442-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0803-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-0809	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0803-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	02	1	0803-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0803-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-		●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME-KICK UP<7EW> (B)	8-98063-732-0	01	1	0803-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. FRAME-KICK UP<7EW> (A)	8-98064-632-1	01	1	0803-1309	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98064-632-1	01	1	0803-1309		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98064-632-1	01	1	1310-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0803-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0803-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0803-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0803-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●

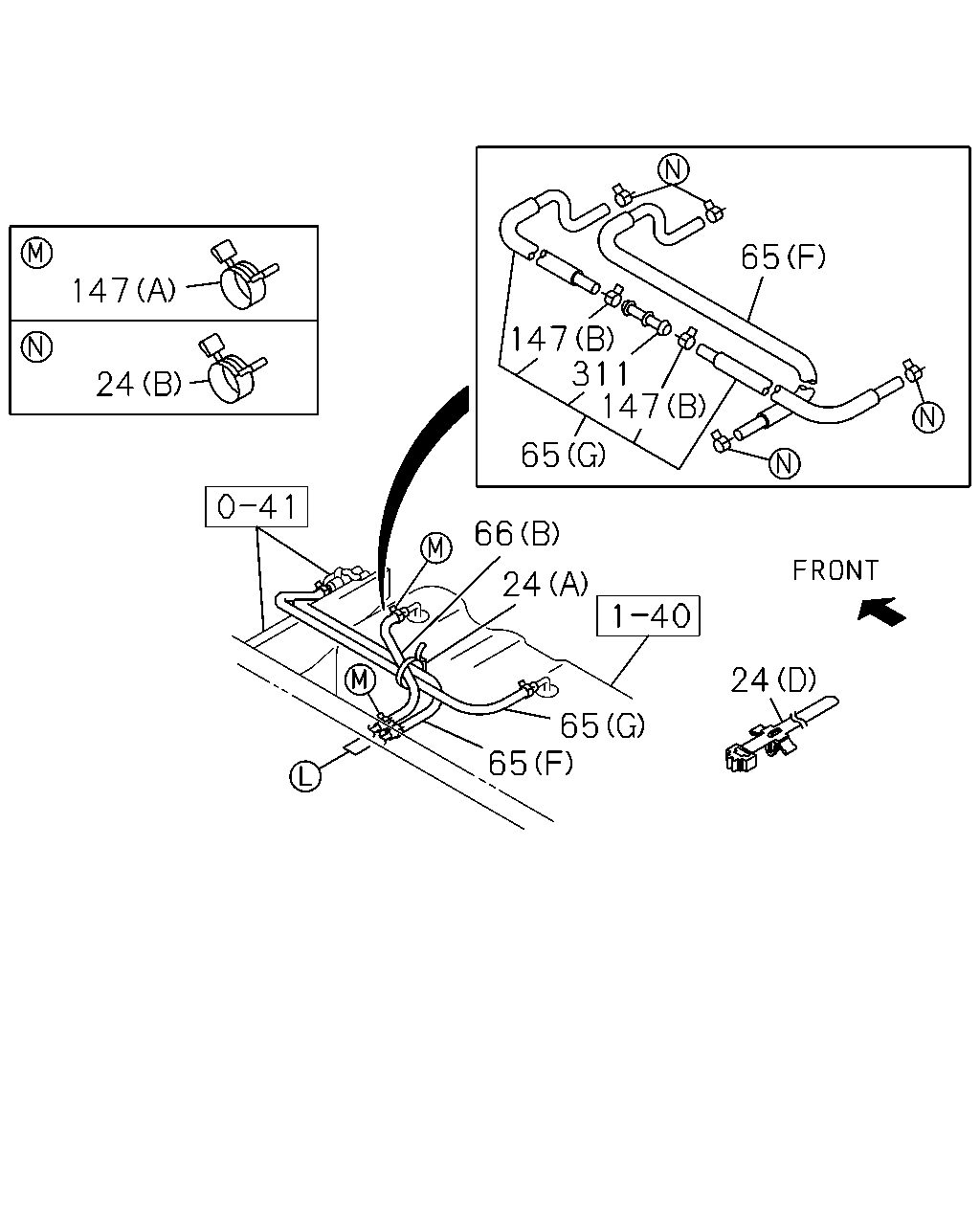

65 147 147 311 147 24 65 66 24 24 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> 02.559 (D) L=170.3	1-09987-182-0	01	1	0803-0807	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (A) L=250	5-09707-030-1	01	1	0803-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-0803	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0803-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-		●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0803-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (H)	8-97389-773-1	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (F)	8-98112-357-1	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (G)	8-98112-358-2	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FRAME-KICK UP<7EW> (A)	8-97389-772-0	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-1	01	1	0810-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-0	01	1	0803-0809	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-1	01	1	0810-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=500	8-98057-029-0	01	1	0803-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-0809	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0803-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	02	1	0803-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0803-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-		●
311	03.163 JOINT; HOSE FRAME-KICK UP<7EW>	8-97353-668-0	01	1	0803-	●
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	0803-		●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	0803-0809	●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-97353-668-0	02	1	0810-	●

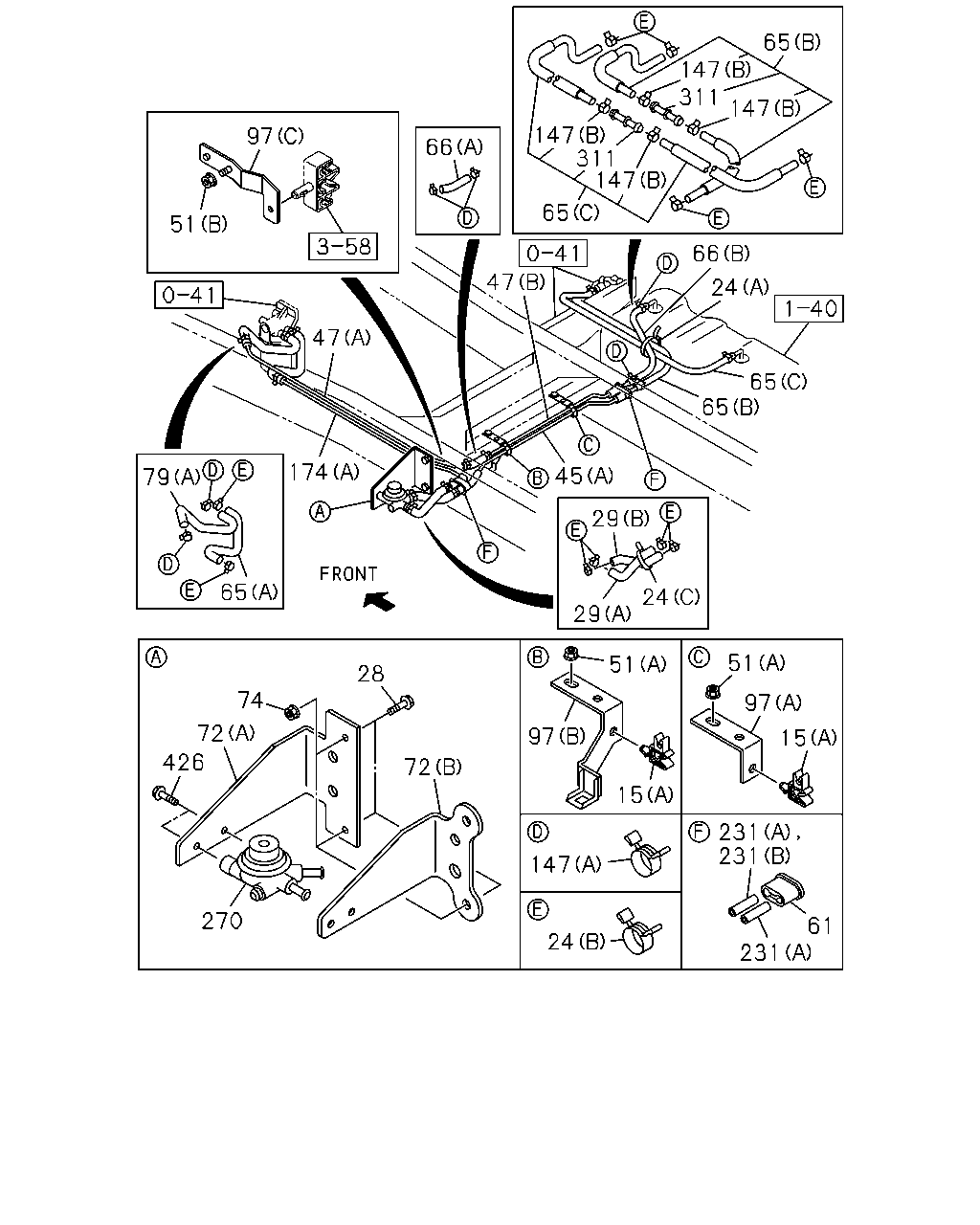

66 66 47 24 47 65 174 45 29 79 29 65 29 51 51 97 97 15 270 15 426 97 231 24 147 51 231 61 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0803-	●	●
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	0803-		●
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> 02.559 (D) L=170.3	1-09987-182-0	01	1	0803-0807	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (A) L=250	5-09707-030-1	01	1	0803-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-0803	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0803-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-		●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0803-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=200	8-98081-038-0	01	1	0803-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0803-	●
29	03.163 HOSE; FUEL (E)	8-98099-503-0	01	1	0803-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98099-502-0	01	1	0803-	●
29	03.163 HOSE; FUEL (C)	8-98099-502-0	01	1	0803-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-98105-710-0	01	1	0803-	●
29	03.163 HOSE; FUEL (D)	8-98105-710-0	01	1	0803-		●
29	03.163 HOSE; FUEL FRAME-KICK UP<7EW> (B)	8-98063-744-1	01	1	0803-	●
29	03.163 HOSE; FUEL FRAME-KICK UP<7EW> (A)	8-98090-380-0	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW> (B)	8-98063-733-0	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY EXC. FRAME-KICK UP<7EW> (A)	8-97389-579-3	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	0803-		●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98110-833-0	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-98063-734-0	01	1	0803-	●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B)	8-98020-778-3	01	1	0803-	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98020-778-3	01	1	0803-		●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98064-630-0	01	1	0803-1005	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98064-630-0	01	1	0803-1005		●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1006-1309	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98163-294-0	01	1	1006-1309		●
47	03.163 PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1310-	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0803-	●	●
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	01	1	0803-	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0803-		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0803-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0803-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (H)	8-97389-773-1	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (F)	8-98112-357-1	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (G)	8-98112-358-2	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FRAME-KICK UP<7EW> (A)	8-97389-772-0	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-1	01	1	0810-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-0	01	1	0803-0809	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-1	01	1	0810-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=500	8-98057-029-0	01	1	0803-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN FRAME-KICK UP<7EW> (B)	8-97389-776-1	01	1	0803-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98064-802-0	01	1	0803-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98064-802-0	01	1	0803-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98147-758-0	01	1	1006-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1006-		●
97	03.162 BRACKET; CLIP FRAME-KICK UP<7EW> (D)	8-98034-748-1	02	1	0803-	●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98006-480-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0803-		●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98039-929-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0803-		●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98064-442-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0803-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-0809	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0803-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	02	1	0803-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0803-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-		●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME-KICK UP<7EW> (B)	8-98063-732-0	01	1	0803-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. FRAME-KICK UP<7EW> (A)	8-98064-632-1	01	1	0803-1309	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98064-632-1	01	1	0803-1309		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98064-632-1	01	1	1310-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0803-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0803-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0803-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0803-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●

65 147 311 147 147 311 147 97 66 65 51 66 47 24 47 65 65 174 45 79 29 65 24 29 51 51 28 74 97 72 97 15 426 72 15 231 231 147 270 61 24 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0803-	●	●
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	0803-		●
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> 02.559 (D) L=170.3	1-09987-182-0	01	1	0803-0807	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (A) L=250	5-09707-030-1	01	1	0803-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-0803	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0803-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-		●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0803-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=200	8-98081-038-0	01	1	0803-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0803-	●
29	03.163 HOSE; FUEL (E)	8-98099-503-0	01	1	0803-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98099-502-0	01	1	0803-	●
29	03.163 HOSE; FUEL (C)	8-98099-502-0	01	1	0803-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-98105-710-0	01	1	0803-	●
29	03.163 HOSE; FUEL (D)	8-98105-710-0	01	1	0803-		●
29	03.163 HOSE; FUEL FRAME-KICK UP<7EW> (B)	8-98063-744-1	01	1	0803-	●
29	03.163 HOSE; FUEL FRAME-KICK UP<7EW> (A)	8-98090-380-0	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW> (B)	8-98063-733-0	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY EXC. FRAME-KICK UP<7EW> (A)	8-97389-579-3	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	0803-		●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98110-833-0	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-98063-734-0	01	1	0803-	●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B)	8-98020-778-3	01	1	0803-	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98020-778-3	01	1	0803-		●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98064-630-0	01	1	0803-1005	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98064-630-0	01	1	0803-1005		●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1006-1309	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98163-294-0	01	1	1006-1309		●
47	03.163 PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1310-	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0803-	●	●
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	01	1	0803-	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0803-		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0803-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0803-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (H)	8-97389-773-1	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (F)	8-98112-357-1	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (G)	8-98112-358-2	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FRAME-KICK UP<7EW> (A)	8-97389-772-0	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-1	01	1	0810-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-0	01	1	0803-0809	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-1	01	1	0810-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=500	8-98057-029-0	01	1	0803-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) (A)	8-98028-752-2	01	1	0803-0803	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) (B)	8-98107-370-0	01	1	0804-	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN FRAME-KICK UP<7EW> (B)	8-97389-776-1	01	1	0803-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98064-802-0	01	1	0803-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98064-802-0	01	1	0803-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98147-758-0	01	1	1006-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1006-		●
97	03.162 BRACKET; CLIP FRAME-KICK UP<7EW> (D)	8-98034-748-1	02	1	0803-	●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98006-480-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0803-		●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98039-929-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0803-		●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98064-442-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0803-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-0809	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0803-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	02	1	0803-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0803-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-		●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME-KICK UP<7EW> (B)	8-98063-732-0	01	1	0803-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. FRAME-KICK UP<7EW> (A)	8-98064-632-1	01	1	0803-1309	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98064-632-1	01	1	0803-1309		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98064-632-1	01	1	1310-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0803-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0803-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0803-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0803-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
311	03.163 JOINT; HOSE FRAME-KICK UP<7EW>	8-97353-668-0	01	1	0803-	●
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	0803-		●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	0803-0809	●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-97353-668-0	02	1	0810-	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●

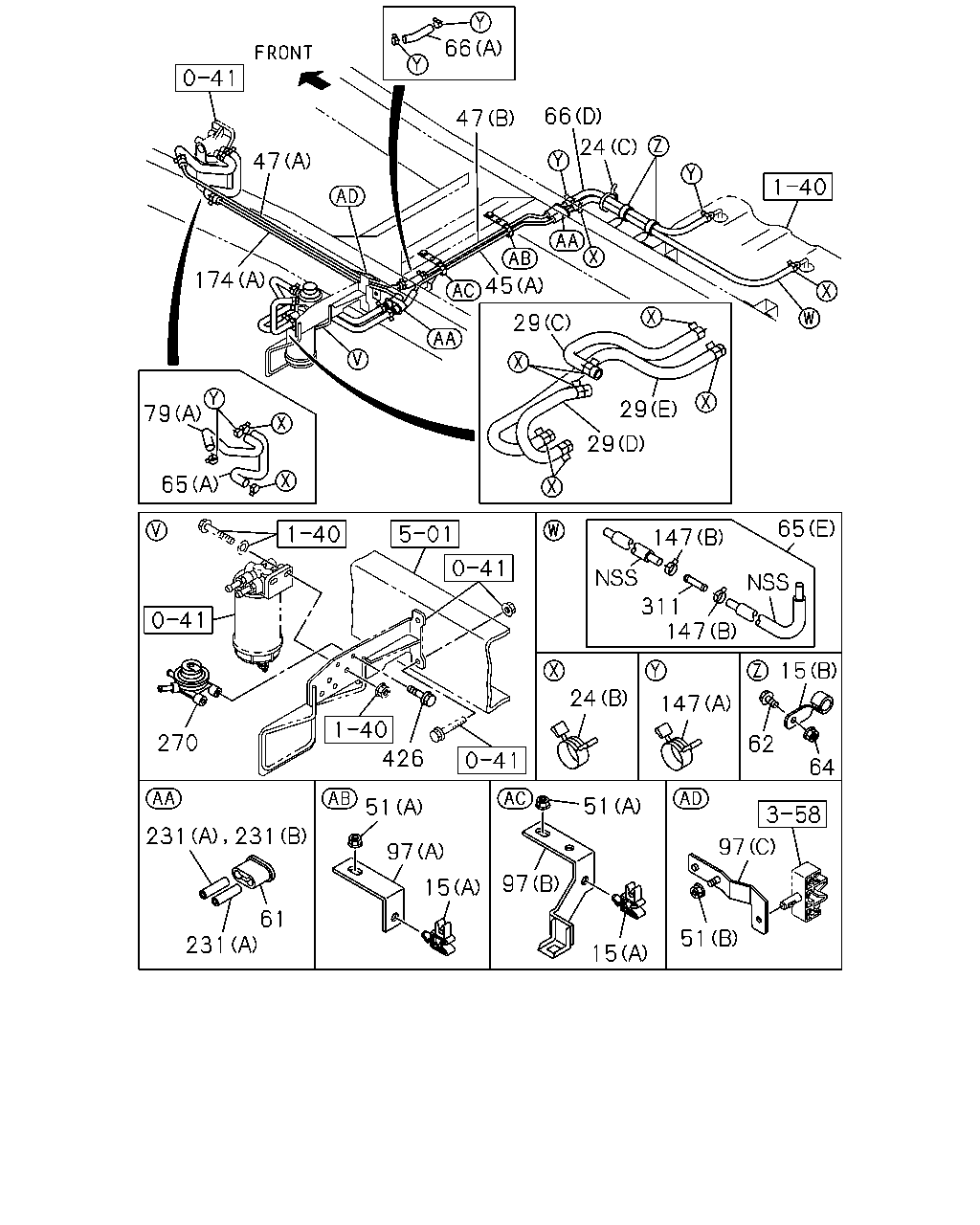

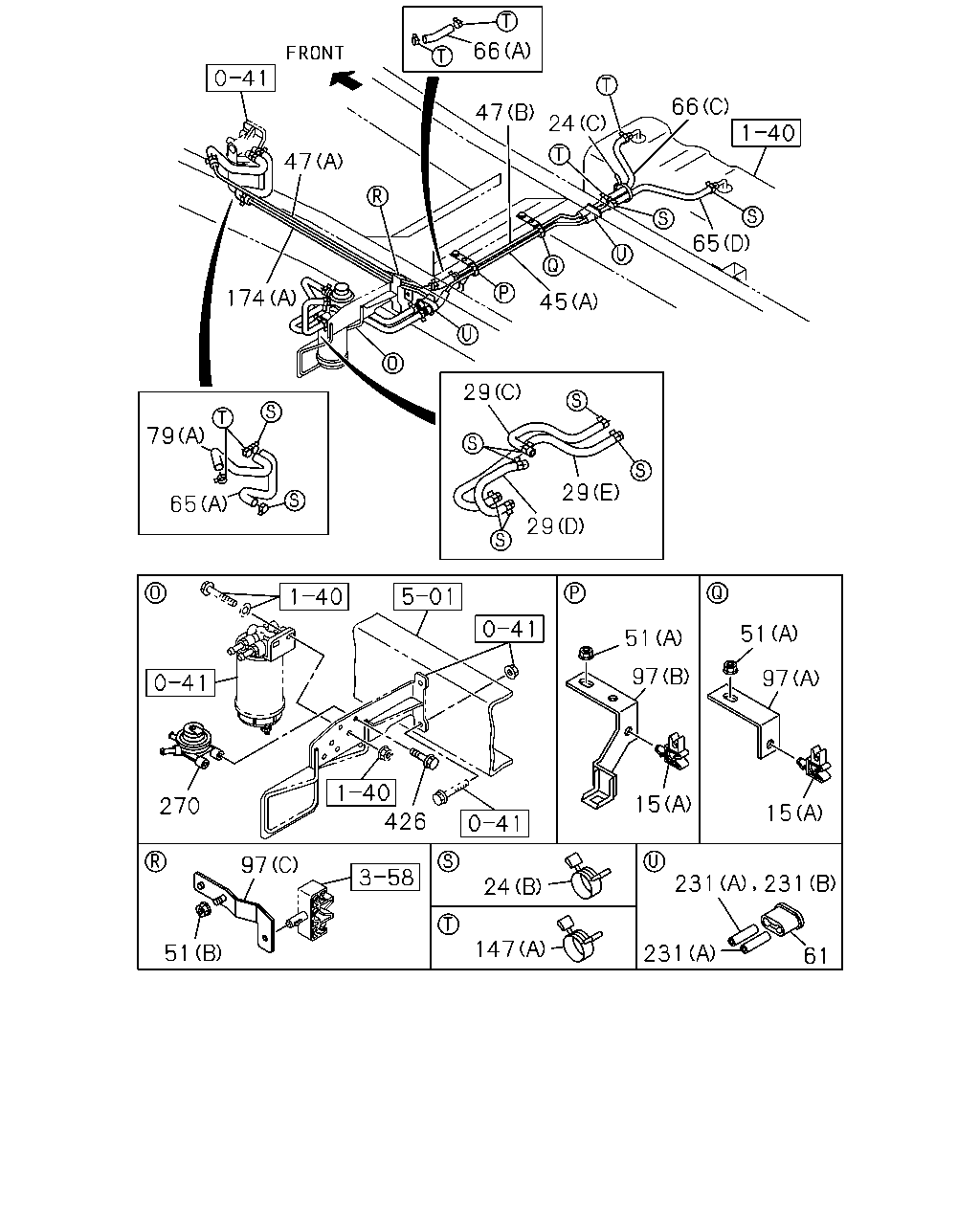

66 66 47 24 47 174 45 29 29 79 29 65 65 147 311 147 15 24 147 270 62 426 64 51 51 231 97 97 97 15 61 51 231 15 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0803-	●	●
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	0803-		●
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> 02.559 (D) L=170.3	1-09987-182-0	01	1	0803-0807	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (A) L=250	5-09707-030-1	01	1	0803-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-0803	●	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	0803-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	0803-		●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0803-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=200	8-98081-038-0	01	1	0803-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0803-	●
29	03.163 HOSE; FUEL (E)	8-98099-503-0	01	1	0803-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98099-502-0	01	1	0803-	●
29	03.163 HOSE; FUEL (C)	8-98099-502-0	01	1	0803-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-98105-710-0	01	1	0803-	●
29	03.163 HOSE; FUEL (D)	8-98105-710-0	01	1	0803-		●
29	03.163 HOSE; FUEL FRAME-KICK UP<7EW> (B)	8-98063-744-1	01	1	0803-	●
29	03.163 HOSE; FUEL FRAME-KICK UP<7EW> (A)	8-98090-380-0	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW> (B)	8-98063-733-0	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY EXC. FRAME-KICK UP<7EW> (A)	8-97389-579-3	01	1	0803-	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	0803-		●
47	03.163 PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98110-833-0	01	1	1310-	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1310-		●
47	03.163 PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-98063-734-0	01	1	0803-	●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B)	8-98020-778-3	01	1	0803-	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98020-778-3	01	1	0803-		●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98064-630-0	01	1	0803-1005	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98064-630-0	01	1	0803-1005		●
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1006-1309	●
47	03.163 PIPE; FUEL,RETURN (A)	8-98163-294-0	01	1	1006-1309		●
47	03.163 PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1310-	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0803-	●	●
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	01	1	0803-	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0803-		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0803-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0803-	●	●
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-		●
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (H)	8-97389-773-1	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (F)	8-98112-357-1	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (G)	8-98112-358-2	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FRAME-KICK UP<7EW> (A)	8-97389-772-0	01	1	0803-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	0803-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-1	01	1	0810-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-0	01	1	0803-0809	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-1	01	1	0810-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=500	8-98057-029-0	01	1	0803-	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0803-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0803-0809	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN FRAME-KICK UP<7EW> (B)	8-97389-776-1	01	1	0803-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98064-802-0	01	1	0803-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98064-802-0	01	1	0803-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98147-758-0	01	1	1006-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1006-		●
97	03.162 BRACKET; CLIP FRAME-KICK UP<7EW> (D)	8-98034-748-1	02	1	0803-	●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98006-480-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0803-		●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98039-929-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0803-		●
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98064-442-1	01	1	0803-	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0803-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0803-0809	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0803-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0803-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	02	1	0803-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0803-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-		●
174	03.163 PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-97389-589-1	01	1	1310-	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-97389-589-1	01	1	1310-		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME-KICK UP<7EW> (B)	8-98063-732-0	01	1	0803-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. FRAME-KICK UP<7EW> (A)	8-98064-632-1	01	1	0803-1309	●
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98064-632-1	01	1	0803-1309		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98064-632-1	01	1	1310-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0803-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0803-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0803-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0803-1408	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
311	03.163 JOINT; HOSE FRAME-KICK UP<7EW>	8-97353-668-0	01	1	0803-	●
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	0803-		●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	0803-0809	●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-97353-668-0	02	1	0810-	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
