1-40 — FUEL TANK (#80349) — 58 parça

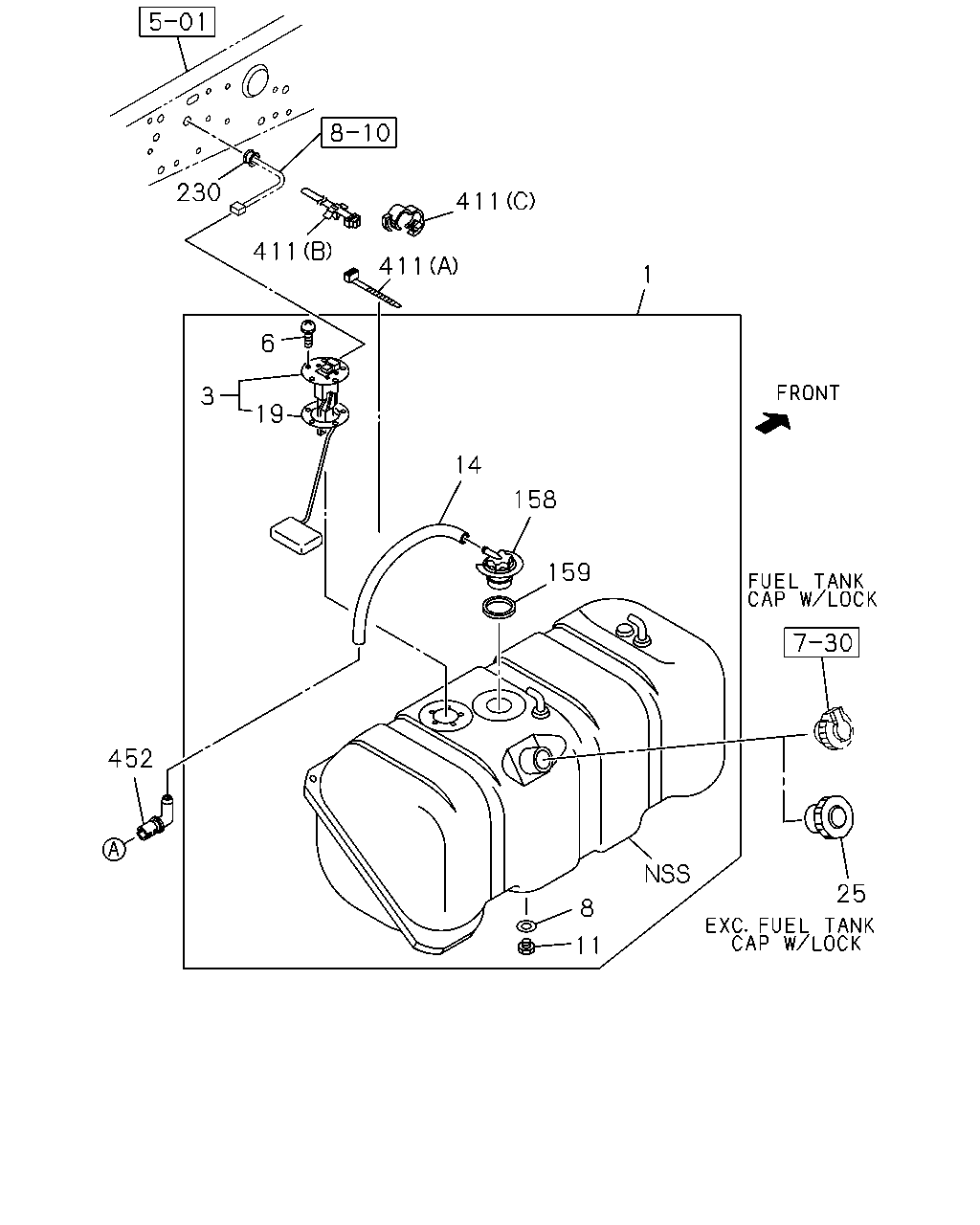

çizim 93265
230 411 411 411 1 6 3 19 14 158 159 452 25 8 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1003X375X380 100L 		8-98021-295-6 01 1 0803- ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 756X375X375 75L 		8-98021-294-5 01 1 0803- ●
1 03.001 TANK; FUEL
756X375X375 75L 		8-98021-294-5 01 1 0803- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> 		8-98056-704-0 01 1 0803- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER<7GX> 		8-98056-703-0 01 1 0803- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-703-0 01 1 0803- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0803- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0803- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0803- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0803- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0803- ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0803- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1004- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 75 LITTER<7GX> L=320 		8-98157-805-0 01 1 1004- ●
14 03.163 HOSE; BREATHER,OUTLET
L=320 		8-98157-805-0 01 1 1004- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 		8-98051-797-0 01 1 0803- ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 0803- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0803- ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 		8-97179-645-0 01 1 0803- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0803- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 		8-97326-488-0 01 1 0803- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0803- ●
230 03.115 GROMMET; HARNESS,FUEL TANK UNIT
FRAME-KICK UP<7EW> 04.866 ID=24 OD=30 T=20 		1-09332-096-0 01 1 0803- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME-KICK UP<7EW> 03.162 (A) L=140 		5-09707-031-1 01 1 0803- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME-KICK UP<7EW> (B) L=170.3 		1-09987-182-0 01 1 0803- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0803- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME-KICK UP<7EW> 03.162 (A) L=140 		5-09707-031-1 02 1 0803- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140 		5-09707-031-1 02 1 0803- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2400MM(24W) (C) ID=20 		8-94241-972-0 02 1 0803- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (C) ID=20 		8-94241-972-0 01 1 0803- ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0803- ● ●

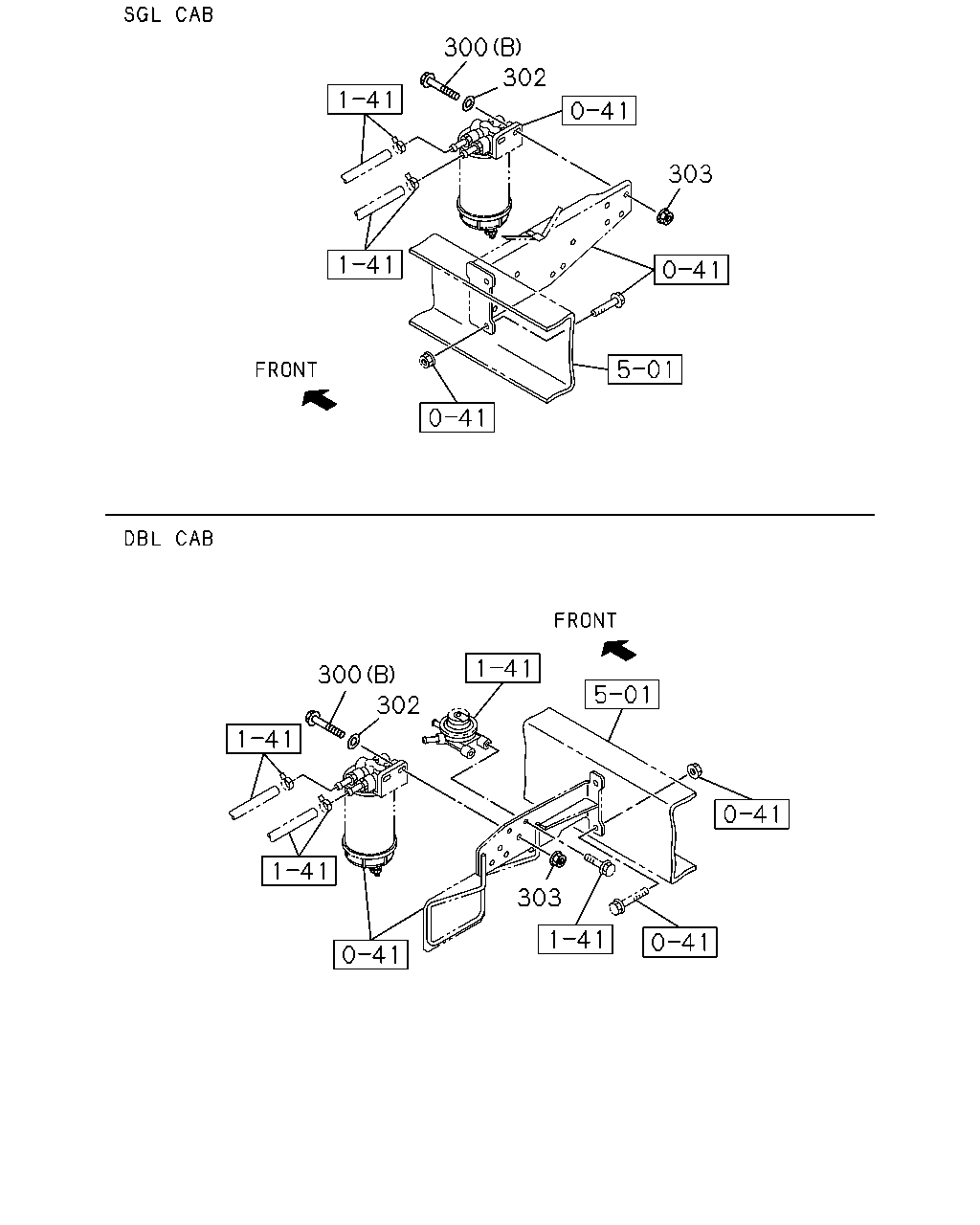

çizim 93312
300 302 303 300 302 303
BalonParca AdiParca NoAdetTipApplied Date A B
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
300 03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0803- ● ●
302 03.162 WASHER; PL,SEDIMENTER
04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0803- ● ●
303 03.162 NUT; SEDIMENTER BRKT
M10 FLANGE 		0-91180-110-0 02 1 0803- ● ●

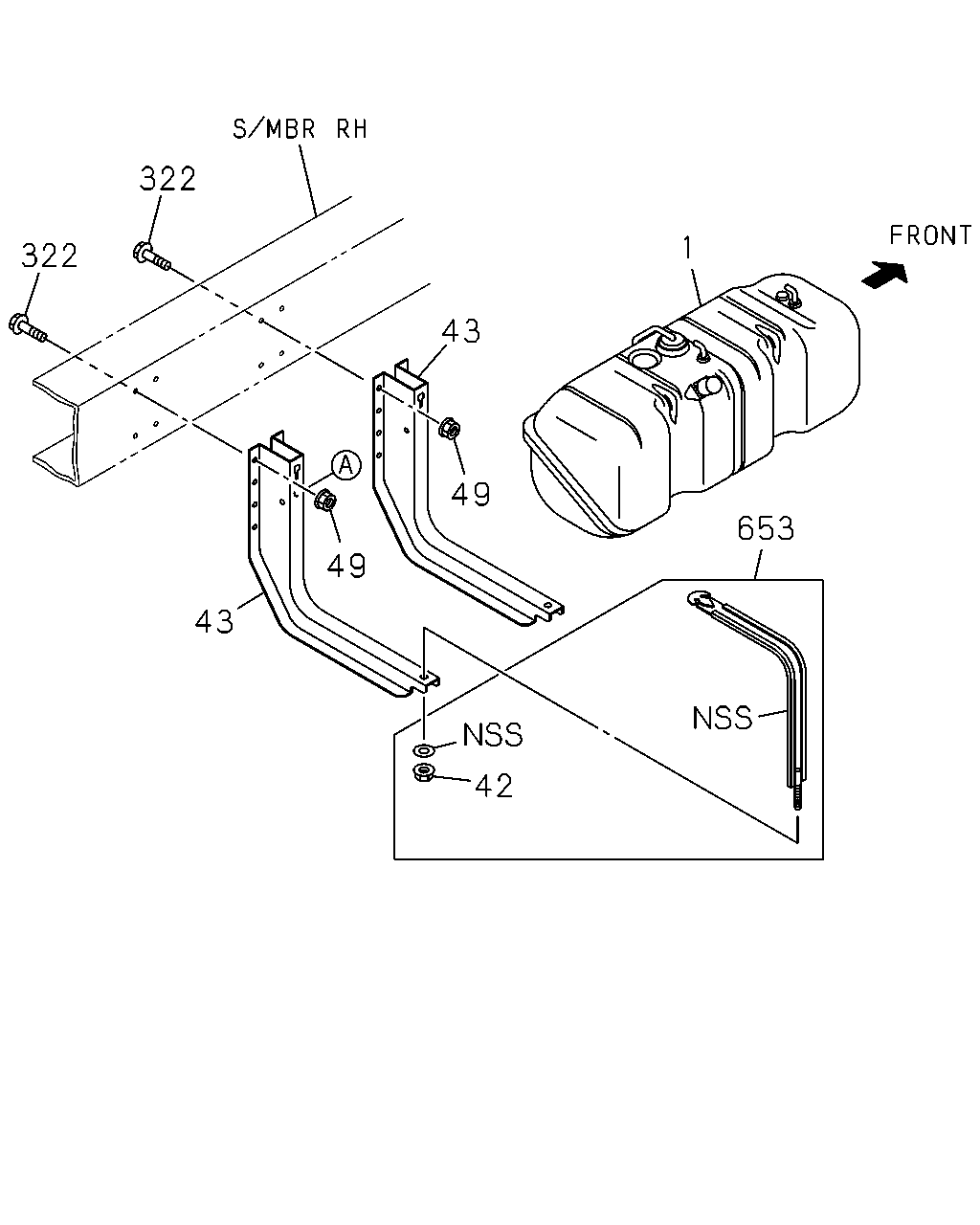

çizim 93340
1 653 42 43 49 49 43 322 322
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1003X375X380 100L 		8-98021-295-6 01 1 0803- ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 756X375X375 75L 		8-98021-294-5 01 1 0803- ●
1 03.001 TANK; FUEL
756X375X375 75L 		8-98021-294-5 01 1 0803- ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0803- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> EXC. FRAME-KICK UP<7EW> FRONT 		8-98061-738-1 01 1 0803- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> EXC. FRAME-KICK UP<7EW> REAR 		8-98061-739-1 01 1 0803- ●
43 03.015 BRACKET; FUEL TANK
FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> 		8-97308-627-1 02 1 0803- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW> FRONT 		8-97384-056-1 01 1 0803- ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97384-056-1 01 1 0803- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW> REAR 		8-97384-081-1 01 1 0803- ●
43 03.015 BRACKET; FUEL TANK
REAR 		8-97384-081-1 01 1 0803- ●
49 03.023 NUT; BRKT
EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0803- ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0803- ●
322 03.895 BOLT; BRKT FIX
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0803- ● ●
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 0803- ● ●

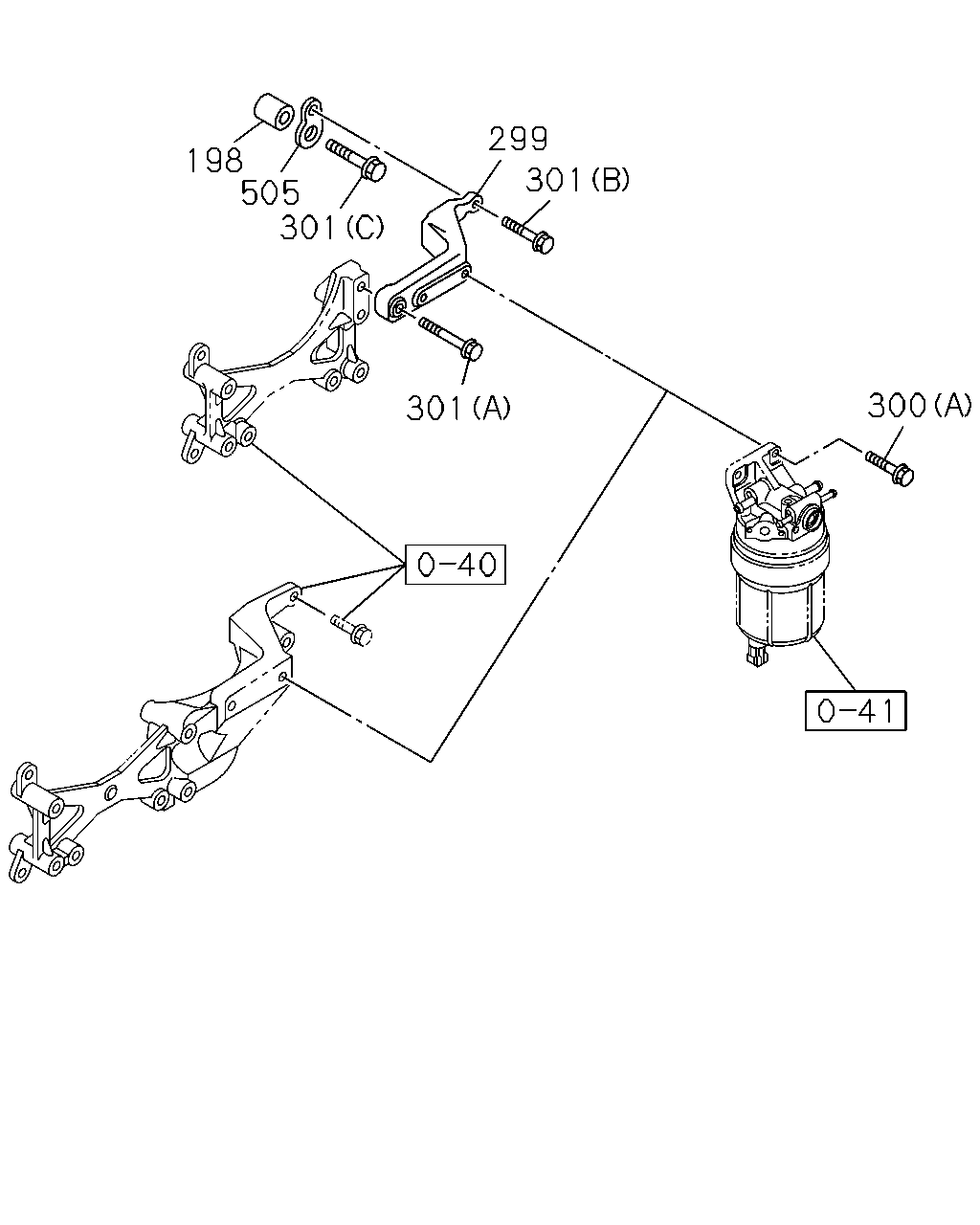

çizim 182636
299 198 505 301 301 300 301
BalonParca AdiParca NoAdetTipApplied Date A B
198 03.107 SPACER 8-98081-509-0 01 1 0803-1001 ● ●
299 03.162 BRACKET; FUEL FILTER 8-98009-087-4 01 1 0803-1001 ● ●
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
300 03.162 BOLT; BRKT TO BODY
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0803- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(B) M8X40 FLANGE 		0-28060-840-0 01 1 0803-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X66 FLANGE 		8-98081-507-0 01 1 0803-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(C) M14X58 FLANGE 		8-98081-508-0 01 1 0803-1001 ● ●
505 03.163 BRACKET 8-98081-486-0 01 1 0803-1001 ● ●
