◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#80347) — 398 parça

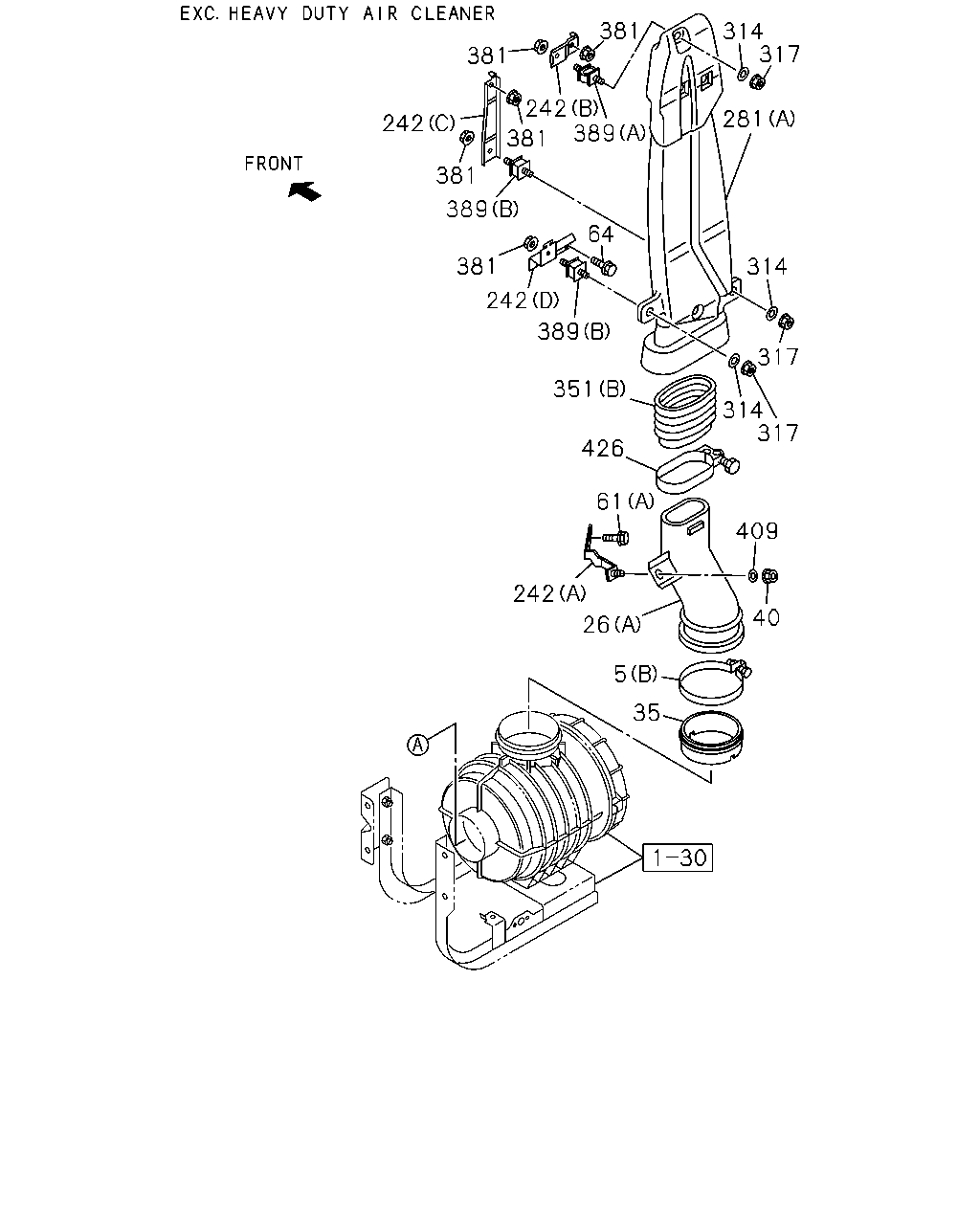

çizim 92110
381 314 317 381 242 389 281 242 381 381 389 64 381 314 242 389 317 351 314 317 426 61 409 242 40 26 5 35
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0803- ●
5 03.407 CLIP; AIR DUCT
03.417 (B) 		9-09915-504-1 01 1 0803-0803 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=50-65 		1-09707-204-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (A) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 03 1 0803-0810 ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 03 1 0901- ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 01 1 0803-0811 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0803-0812 ●
5 03.407 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0902- ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 0803- ●
26 03.417 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 0803- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0803- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0803- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0803- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98079-905-1 01 1 0803- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0803-1411 ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98108-313-1 01 1 1412- ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-994-2 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97369-706-0 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (D) 		8-98101-995-5 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98061-757-2 01 1 0803- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0803- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ● ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98067-267-0 01 1 0803- ● ●
351 03.407 DUCT; AIR
(C) 		8-98072-163-1 01 1 0803- ●
351 03.407 DUCT; AIR
03.417 (B) 		8-97109-423-0 01 1 0803-0803 ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0803- ●
351 03.407 DUCT; AIR
(D) 		8-98023-343-1 01 1 0803-0810 ●
351 03.407 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0803- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0803- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0803- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0803- ● ●
426 03.417 CLIP; DUCT
03.407 D=101.6 		9-09915-502-1 01 1 0803- ●

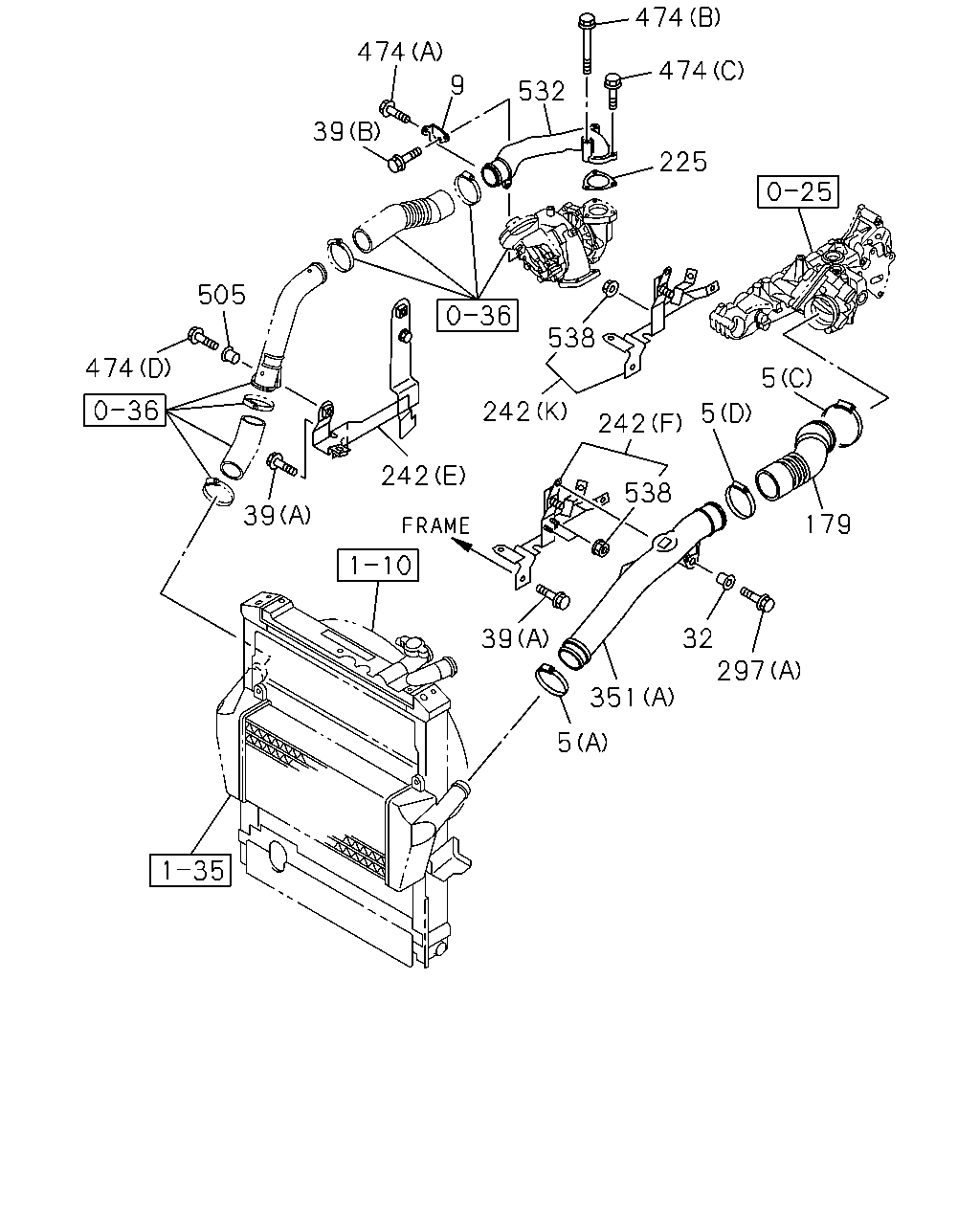

çizim 92124
474 39 505 474 39 242 39 5 351 297 32 179 5 5 242 242 538 225 532 9 474 474 538
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0803- ●
5 03.407 CLIP; AIR DUCT
03.417 (B) 		9-09915-504-1 01 1 0803-0803 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=50-65 		1-09707-204-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (A) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 03 1 0803-0810 ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 03 1 0901- ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 01 1 0803-0811 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0803-0812 ●
5 03.407 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0902- ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
9 03.417 BRACKET; INT PIPE 8-98009-086-0 01 1 0803- ● ●
32 03.417 RUBBER; AIR DUCT MTG
03.265 OD=23 		8-97105-689-6 01 1 0803- ● ●
39 03.417 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 0803- ● ●
39 03.417 BOLT; BRKT
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0803- ● ●
179 03.417 HOSE; AIR INT 8-98050-920-2 01 1 0803- ● ●
225 03.417 GASKET; AIR PIPE
03.270 ID=47 		8-97202-328-1 01 1 0803- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98079-905-1 01 1 0803- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0803-1411 ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98108-313-1 01 1 1412- ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 0803- ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0803- ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98067-267-0 01 1 0803- ● ●
351 03.407 DUCT; AIR
(C) 		8-98072-163-1 01 1 0803- ●
351 03.407 DUCT; AIR
03.417 (B) 		8-97109-423-0 01 1 0803-0803 ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0803- ●
351 03.407 DUCT; AIR
(D) 		8-98023-343-1 01 1 0803-0810 ●
351 03.407 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
474 03.417 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 0803- ● ●
474 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0803- ● ●
474 03.417 BOLT; PIPE
03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 0803- ● ●
474 03.417 BOLT; PIPE
01.060 (D) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ● ●
505 03.406 RUBBER; MTG
03.265 OD=23 		8-97105-689-6 01 1 0803- ● ●
532 03.417 PIPE; INTAKE 8-97385-203-1 01 1 0803-1303 ● ●
532 03.417 PIPE; INTAKE 8-98237-771-1 01 1 1304- ● ●
538 03.417 NUT; PLATE,AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0803- ● ●

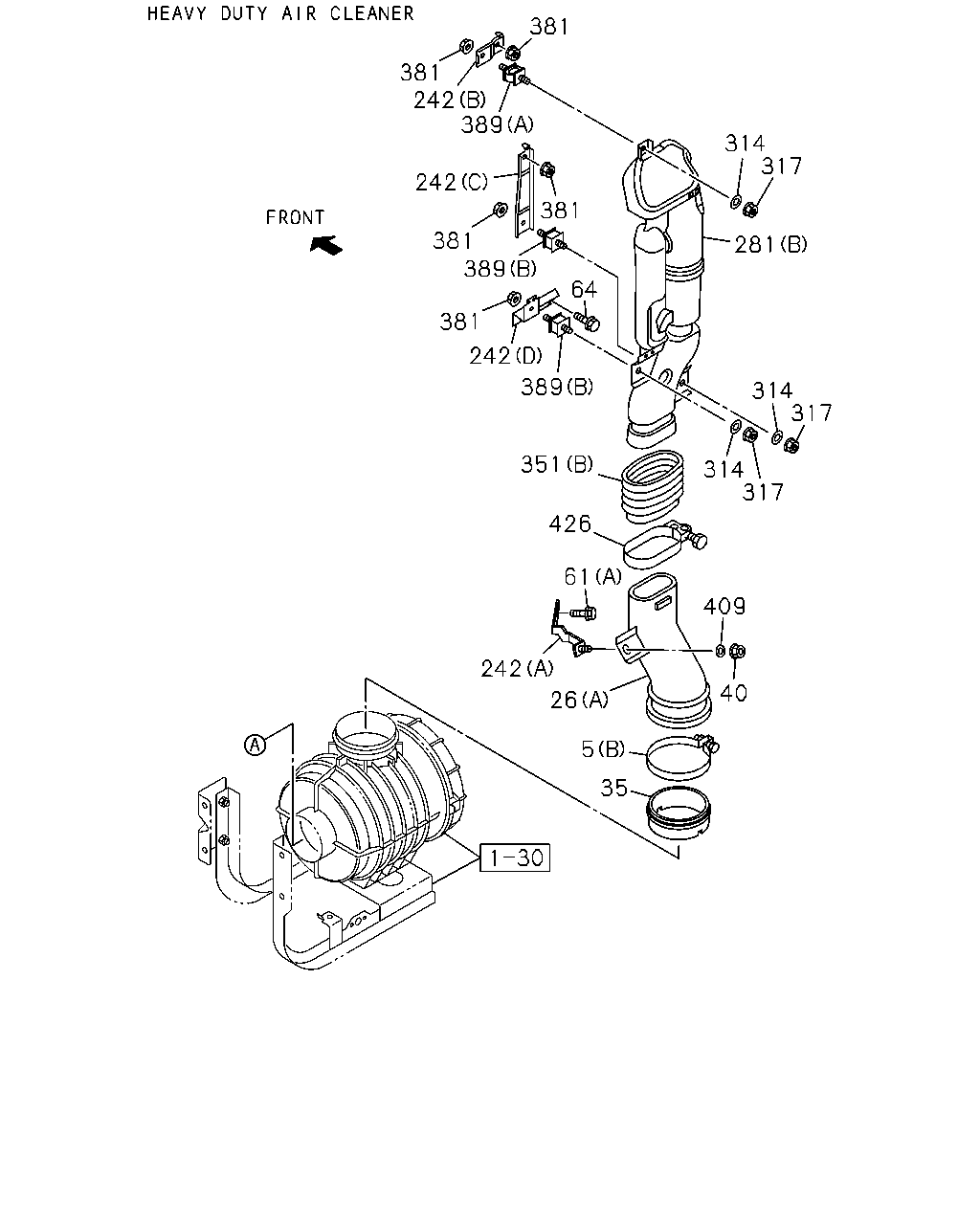

çizim 92289
381 381 242 389 314 317 242 381 381 389 281 64 381 242 389 314 317 351 314 317 426 61 409 242 40 26 5 35
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0803- ●
5 03.407 CLIP; AIR DUCT
03.417 (B) 		9-09915-504-1 01 1 0803-0803 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=50-65 		1-09707-204-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (A) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 03 1 0803-0810 ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 03 1 0901- ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 01 1 0803-0811 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0803-0812 ●
5 03.407 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0902- ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 0803- ●
26 03.417 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 0803- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0803- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0803- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0803- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98079-905-1 01 1 0803- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0803-1411 ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98108-313-1 01 1 1412- ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-994-2 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97369-706-0 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (D) 		8-98101-995-5 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98061-757-2 01 1 0803- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0803- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ● ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98067-267-0 01 1 0803- ● ●
351 03.407 DUCT; AIR
(C) 		8-98072-163-1 01 1 0803- ●
351 03.407 DUCT; AIR
03.417 (B) 		8-97109-423-0 01 1 0803-0803 ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0803- ●
351 03.407 DUCT; AIR
(D) 		8-98023-343-1 01 1 0803-0810 ●
351 03.407 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0803- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0803- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0803- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0803- ● ●
426 03.417 CLIP; DUCT
03.407 D=101.6 		9-09915-502-1 01 1 0803- ●

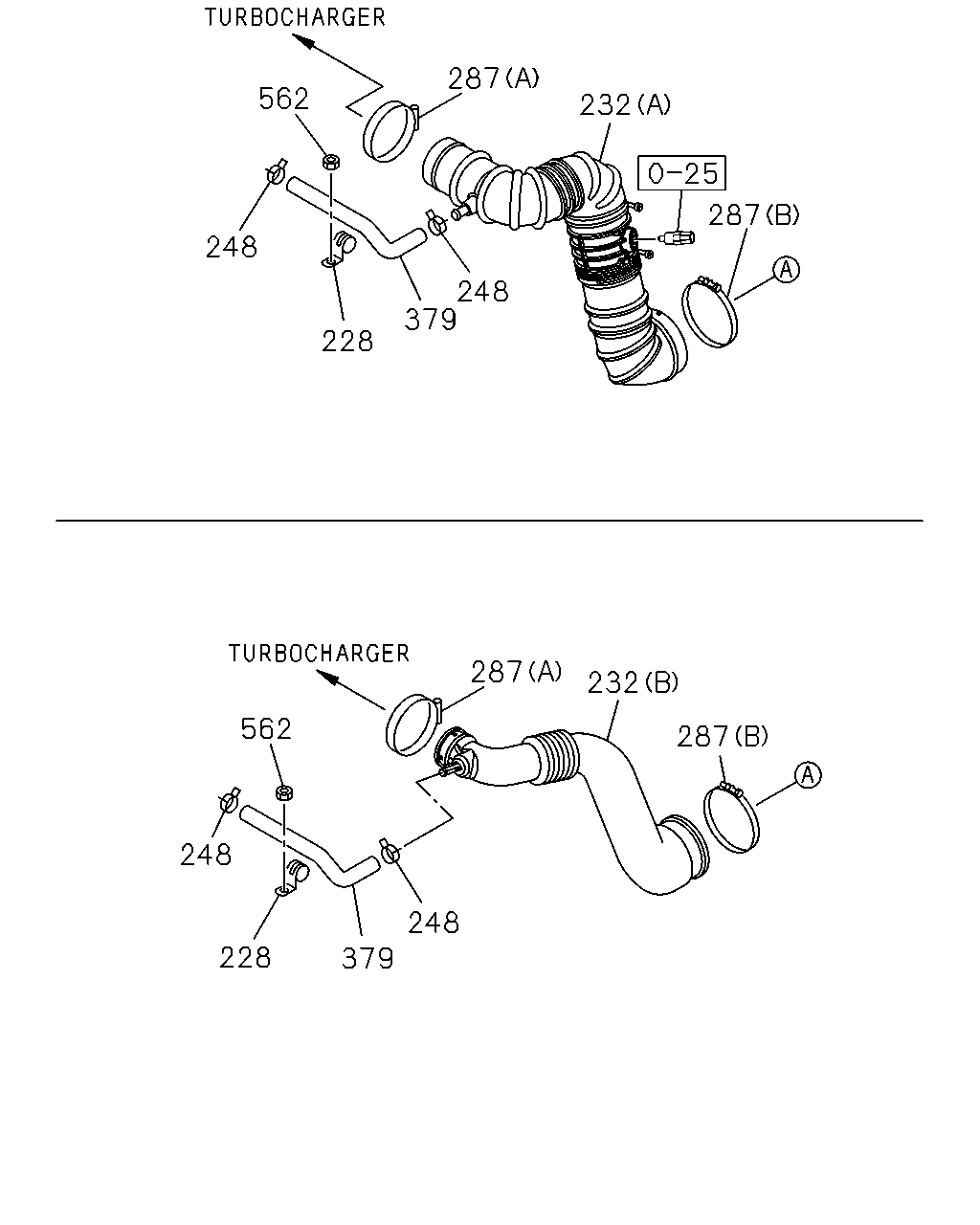

çizim 92304
562 248 228 379 248 287 232 287 287 232 287 562 248 228 379 248
BalonParca AdiParca NoAdetTipApplied Date A B
228 03.278 CLIP; PCV HOSE
ID=25 H=40 L=50 		8-98073-275-0 01 1 0803- ● ●
232 03.417 HOSE; CONN
FRAME-KICK UP<7EW> (B) 		8-98067-737-0 01 1 0803- ●
232 03.417 HOSE; CONN
EXC. FRAME-KICK UP<7EW> (A) 		8-98048-540-0 01 1 0803-1409 ●
232 03.417 HOSE; CONN
EXC. FRAME-KICK UP<7EW> (A) 		8-98269-834-0 01 1 1410- ●
232 03.417 HOSE; CONN
(D) 		8-98108-234-0 01 1 0803- ●
232 03.417 HOSE; CONN
(C) 		8-98082-535-0 01 1 0803-0812 ●
232 03.417 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(C) 		8-98082-535-0 01 1 0902-1309 ●
232 03.417 HOSE; CONN
(C) 		8-98231-785-0 01 1 1310- ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 0803- ● ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=117 		9-09915-075-1 01 1 0803- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=68-85 		1-09707-202-0 01 1 0803-0810 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
287 03.417 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=70-90 		8-98122-372-0 01 1 1002- ●
379 03.675 HOSE; RUBBER 8-98088-700-2 01 1 0803-0810 ● ●
379 03.675 HOSE; RUBBER 8-98135-511-0 01 1 0811- ● ●
562 03.403 NUT; HOSE CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0803-0809 ● ●
562 03.403 NUT; HOSE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●

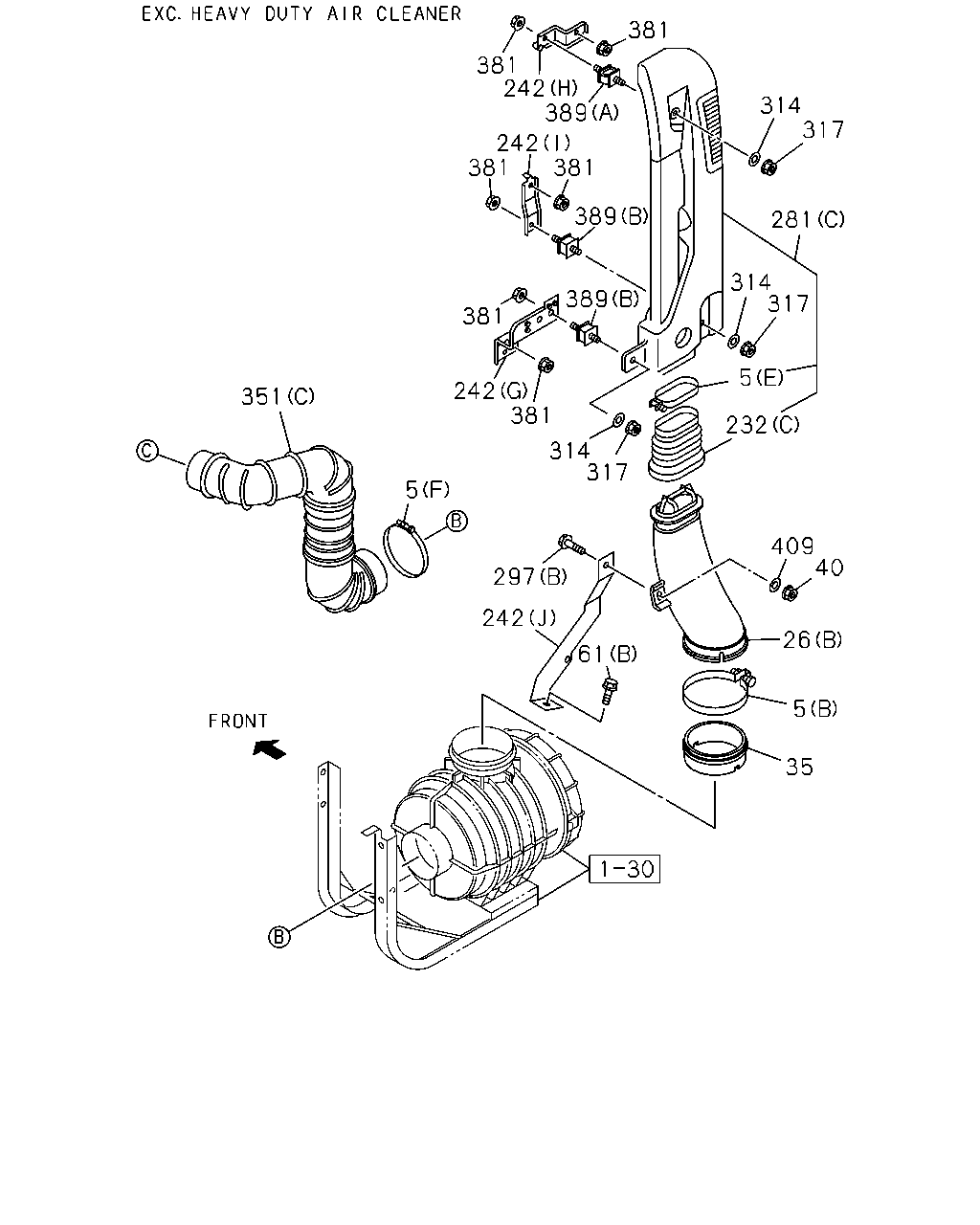

çizim 92436
381 381 242 389 314 317 242 381 381 389 281 314 317 389 381 5 242 381 351 232 314 317 5 409 40 297 242 26 61 5 35
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0803- ●
5 03.407 CLIP; AIR DUCT
03.417 (B) 		9-09915-504-1 01 1 0803-0803 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=50-65 		1-09707-204-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (A) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 03 1 0803-0810 ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 03 1 0901- ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 01 1 0803-0811 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0803-0812 ●
5 03.407 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0902- ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 0803- ●
26 03.417 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 0803- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0803- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0803- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0803- ●
232 03.417 HOSE; CONN
FRAME-KICK UP<7EW> (B) 		8-98067-737-0 01 1 0803- ●
232 03.417 HOSE; CONN
EXC. FRAME-KICK UP<7EW> (A) 		8-98048-540-0 01 1 0803-1409 ●
232 03.417 HOSE; CONN
EXC. FRAME-KICK UP<7EW> (A) 		8-98269-834-0 01 1 1410- ●
232 03.417 HOSE; CONN
(D) 		8-98108-234-0 01 1 0803- ●
232 03.417 HOSE; CONN
(C) 		8-98082-535-0 01 1 0803-0812 ●
232 03.417 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(C) 		8-98082-535-0 01 1 0902-1309 ●
232 03.417 HOSE; CONN
(C) 		8-98231-785-0 01 1 1310- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98079-905-1 01 1 0803- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0803-1411 ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98108-313-1 01 1 1412- ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-994-2 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97369-706-0 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (D) 		8-98101-995-5 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98061-757-2 01 1 0803- ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0803- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0803- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ● ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98067-267-0 01 1 0803- ● ●
351 03.407 DUCT; AIR
(C) 		8-98072-163-1 01 1 0803- ●
351 03.407 DUCT; AIR
03.417 (B) 		8-97109-423-0 01 1 0803-0803 ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0803- ●
351 03.407 DUCT; AIR
(D) 		8-98023-343-1 01 1 0803-0810 ●
351 03.407 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0803- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0803- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0803- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0803- ● ●

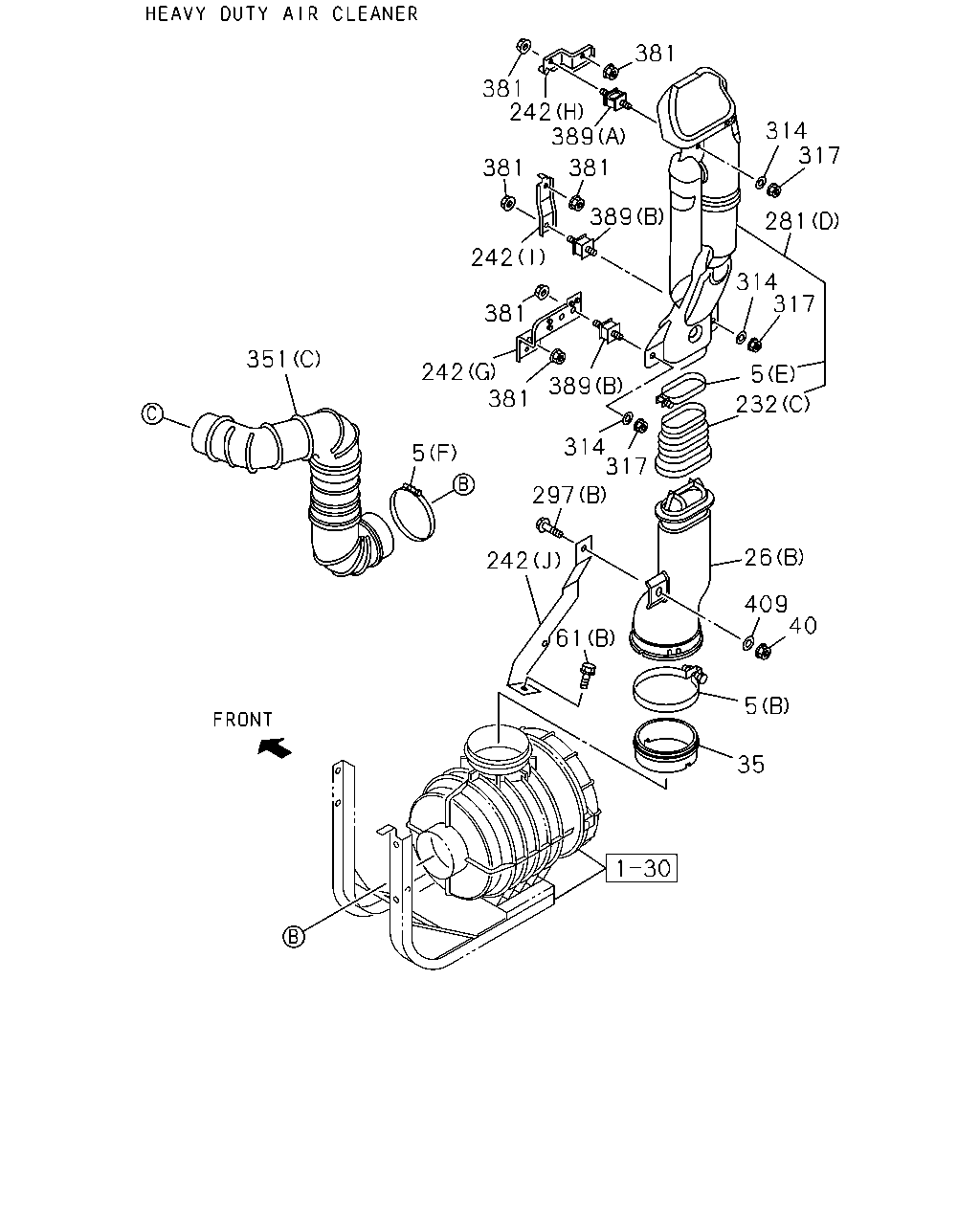

çizim 92625
381 381 242 389 314 317 381 381 389 281 242 314 317 381 351 242 381 5 389 232 314 317 297 5 26 242 409 40 61 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0803- ●
5 03.407 CLIP; AIR DUCT
03.417 (B) 		9-09915-504-1 01 1 0803-0803 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=50-65 		1-09707-204-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (A) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 03 1 0803-0810 ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 03 1 0901- ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 01 1 0803-0811 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0803-0812 ●
5 03.407 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0902- ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 0803- ●
26 03.417 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 0803- ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0803- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0803- ●
232 03.417 HOSE; CONN
FRAME-KICK UP<7EW> (B) 		8-98067-737-0 01 1 0803- ●
232 03.417 HOSE; CONN
EXC. FRAME-KICK UP<7EW> (A) 		8-98048-540-0 01 1 0803-1409 ●
232 03.417 HOSE; CONN
EXC. FRAME-KICK UP<7EW> (A) 		8-98269-834-0 01 1 1410- ●
232 03.417 HOSE; CONN
(D) 		8-98108-234-0 01 1 0803- ●
232 03.417 HOSE; CONN
(C) 		8-98082-535-0 01 1 0803-0812 ●
232 03.417 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(C) 		8-98082-535-0 01 1 0902-1309 ●
232 03.417 HOSE; CONN
(C) 		8-98231-785-0 01 1 1310- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98079-905-1 01 1 0803- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0803-1411 ● ●
242 03.417 BRACKET; AIR DUCT
(K) 		8-98108-313-1 01 1 1412- ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0803- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-994-2 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97369-706-0 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (D) 		8-98101-995-5 01 1 0803- ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98061-757-2 01 1 0803- ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 0803- ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0803- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0803- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ● ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98067-267-0 01 1 0803- ● ●
351 03.407 DUCT; AIR
(C) 		8-98072-163-1 01 1 0803- ●
351 03.407 DUCT; AIR
03.417 (B) 		8-97109-423-0 01 1 0803-0803 ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0803- ●
351 03.407 DUCT; AIR
(D) 		8-98023-343-1 01 1 0803-0810 ●
351 03.407 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0803- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0803- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0803- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0803- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0803- ● ●

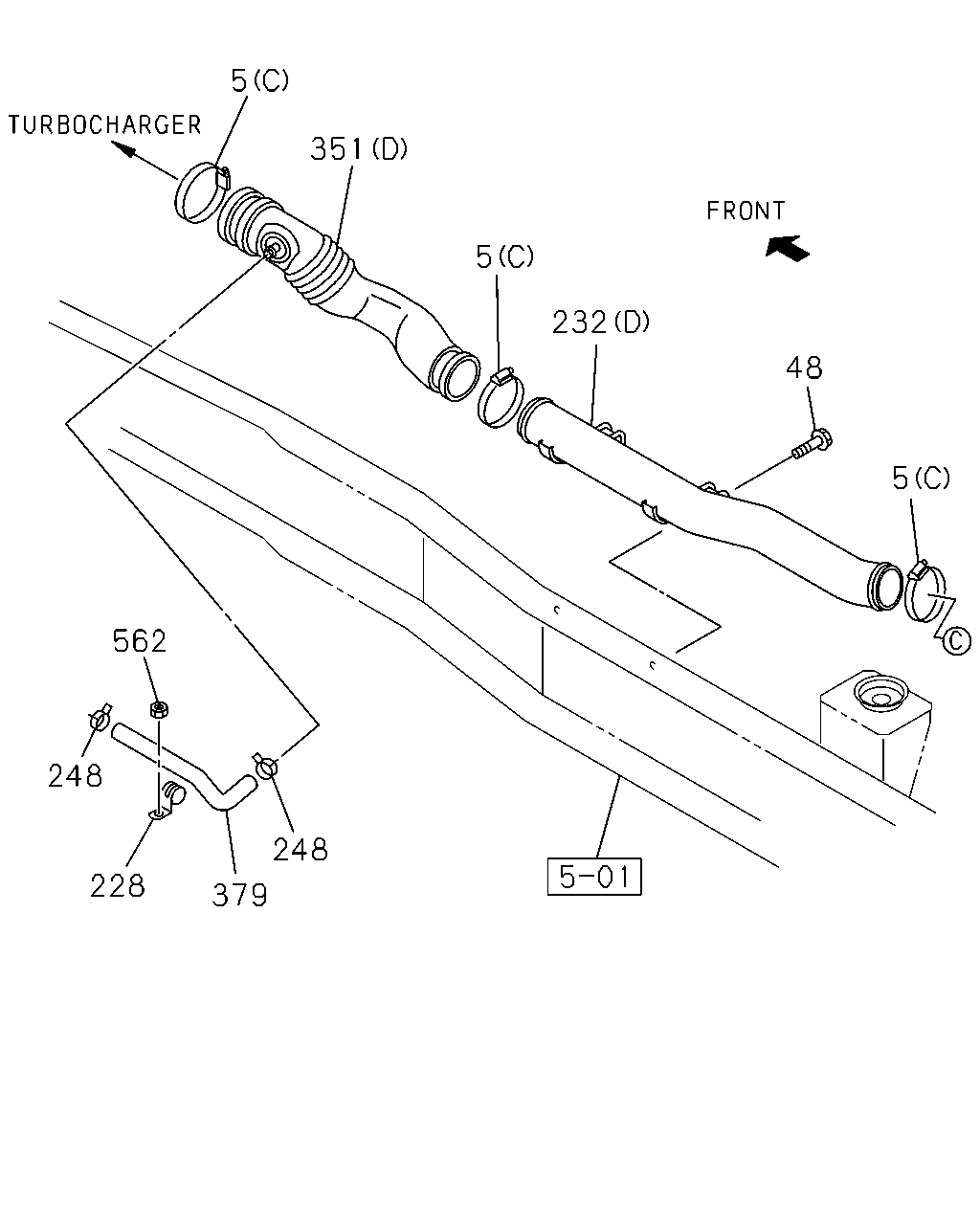

çizim 182634
5 351 5 232 48 5 562 248 248 228 379
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0803- ●
5 03.407 CLIP; AIR DUCT
03.417 (B) 		9-09915-504-1 01 1 0803-0803 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0803- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=50-65 		1-09707-204-0 01 1 0803-0810 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (A) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 03 1 0803-0810 ●
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 03 1 0901- ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 01 1 0803-0811 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0803-0812 ●
5 03.407 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 		9-09915-502-1 01 1 0901-0901 ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 0902- ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
48 03.417 BOLT; AIR DUCT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0803- ●
228 03.278 CLIP; PCV HOSE
ID=25 H=40 L=50 		8-98073-275-0 01 1 0803- ● ●
232 03.417 HOSE; CONN
FRAME-KICK UP<7EW> (B) 		8-98067-737-0 01 1 0803- ●
232 03.417 HOSE; CONN
EXC. FRAME-KICK UP<7EW> (A) 		8-98048-540-0 01 1 0803-1409 ●
232 03.417 HOSE; CONN
EXC. FRAME-KICK UP<7EW> (A) 		8-98269-834-0 01 1 1410- ●
232 03.417 HOSE; CONN
(D) 		8-98108-234-0 01 1 0803- ●
232 03.417 HOSE; CONN
(C) 		8-98082-535-0 01 1 0803-0812 ●
232 03.417 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98082-535-0 01 1 0901-0901 ●
232 03.417 HOSE; CONN
(C) 		8-98082-535-0 01 1 0902-1309 ●
232 03.417 HOSE; CONN
(C) 		8-98231-785-0 01 1 1310- ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 0803- ● ●
351 03.407 DUCT; AIR
03.417 (A) 		8-98067-267-0 01 1 0803- ● ●
351 03.407 DUCT; AIR
(C) 		8-98072-163-1 01 1 0803- ●
351 03.407 DUCT; AIR
03.417 (B) 		8-97109-423-0 01 1 0803-0803 ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0803- ●
351 03.407 DUCT; AIR
(D) 		8-98023-343-1 01 1 0803-0810 ●
351 03.407 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
379 03.675 HOSE; RUBBER 8-98088-700-2 01 1 0803-0810 ● ●
379 03.675 HOSE; RUBBER 8-98135-511-0 01 1 0811- ● ●
562 03.403 NUT; HOSE CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0803-0809 ● ●
562 03.403 NUT; HOSE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
