◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#80345) — 43 parça

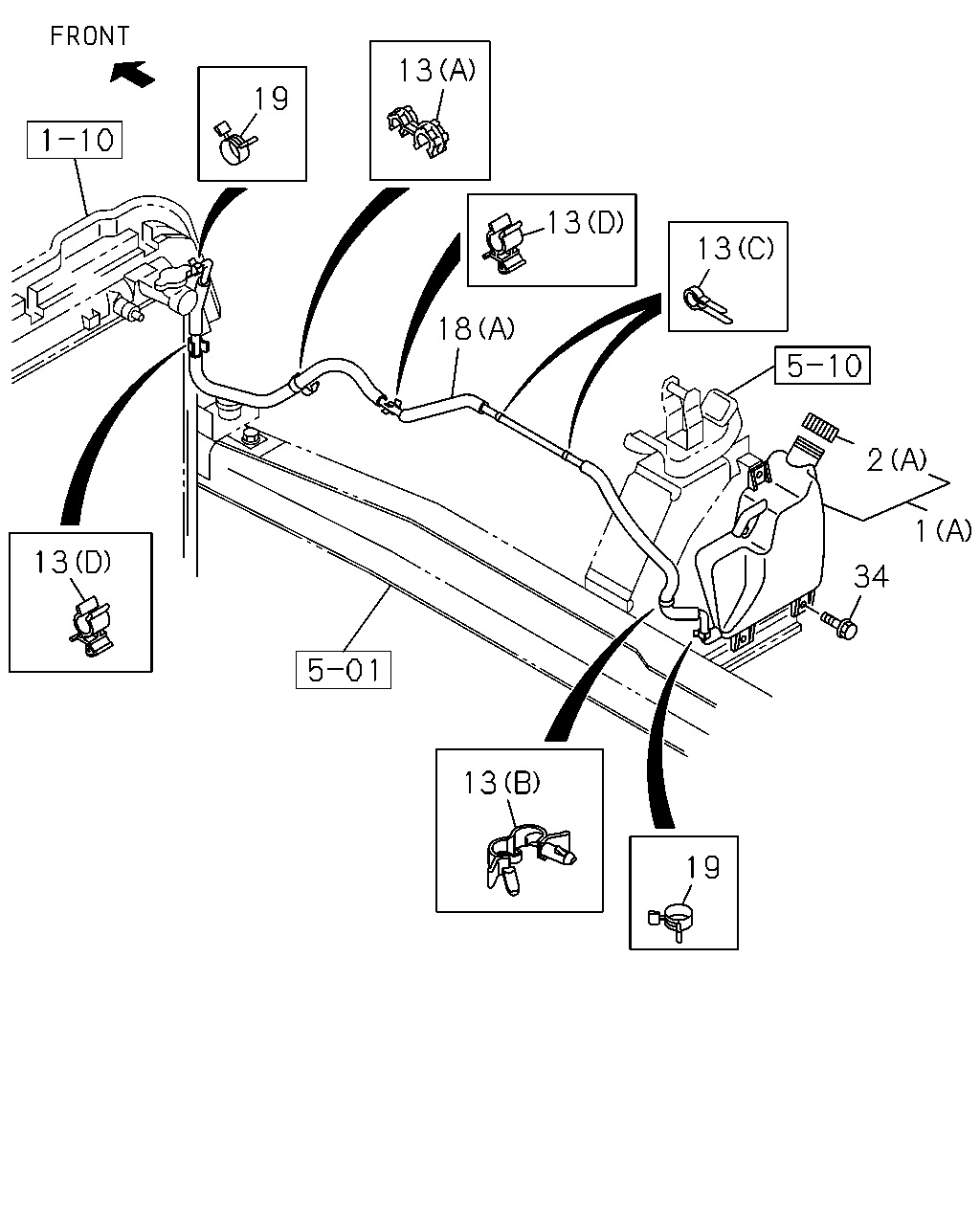

çizim 89225
13 19 13 13 18 2 1 13 34 13 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 TANK; SURGE,RAD
(B) 		8-98001-240-1 01 1 0803- ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97387-632-1 01 1 0803-1010 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-98178-179-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
(B) 		8-97130-964-0 01 1 0803- ●
2 01.203 CAP; SURGE TANK
(A) 		8-97217-796-0 01 1 0803-1010 ●
2 01.203 CAP; SURGE TANK
(A) 		8-98178-074-0 01 1 1011- ●
13 01.240 CLIP; HOSE,SURGE TANK
03.162 (B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0803- ●
13 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 02 1 0803- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0803- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 02 1 0803- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
(A) 		8-98023-219-1 01 1 0803- ●
18 01.240 HOSE; RAD TO SURGE TANK
(B) 		8-98023-220-1 01 1 0803- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 ID=12 		8-94238-610-0 02 1 0803-0911 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912- ● ●
34 01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0803- ● ●

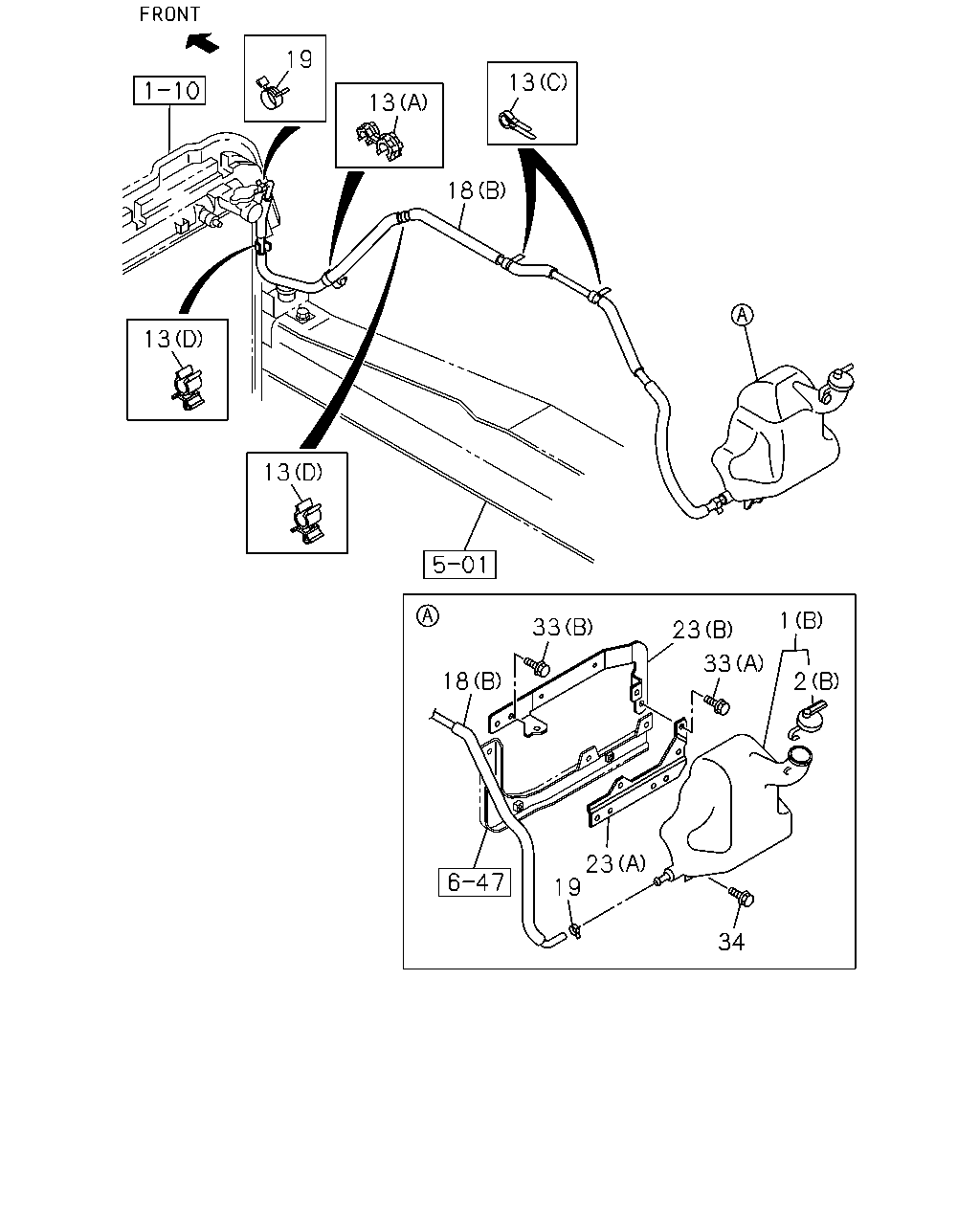

çizim 90551
19 13 13 18 13 13 1 33 23 33 18 2 23 19 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 TANK; SURGE,RAD
(B) 		8-98001-240-1 01 1 0803- ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97387-632-1 01 1 0803-1010 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-98178-179-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
(B) 		8-97130-964-0 01 1 0803- ●
2 01.203 CAP; SURGE TANK
(A) 		8-97217-796-0 01 1 0803-1010 ●
2 01.203 CAP; SURGE TANK
(A) 		8-98178-074-0 01 1 1011- ●
13 01.240 CLIP; HOSE,SURGE TANK
03.162 (B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0803- ●
13 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 02 1 0803- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0803- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 02 1 0803- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
(A) 		8-98023-219-1 01 1 0803- ●
18 01.240 HOSE; RAD TO SURGE TANK
(B) 		8-98023-220-1 01 1 0803- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 ID=12 		8-94238-610-0 02 1 0803-0911 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912- ● ●
23 01.219 BRACKET; RESERVE TANK
(A) 		8-98001-742-1 01 1 0803- ●
23 01.219 BRACKET; RESERVE TANK
(B) 		8-98010-501-2 01 1 0803- ●
33 01.277 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0803- ●
33 01.277 BOLT; BRKT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0803- ●
34 01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0803- ● ●
çizim 182633
56 55 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date A B
55 01.173 HOSE; WATER,RAD OUTLET 8-97383-814-1 01 1 0803- ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98036-282-0 01 1 0803-0901 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 01 1 0902-0906 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 02 1 0907- ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98036-282-0 03 1 0803-0901 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 03 1 0902-0906 ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 01 1 0907- ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 01 1 0907- ● ●
128 01.159 HOSE; WATER,RAD INL 8-97383-812-1 01 1 0803- ● ●
