0-52 — OIL AND VACUUM PIPING; ENGINE (#80338) — 44 parça

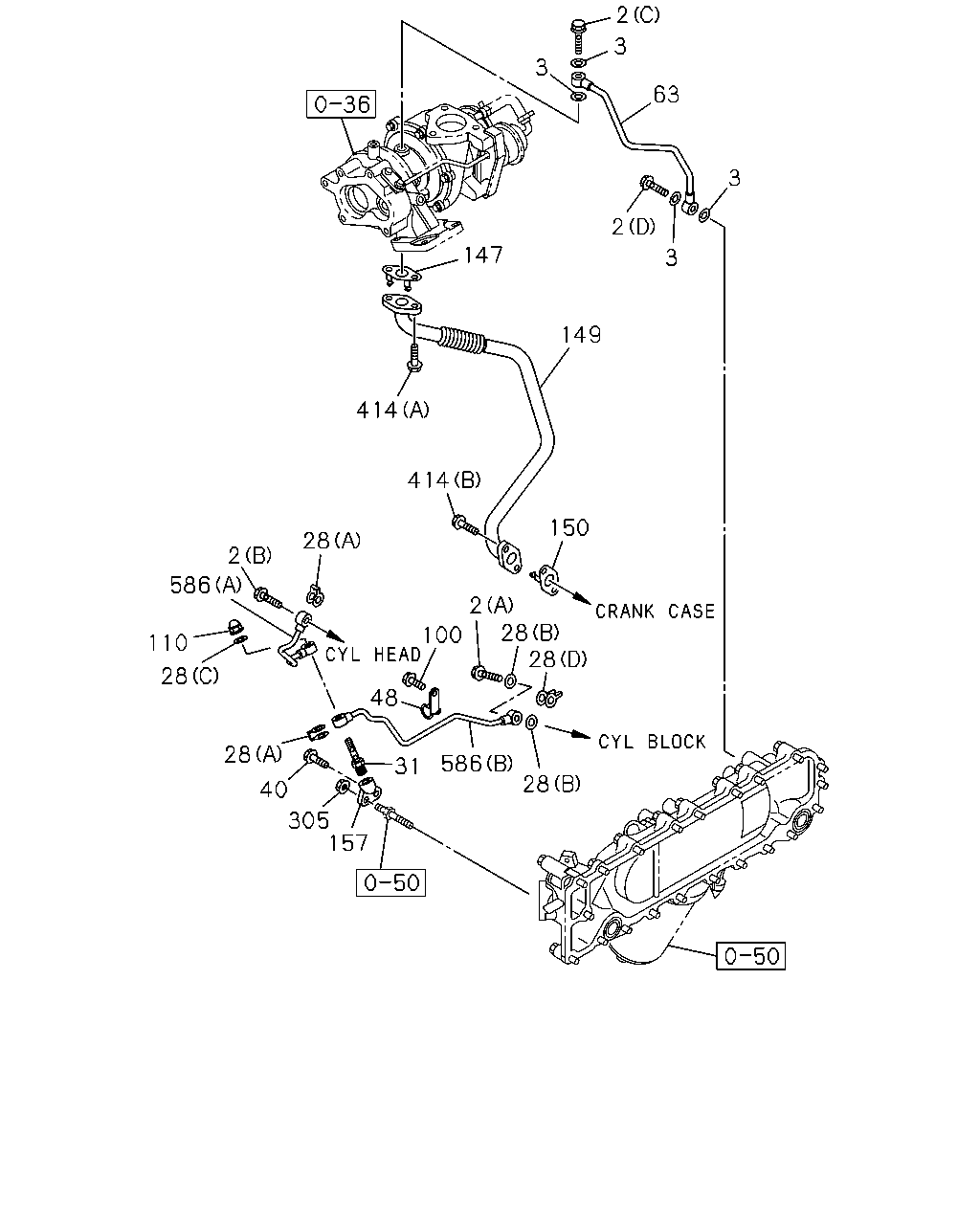

çizim 64724
2 3 3 63 3 2 147 3 149 414 414 150 28 2 586 2 28 28 100 110 28 48 28 586 28 31 40 305 157
BalonParca AdiParca NoAdetTipApplied Date
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 0803-
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 0803-
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 		8-94443-535-0 01 1 0803-
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 0803-
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0803-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2 		1-09630-082-0 01 1 0803-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 		8-97251-046-0 02 1 0803-
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0803-0902
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=20.0 		8-98113-762-0 01 1 0903-
31 01.540 NIPPLE; OIL PIPE 8-98044-067-1 01 1 0803-
40 01.531 BOLT; OIL PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0803-
48 01.531 CLIP; OIL PIPE
ID=7 L=28 		8-98068-212-0 01 1 0803-0903
48 01.531 CLIP; OIL PIPE
ID=7 L=28 		8-98121-233-0 01 1 0904-
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97381-488-0 01 1 0803-
100 01.531 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0803-
110 01.531 NUT; CAP OIL PIPE
00.349 M8 CAP NUT FLANGE 		8-97372-242-0 01 1 0803-1309
110 01.531 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE 		8-98251-964-0 01 1 1310-
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16 		8-98029-475-0 01 1 0803-
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97381-489-2 01 1 0803-
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98029-476-0 01 1 0803-
157 01.519 BRACKET; OIL PIPE 8-98043-093-0 01 1 0803-
305 01.540 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0803-
414 01.531 BOLT; OIL PIPE
03.342 (A) M6X18 HEX SOCKET 		0-58330-618-0 02 1 0803-1107
414 01.531 BOLT; OIL PIPE
00.724 (A) M6X16 HEX SOCKET 		0-58330-616-0 02 1 1108-
414 01.531 BOLT; OIL PIPE
01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 0803-
586 01.519 PIPE; OIL,TENSIONER
(A) 		8-98039-566-0 01 1 0803-
586 01.519 PIPE; OIL,TENSIONER
(B) 		8-98039-567-0 01 1 0803-

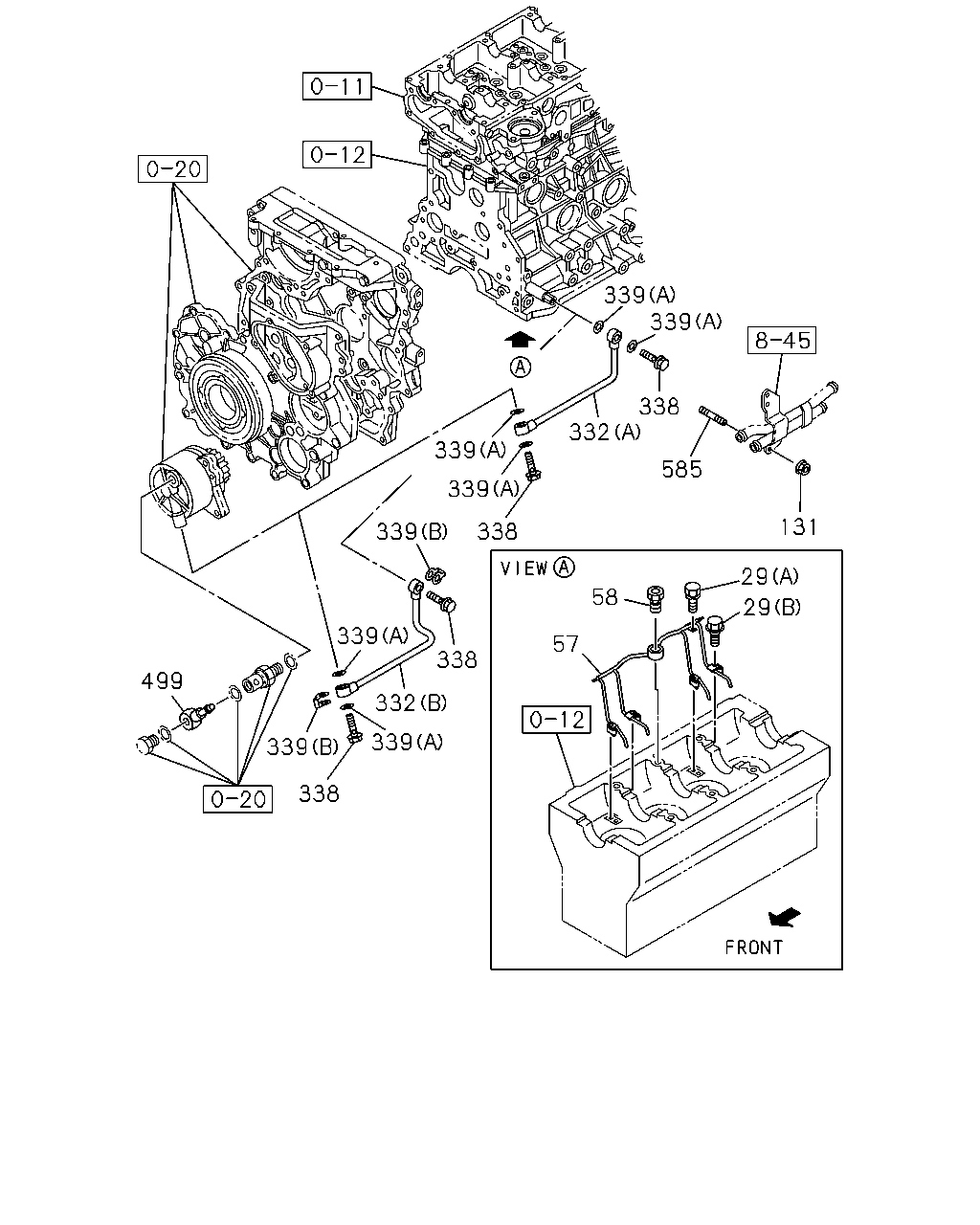

çizim 64744
339 339 338 585 131 332 339 339 338 339 339 338 332 339 339 499 57 58 29 29 338
BalonParca AdiParca NoAdetTipApplied Date
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0803-
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0803-
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 0803-
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0803-1407
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-98285-334-0 01 1 1408-
131 01.531 NUT; UNION
06.164 M8 FLANGE 		5-09440-010-0 01 1 0803-
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-98038-097-0 01 1 0803-0901
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-98038-929-0 01 1 0902-1212
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-98201-785-0 01 1 1301-
338 01.531 BOLT; JOINT,OIL PIPE
03.162 M8X18 EYE-BOLT 		1-09675-037-1 02 1 0803-0901
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 02 1 0902-
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 		8-98065-992-0 01 1 1301-1302
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 		8-98065-992-0 02 1 1303-
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 0803-1212
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1301-1302
499 04.681 PIPE; VACUUM 8-98027-553-0 01 1 0803-
585 01.531 STUD; CLIP
01.428 M8X18 L=30 		0-41010-818-0 01 1 0803-
