Isuzu WW
▶
TRUCKS
▶
FV
▶
10829 - FV/GV(AUSTRAL)A.SUS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

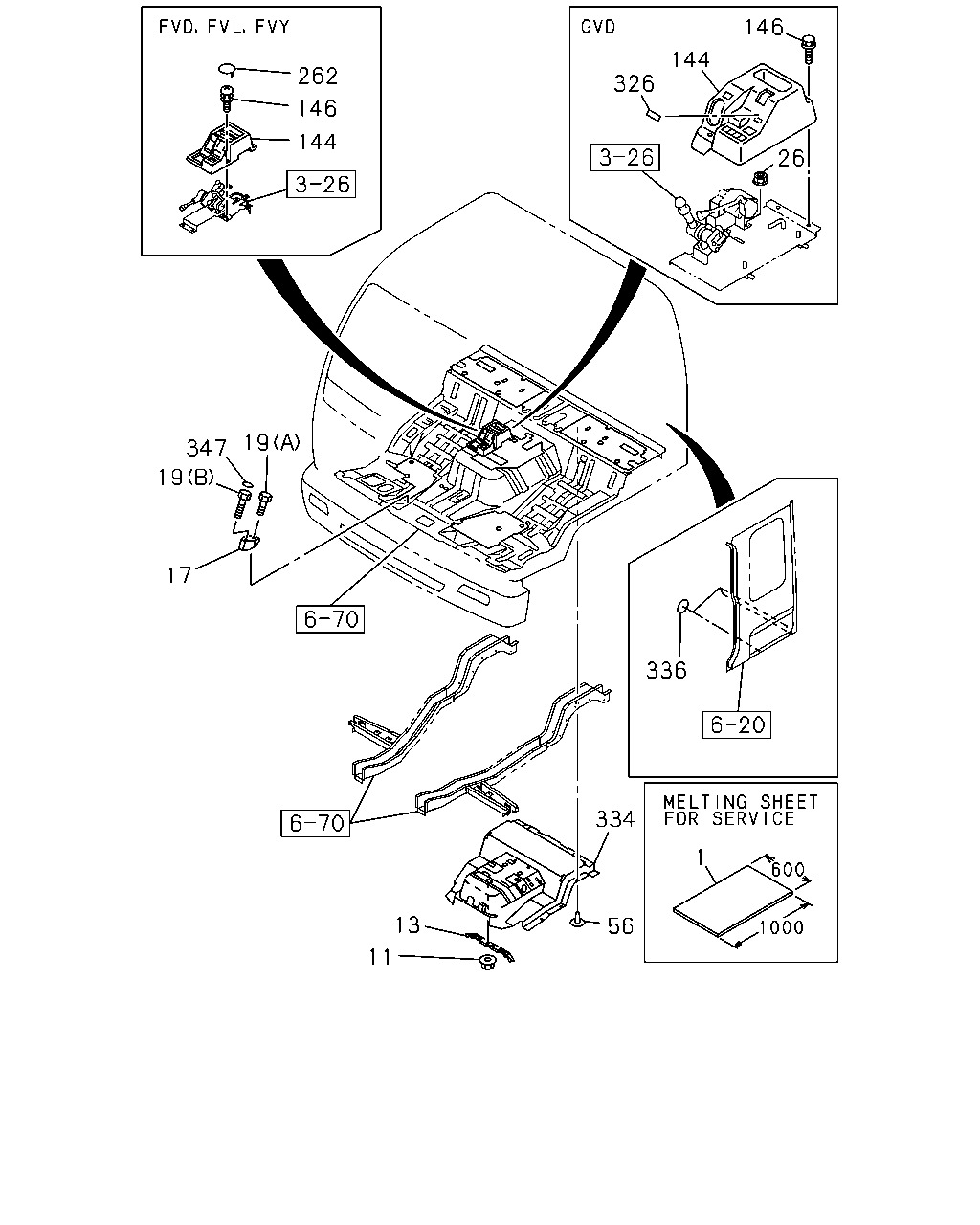

6-76 — FLOOR EQUIPMENT AND SEALING
(#8033) — 33 parça
Tümü
A - FVD5MF
B - FVY5MF
C - GVD5MC
D - FVL5MF
146
144
262
326
146
144
26
19
347
19
17
336
334
1
13
56
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0
1-61970-039-0
AR
1
0005-0011
●
●
●
1
SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0
1-61970-039-0
AR
1
0012-
●
●
●
●
11
NUT; HEAT INSULATOR
M8 FLANGE
8-94279-518-0
02
1
0005-0011
●
●
●
11
NUT; HEAT INSULATOR
M8 FLANGE
8-94279-518-0
02
1
0012-0401
●
●
●
●
11
NUT; HEAT INSULATOR
M8 FLANGE
1-75538-207-0
02
1
0402-
●
●
●
●
13
PLATE; HEAT INSULATOR
1-71998-812-4
01
1
0005-0011
●
●
●
13
PLATE; HEAT INSULATOR
1-71998-812-4
01
1
0012-
●
●
●
●
17
REST; FOOT,DRIVER
1-73907-176-0
01
1
0005-0011
●
●
●
17
REST; FOOT,DRIVER
1-73907-176-1
01
1
0012-
●
●
●
●
19
BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0005-0011
●
●
●
19
BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0012-
●
●
●
●
19
BOLT; FOOT REST
(B) M6X47
8-94407-876-1
01
1
0005-0011
●
●
●
19
BOLT; FOOT REST
(B) M6X47
8-94407-876-1
01
1
0012-
●
●
●
●
26
NUT; FLANGE
M8 FLANGE
0-91150-108-0
02
1
0005-0602
●
26
NUT; FLANGE
M8 FLANGE
0-91180-108-0
02
1
0603-
●
56
CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4
8-97808-623-0
17
1
0005-0011
●
●
●
56
CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4
8-97808-623-0
17
1
0012-
●
●
●
●
144
COVER; HAND BRK VLV
1-73908-372-0
01
1
0005-0011
●
●
144
COVER; HAND BRK VLV
1-73908-372-1
01
1
0012-
●
●
●
144
COVER; HAND BRK VLV
1-73908-376-0
01
1
0005-
●
146
BOLT; COVER BRKT
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0005-0011
●
●
146
BOLT; COVER BRKT
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0012-
●
●
●
146
BOLT; COVER BRKT
M6X24 W/LK&PL WASHER
8-94279-404-0
03
1
0005-
●
262
COVER; CHECK HOLE
1-76337-461-0
04
1
0005-0011
●
●
262
COVER; CHECK HOLE
1-76337-461-0
04
1
0012-
●
●
●
326
SEAL; COVER
1-72418-017-0
01
1
0005-0310
●
334
INSULATOR; ENG HOOD
1-71996-034-4
01
1
0005-0011
●
●
334
INSULATOR; ENG HOOD
1-71996-034-4
01
1
0012-
●
●
●
334
INSULATOR; ENG HOOD
1-71996-196-2
01
1
0005-
●
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
04
1
0005-0011
●
●
●
336
SEAL; FLOOR SIDE
OD=25 BLACK
1-76798-019-0
04
1
0012-
●
●
●
●
347
SEAL; FOOT RESTR
OD=25 BLACK
1-76798-019-0
02
1
0005-0011
●
●
●
347
SEAL; FOOT RESTR
OD=25 BLACK
1-76798-019-0
02
1
0012-
●
●
●
●
