Isuzu WW
▶
TRUCKS
▶
NMR
▶
51384 - NMR 85(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

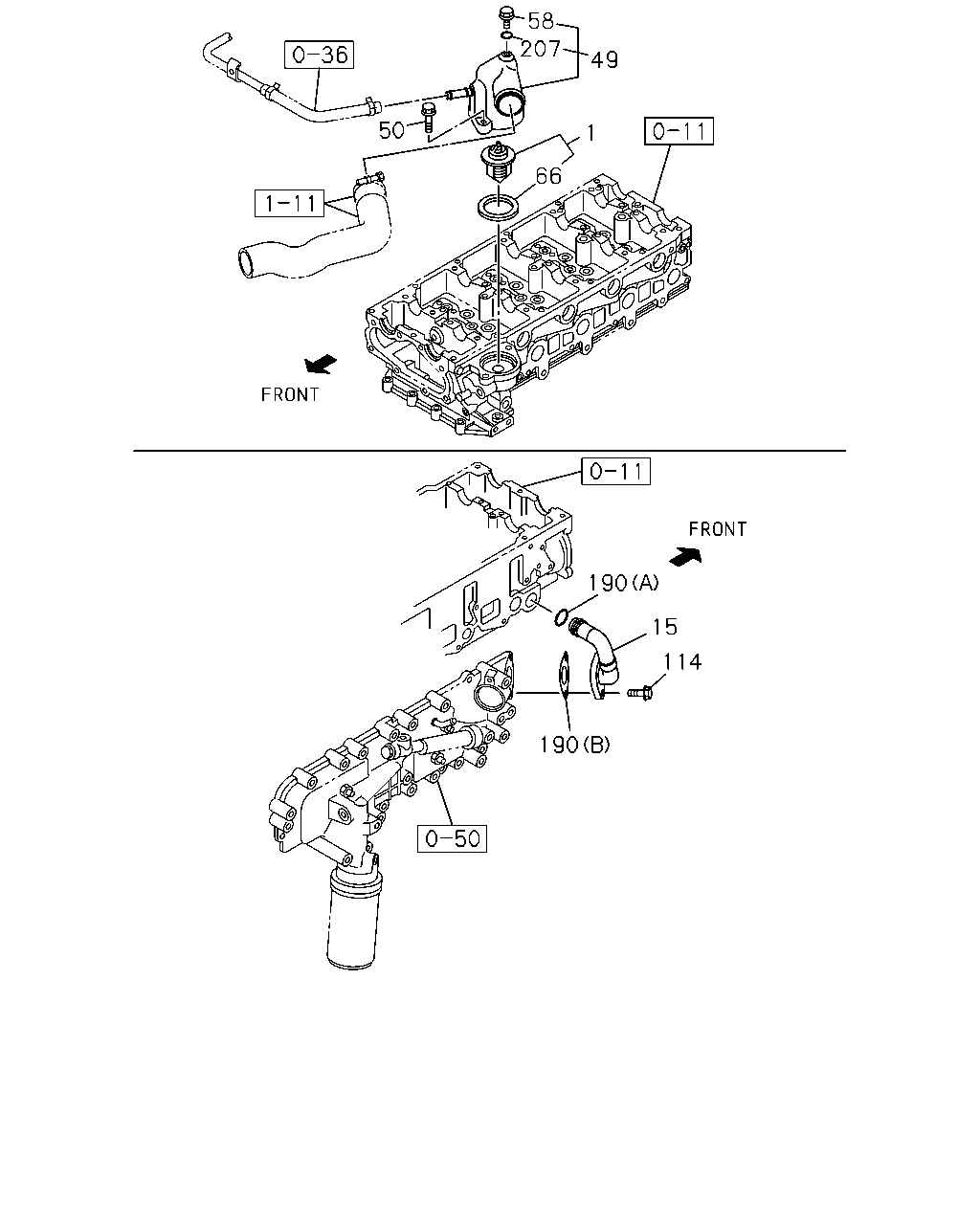

0-31 — THERMOSTAT AND HOUSING
(#80329) — 10 parça
58
207
49
50
1
66
190
15
114
190
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.246 THERMOSTAT
85 CELSIUS
8-98017-027-2
01
1
0803-
15
01.251 PIPE; BYPASS
8-97318-732-2
01
1
0803-
49
01.153 PIPE; WATER OUTLET
8-98028-252-1
01
1
0803-
50
01.252 BOLT; OUTLET PIPE
03.403 M8X30 FLANGE
0-28650-830-0
02
1
0803-
58
00.073 PLUG; WATER OUTLET PIPE
02.343 M8X12 FLANGE
0-28050-812-0
01
1
0803-
66
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98114-587-0
01
1
0804-
114
01.097 BOLT; BYPASS PIPE
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0803-
190
01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
0-95690-226-0
01
1
0803-
190
01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98009-322-0
01
1
0803-
207
08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2
1-09630-082-0
01
1
0803-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
