Isuzu WW
▶
TRUCKS
▶
NMR
▶
51384 - NMR 85(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

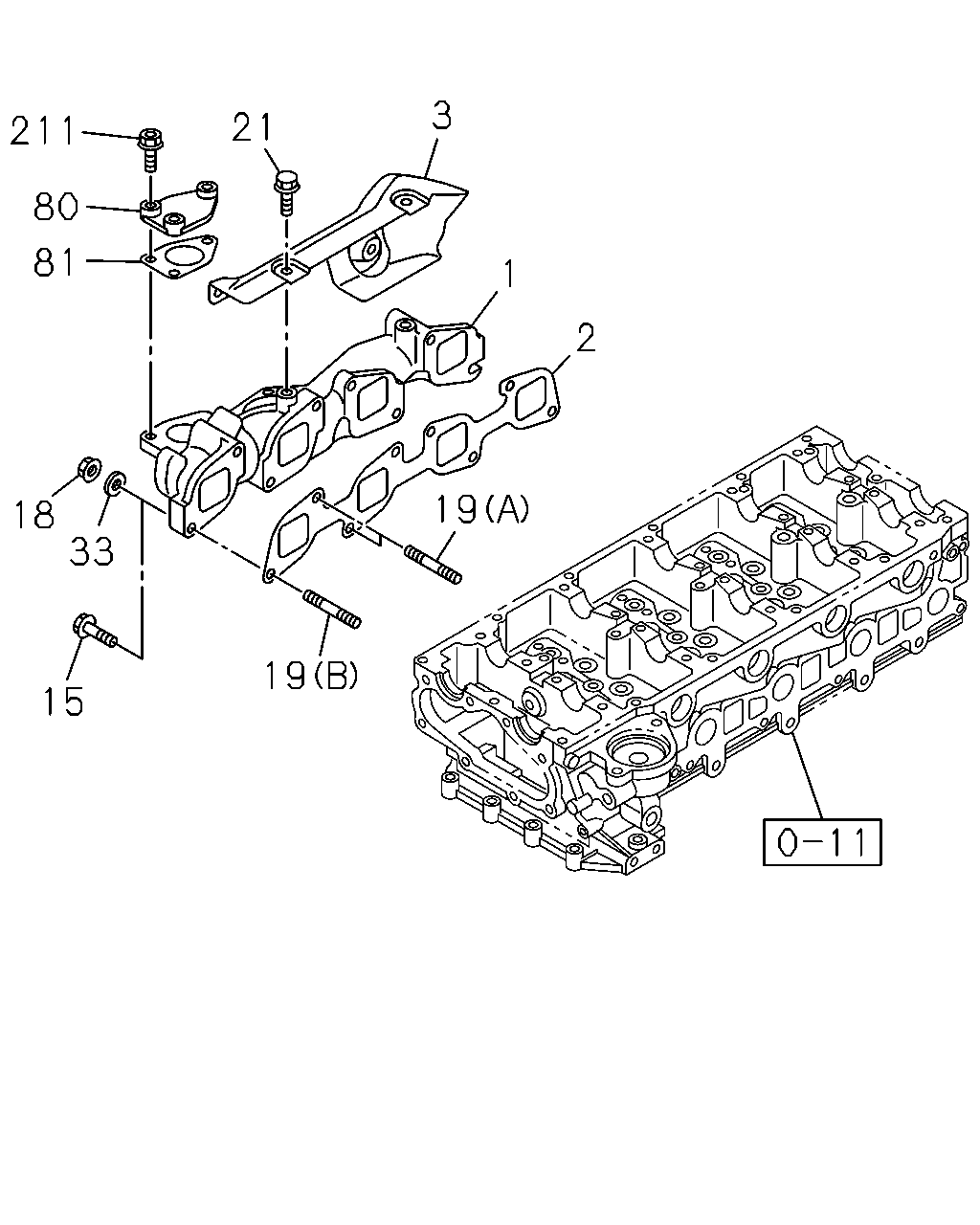

0-27 — EXHAUST MANIFOLD
(#80327) — 15 parça
1
2
19
19
15
33
18
81
80
211
21
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.601 MANIFOLD; EXHAUST
8-98033-941-1
01
1
0803-
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97356-028-2
01
1
0803-1204
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98215-752-0
01
1
1205-1312
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98229-782-0
01
1
1401-
3
03.602 PROTECTOR; HEAT,EXH MANIF
8-97381-503-4
01
1
0803-
15
03.604 BOLT; EXH MANIF
M10X30 FLANGE
8-98032-158-0
04
1
1304-
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
08
1
0803-1303
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
04
1
1304-
19
03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48
8-97307-075-2
04
1
0803-1303
19
03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83
8-98048-446-0
04
1
0803-
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
04
1
0803-
33
03.604 WASHER; EXH MANIF
03.613 ID=10.5
5-09500-013-0
08
1
0803-
80
03.417 COVER; EXH MANIF
8-98056-984-0
01
1
0803-
81
03.270 GASKET; COVER
03.665
8-98017-551-0
01
1
0803-
211
03.604 BOLT; COVER
03.417 M8X23 FLANGE
8-97378-077-0
03
1
0803-
