0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#80324) — 62 parça

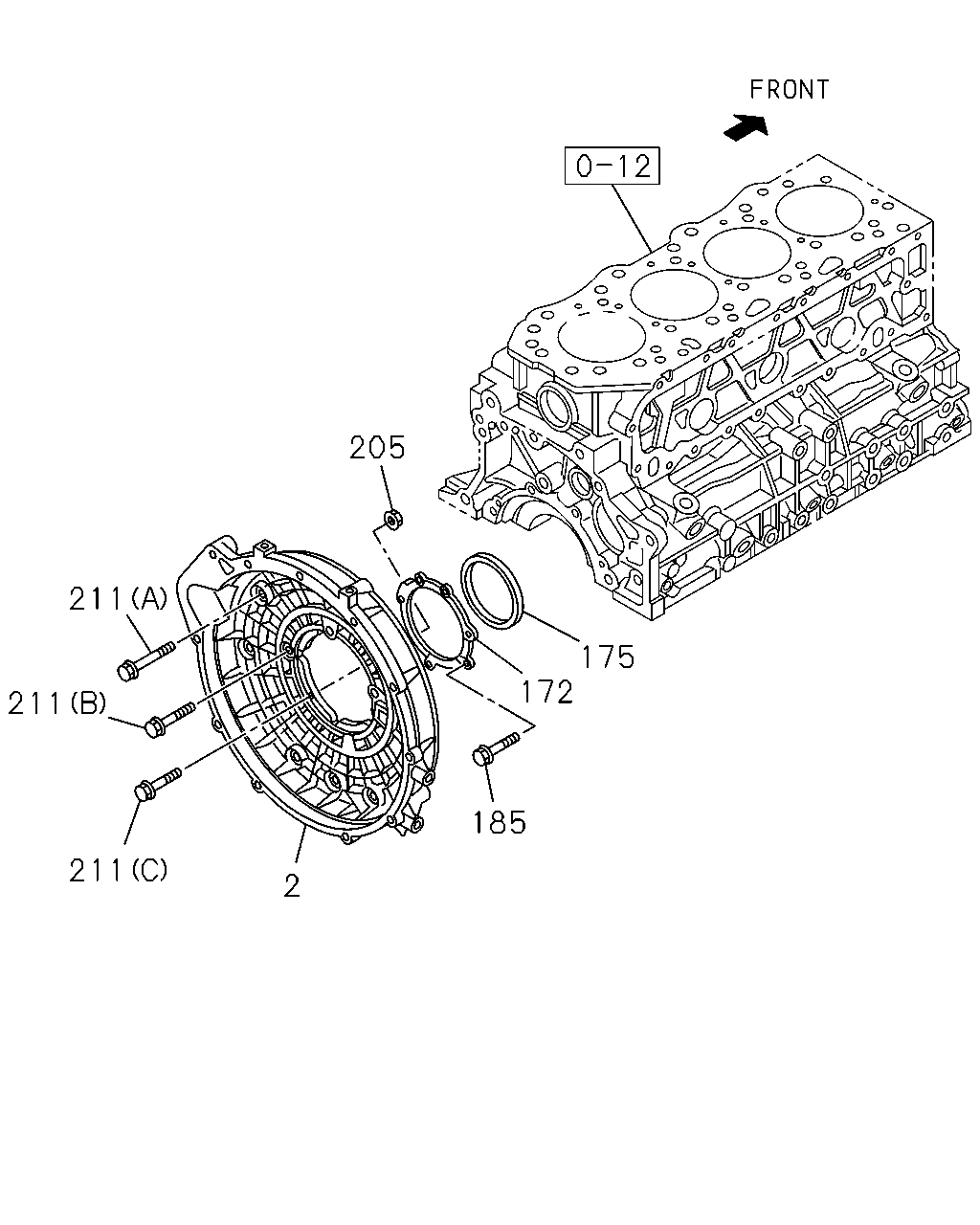

205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	0803-1310
2	00.683 HOUSING; FLYWHEEL	8-98252-203-0	01	1	1311-
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	0803-1012
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1101-
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0803-
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0803-
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0803-
211	00.669 BOLT; HSG 09.003 (A) M12X35 FLANGE	0-28651-235-0	06	1	0803-
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0803-
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0803-

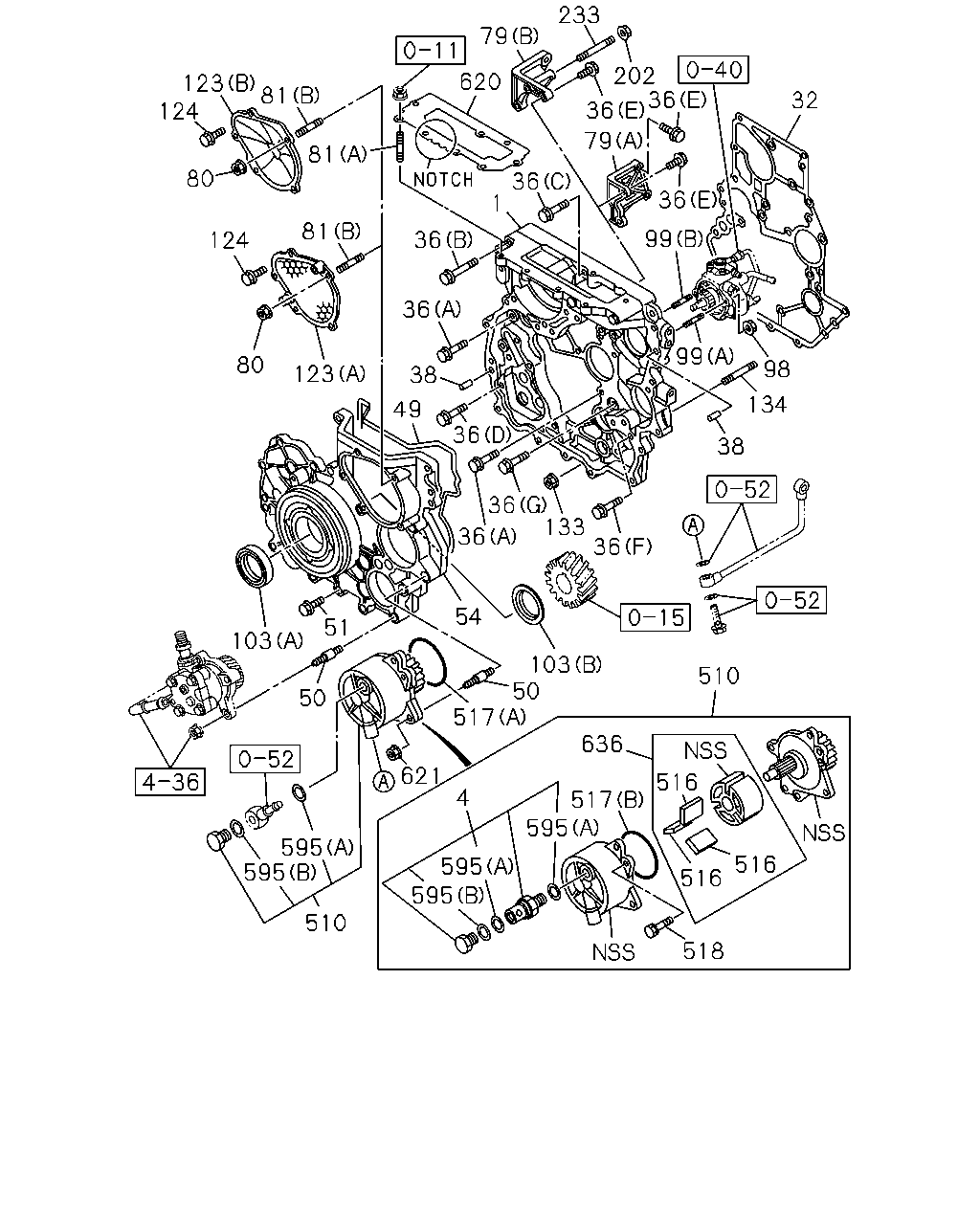

133 36 51 103 50 595 595 510 595 595 595 4 621 517 54 103 50 510 636 517 516 516 36 124 80 123 38 49 36 36 36 620 79 36 1 79 36 233 202 32 36 99 99 38 134 98 516 518 36 81 81 36 123 124 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	0803-1203
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1204-
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0803-
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0803-
36	00.206 BOLT; GEAR CASE 02.343 (G) M8X16 FLANGE	0-28050-816-0	01	1	0803-
36	00.206 BOLT; GEAR CASE 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	0803-
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0803-
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0803-
36	00.206 BOLT; GEAR CASE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	0803-
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0803-
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0803-
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0803-
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	0803-
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0803-
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0803-
54	00.206 COVER; GEAR CASE	8-98012-960-2	01	1	0803-1007
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1008-1405
54	00.206 COVER; GEAR CASE	8-98253-700-1	01	1	1406-
79	00.219 BRACKET; GEAR CASE COVER (A)	8-97370-390-2	01	1	0803-1203
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98107-106-0	01	1	1204-
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	0803-
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0803-
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	0803-
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0803-
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	0803-1203
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	02	1	1204-
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	0803-1203
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0803-1007
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97382-606-0	01	1	0803-1007
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98158-110-0	01	1	1008-
123	00.206 COVER; TIMING,LWR (A)	8-97371-720-1	01	1	0803-1006
123	00.206 COVER; TIMING,LWR (B)	8-98158-145-0	01	1	1007-
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0803-
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	0803-
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	0803-
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1204-
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-98017-063-0	01	1	1204-
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0803-1005
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-1311
510	04.895 PUMP ASM; VACUUM	8-98251-764-0	01	1	1312-
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0803-
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	0803-1311
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98251-769-0	01	1	1312-
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A)	9-09566-271-0	01	1	0803-
518	04.895 BOLT; VAC PUMP	8-98049-523-0	03	1	0803-
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	0803-
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	0803-
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	0803-
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	0803-
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	0803-
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	0803-
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0803-
