Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#80323) — 86 parça

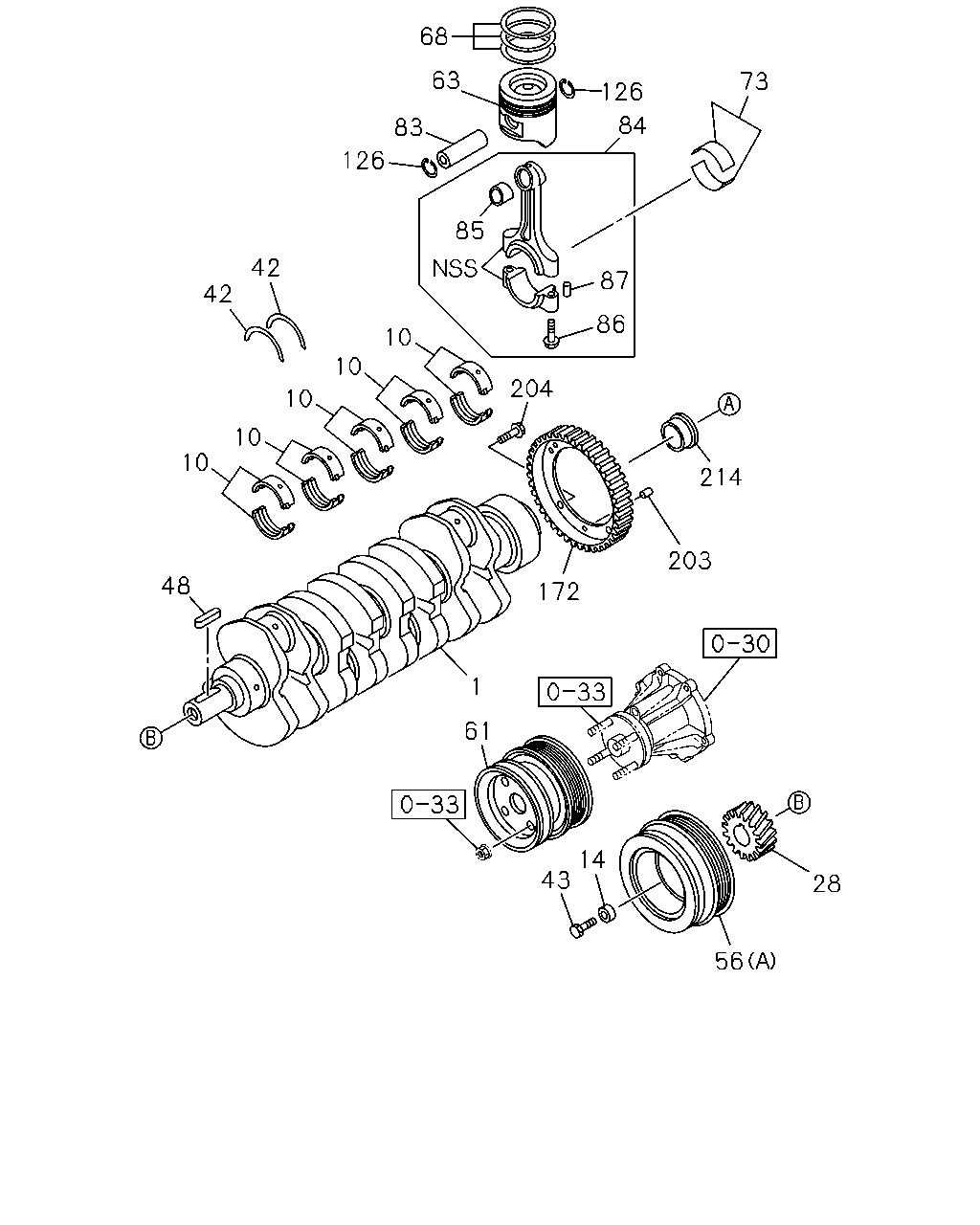

73 87 86 204 214 203 172 28 56 14 43 61 1 48 10 10 10 10 10 85 84 126 68 83 63 126 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.646 CRANKSHAFT	8-97388-828-4	01	1	0803-1007
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1008-1409
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	0803-
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0803-1007
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1008-
28	00.728 GEAR; CR/SHF Z=44	8-97386-232-1	01	1	0803-1007
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1008-
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	0803-
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0803-1007
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1008-
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	0803-
56	00.659 PULLEY; CR/SHF DAMPER (A) 2-GROOVE	8-97361-562-1	01	1	0803-1007
56	00.659 PULLEY; CR/SHF DAMPER (B) 2-GROOVE	8-98154-943-1	01	1	1008-
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	0803-
63	00.629 PISTON GRADE=A	8-98043-703-0	04	1	0803-
63	00.629 PISTON GRADE=B	8-98043-704-0	04	1	0803-
63	00.629 PISTON GRADE=C	8-98043-705-0	04	1	0803-
68	00.643 RING SET; PISTON,STANDARD	8-98053-579-0	04	1	0803-1105
68	00.643 RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1106-
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0803-
83	00.636 PIN; PISTON	8-98015-193-1	04	1	0803-
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	0803-
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0803-
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0803-
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0803-
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	0803-
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	0803-1101
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	0803-
204	01.150 BOLT; ROTOR 02.383	8-97213-333-0	03	1	0803-0805
204	01.150 BOLT; ROTOR 02.383	8-98038-343-0	03	1	0806-
214	00.724 STOPPER; BEARING	8-97316-560-0	01	1	0803-0911

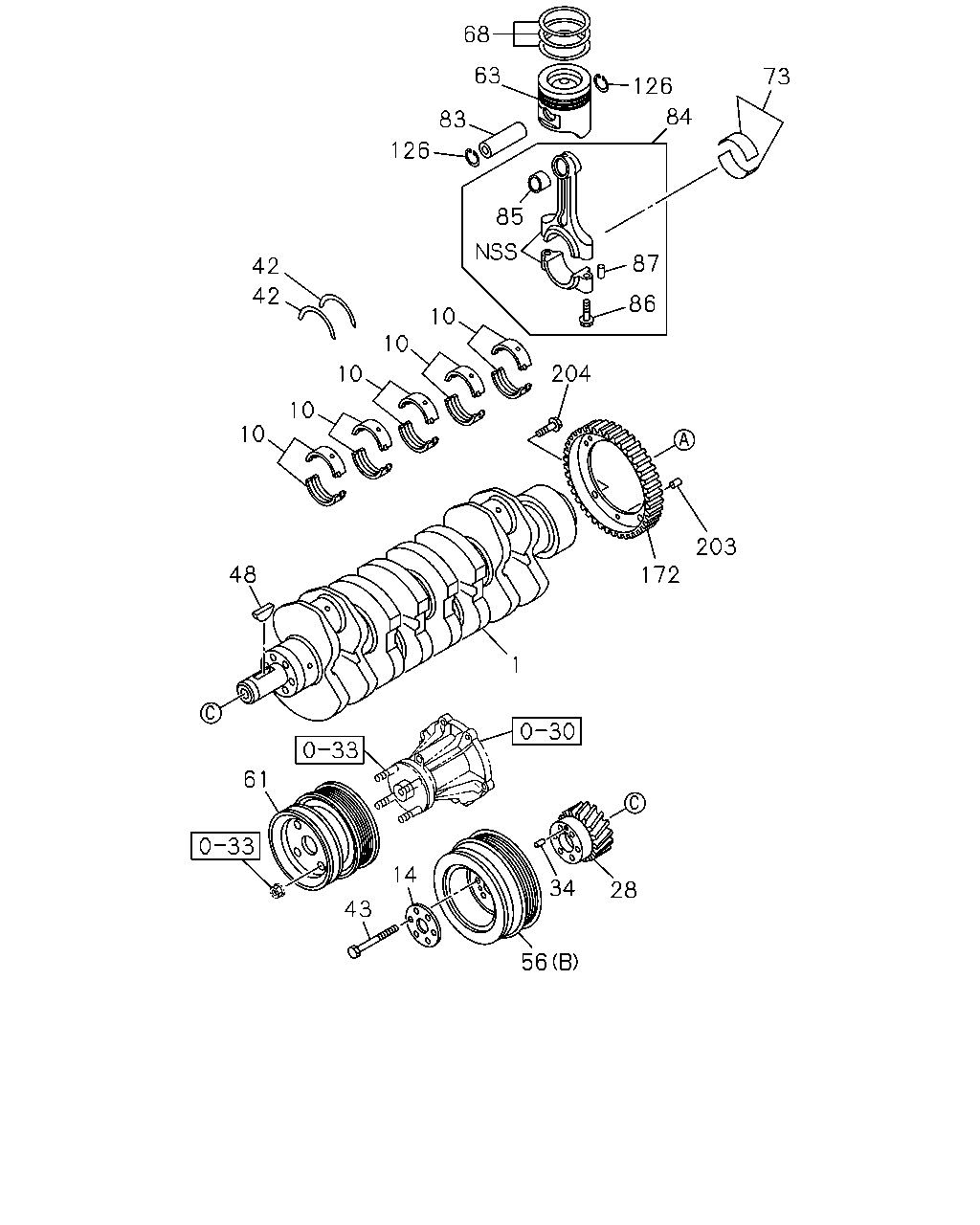

28 34 56 14 43 61 1 48 10 10 10 10 10 42 42 126 83 63 68 126 84 73 85 87 86 204 172 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.646 CRANKSHAFT	8-97388-828-4	01	1	0803-1007
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1008-1409
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	0803-
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	0803-
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0803-1007
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1008-
28	00.728 GEAR; CR/SHF Z=44	8-97386-232-1	01	1	0803-1007
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1008-
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1008-
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	0803-
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0803-1007
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1008-
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	0803-
56	00.659 PULLEY; CR/SHF DAMPER (A) 2-GROOVE	8-97361-562-1	01	1	0803-1007
56	00.659 PULLEY; CR/SHF DAMPER (B) 2-GROOVE	8-98154-943-1	01	1	1008-
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	0803-
63	00.629 PISTON GRADE=A	8-98043-703-0	04	1	0803-
63	00.629 PISTON GRADE=B	8-98043-704-0	04	1	0803-
63	00.629 PISTON GRADE=C	8-98043-705-0	04	1	0803-
68	00.643 RING SET; PISTON,STANDARD	8-98053-579-0	04	1	0803-1105
68	00.643 RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1106-
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0803-
83	00.636 PIN; PISTON	8-98015-193-1	04	1	0803-
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	0803-
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0803-
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0803-
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0803-
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	0803-
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	0803-1101
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	0803-
204	01.150 BOLT; ROTOR 02.383	8-97213-333-0	03	1	0803-0805
204	01.150 BOLT; ROTOR 02.383	8-98038-343-0	03	1	0806-

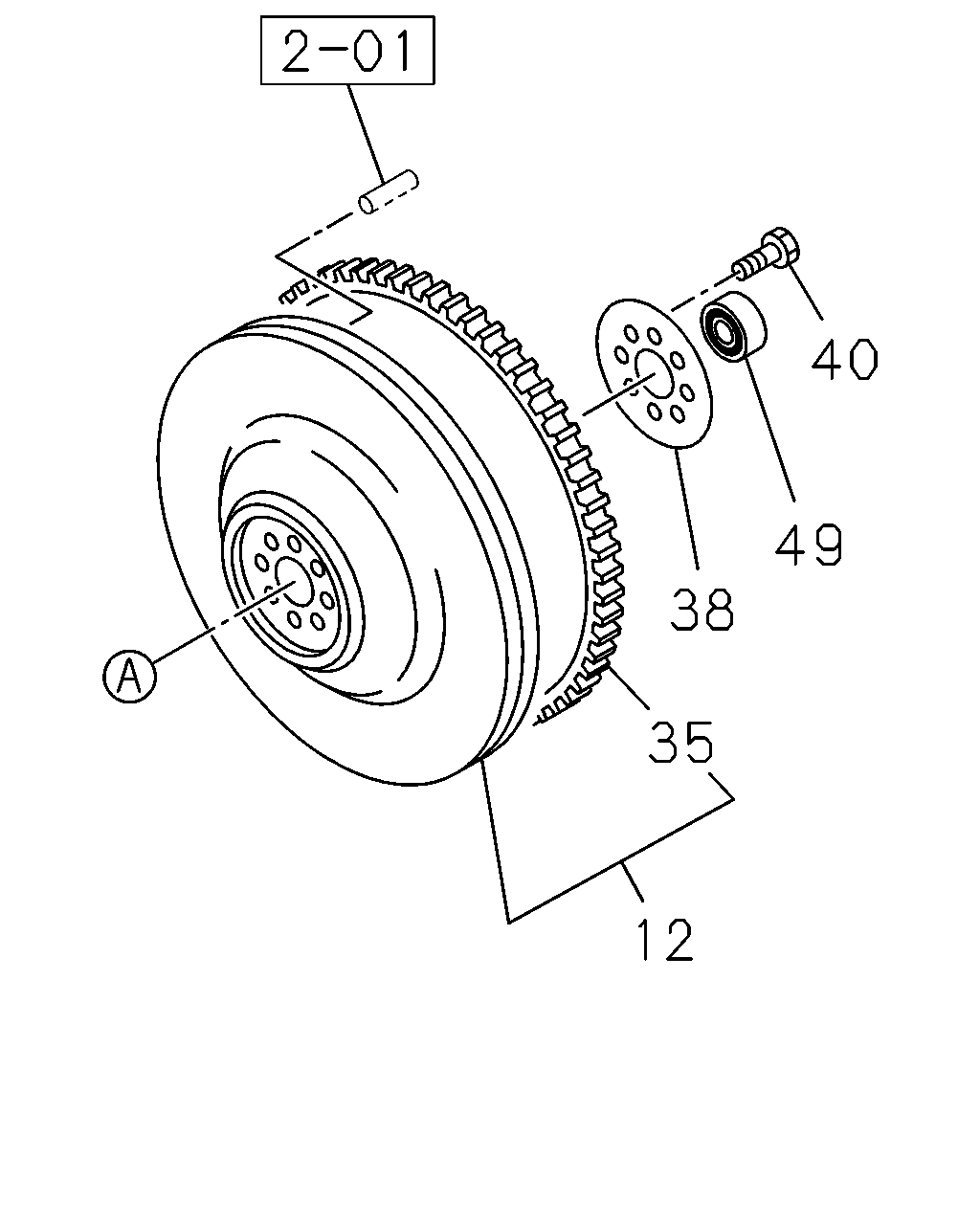

40 49 38 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	00.666 FLYWHEEL	8-98012-825-2	01	1	0803-0911
12	00.666 FLYWHEEL	8-98148-063-1	01	1	0912-
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	0803-
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-1	01	1	0803-1005
38	00.862 WASHER; FLYWHEEL	8-98171-700-0	01	1	1006-
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0803-
49	00.669 BEARING; PILOT	8-97325-153-0	01	1	0803-
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
