◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51384 - NMR 85(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#80317) — 57 parça

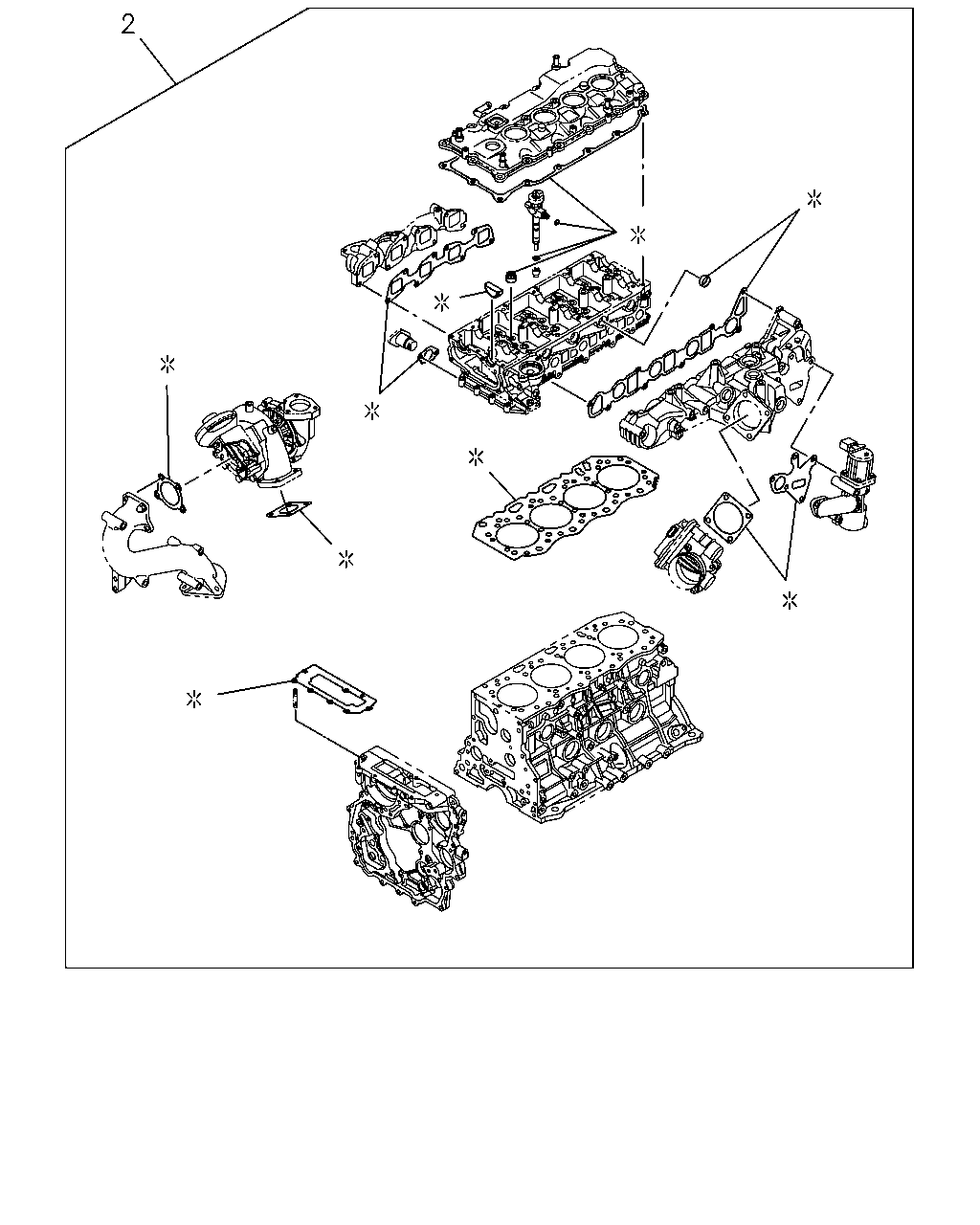

çizim 15657
2
BalonParca AdiParca NoAdetTipApplied Date
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-373-2 01 1 0803-1012
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-912-1 01 1 1101-1108
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1204
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1304
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-374-2 01 1 0803-1012
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-913-1 01 1 1101-1108
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1204
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1304
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412-
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-375-2 01 1 0803-1012
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-914-1 01 1 1101-1108
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1204
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1304
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412-

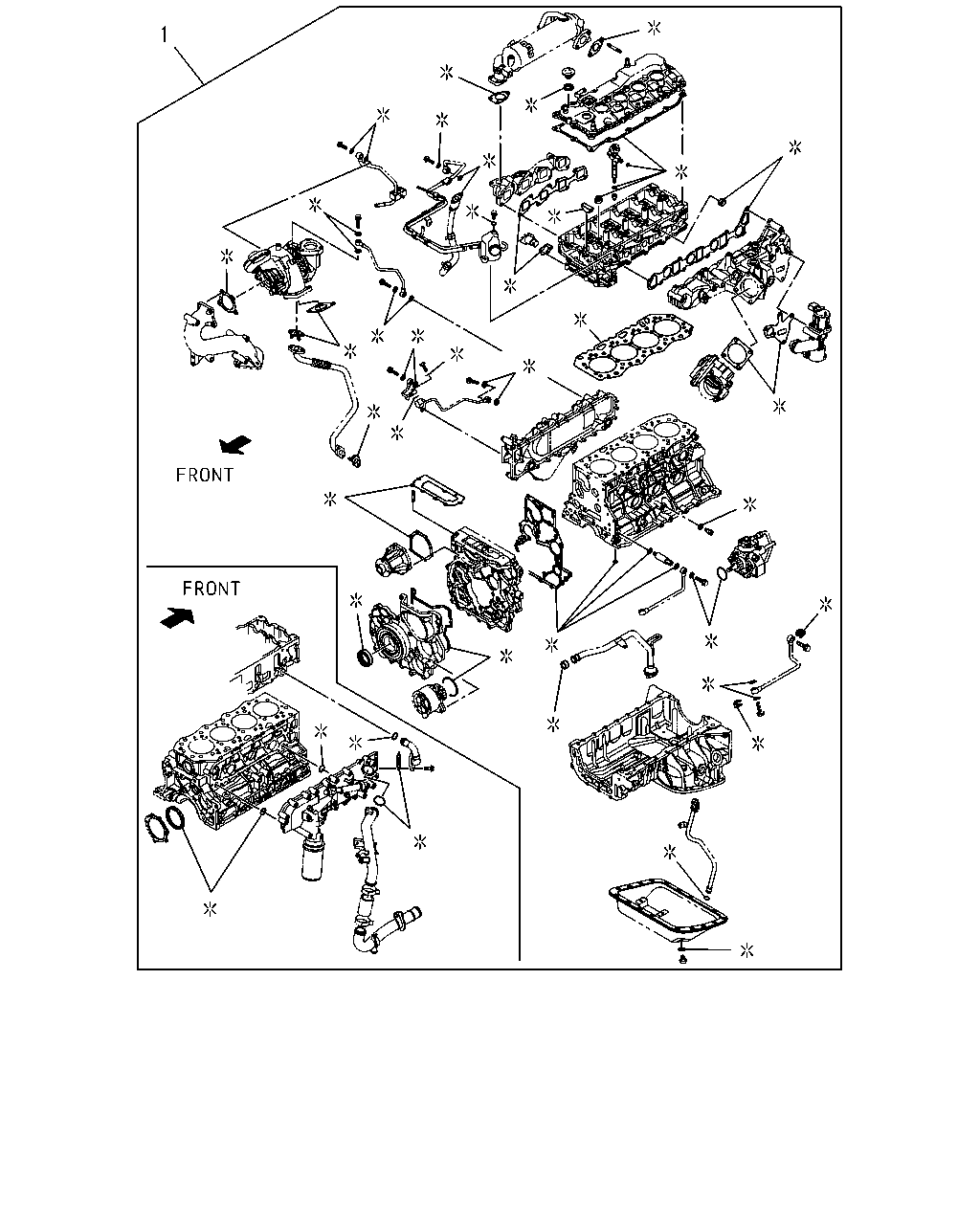

çizim 182623
1
BalonParca AdiParca NoAdetTipApplied Date
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-096-1 01 1 0803-0805
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-364-0 01 1 0806-0902
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-433-1 01 1 0903-1007
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-776-1 01 1 1008-1012
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-921-1 01 1 1101-1108
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1204
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412-
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-097-1 01 1 0803-0805
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-365-0 01 1 0806-0902
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-434-1 01 1 0903-1007
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-777-1 01 1 1008-1012
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-922-1 01 1 1101-1108
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1204
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412-
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-098-1 01 1 0803-0805
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-366-0 01 1 0806-0902
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-435-1 01 1 0903-1007
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-778-1 01 1 1008-1012
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-923-1 01 1 1101-1108
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1204
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
