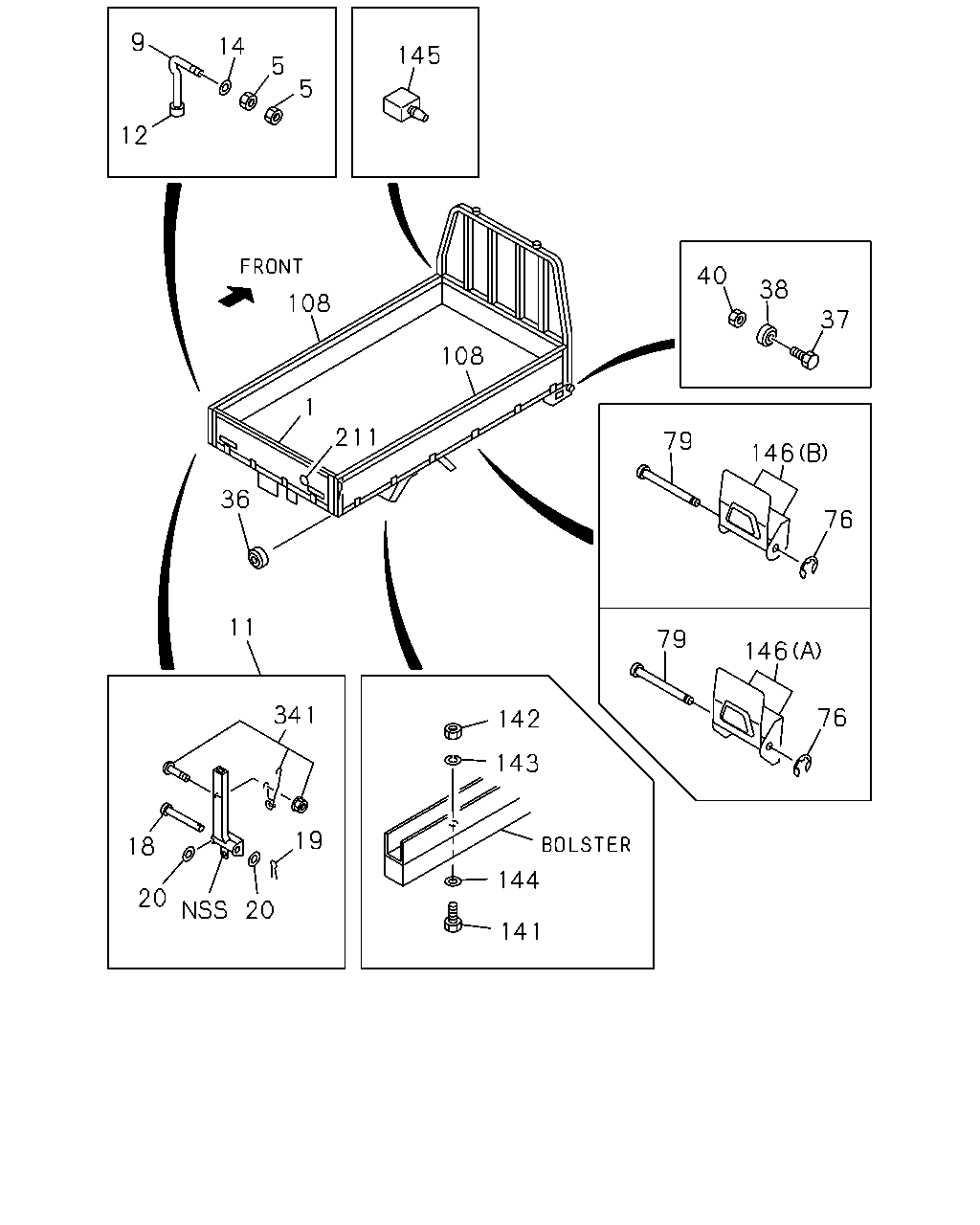

9-33 — REAR BODY; GATE AND SIDE GUARD (#80315) — 40 parça

9 14 145 5 5 12 40 38 108 37 108 1 211 79 146 36 76 11 79 146 341 76 142 143 19 18 144 20 20 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED<RS6> L=1596 H=398 B=43 STEEL TAKADA	8-94197-168-1	01	1	0211-	●	●
5	17.204 NUT; LATCH HANDLE RR BODY FLAT BED<RS6> 07.347 M12	9-99111-412-0	08	1	0211-0512	●	●
5	17.204 NUT; LATCH HANDLE RR BODY FLAT BED<RS6> 04.439 M12	0-91111-512-0	08	1	0601-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94197-207-1	01	1	0211-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6>	8-94197-208-1	01	1	0211-	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> TAKADA	8-94197-200-3	01	1	0211-	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> TAKADA	8-94197-201-3	01	1	0211-	●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> TAKADA	8-94193-344-0	02	1	0211-	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 03.430 ID=12.5	9-09160-512-0	04	1	0211-0605	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 04.439 ID=12.5 OD=22	0-91610-512-0	04	1	0606-	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	02	1	0211-0605	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 17.198 ID=10.5	0-91610-510-0	02	1	0606-	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 03.430 ID=12.5	9-09160-512-0	02	1	0211-0605		●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED<RS6> 04.439 ID=12.5 OD=22	0-91610-512-0	02	1	0606-		●
18	17.198 PIN; VERTICAL LOCK RR BODY FLAT BED<RS6>	8-94197-090-1	02	1	0211-	●	●
19	17.198 PIN; SPLIT,VERTICAL LOCK RR BODY FLAT BED<RS6>	9-08113-015-0	02	1	0211-0712	●	●
19	17.198 PIN; SPLIT,VERTICAL LOCK RR BODY FLAT BED<RS6> 04.439 OD=2.8 L=18	0-81123-018-0	02	1	0801-	●	●
20	17.198 WASHER; PL,VERTICAL LOCK RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18	9-09160-510-0	04	1	0211-0712	●	●
20	17.198 WASHER; PL,VERTICAL LOCK RR BODY FLAT BED<RS6> ID=10.5	0-91610-510-0	04	1	0801-	●	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6>	8-94197-202-0	02	1	0211-	●
37	17.202 SCREW RR BODY FLAT BED<RS6> TAKADA	8-94197-198-1	06	1	0211-	●	●
38	17.507 RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED<RS6> 17.202 OD=45 H=30	5-66900-013-1	06	1	0211-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> M6 FLANGE	8-94197-199-0	06	1	0211-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED<RS6> 17.208 ID=6	9-09185-006-0	16	1	0211-	●	●
79	17.185 PIN; SIDE & RR GATE RR BODY FLAT BED<RS6>	8-94197-143-1	16	1	0211-	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-262-0	01	1	0211-	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED<RS6> L=3152 H=397.2 B=43 STEEL	8-94197-263-0	01	1	0211-	●	●
141	17.505 BOLT RR BODY FLAT BED<RS6> M6X32	0-10805-632-0	16	1	0211-	●
142	17.505 NUT RR BODY FLAT BED<RS6> 16.176 M6	9-09110-406-0	16	1	0211-0512	●
142	17.505 NUT RR BODY FLAT BED<RS6> 03.330 M6	0-91110-506-0	16	1	0601-	●
143	17.505 WASHER; LK,SPACER RR BODY FLAT BED<RS6> 00.206 ID=6.1	9-09150-506-0	16	1	0211-0603	●
143	17.505 WASHER; LK,SPACER RR BODY FLAT BED<RS6> 08.155 ID=6.1	0-91510-506-0	16	1	0604-	●
144	17.505 WASHER; PL,SPACER RR BODY FLAT BED<RS6> 02.334 ID=6.4 OD=22	9-09164-806-0	16	1	0211-	●
145	17.505 STOPPER; SIDE GATE RR BODY FLAT BED<RS6> 17.507	8-94238-211-0	02	1	0211-	●	●
146	17.505 HINGE; SIDE & REAR RR BODY FLAT BED<RS6> (A)	8-94197-205-1	16	1	0211-	●
146	17.505 HINGE; SIDE & REAR RR BODY FLAT BED<RS6> (A)	8-94197-205-1	14	1	0211-		●
146	17.505 HINGE; SIDE & REAR RR BODY FLAT BED<RS6> (B)	8-94197-206-1	02	1	0211-		●
211	17.505 REFLECTOR; RR BODY RR BODY FLAT BED<RS6> 16.225	8-97808-650-0	02	1	0211-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94197-370-0	01	1	0211-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> TAKADA	8-94197-371-0	01	1	0211-	●	●
