9-31 — REAR BODY; FLOOR AND FENDER (#80313) — 21 parça

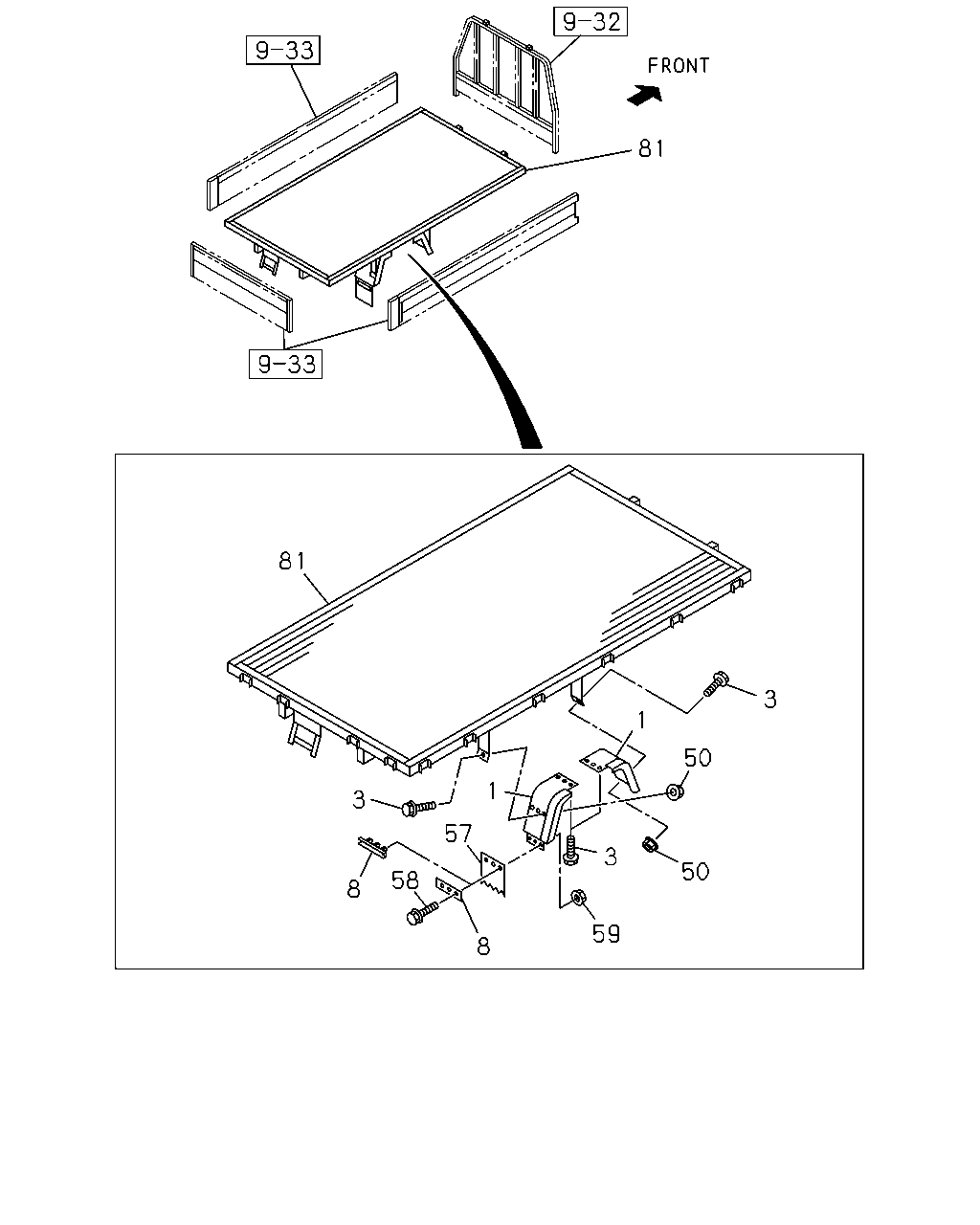

çizim 36051
81 81 3 1 50 1 3 57 3 50 58 8 59 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> FRONT 		8-94197-180-0 01 1 0211- ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> FRONT 		8-94197-181-0 01 1 0211- ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> REAR 		8-94197-184-0 01 1 0211- ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> REAR 		8-94197-185-0 01 1 0211- ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> FRONT 		8-94197-182-0 01 1 0211- ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> FRONT 		8-94197-183-0 01 1 0211- ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> REAR 		8-94197-188-0 01 1 0211- ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> REAR 		8-94197-189-0 01 1 0211- ●
3 08.203 BOLT; FENDER TO RR BODY
RR BODY FLAT BED<RS6> 17.208 M6X12 W/LK&PL WASHER 		8-94197-192-0 16 1 0211- ●
3 08.203 BOLT; FENDER TO RR BODY
RR BODY FLAT BED<RS6> 17.208 M6X12 W/LK&PL WASHER 		8-94197-192-0 22 1 0211- ●
8 08.212 HOLDER; FLAP RUBBER
RR BODY FLAT BED<RS6> 		8-97069-729-0 02 1 0211- ●
8 08.212 HOLDER; FLAP RUBBER
RR BODY FLAT BED<RS6> 		8-97066-225-0 02 1 0211- ●
50 17.447 NUT; RR FENDER
RR BODY FLAT BED<RS6> 17.208 M6 FLANGE 		8-94197-193-0 08 1 0211- ●
50 17.447 NUT; RR FENDER
RR BODY FLAT BED<RS6> 17.208 M6 FLANGE 		8-94197-193-0 10 1 0211- ●
57 08.214 RUBBER; FLAP RR
RR BODY FLAT BED<RS6> H=330 B=280 		8-97089-827-1 02 1 0211- ●
57 08.214 RUBBER; FLAP RR
RR BODY FLAT BED<RS6> H=270 B=340 		8-97089-828-1 02 1 0211- ●
58 17.208 BOLT; RUBBER,RR FENDER
RR BODY FLAT BED<RS6> 08.212 M6X16 FLANGE 		8-97065-432-2 06 1 0211-0711 ●
58 17.208 BOLT; RUBBER,RR FENDER
RR BODY FLAT BED<RS6> M6X16 FLANGE 		8-98098-459-0 06 1 0712- ●
59 17.208 NUT; RUBBER,RR FENDER
RR BODY FLAT BED<RS6> 08.212 M6 FLANGE 		8-97065-431-0 06 1 0211- ●
81 17.400 FLOOR ASM; RR BODY
RR BODY FLAT BED<RS6> 		8-94197-232-0 01 1 0211- ●
81 17.400 FLOOR ASM; RR BODY
RR BODY FLAT BED<RS6> 		8-94197-234-0 01 1 0211- ●
