8-90 — RADIO AND TV (#80310) — 39 parça

1 268 1 7 6 6 7 268 226 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (A) SANYO AM	8-97241-543-0	01	1	0211-0307	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 09.645 (A) SANYO AM	8-97241-357-0	01	1	0308-0312	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (B) CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0401-	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2)	8-97853-614-2	01	1	0211-	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2)	8-97853-615-2	01	1	0211-	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0211-0604	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-0612	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	0701-	●	●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2)	8-97856-203-3	01	1	0211-	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0211-1210	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2) 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●	●
268	09.649 KNOB; VOL RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO	8-97093-557-0	01	1	0211-0312	●	●
268	09.649 KNOB; VOL RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION	8-97331-589-0	01	1	0401-	●	●

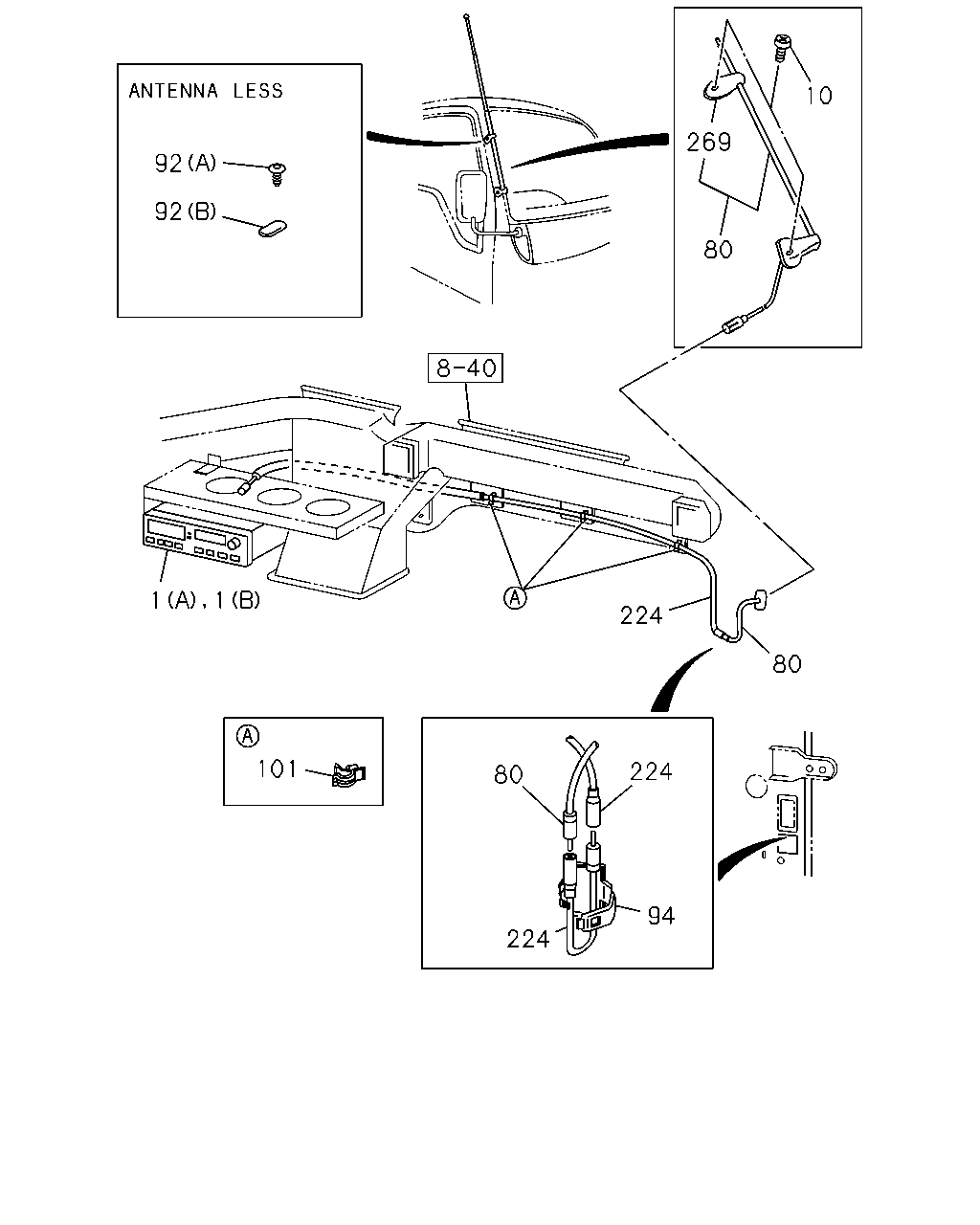

10 269 92 92 80 1 1 224 80 101 224 80 94 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (A) SANYO AM	8-97241-543-0	01	1	0211-0307	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 09.645 (A) SANYO AM	8-97241-357-0	01	1	0308-0312	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (B) CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0401-	●	●
10	09.647 SCREW; ANTENNA CABLE ANTENNA<U73> M6X20	8-97120-686-0	01	1	0211-	●	●
10	09.647 SCREW; ANTENNA CABLE ANTENNA<U73> M6X16	8-97123-696-0	01	1	0211-	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97211-565-0	01	1	0211-	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0211-	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-3	01	1	0211-	●	●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-3	01	1	0211-	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 ID=7	5-09707-053-0	03	1	0211-	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97213-766-0	01	1	0211-	●	●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-080-0	01	1	0211-	●	●

222 116 222 171 222 5 117 48 221 221 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	0211-	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97317-000-0	02	1	0211-0805	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97317-001-1	02	1	0806-	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	0211-0612	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	0701-	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	0211-	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	0211-	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	0211-0612	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	06	1	0701-	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	0211-	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-5	02	1	0211-	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-2	02	1	0211-	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)	1-09987-144-0	02	1	0211-	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0211-	●	●
