◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10829 - FV/GV(AUSTRAL)A.SUS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#8031) — 48 parça

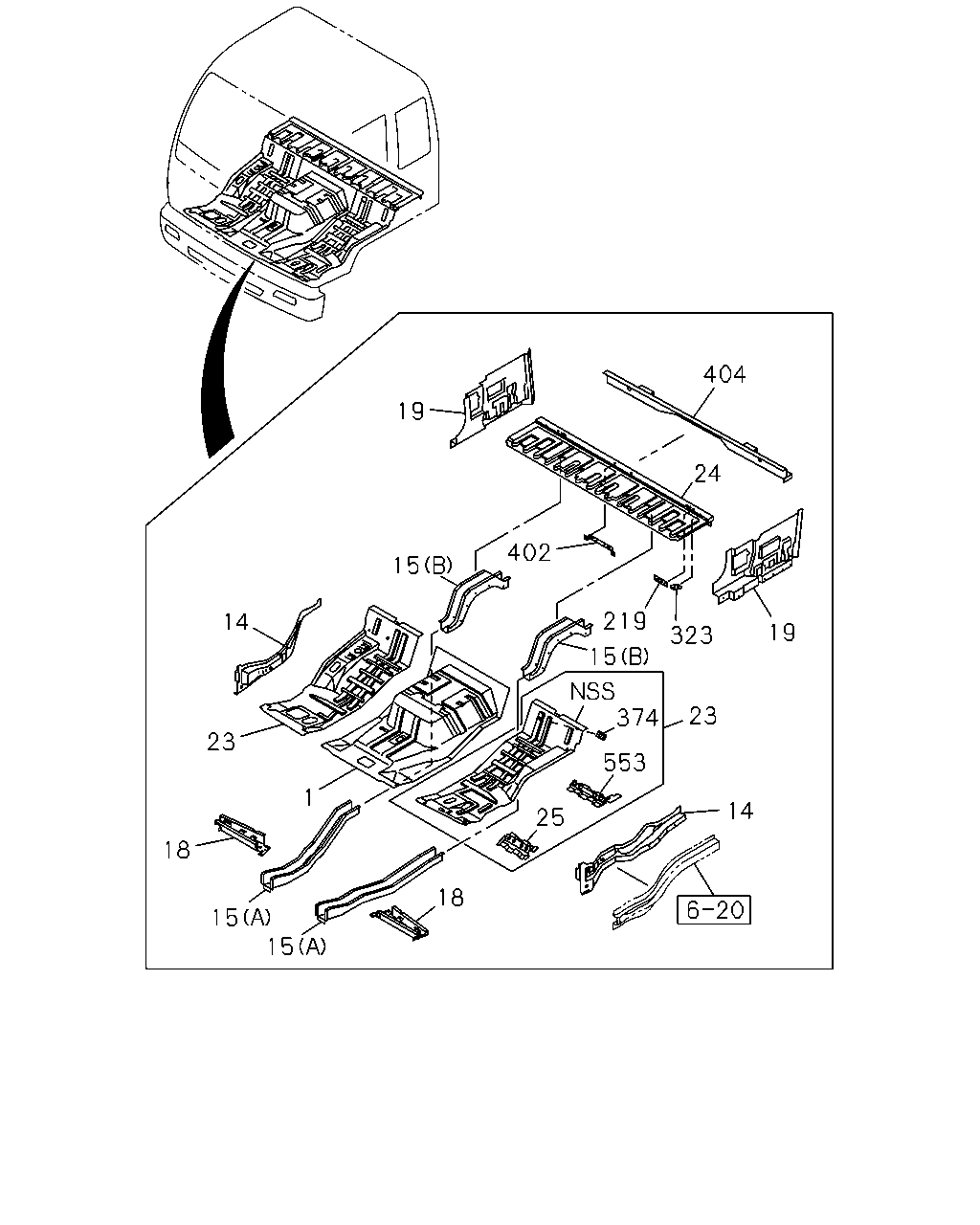

çizim 48398
404 19 24 19 323 219 15 402 15 14 23 1 18 15 15 18 25 553 374 23 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; FLOOR
ISUZU M/T<X9A>,A/T<X9D> 		1-62183-405-2 01 1 0005-0210 ● ●
1 PANEL; FLOOR
A/T<X9D> 		1-62183-668-0 01 1 0211- ● ●
1 PANEL; FLOOR
6SD1 TCN ENG(31L) FULLER M/T<X9B> 		1-62183-337-3 01 1 0005-0011 ● ●
1 PANEL; FLOOR
FULLER M/T<X9B> 		1-62183-337-3 01 1 0012-0210 ● ●
1 PANEL; FLOOR 1-62183-337-3 01 1 0012-0210 ●
1 PANEL; FLOOR
FULLER M/T<X9B> 		1-62183-675-0 01 1 0211- ● ●
1 PANEL; FLOOR 1-62183-675-0 01 1 0211- ●
1 PANEL; FLOOR 1-62183-374-2 01 1 0005-0210 ●
1 PANEL; FLOOR 1-62183-678-0 01 1 0211- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0005-0011 ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0012- ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0005-0011 ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0012- ● ● ● ●
15 FRAME; UNDER
(A) 		1-62482-931-8 01 1 0005-0011 ● ● ●
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 0012-0401 ● ● ● ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402- ● ● ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 0005-0011 ● ● ●
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 0012-0103 ● ● ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104- ● ● ● ●
15 FRAME; UNDER
(B) 		1-62483-154-2 01 1 0005-0011 ● ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0012- ● ● ● ●
15 FRAME; UNDER
(B) 		1-62483-153-2 01 1 0005-0011 ● ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0012- ● ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-4 01 1 0005-0011 ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 0012- ● ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-4 01 1 0005-0011 ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 0012- ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0005-0011 ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0012- ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0005-0011 ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0012- ● ● ● ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0005-0011 ● ● ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0012- ● ● ● ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 0005-0011 ● ● ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 0012- ● ● ● ●
24 PANEL; BED PAN 1-62182-940-9 01 1 0005-0011 ● ● ●
24 PANEL; BED PAN 1-62182-940-9 01 1 0012- ● ● ● ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0211- ● ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0005-0011 ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0012- ● ● ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0005-0011 ● ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0012- ● ● ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 0211- ● ● ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0005-0011 ● ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0012- ● ● ● ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 0005-0011 ● ● ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 0012- ● ● ● ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0211- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
