◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#80308) — 18 parça

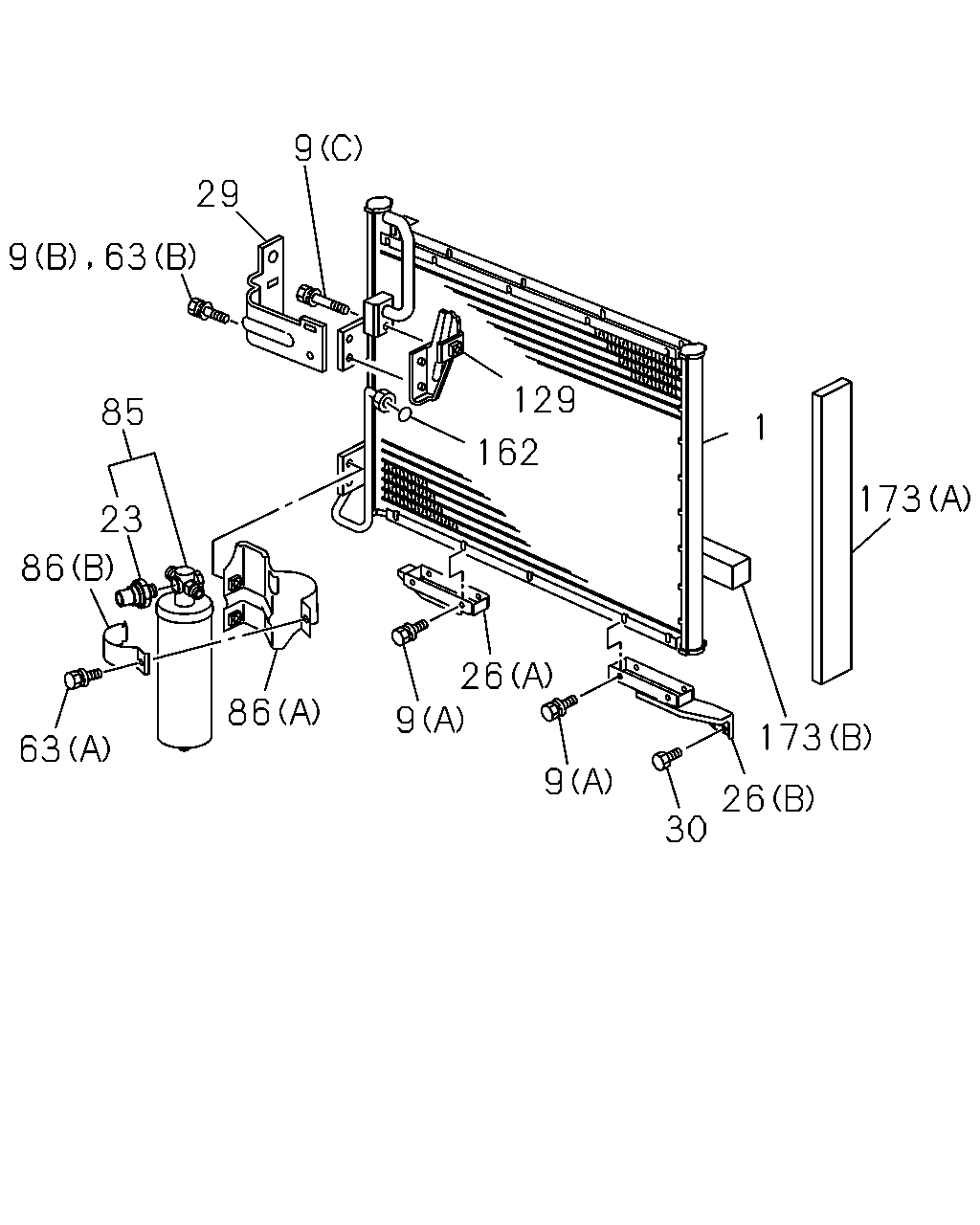

çizim 35131
9 29 129 85 1 162 173 23 86 26 86 9 173 63 9 26 30 9 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97187-713-0 01 1 0211-0501 ● ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 02 1 0211-0501 ● ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 04 1 0211-0501 ● ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97178-387-0 01 1 0211-0501 ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 0211-0501 ● ●
26 09.190 BRACKET; LOW
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 0211-0501 ● ●
26 09.190 BRACKET; LOW
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 0211-0501 ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) 		8-97107-366-0 01 1 0211-0501 ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ●
63 09.175 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 0211-0501 ● ●
63 09.175 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97178-388-0 01 1 0211-0501 ● ●
85 09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-1 01 1 0211-0501 ● ●
86 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 0211-0501 ● ●
86 09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 0211-0501 ● ●
129 09.190 BRACKET; UPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97095-962-1 01 1 0211-0501 ● ●
162 09.195 GASKET; PIPE TO DRYER
AIR CONDITIONER MANUAL CONT(C60) ID=6.07 		8-94461-902-0 01 1 0211-0501 ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 02 1 0211-0501 ● ●
173 09.190 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-037-1 02 1 0211-0501 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
