Isuzu WW
▶
TRUCKS
▶
NHR
▶
51383 - NHR(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

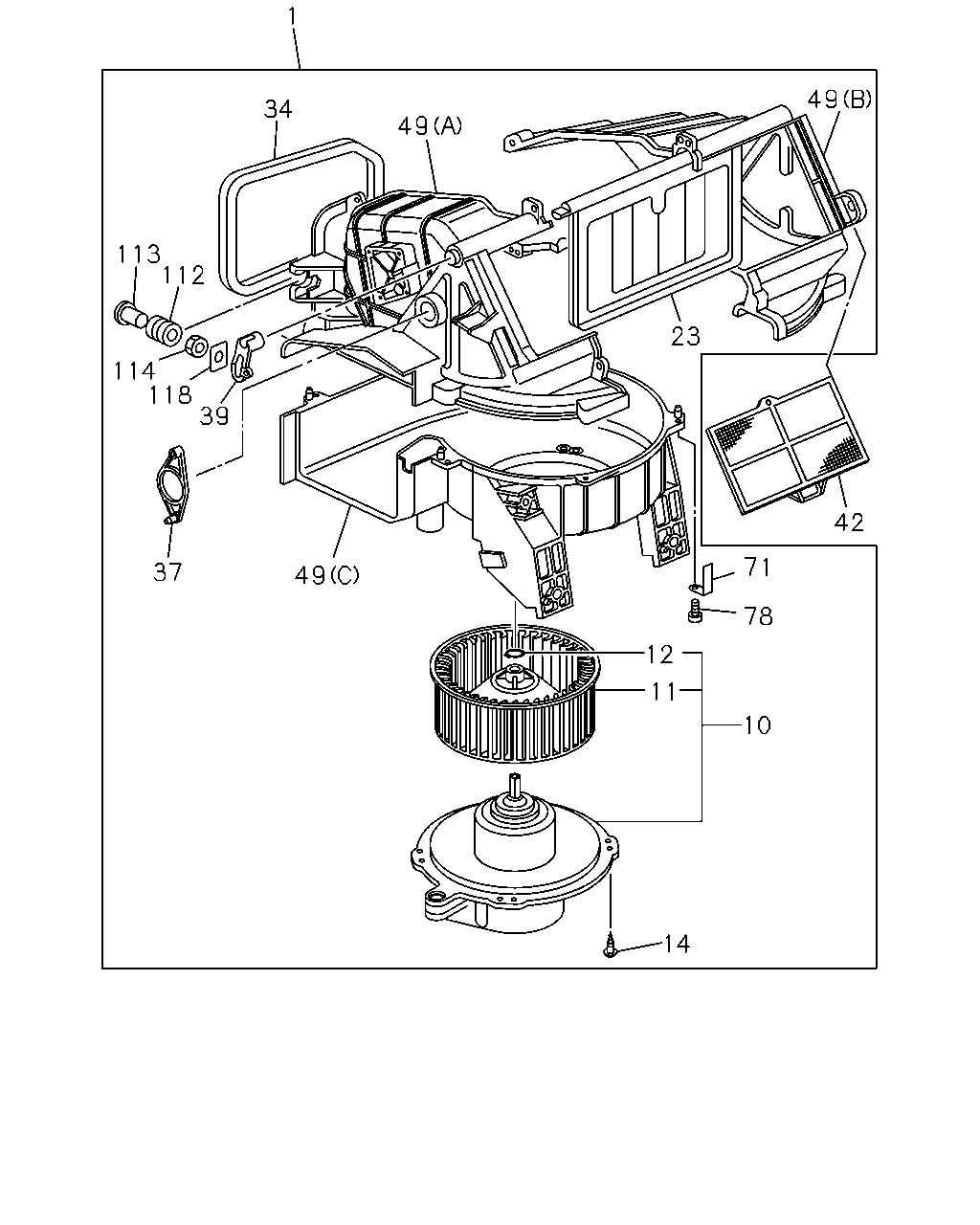

8-73 — BLOWER UNIT
(#80306) — 20 parça
Tümü
A - NHB6SF
B - NHN6SF
1
49
34
49
113
112
23
114
118
39
42
71
37
49
78
12
11
10
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
08.855 BLOWER ASM
8-97288-167-0
01
1
0211-
●
●
10
08.855 MOTOR ASM; FAN,BLOWER UNIT
8-97211-953-0
01
1
0211-
●
●
11
08.857 IMPELLER; FAN MOTOR
8-97096-067-0
01
1
0211-
●
●
12
08.857 RING; SNAP,FAN MOTOR
8-94243-962-0
01
1
0211-
●
●
14
08.857 SCREW; COVER TO CASE
10.240 M5X20
9-09829-324-1
04
1
0211-
●
●
23
08.857 SHUTTER; BLOWER UNIT
8-97096-640-3
01
1
0211-
●
●
34
08.856 LINING; BLOWER UNIT
8-97085-612-1
01
1
0211-
●
●
37
09.786 LEVER; MODE LEVER
8-97101-667-1
01
1
0211-
●
●
39
09.786 LEVER; SHUTTER,BLOWER UNIT
8-97101-666-1
01
1
0211-
●
●
42
08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60)
8-97288-163-0
01
1
0211-0501
●
●
42
08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-97288-163-0
01
1
0502-
●
●
49
08.857 CASE; BLOWER UNIT
(A)
8-97101-647-3
01
1
0211-
●
●
49
08.857 CASE; BLOWER UNIT
(B)
8-97101-648-1
01
1
0211-
●
●
49
08.857 CASE; BLOWER UNIT
(C)
8-97101-649-0
01
1
0211-
●
●
71
08.857 CLIP; HARNESS
08.854
8-94158-260-0
01
1
0211-
●
●
78
08.857 SCREW; CASE TO CASE
08.852 M4X16
8-94324-850-0
08
1
0211-
●
●
112
08.857 ISOLATOR; CASE
8-97096-641-0
02
1
0211-
●
●
113
08.857 BUSHING; ISOLATOR
8-97096-642-0
02
1
0211-
●
●
114
08.857 NUT; ISOLATOR
00.854 M8 FLANGE
5-09440-005-0
02
1
0211-
●
●
118
08.857 BRACKET; BUSHING
8-97107-979-0
01
1
0211-
●
●
