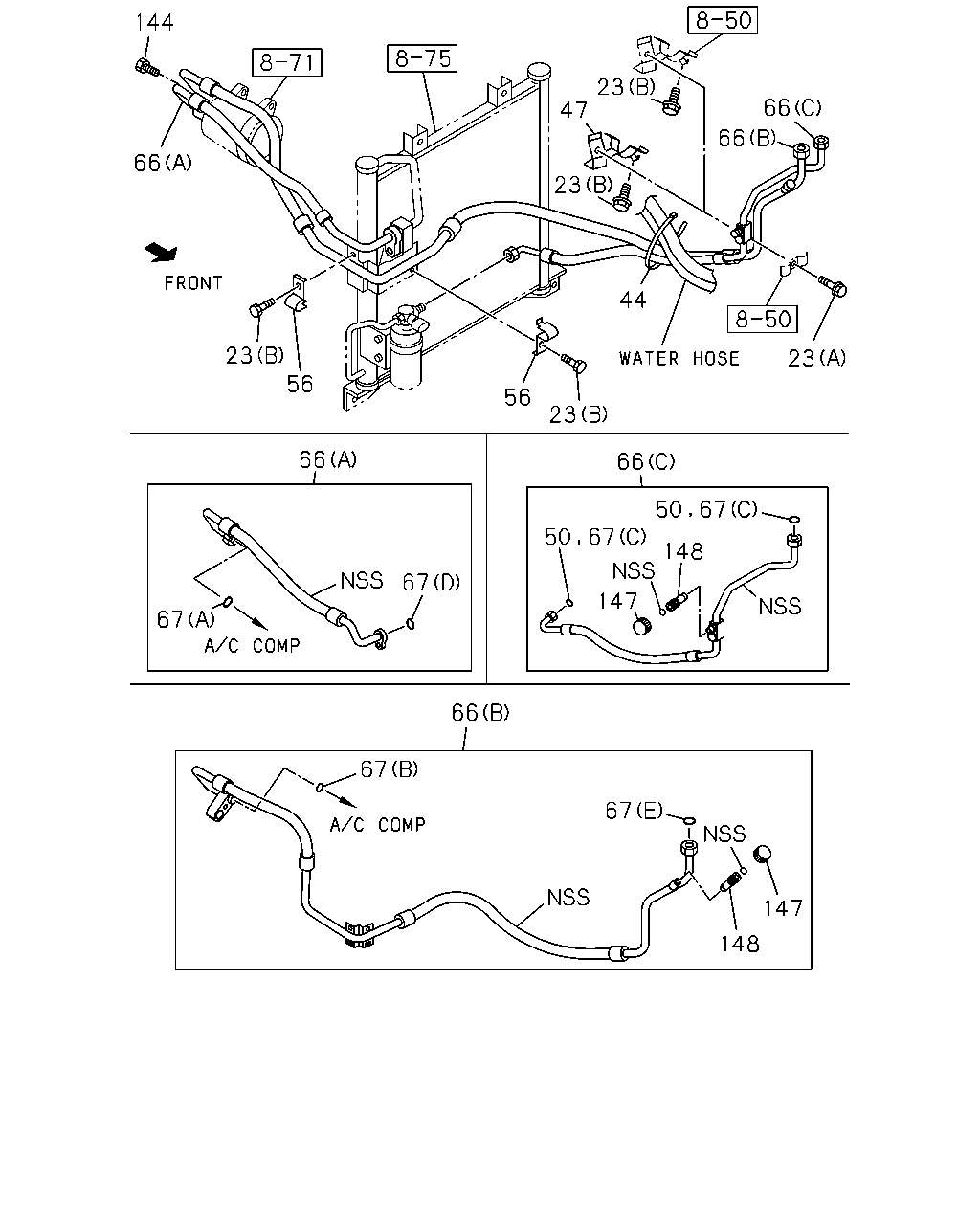

8-52 — PIPING; AIR CONDITIONING (#80302) — 39 parça

144 23 47 66 66 66 23 44 23 23 56 56 23 66 66 148 67 147 67 66 67 67 147 148 50 67 50 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 00.738 (B) M6X16 FLANGE	0-28080-616-0	03	1	0211-0501	●	●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	0211-0501	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	03	1	0211-0501	●	●
44	09.242 CLIP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	03	1	0502-	●	●
47	09.242 BRACKET; TILT BAR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97090-311-2	01	1	0211-	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	0211-0501	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97024-716-0	02	1	0211-0501	●	●
56	09.242 CLIP; PIPE,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97024-716-0	01	1	0502-0611	●	●
56	09.242 CLIP; PIPE,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98059-179-0	01	1	0612-	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-977-1	01	1	0211-0501	●	●
66	09.225 HOSE; FLEX,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-977-1	01	1	0211-0501	●	●
66	09.225 HOSE; FLEX,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97069-977-1	01	1	0502-	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97108-684-1	01	1	0211-0501	●	●
66	09.225 HOSE; FLEX,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97108-684-1	01	1	0211-0501	●	●
66	09.225 HOSE; FLEX,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97108-684-1	01	1	0502-	●	●
66	09.225 HOSE; FLEX,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97103-572-0	01	1	0211-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 (E) ID=13.9	8-94113-330-0	01	1	0211-0501	●	●
67	09.260 GASKET; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 (E) ID=13.9	8-94113-330-0	01	1	0211-0501	●	●
67	09.260 GASKET; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 (E) ID=13.9	8-94113-330-0	01	1	0502-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.222 (D) ID=10.8	8-94113-331-0	01	1	0211-0501	●	●
67	09.260 GASKET; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 (D) ID=10.8	8-94113-331-0	01	1	0211-0501	●	●
67	09.260 GASKET; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.222 (D) ID=10.8	8-94113-331-0	01	1	0502-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.0	8-94461-900-0	01	1	0211-0501	●	●
67	09.260 GASKET; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.0	8-94461-900-0	01	1	0211-0501	●	●
67	09.260 GASKET; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.0	8-94461-900-0	01	1	0502-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.8	8-94461-901-0	01	1	0211-0501	●	●
67	09.260 GASKET; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.8	8-94461-901-0	01	1	0211-0501	●	●
67	09.260 GASKET; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.8	8-94461-901-0	01	1	0502-	●	●
67	09.260 GASKET; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.195 (C) ID=6.07	8-94461-902-0	02	1	0211-	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	0211-0501	●	●
147	09.242 CAP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	0211-0501	●	●
147	09.242 CAP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	0502-	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0211-0501	●	●
147	09.242 CAP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0211-0501	●	●
147	09.242 CAP; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0502-	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	0211-0501	●	●
148	09.262 VALVE; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	0211-0501	●	●
148	09.262 VALVE; FLEX HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	02	1	0502-	●	●
