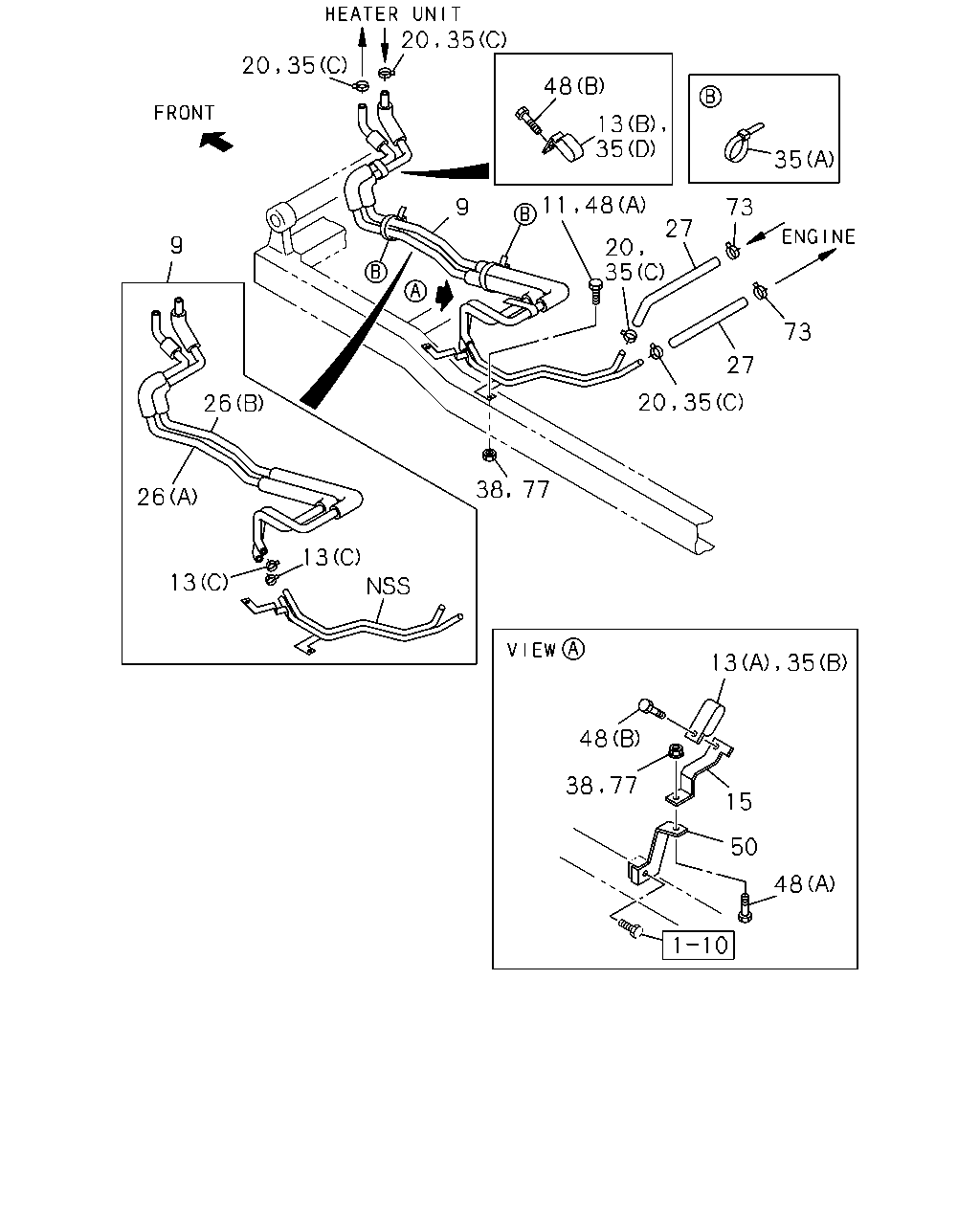

8-45 — HEATER PIPING (#80300) — 39 parça

48 13 35 35 48 11 9 73 27 9 20 35 73 27 26 38 77 26 13 13 13 35 48 15 50 48 20 35 20 35 20 35 38 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	0211-0501	●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41)	8-97129-185-0	01	1	0502-	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●	●
11	08.845 BOLT; HTR PIPE HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	0211-0501	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	02	1	0502-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-94124-169-1	01	1	0211-0501	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	9-83651-948-1	01	1	0211-0501	●	●
15	08.846 BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-872-0	01	1	0211-0501	●	●
15	08.846 BRACKET; WATER HOSE HEATER & DEFROSTER(C41)	8-97101-872-0	01	1	0502-	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	0211-0501	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0211-0501	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (A)	8-97107-809-0	01	1	0502-	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0211-0501	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (B)	8-97107-810-0	01	1	0502-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41)	8-97300-262-0	02	1	0211-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	02	1	0502-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D)	8-94124-169-1	01	1	0502-0610	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (D)	8-98032-129-0	01	1	0611-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	04	1	0502-0610	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	04	1	0611-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B) B=18	9-83651-948-1	01	1	0502-0610	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B) B=18	8-97359-144-0	01	1	0611-1205	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (B) B=18	8-98166-023-0	01	1	1206-	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0502-	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41) 03.417	8-97072-530-0	01	1	0502-	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0211-0610	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 ID=22	8-97359-141-0	02	1	0611-	●	●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501	●	●
