◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#80297) — 11 parça

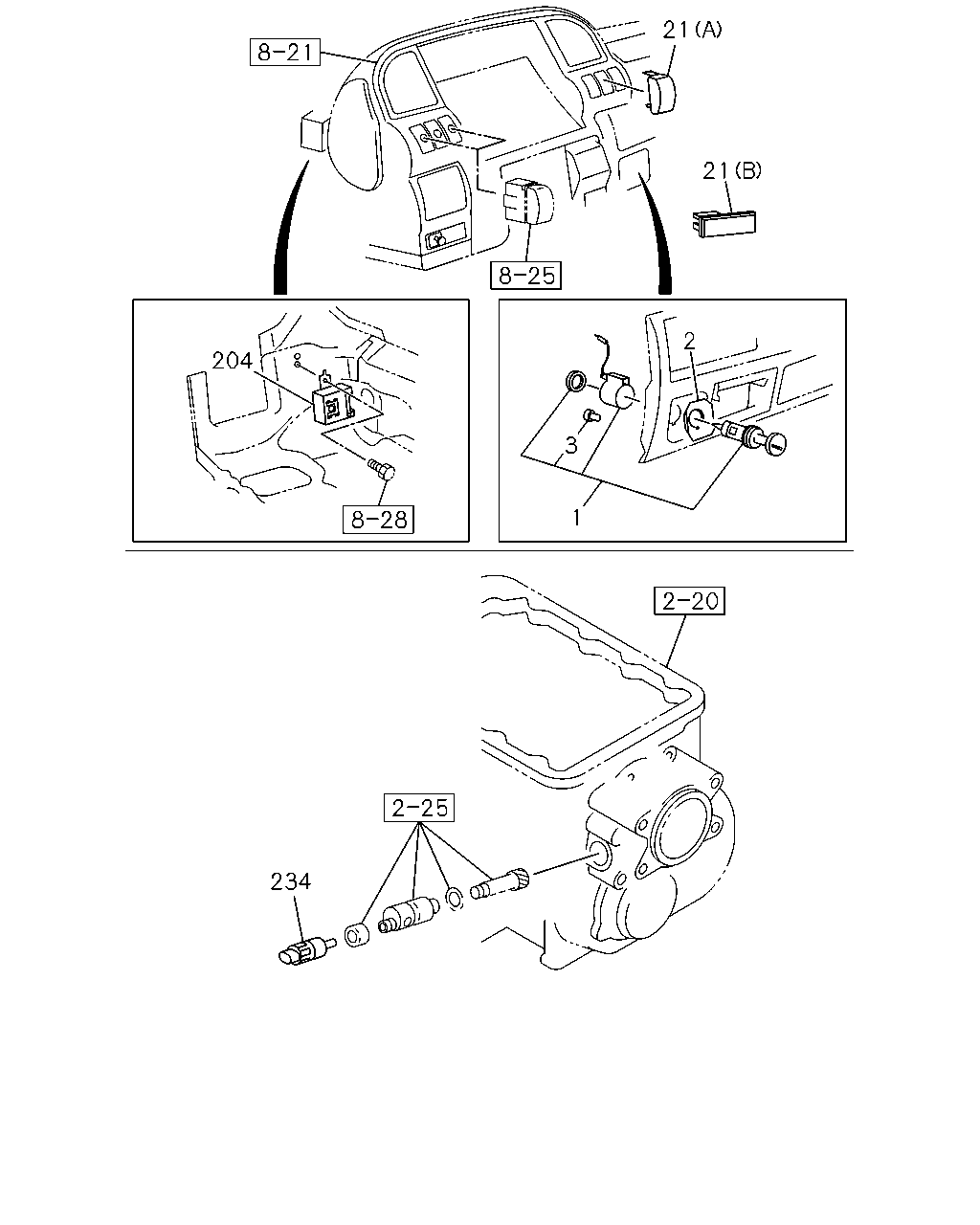

çizim 36819
21 21 2 204 3 1 234
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-97320-322-0 01 1 0211- ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0211-0706 ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0211- ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0211- ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0211- ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0211- ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 01 1 0211- ● ●
204 02.195 BUZZER; KEY REMIND
09.765 		8-97036-649-0 01 1 0211- ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0211-0405 ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
