8-10 — WIRING HARNESS AND FUSE (#80293) — 97 parça

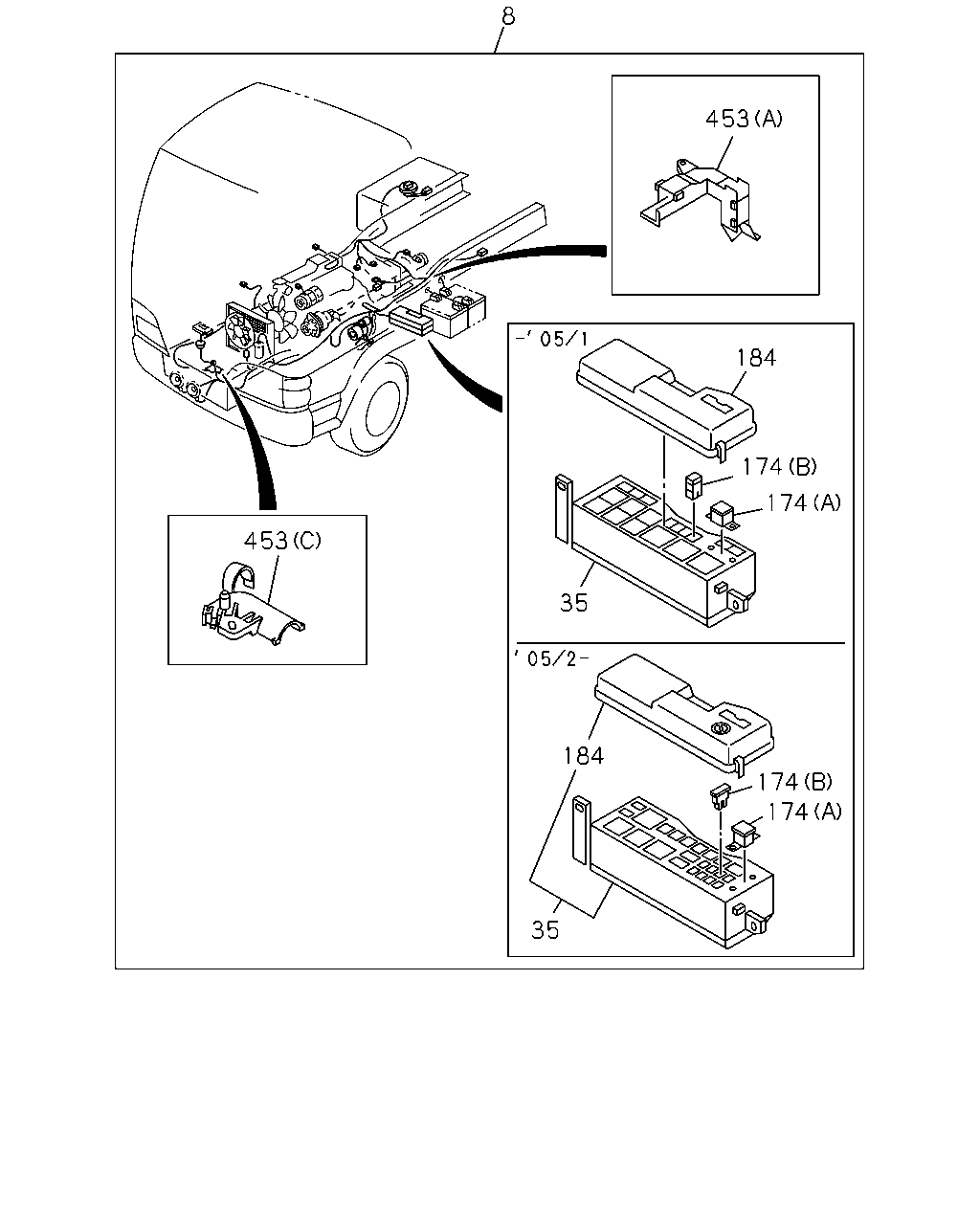

çizim 3609
8 453 184 174 174 453 35 184 174 174 35
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT 8-97260-495-2 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT 8-97377-876-1 01 1 0502- ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0211-0501 ● ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 0502- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0502- ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-1 AR 1 0211-0501 ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 AR 1 0502- ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 0211-0501 ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 0502- ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0211-0501 ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0502- ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0211-0501 ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0502- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0211- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 0211- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0211- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 0211-0409 ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 02 1 0502-1206 ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1207- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1207- ● ●
çizim 4457
13 329
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG 8-97173-694-2 01 1 0211- ● ●
329 02.480 CABLE; ENG TO FRAME 8-97260-486-1 01 1 0211- ● ●

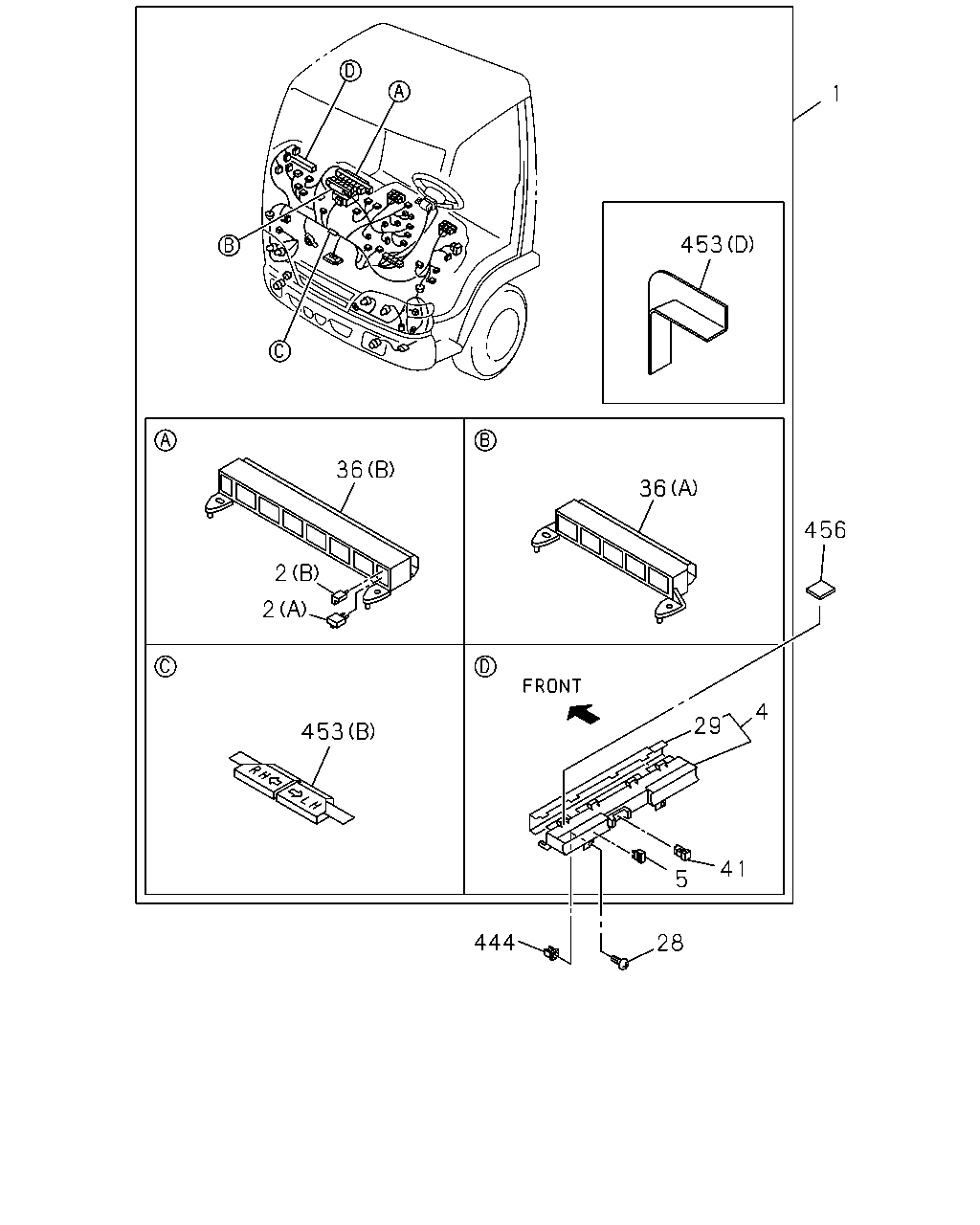

çizim 5258
1 453 36 36 456 2 2 29 4 453 41 5 28 444
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB 8-97185-292-3 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB 8-97381-169-4 01 1 0502- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211- ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0211-0501 ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0502- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0211-0501 ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0502- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211-0501 ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0211-0501 ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0502- ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0604 ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0502- ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0211-0501 ● ●
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0502- ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0211-0501 ● ●
41 08.821 PULLER; FUSE
02.483 		8-94121-482-0 01 1 0211-0501 ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0502- ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0211- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 0211- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0211- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 0211-0409 ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 0410-0501 ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 02 1 0502-1206 ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1207- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1207- ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211- ● ●

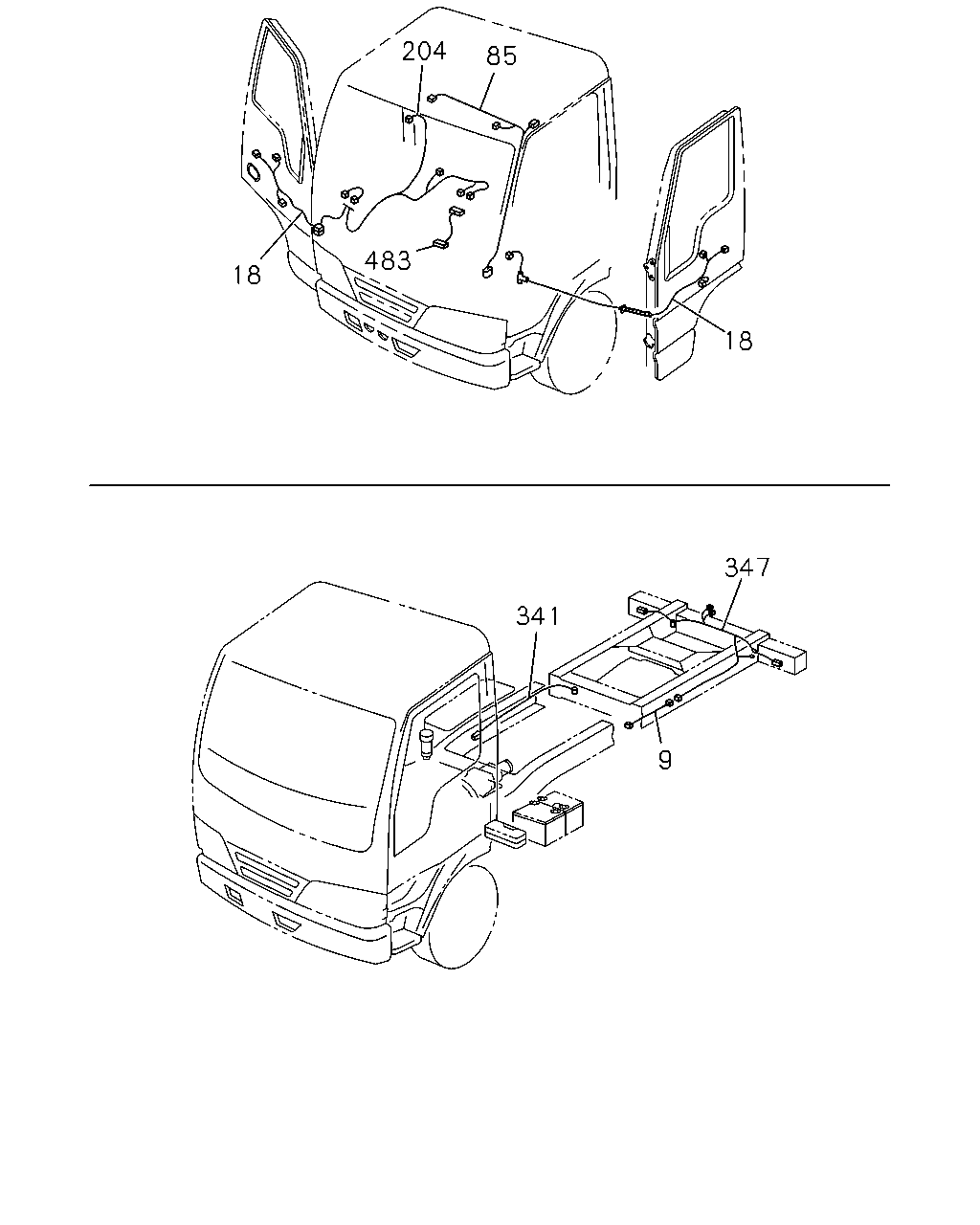

çizim 36540
204 85 483 18 18 347 341 9
BalonParca AdiParca NoAdetTipApplied Date A B
9 02.480 HARNESS; FRAME,RR 8-97381-162-1 01 1 0502- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> 		8-97226-669-0 01 1 1011-1405 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 1406- ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97226-671-1 01 1 1011-1405 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97226-671-1 01 1 1406- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-571-1 01 1 0211- ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97105-571-1 01 1 0211- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 0211- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 0211-1009 ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97226-671-1 01 1 0211-1009 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1010-1010 ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-98166-819-0 01 1 1010-1010 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1011-1405 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0211-1009 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1010-1010 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1011-1405 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0211-0302 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303- ● ●
341 02.530 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0211- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-563-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97364-148-0 01 1 0303- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 0211-0302 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY FLAT BED<RS6> 		8-97364-151-0 01 1 0303- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-564-0 01 1 0211-0302 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97364-149-0 01 1 0303- ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308-0310 ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97373-419-0 01 1 0311- ● ●

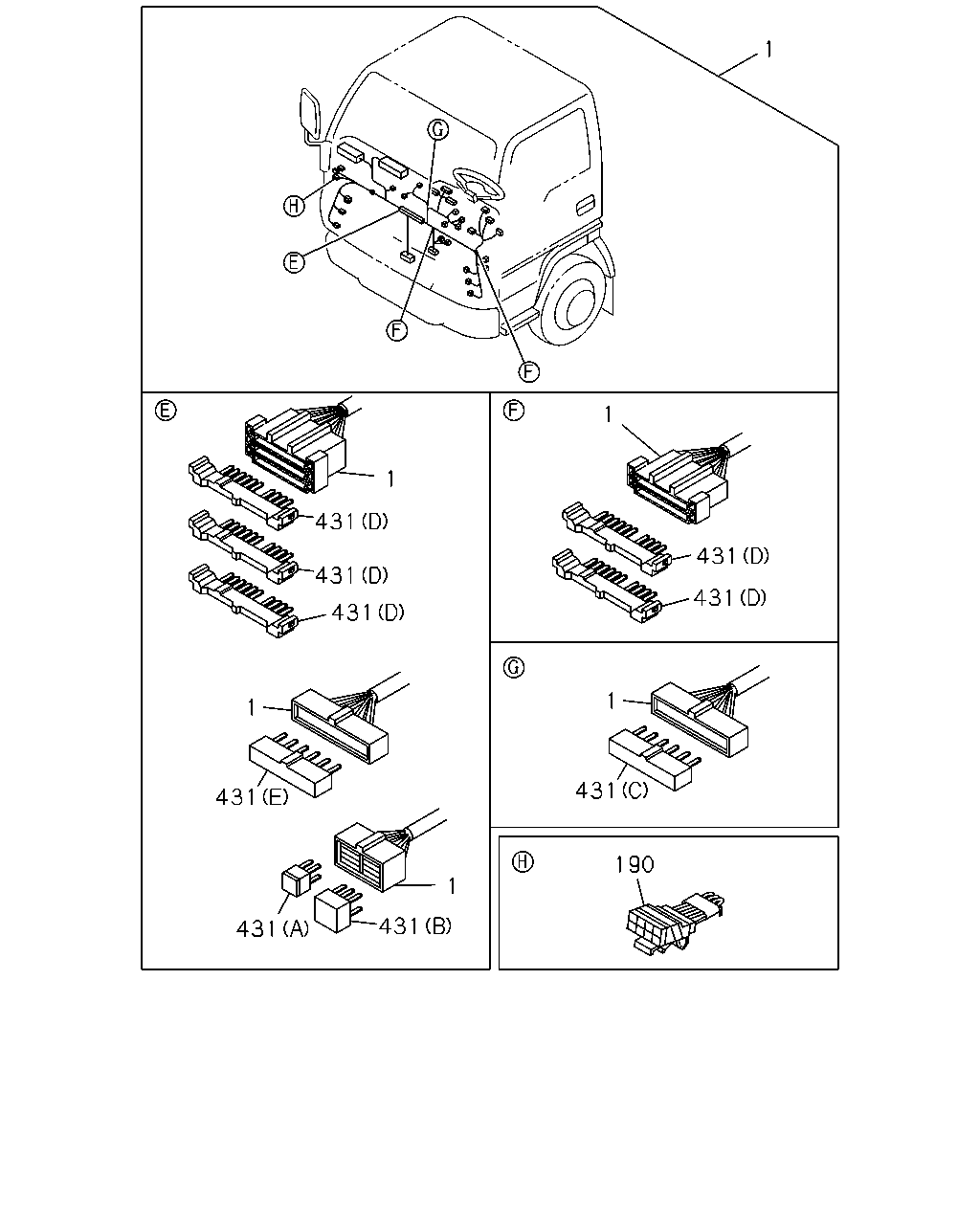

çizim 36686
1 1 1 431 431 431 431 431 1 1 431 431 190 1 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB 8-97185-292-3 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB 8-97381-169-4 01 1 0502- ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 0607-0607 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(C) 6P 		1-82691-206-0 01 1 0502- ● ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 01 1 0502- ● ●
431 02.530 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 07 1 0502- ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 0502- ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 0502- ● ●
