◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#80291) — 150 parça

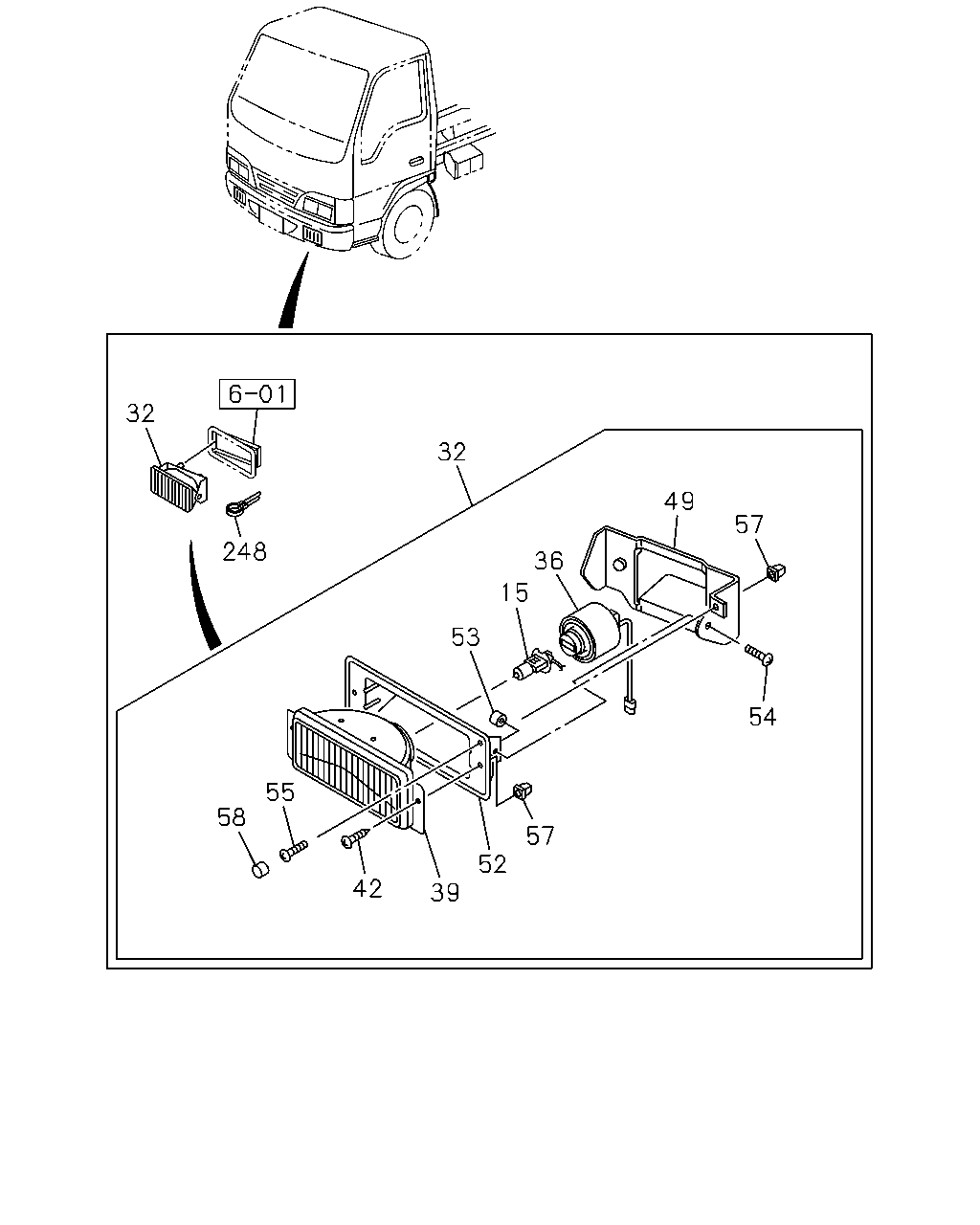

çizim 36008
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97093-859-0 02 1 0211- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-539-0 01 1 0211-0612 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-093-0 01 1 0701- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-540-0 01 1 0211-0612 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-094-0 01 1 0701- ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 0211- ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-060-0 01 1 0211-0612 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-678-0 01 1 0701- ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-300-0 01 1 0211-0612 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-679-0 01 1 0701- ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 0211- ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-090-0 01 1 0211- ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-091-0 01 1 0211- ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 0211- ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 0211- ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 0211- ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 0211- ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 0211- ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 0211- ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 0211- ● ●
çizim 36592
60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date A B
60 02.585 LAMP ASM; FRT COMB 8-97855-005-2 01 1 0211-0501 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-907-1 01 1 0502-0502 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-889-0 01 1 0503- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-006-2 01 1 0211-0501 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-908-1 01 1 0502-0502 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-890-0 01 1 0503- ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0211-0501 ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0502- ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 0211-0501 ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 12V 21/5W 		8-94125-959-0 02 1 0502- ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 12V 27/8W 		8-97094-889-0 02 1 0211-0501 ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 12V 21W 		8-97304-590-0 02 1 0502- ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502- ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0211-0501 ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502- ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-965-0 01 1 0502- ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-966-0 01 1 0502- ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0502- ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0502- ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-97378-969-0 02 1 0502-0502 ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-98010-916-0 02 1 0503- ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0502- ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0502- ● ●

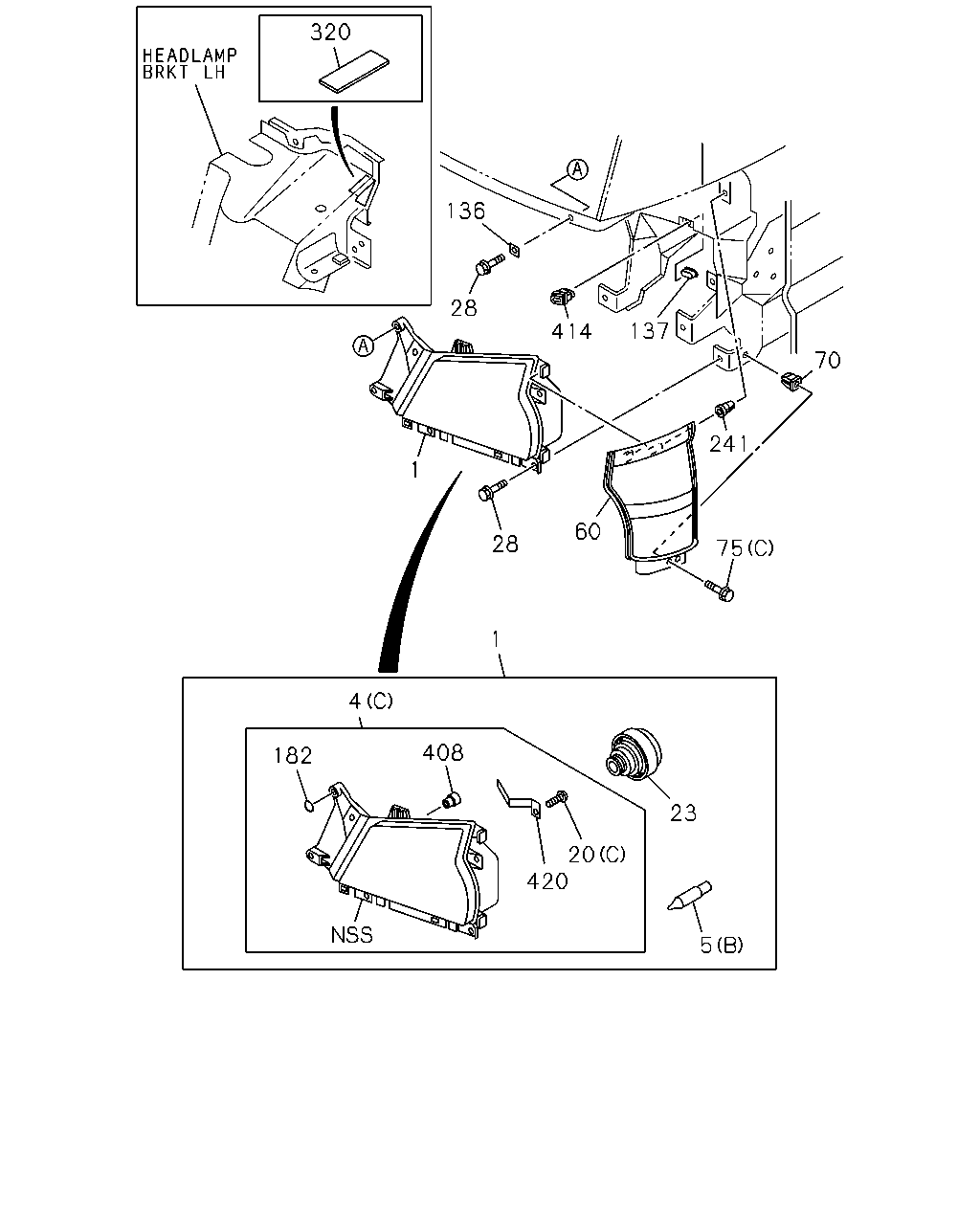

çizim 36741
320 136 28 137 414 70 241 1 60 28 75 1 4 408 182 23 20 420 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD 8-97855-047-4 01 1 0211-0501 ● ●
1 02.725 LAMP ASM; HEAD 8-97369-570-3 01 1 0502-0610 ● ●
1 02.725 LAMP ASM; HEAD 8-98053-915-0 01 1 0611- ● ●
1 02.725 LAMP ASM; HEAD 8-97855-048-4 01 1 0211-0501 ● ●
1 02.725 LAMP ASM; HEAD 8-97369-571-3 01 1 0502-0610 ● ●
1 02.725 LAMP ASM; HEAD 8-98053-916-0 01 1 0611- ● ●
4 02.727 HEADLAMP UNIT
(A) 12V 45/40W 		8-94101-733-0 02 1 0211-0501 ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-98009-824-0 01 1 0502- ● ●
4 02.727 HEADLAMP UNIT
(B) 12V 45W 		8-94101-739-0 02 1 0211-0501 ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-98009-825-0 01 1 0502- ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 45/50W 		5-82193-001-0 04 1 0211-0501 ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97106-708-0 02 1 0502- ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0211-0501 ● ●
20 02.736 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0502- ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0211-0501 ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0502- ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0211-0607 ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608-1401 ● ●
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-005-2 01 1 0211-0501 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-907-1 01 1 0502-0502 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-889-0 01 1 0503- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-006-2 01 1 0211-0501 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-908-1 01 1 0502-0502 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-890-0 01 1 0503- ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0211-0501 ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0502- ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502- ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0211-0501 ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502- ● ●
136 02.726 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 0211-0501 ● ●
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 0502- ● ●
137 02.726 GROMMET; HEADLAMP 8-97581-666-0 02 1 0502- ● ●
182 02.722 GASKET; HEADLAMP 8-97378-869-0 02 1 0502- ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0211-0501 ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0502- ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0211- ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0502- ● ●
414 02.736 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0502- ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0502- ● ●

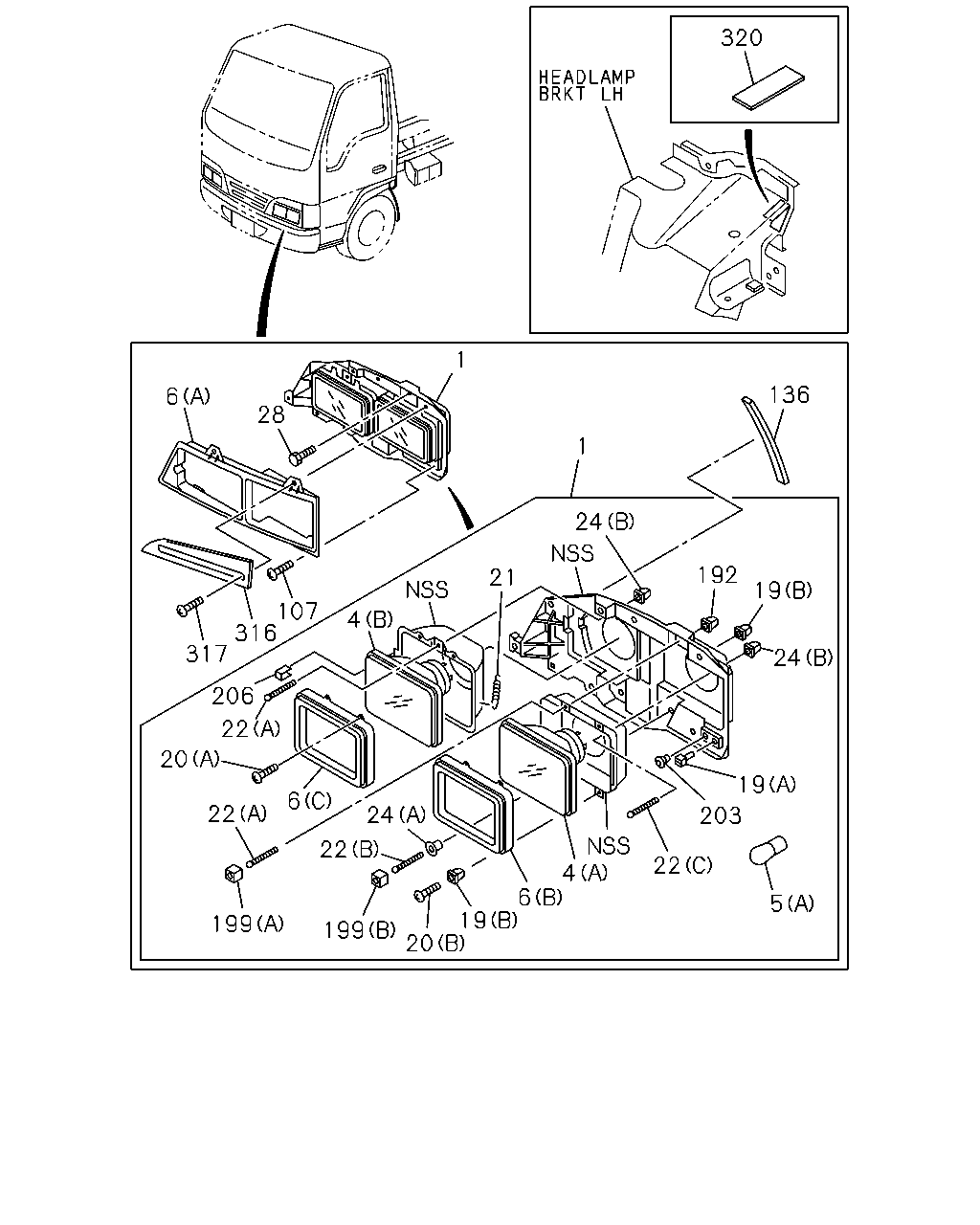

çizim 37023
320 1 136 6 28 1 24 192 21 19 107 316 317 4 24 206 22 20 19 6 24 22 203 4 6 19 199 20 22 22 5 199
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD 8-97855-047-4 01 1 0211-0501 ● ●
1 02.725 LAMP ASM; HEAD 8-97369-570-3 01 1 0502-0610 ● ●
1 02.725 LAMP ASM; HEAD 8-98053-915-0 01 1 0611- ● ●
1 02.725 LAMP ASM; HEAD 8-97855-048-4 01 1 0211-0501 ● ●
1 02.725 LAMP ASM; HEAD 8-97369-571-3 01 1 0502-0610 ● ●
1 02.725 LAMP ASM; HEAD 8-98053-916-0 01 1 0611- ● ●
4 02.727 HEADLAMP UNIT
(A) 12V 45/40W 		8-94101-733-0 02 1 0211-0501 ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-98009-824-0 01 1 0502- ● ●
4 02.727 HEADLAMP UNIT
(B) 12V 45W 		8-94101-739-0 02 1 0211-0501 ● ●
4 02.727 HEADLAMP UNIT
(C) 		8-98009-825-0 01 1 0502- ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 45/50W 		5-82193-001-0 04 1 0211-0501 ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97106-708-0 02 1 0502- ● ●
6 02.728 RIM; HEADLAMP
(C) 		1-82114-016-0 02 1 0211-0501 ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-088-0 01 1 0211-0501 ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-089-0 01 1 0211-0501 ● ●
6 02.728 RIM; HEADLAMP
(B) 		8-97855-211-0 02 1 0211-0501 ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-97044-618-0 08 1 0211-0501 ● ●
19 02.726 NUT; HEADLAMP
(B) 		8-97044-623-0 08 1 0211-0501 ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0211-0501 ● ●
20 02.736 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0502- ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0211-0501 ● ●
21 02.737 SPRING; ADJ HEADLAMP 1-82119-021-0 02 1 0211-0501 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(A) 		8-97855-205-0 04 1 0211-0501 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(B) 		8-97855-206-0 02 1 0211-0501 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(C) 		8-97855-207-0 02 1 0211-0501 ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) 		8-94387-097-0 06 1 0211-0501 ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(A) 		8-97855-208-0 02 1 0211-0501 ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0211-0607 ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608-1401 ● ●
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402- ● ●
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-97326-998-0 04 1 0211-0501 ● ●
136 02.726 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 0211-0501 ● ●
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 0502- ● ●
192 02.765 PIVOT; HEADLAMP
02.737 		8-94381-595-0 02 1 0211-0501 ● ●
199 02.737 BUSHING
(A) 		8-94381-605-0 04 1 0211-0501 ● ●
199 02.737 BUSHING
(B) 		8-97855-212-0 02 1 0211-0501 ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 0211-0501 ● ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 0211-0501 ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97867-774-0 01 1 0211-0501 ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97867-775-0 01 1 0211-0501 ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0211-0501 ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0211- ● ●

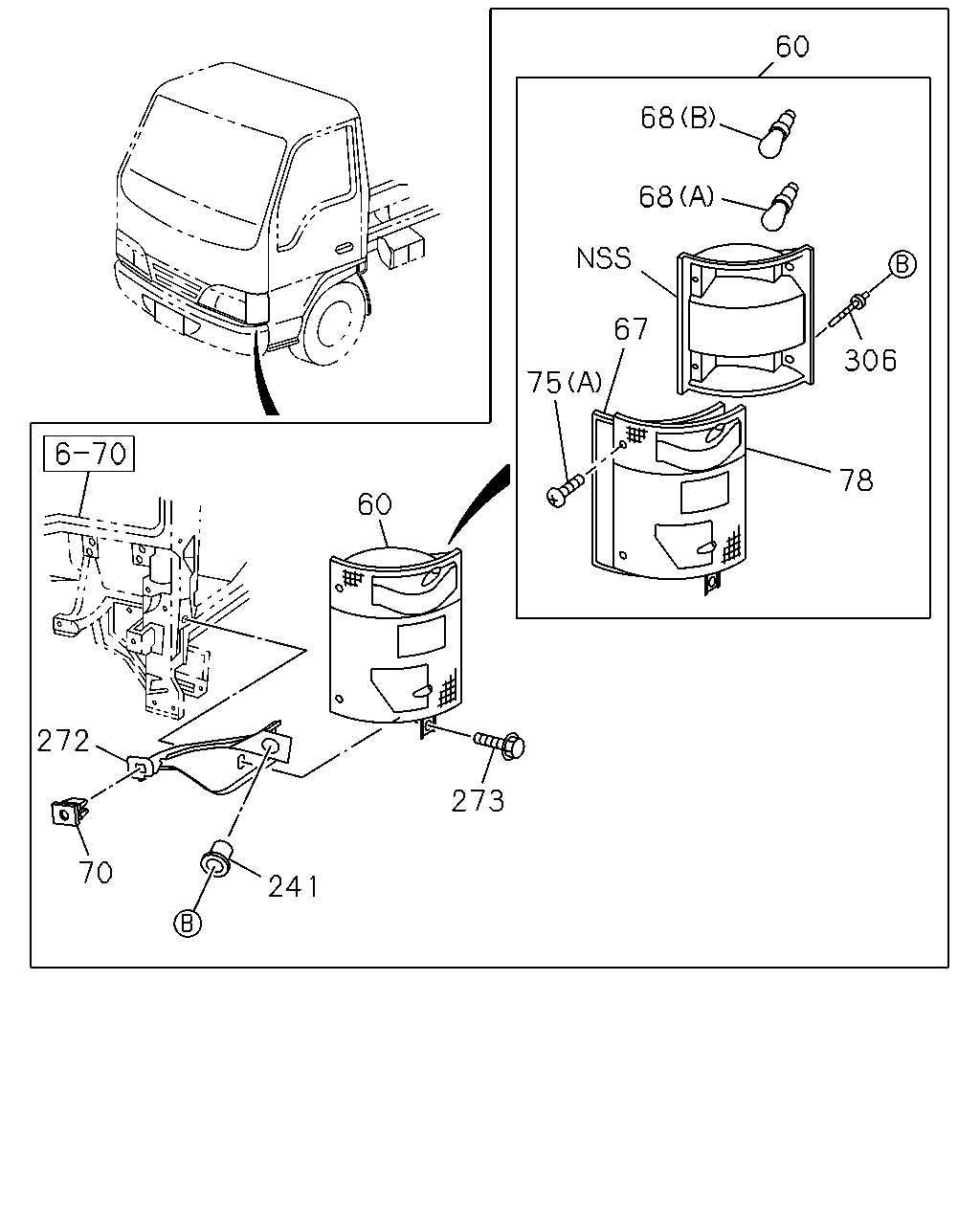

çizim 38897
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B
60 02.585 LAMP ASM; FRT COMB 8-97855-005-2 01 1 0211-0501 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-907-1 01 1 0502-0502 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-889-0 01 1 0503- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-006-2 01 1 0211-0501 ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-908-1 01 1 0502-0502 ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-890-0 01 1 0503- ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0211-0501 ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0502- ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 0211-0501 ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 12V 21/5W 		8-94125-959-0 02 1 0502- ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 12V 27/8W 		8-97094-889-0 02 1 0211-0501 ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 12V 21W 		8-97304-590-0 02 1 0502- ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0211-0501 ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0502- ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502- ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0211-0501 ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502- ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-128-0 01 1 0211-0501 ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-131-0 01 1 0211-0501 ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0211-0501 ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0502- ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 0211-0501 ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 0211-0501 ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211-0501 ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 0211-0501 ● ●
