◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#80290) — 33 parça

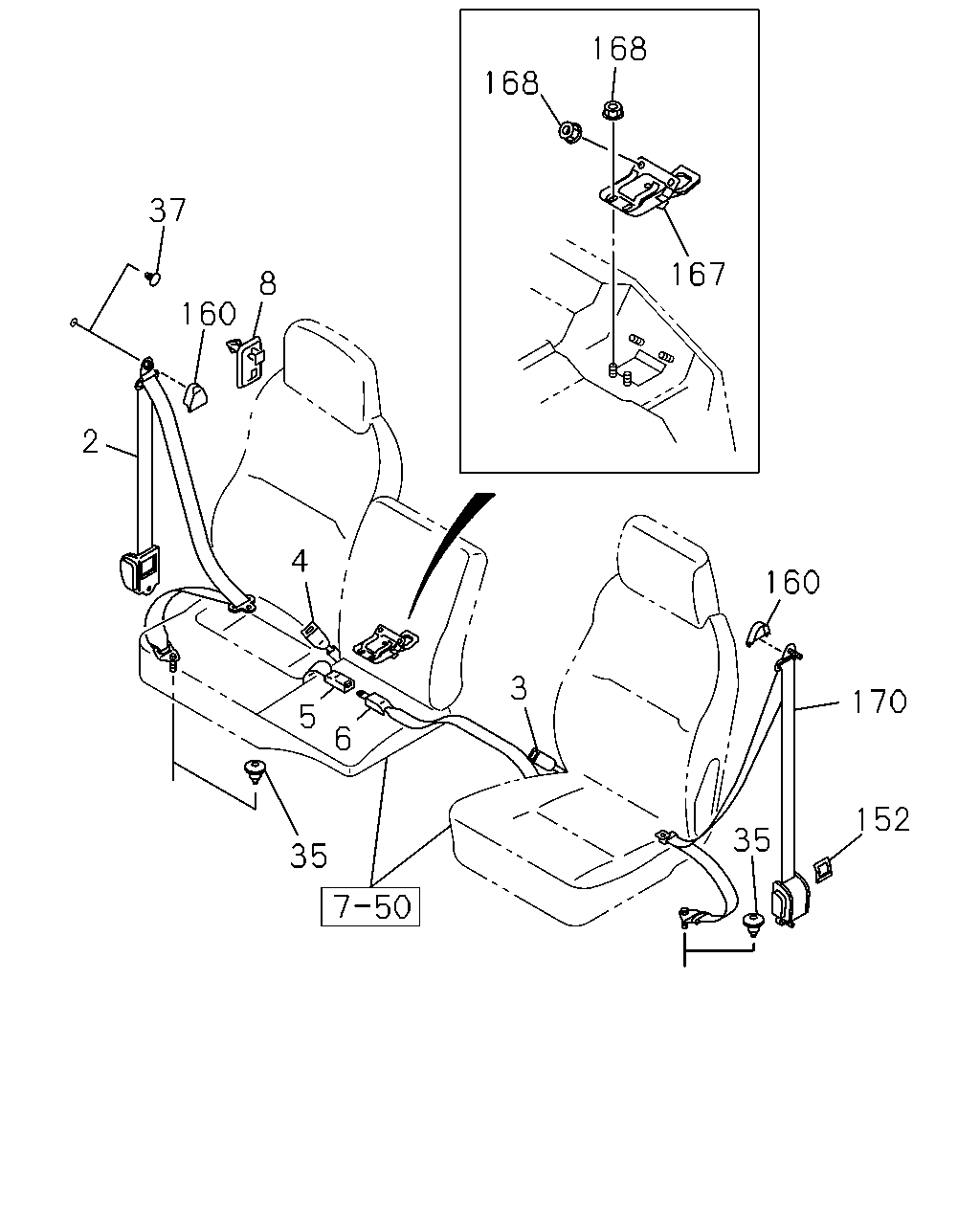

çizim 35665
168 168 37 167 8 160 2 4 160 3 170 5 6 152 35 35
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0211-0501 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-0 01 1 0211-0501 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0502- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97394-703-0 01 1 0211-0501 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-352-0 01 1 0502- ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97326-220-0 01 1 0211-0501 ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97396-952-0 01 1 0502- ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97326-221-0 01 1 0211-0409 ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97401-281-0 01 1 0410-0501 ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97401-516-0 01 1 0502-0512 ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97404-304-0 01 1 0601- ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97326-224-0 01 1 0211-0501 ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97400-451-1 01 1 0502- ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 0211- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT <AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 0211- ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT <AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0211- ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0211- ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0211-0501 ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0502- ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0211- ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0211-0712 ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 04 1 0801- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0211-0501 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-0 01 1 0211-0501 ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0502- ● ●
çizim 36064
177 165 166 161 166
BalonParca AdiParca NoAdetTipApplied Date A B
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-442-2 01 1 0211- ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 0211- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0512 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 0211-0805 ● ●
177 16.714 NUT
03.417 M8 W/LK WASHER 		8-97581-234-0 01 1 0806- ● ●
