Sayfa 7-42 - Isuzu EPC

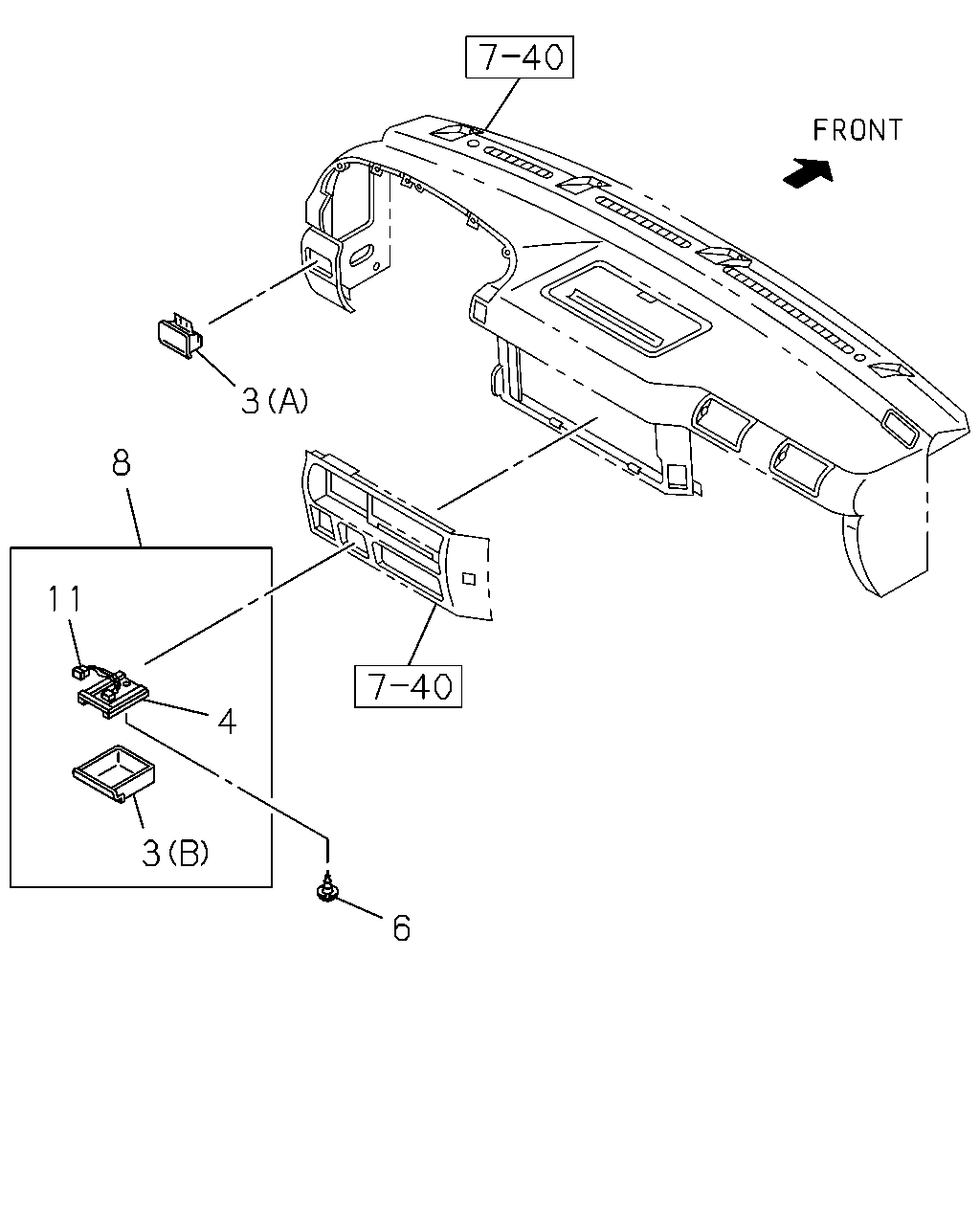

7-42 — ASH TRAY (#80287) — 7 parça

3 8 11 4 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	16.120 CASE ASM; ASH TRAY INNER ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY	8-97198-913-0	01	1	0211-0501	●	●
3	16.120 CASE ASM; ASH TRAY INNER ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY	8-97582-213-0	01	1	0502-	●	●
3	16.120 CASE ASM; ASH TRAY INNER (B) DARK GRAY	8-97993-294-0	01	1	0211-	●	●
4	16.120 CASE ASM; ASH TRAY OUTER	8-97898-279-0	01	1	0211-	●	●
6	16.120 SCREW; ASH TRAY 07.874 M6X16 TRUSS-HEAD	8-94318-980-0	01	1	0211-	●	●
8	16.120 TRAY ASM; ASH	8-97898-282-0	01	1	0211-	●	●
11	08.991 BULB; ASH TRAY	8-97898-283-0	01	1	0211-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
