Isuzu WW
▶
TRUCKS
▶
NHR
▶
51383 - NHR(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

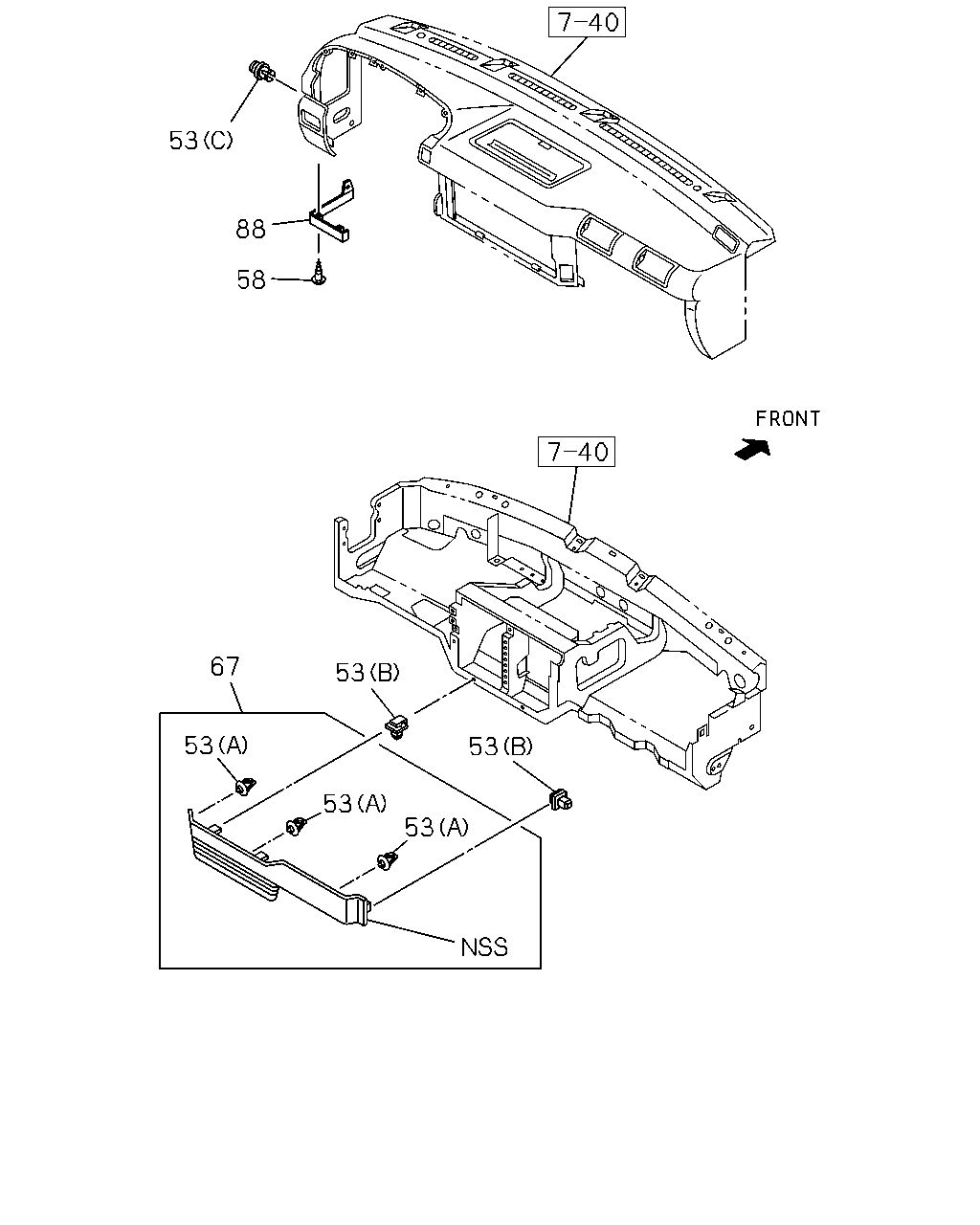

7-41 - UNDER COVER; INSTRUMENT
▶
7-41 — UNDER COVER; INSTRUMENT
(#80286) — 9 parça
Tümü
A - NHB6SF
B - NHN6SF
53
88
58
67
53
53
53
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
16.085 CLIP; UNDER COVER
16.100 (A)
8-97853-169-0
06
1
0211-
●
●
53
16.085 CLIP; UNDER COVER
(B)
8-97853-249-5
03
1
0211-
●
●
53
16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY
8-97857-542-0
01
1
0211-0501
●
●
53
16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY
8-97582-246-0
01
1
0502-
●
●
58
09.264 SCREW; UNDER COVER
16.067 M5X14
8-94279-325-0
02
1
0211-0612
●
●
58
09.264 SCREW; UNDER COVER
09.655 M5X14 TAPPING W/TORQUES
8-98061-856-0
02
1
0701-
●
●
67
16.081 COVER; UNDER,INST PNL
8-97857-187-1
01
1
0211-
●
●
88
16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97857-539-1
01
1
0211-0501
●
●
88
16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97585-432-1
01
1
0502-
●
●
