6-47 — MUD GUARD AND INSULATOR (#8028) — 179 parça

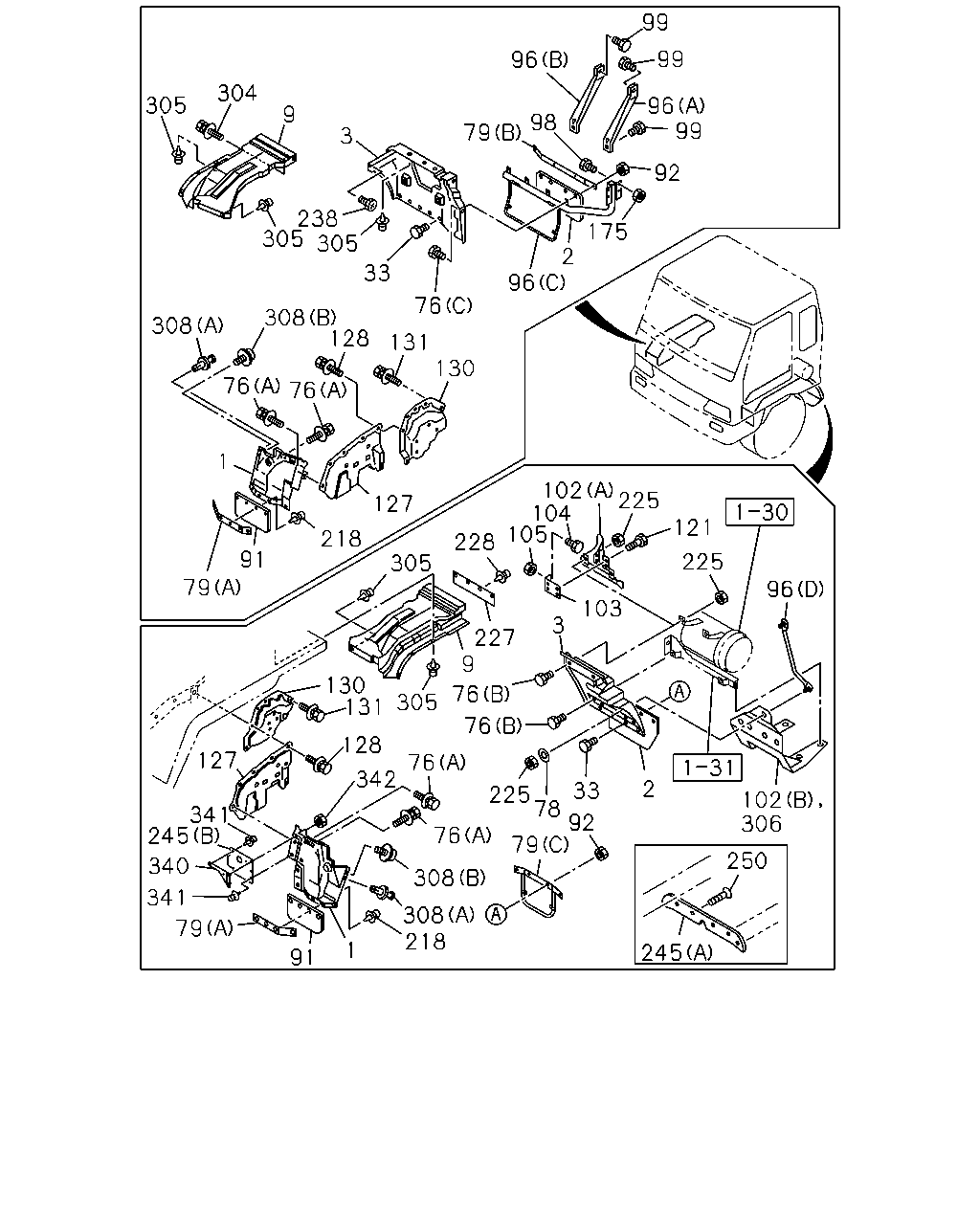

çizim 10147
99 99 96 304 305 96 99 9 98 79 3 92 238 305 305 175 2 96 33 76 308 128 308 131 130 76 76 1 102 104 105 225 127 121 218 228 91 225 305 79 96 103 3 227 9 130 131 76 305 1 76 128 127 76 342 2 33 225 78 92 79 102 306 341 245 76 250 340 308 341 308 218 79 1 245 91
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GUARD; MUD,FRT
A/T<X9D> 		1-79936-028-0 01 1 0005-0210 ● ●
1 GUARD; MUD,FRT
6SD1 TCN ENG(31L) 		1-79936-028-0 01 1 0211- ● ● ● ●
1 GUARD; MUD,FRT
6HK1 TCS ENG(80L) 		1-79936-022-0 01 1 0303- ●
1 GUARD; MUD,FRT
EXC. A/T<X9D> 		1-79936-022-0 01 1 0005-0011 ● ●
1 GUARD; MUD,FRT 1-79936-022-0 01 1 0005-0011 ●
1 GUARD; MUD,FRT
EXC. A/T<X9D> 		1-79936-022-0 01 1 0012-0210 ● ●
1 GUARD; MUD,FRT 1-79936-022-0 01 1 0012-0210 ● ●
1 GUARD; MUD,FRT 1-79936-021-0 01 1 0005-0011 ● ● ●
1 GUARD; MUD,FRT 1-79936-021-0 01 1 0012- ● ● ● ●
2 COVER; MUD,TIRE RR 1-79938-972-1 01 1 0005-0011 ● ● ●
2 COVER; MUD,TIRE RR 1-79938-972-2 01 1 0012- ● ● ● ●
2 COVER; MUD,TIRE RR 1-79931-371-0 01 1 0005-0011 ● ● ●
2 COVER; MUD,TIRE RR 1-79931-371-0 01 1 0012- ● ● ● ●
3 GUARD; MUD,RR
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) 		1-79938-962-2 01 1 0005-0011 ●
3 GUARD; MUD,RR 1-79938-962-2 01 1 0005-0011 ● ●
3 GUARD; MUD,RR
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) 		1-79938-962-2 01 1 0012-0210 ●
3 GUARD; MUD,RR 1-79938-962-2 01 1 0012-0210 ● ● ●
3 GUARD; MUD,RR
6SD1 TCN ENG(31L) 		1-79936-033-0 01 1 0211- ● ● ● ●
3 GUARD; MUD,RR
6HK1 TCS ENG(80L) 		1-79938-962-2 01 1 0303- ●
3 GUARD; MUD,RR 1-79938-971-1 01 1 0005-0011 ● ● ●
3 GUARD; MUD,RR 1-79938-971-1 01 1 0012-0210 ● ● ● ●
3 GUARD; MUD,RR
6SD1 TCN ENG(31L) 		1-79938-971-1 01 1 0211- ● ● ● ●
3 GUARD; MUD,RR
6HK1 TCS ENG(80L) 		1-79936-012-0 01 1 0303- ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79936-007-0 01 1 0005-0011 ● ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79936-007-2 01 1 0012- ● ● ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79938-955-1 01 1 0005-0011 ● ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79938-955-3 01 1 0012- ● ● ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 06 1 0005-0210 ● ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 13 1 0211- ● ● ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 07 1 0005-0210 ● ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 13 1 0012-0210 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 0005-0011 ● ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 0012- ● ● ● ●
76 BOLT; MUD GUARD
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 02 1 0005-0011 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 02 1 0005-0011 ● ●
76 BOLT; MUD GUARD
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 02 1 0012-0210 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 02 1 0012-0210 ● ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 02 1 0211-0805 ● ● ● ●
76 BOLT; MUD GUARD
6SD1 TCN ENG(31L) (B) M8X25 W/LK&PL WASHER 		1-09030-074-0 02 1 0211-0805 ● ● ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 0806- ● ● ● ●
76 BOLT; MUD GUARD
6SD1 TCN ENG(31L) (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 0806- ● ● ● ●
76 BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0005-0011 ● ● ●
76 BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0012- ● ● ● ●
78 WASHER; PL,MUD GUARD
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) ID=8.4 OD=26 		9-09164-808-0 02 1 0005-0011 ●
78 WASHER; PL,MUD GUARD
ID=8.4 OD=26 		9-09164-808-0 02 1 0005-0011 ● ●
78 WASHER; PL,MUD GUARD
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) ID=8.4 OD=26 		9-09164-808-0 02 1 0012-0210 ●
78 WASHER; PL,MUD GUARD
ID=8.4 OD=26 		9-09164-808-0 02 1 0012-0210 ● ● ●
78 WASHER; PL,MUD GUARD
ID=8.4 OD=26 		9-09164-808-0 02 1 0211-0605 ● ● ● ●
78 WASHER; PL,MUD GUARD
ID=8.4 OD=26 		0-91614-808-0 02 1 0606- ● ● ● ●
79 RETAINER; MUD COVER
(A) 		1-79931-349-0 02 1 0005-0011 ● ● ●
79 RETAINER; MUD COVER
(A) 		1-79931-349-0 02 1 0012- ● ● ● ●
79 RETAINER; MUD COVER
(B) 		1-79931-269-0 01 1 0005-0011 ● ● ●
79 RETAINER; MUD COVER
(B) 		1-79931-269-0 01 1 0012- ● ● ● ●
79 RETAINER; MUD COVER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (C) 		1-79931-288-0 01 1 0005-0011 ●
79 RETAINER; MUD COVER
(C) 		1-79931-288-0 01 1 0005-0011 ● ●
79 RETAINER; MUD COVER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (C) 		1-79931-288-0 01 1 0012-0210 ●
79 RETAINER; MUD COVER
(C) 		1-79931-288-0 01 1 0012-0210 ● ● ●
79 RETAINER; MUD COVER
(C) 		1-79931-288-0 01 1 0211- ● ● ● ●
91 COVER; MUD,FRT 1-79931-348-0 02 1 0005-0011 ● ● ●
91 COVER; MUD,FRT 1-79931-348-0 02 1 0012- ● ● ● ●
92 NUT; MUD COVER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M6 FLANGE 		0-91150-106-0 03 1 0005-0011 ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 03 1 0005-0011 ● ●
92 NUT; MUD COVER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M6 FLANGE 		0-91150-106-0 03 1 0012-0210 ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 03 1 0012-0210 ● ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 07 1 0211-0602 ● ● ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 07 1 0603- ● ● ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 04 1 0005-0011 ● ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 04 1 0012-0210 ● ● ● ●
96 STAY; MUD GUARD
(D) 		1-53497-592-1 01 1 0012- ● ● ● ●
96 STAY; MUD GUARD
(A) 		1-79938-737-0 01 1 0005-0011 ● ● ●
96 STAY; MUD GUARD
(A) 		1-79938-737-0 01 1 0012- ● ● ● ●
96 STAY; MUD GUARD
(B) 		1-79938-738-0 01 1 0005-0011 ● ● ●
96 STAY; MUD GUARD
(B) 		1-79938-738-1 01 1 0012- ● ● ● ●
96 STAY; MUD GUARD
(C) 		1-53497-661-0 01 1 0005-0011 ● ● ●
96 STAY; MUD GUARD
(C) 		1-53497-661-0 01 1 0012- ● ● ● ●
96 STAY; MUD GUARD
(D) 		1-53497-592-1 01 1 0005-0011 ● ● ●
98 BOLT; STAY TO BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0005-0011 ● ● ●
98 BOLT; STAY TO BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0012-0512 ● ● ● ●
98 BOLT; STAY TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ● ● ●
99 BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0005-0011 ● ● ●
99 BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0012- ● ● ● ●
102 STAY; LWR,MUD GUARD
(A) 		1-53497-535-0 01 1 0005-0011 ● ● ●
102 STAY; LWR,MUD GUARD
(A) 		1-53497-535-0 01 1 0012- ● ● ● ●
102 STAY; LWR,MUD GUARD
(B) 		1-53497-593-2 01 1 0005-0011 ● ● ●
102 STAY; LWR,MUD GUARD
(B) 		1-53497-593-2 01 1 0012-0302 ● ● ● ●
102 STAY; LWR,MUD GUARD
(B) 		1-53497-618-0 01 1 0303-0303 ● ● ● ●
103 BRACKET ASM; RR MUD FLAP 1-53497-486-1 01 1 0005-0011 ● ● ●
103 BRACKET ASM; RR MUD FLAP 1-53497-486-2 01 1 0012- ● ● ● ●
104 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0011 ● ● ●
104 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0012-0210 ● ● ● ●
104 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ● ● ● ●
104 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ●
105 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0011 ● ● ●
105 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0012-0602 ● ● ● ●
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
121 BOLT
M10X30 FLANGE 		0-28681-030-0 04 1 0005-0011 ● ● ●
121 BOLT
M10X30 FLANGE 		0-28681-030-0 04 1 0012-0512 ● ● ● ●
121 BOLT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ● ● ●
127 APRON; FRT 1-53192-957-2 01 1 0005-0011 ● ● ●
127 APRON; FRT 1-53192-957-2 01 1 0012-0210 ● ● ● ●
127 APRON; FRT
6SD1 TCN ENG(31L) 		1-53193-222-1 01 1 0211- ● ● ● ●
127 APRON; FRT
6HK1 TCS ENG(80L) 		1-53192-957-2 01 1 0303- ●
127 APRON; FRT 1-53192-956-1 01 1 0005-0011 ● ● ●
127 APRON; FRT 1-53192-956-1 01 1 0012-0210 ● ● ● ●
127 APRON; FRT
6SD1 TCN ENG(31L) 		1-53192-301-3 01 1 0211- ● ● ● ●
127 APRON; FRT
6HK1 TCS ENG(80L) 		1-53192-956-1 01 1 0303- ●
128 BOLT; APRON,FRT
M8X25 W/LK&PL WASHER 		8-94331-747-1 10 1 0005-0011 ● ● ●
128 BOLT; APRON,FRT
M8X25 W/LK&PL WASHER 		8-94331-747-1 10 1 0012- ● ● ● ●
130 PANEL; SHUTTER NOISE 1-53192-955-2 01 1 0005-0011 ● ● ●
130 PANEL; SHUTTER NOISE 1-53192-955-2 01 1 0012-0210 ● ● ● ●
130 PANEL; SHUTTER NOISE
6SD1 TCN ENG(31L) 		1-53194-098-0 01 1 0211- ● ● ● ●
130 PANEL; SHUTTER NOISE
6HK1 TCS ENG(80L) 		1-53192-955-2 01 1 0303- ●
130 PANEL; SHUTTER NOISE 1-53192-954-2 01 1 0005-0011 ● ● ●
130 PANEL; SHUTTER NOISE 1-53192-954-2 01 1 0012-0210 ● ● ● ●
130 PANEL; SHUTTER NOISE
6SD1 TCN ENG(31L) 		1-53192-954-2 01 1 0211- ● ● ● ●
130 PANEL; SHUTTER NOISE
6HK1 TCS ENG(80L) 		1-53193-704-1 01 1 0303- ●
131 BOLT; PANEL
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0005-0011 ● ● ●
131 BOLT; PANEL
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0012- ● ● ● ●
175 NUT; STAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0005-0011 ● ● ●
175 NUT; STAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0012-0210 ● ● ● ●
175 NUT; STAY FIX
6SD1 TCN ENG(31L) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ● ● ●
175 NUT; STAY FIX
6SD1 TCN ENG(31L) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
175 NUT; STAY FIX
6HK1 TCS ENG(80L) M8 FLANGE 		0-91150-108-0 04 1 0303-0602 ●
175 NUT; STAY FIX
6HK1 TCS ENG(80L) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
218 FASTENER; RUBBER 1-09470-001-0 06 1 0005-0011 ● ● ●
218 FASTENER; RUBBER 1-09470-001-0 06 1 0012- ● ● ● ●
225 NUT; MUD GUARD
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M8 FLANGE 		0-91150-108-0 03 1 0005-0011 ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 03 1 0005-0011 ● ●
225 NUT; MUD GUARD
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M8 FLANGE 		0-91150-108-0 03 1 0012-0210 ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 03 1 0012-0210 ● ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 03 1 0211-0602 ● ● ● ●
225 NUT; MUD GUARD
6SD1 TCN ENG(31L) M8 FLANGE 		0-91150-108-0 03 1 0211-0602 ● ● ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ● ●
225 NUT; MUD GUARD
6SD1 TCN ENG(31L) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ● ●
227 SEAL; MUD GUARD 1-79938-953-1 01 1 0005-0011 ● ● ●
227 SEAL; MUD GUARD 1-79938-953-1 01 1 0012- ● ● ● ●
228 FASTENER; MUD GUARD SEAL
D8X13.5 		1-09987-248-1 04 1 0005-0011 ● ● ●
228 FASTENER; MUD GUARD SEAL
D8X13.5 		1-09987-248-1 04 1 0012- ● ● ● ●
238 SCREW; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0005-0011 ● ● ●
238 SCREW; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0012- ● ● ● ●
245 RUBBER; SHUTTER,RAD
6HE1 TC ENG(57L) (A) 		1-79938-927-0 01 1 0005-0210 ●
245 RUBBER; SHUTTER,RAD
A/T<X9D> (B) 		1-79936-023-1 01 1 0005-0210 ● ●
245 RUBBER; SHUTTER,RAD
6SD1 TCN ENG(31L) (B) 		1-79936-027-0 01 1 0211- ● ● ● ●
250 FASTENER; SHUTTER
6HE1 TC ENG(57L) 		1-09987-189-0 06 1 0005-0210 ●
304 BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0005-0011 ● ● ●
304 BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0012- ● ● ● ●
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 05 1 0005-0011 ● ● ●
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 05 1 0012-0404 ● ● ● ●
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 06 1 0405- ● ● ● ●
306 BRACKET; MUD GUARD 1-53497-618-0 01 1 0304- ● ● ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 02 1 0005-0011 ● ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 02 1 0012-0404 ● ● ● ●
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 02 1 0005-0011 ● ● ●
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 02 1 0012-0404 ● ● ● ●
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 04 1 0405- ● ● ● ●
340 BRACKET; RUBBER,SHUTTER
A/T<X9D> 		1-79936-024-1 01 1 0005-0210 ● ●
340 BRACKET; RUBBER,SHUTTER
6SD1 TCN ENG(31L) 		1-79936-024-1 01 1 0211- ● ● ● ●
341 CLIP; RUBBER
A/T<X9D> ID=6X6 OD=8 		1-09987-194-0 03 1 0005-0210 ● ●
341 CLIP; RUBBER
6SD1 TCN ENG(31L) ID=6X6 OD=8 		1-09987-194-0 03 1 0211- ● ● ● ●
342 NUT; BRKT,RUBBER
A/T<X9D> M8 FLANGE 		8-97046-127-0 02 1 0005-0210 ● ●
342 NUT; BRKT,RUBBER
6SD1 TCN ENG(31L) M8 FLANGE 		8-97046-127-0 02 1 0211-0805 ● ● ● ●
342 NUT; BRKT,RUBBER
6SD1 TCN ENG(31L) M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ● ● ● ●
çizim 46311
71 114 138
BalonParca AdiParca NoAdetTipApplied Date A B C D
71 RUBBER; SEAL
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-21593-085-2 01 1 0005-0210 ●
71 RUBBER; SEAL
ALLISON MD3560P A/T(Y3B) 		1-21593-085-2 01 1 0005-0210 ●
71 RUBBER; SEAL
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-21593-085-2 01 1 0211- ●
71 RUBBER; SEAL
6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) 		1-21593-085-2 01 1 0211- ●
71 RUBBER; SEAL
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-21593-086-1 01 1 0005-0102 ●
71 RUBBER; SEAL
ALLISON MD3560P A/T(Y3B) 		1-21593-086-1 01 1 0005-0102 ●
71 RUBBER; SEAL
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-21593-104-1 01 1 0103-0210 ●
71 RUBBER; SEAL
ALLISON MD3560P A/T(Y3B) 		1-21593-104-1 01 1 0103-0210 ●
71 RUBBER; SEAL
6SD1 TCN ENG(31L) 		1-21593-104-1 01 1 0211- ● ● ● ●
71 RUBBER; SEAL
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) 		1-21593-105-1 01 1 0211- ● ● ●
71 RUBBER; SEAL
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) 		1-21593-105-1 01 1 0211- ●
114 BOLT
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) M8X25 FLANGE 		0-28680-825-0 04 1 0005-0210 ●
114 BOLT
ALLISON MD3560P A/T(Y3B) M8X25 FLANGE 		0-28680-825-0 04 1 0005-0210 ●
114 BOLT
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28680-825-0 04 1 0211-0512 ● ● ● ●
114 BOLT
6SD1 TCN ENG(31L) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ● ●
138 NUT
6SD1 TCN ENG(31L) M8 FLANGE 		0-91150-108-0 04 1 0211-0602 ● ● ● ●
138 NUT
6SD1 TCN ENG(31L) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
