◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#80276) — 66 parça

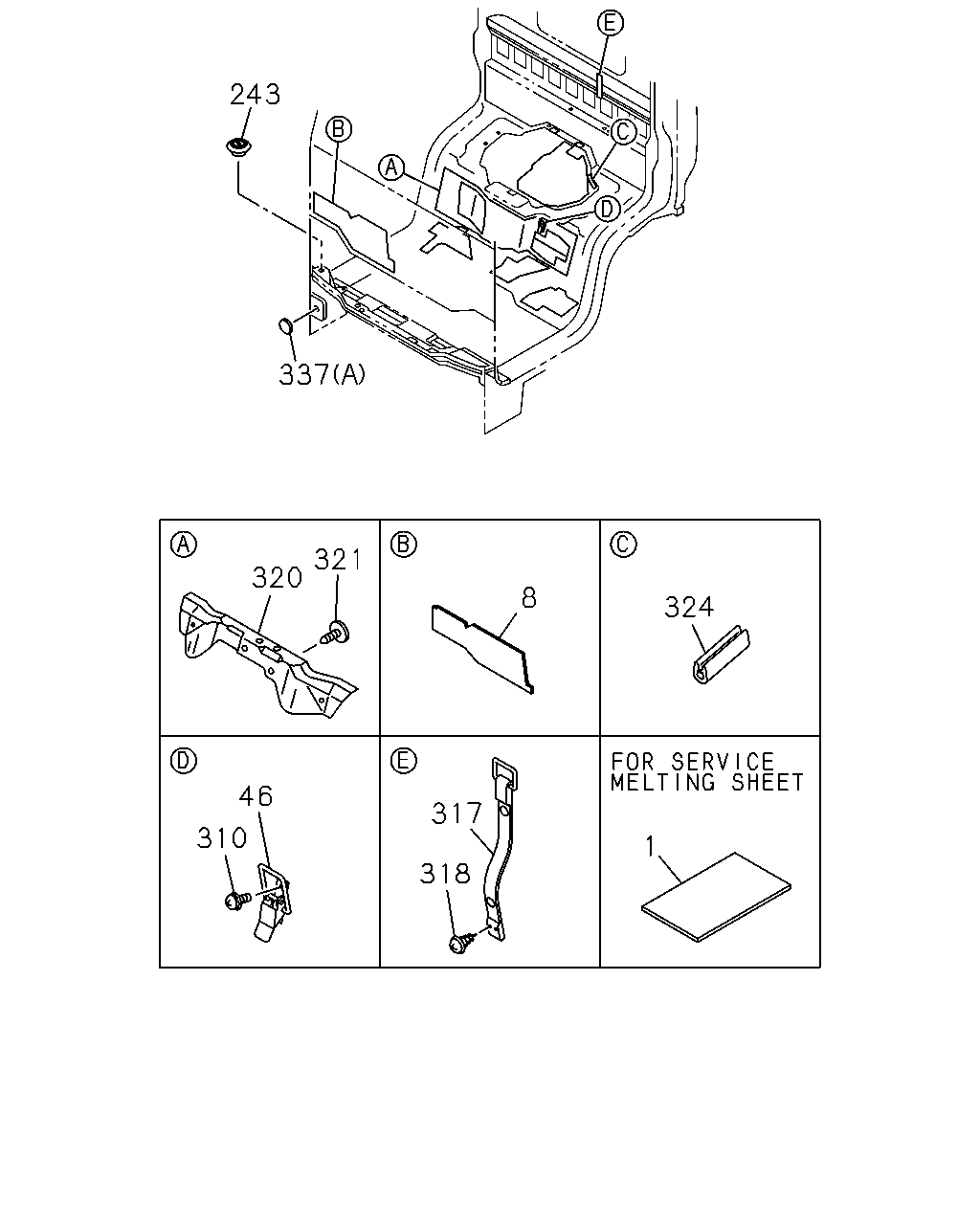

çizim 35145
243 337 321 320 8 324 46 317 310 1 318
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0211- ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-603-2 01 1 0211-0501 ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97581-658-3 01 1 0502-0606 ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-98019-713-2 02 1 0607- ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-604-2 01 1 0211-0501 ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97581-659-3 01 1 0502-0606 ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0211- ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0211- ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0612 ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0211- ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0604 ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97857-142-3 01 1 0211- ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 0211-0304 ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 03 1 0305- ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0211- ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211- ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●

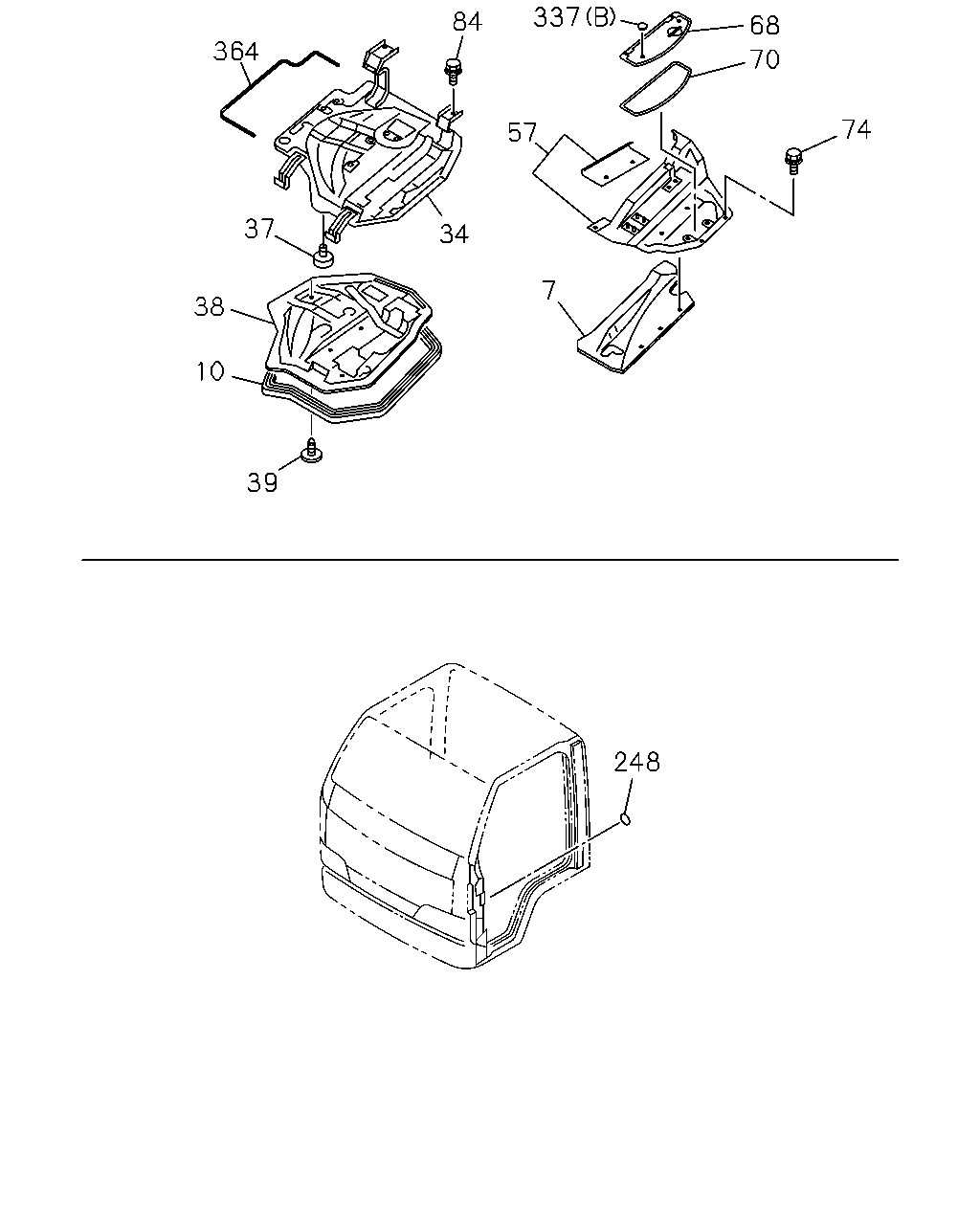

çizim 35586
337 84 68 364 70 74 57 37 34 7 38 10 39 248
BalonParca AdiParca NoAdetTipApplied Date A B
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97856-207-1 01 1 0502- ●
7 16.545 INSULATOR; SUPPORT COVER 8-97856-208-1 01 1 0211-0501 ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97856-208-1 01 1 0502- ●
7 16.545 INSULATOR; SUPPORT COVER 8-97856-208-1 01 1 0502- ●
10 16.549 SEAL; ENG COVER 8-97853-010-4 01 1 0211- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-678-1 01 1 0211- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0211- ● ●
38 16.549 INSULATOR; ENG COVER 8-97856-204-1 01 1 0211- ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 0502- ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0211-0501 ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0211-0501 ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0502- ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0502- ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0502- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-693-1 01 1 0502- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-694-1 01 1 0211-0501 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-694-1 01 1 0502- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-694-1 01 1 0502- ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 0211-0312 ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0401-0501 ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0502-0608 ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0502-0608 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-98040-141-0 01 1 0609- ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0609- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0211-0501 ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0502- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0502- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
248 16.850 SEAL; EXT,FRT & RR
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0307-0501 ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211- ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0211- ● ●
