6-05 — FRONT PANEL (#80262) — 58 parça

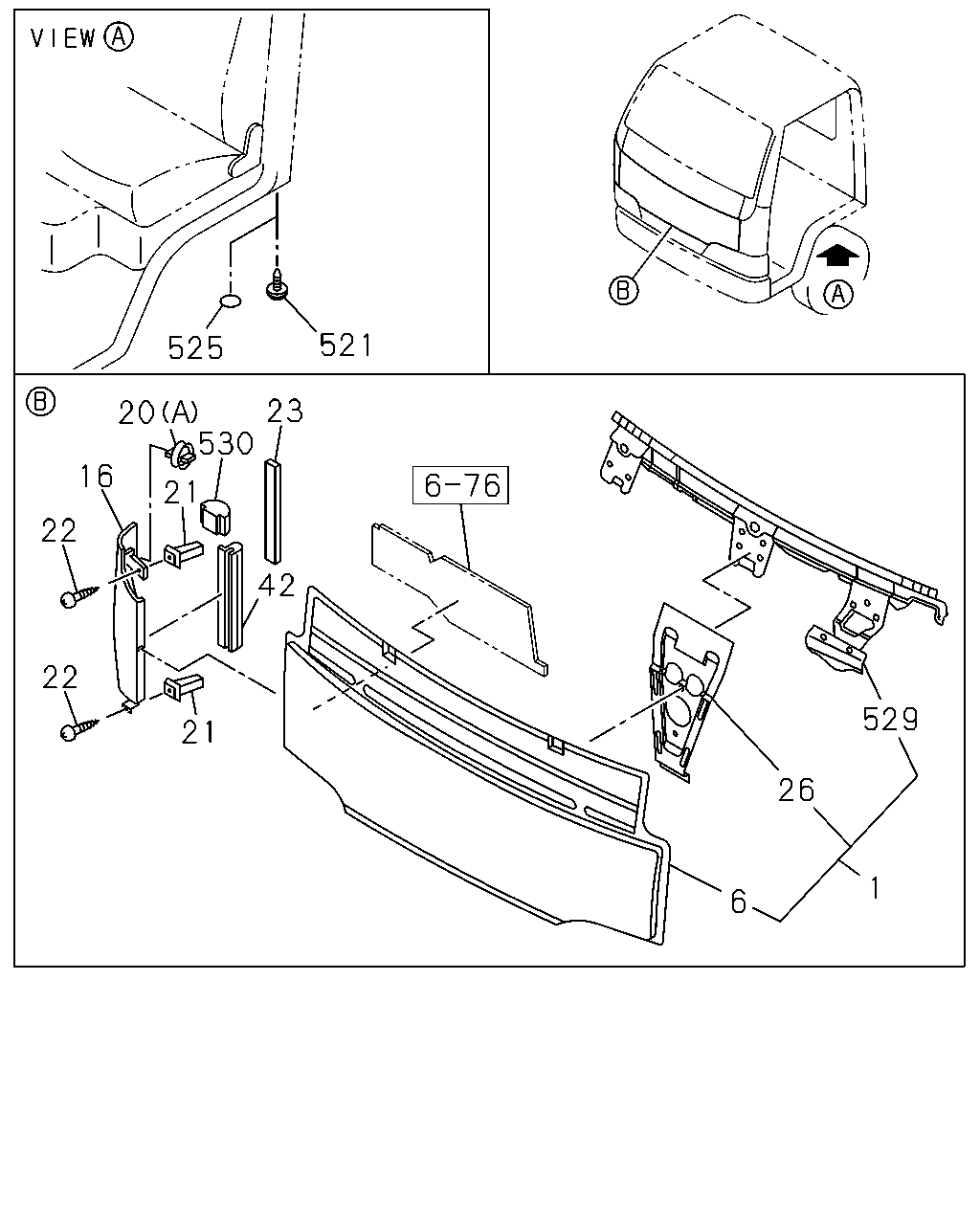

çizim 35116
521 525 23 530 20 16 21 22 42 22 529 21 26 1 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT 8-97869-030-1 01 1 0211-0501 ● ●
1 16.550 PANEL ASM; FRT 8-97582-868-0 01 1 0502- ● ●
6 16.570 PANEL; FRONT 8-97869-031-2 01 1 0211-0501 ● ●
6 16.570 PANEL; FRONT 8-97582-871-2 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97587-710-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97587-711-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-429-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-431-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0211-0501 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-428-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0211-0501 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-430-6 01 1 0502- ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502- ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.165 (C) H=11.2 		8-97807-381-0 02 1 0502-0503 ● ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0504- ● ●
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 0211-0501 ● ●
20 16.588 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0502- ● ●
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0211- ● ●
22 16.588 SCREW; FRT PANEL SIDE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0211-0501 ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 0211-0410 ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97410-832-0 02 1 0411-0501 ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 0211- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-044-0 01 1 0502- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0211-0501 ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-043-0 01 1 0502- ● ●
521 08.153 PLUG; HOLE,FENDER
04.931 OD=15 L=14.5 		1-76378-157-0 06 1 0211-0304 ● ●
525 08.131 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 06 1 0502- ●
525 08.131 SEAL; FENDER
16.165 OD=25 BLACK 		1-76798-019-0 06 1 0502- ●
525 08.131 SEAL; FENDER
16.165 OD=25 BLACK 		1-76798-019-0 06 1 0305-0501 ● ●
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 0502- ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-2 01 1 0211- ● ●
530 01.303 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 0211-0501 ● ●

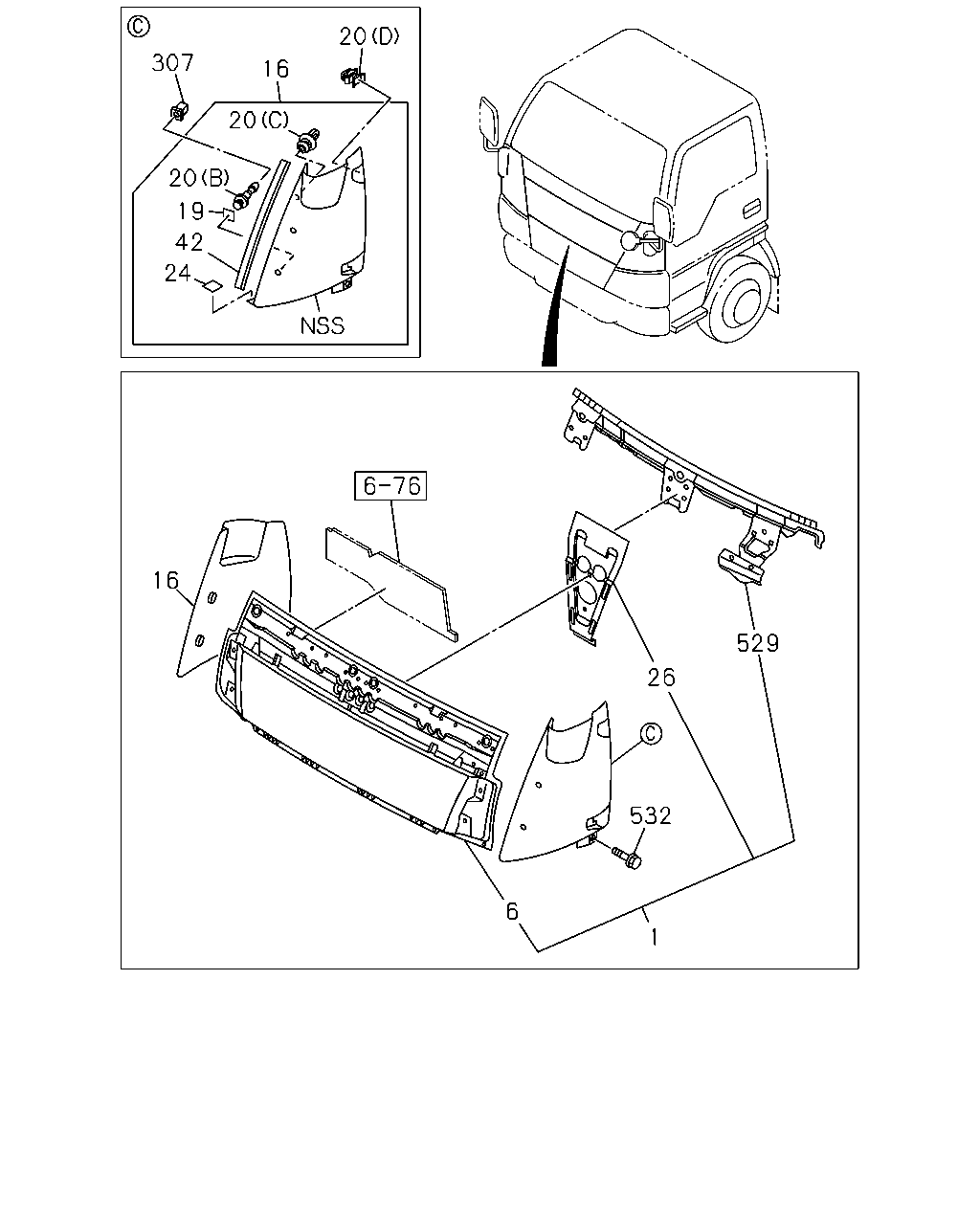

çizim 36659
20 307 16 20 20 19 42 24 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT 8-97869-030-1 01 1 0211-0501 ● ●
1 16.550 PANEL ASM; FRT 8-97582-868-0 01 1 0502- ● ●
6 16.570 PANEL; FRONT 8-97869-031-2 01 1 0211-0501 ● ●
6 16.570 PANEL; FRONT 8-97582-871-2 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97587-710-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97587-711-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-429-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-431-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0211-0501 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-428-6 01 1 0502- ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0211-0501 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-430-6 01 1 0502- ● ●
19 16.588 SEAL; FRT SIDE PANEL
08.131 		8-97581-676-0 04 1 0502-1008 ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502- ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.165 (C) H=11.2 		8-97807-381-0 02 1 0502-0503 ● ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0504- ● ●
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-94279-814-0 04 1 0211-0501 ● ●
20 16.588 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0502- ● ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0502- ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 0211- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-044-0 01 1 0502- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0211-0501 ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-043-0 01 1 0502- ● ●
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0502- ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-2 01 1 0211- ● ●
532 08.143 BOLT; FRT PANEL
02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0502- ● ●
