6-03 — RADIATOR GRILLE (#80260) — 66 parça

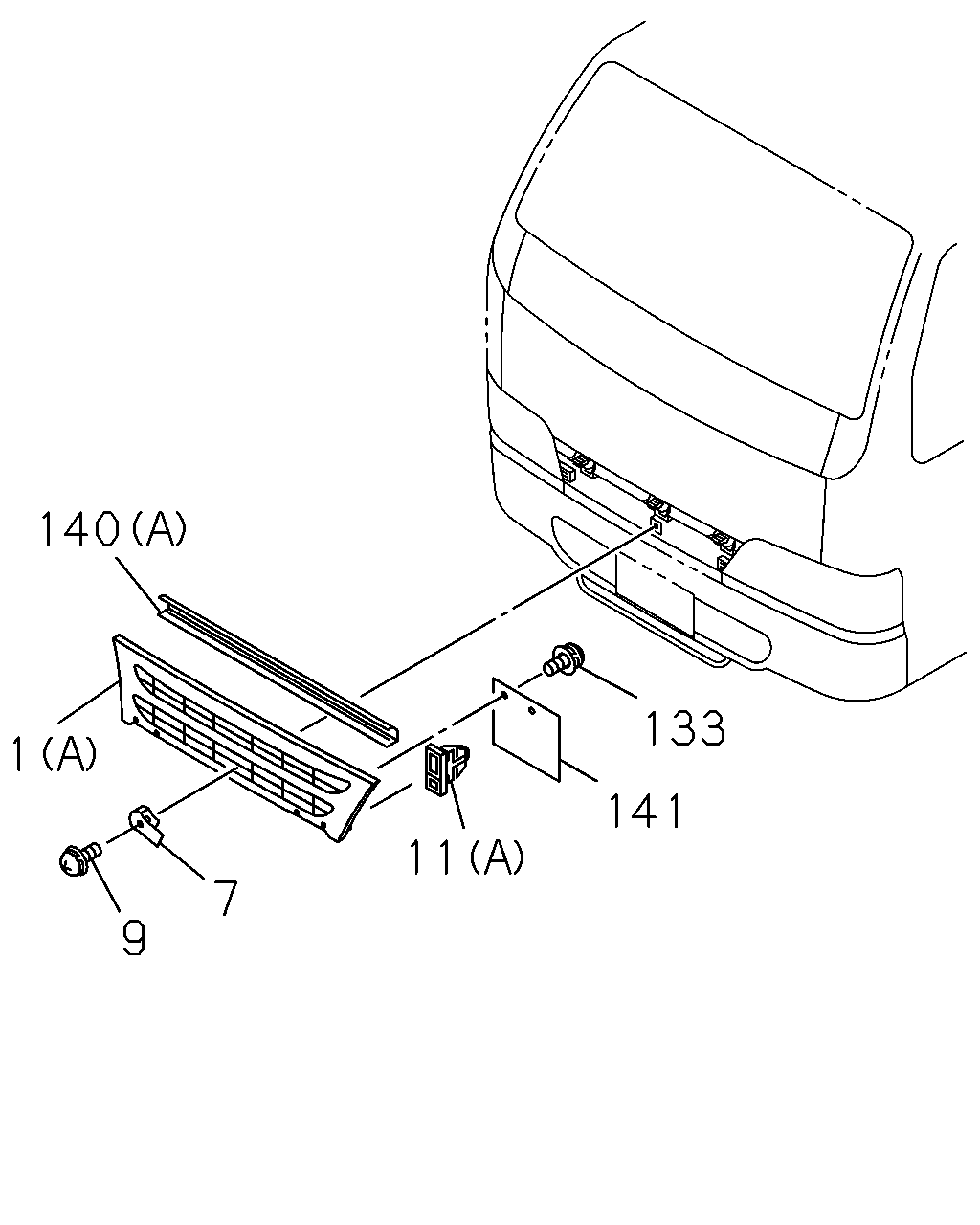

çizim 3560
140 133 1 141 11 7 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (B) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE 		8-97582-414-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER 		8-97582-410-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE 		8-97582-418-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR 		8-97890-871-1 01 1 0211-0501 ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0211-0505 ● ●
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506- ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0211-0805 ● ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0501 ● ●
11 01.269 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0502- ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0211- ● ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ● ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 06 1 0502- ● ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-97581-664-0 01 1 0502- ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97061-039-3 02 1 0211-0501 ● ●
140 01.266 SEAL; RAD GRILLE
(C) 		8-97583-411-1 02 1 0502- ● ●
141 01.266 COVER; RAD GRILLE 8-97890-638-1 01 1 0211-0501 ● ●
141 01.266 COVER; RAD GRILLE 8-97581-648-1 01 1 0502- ● ●

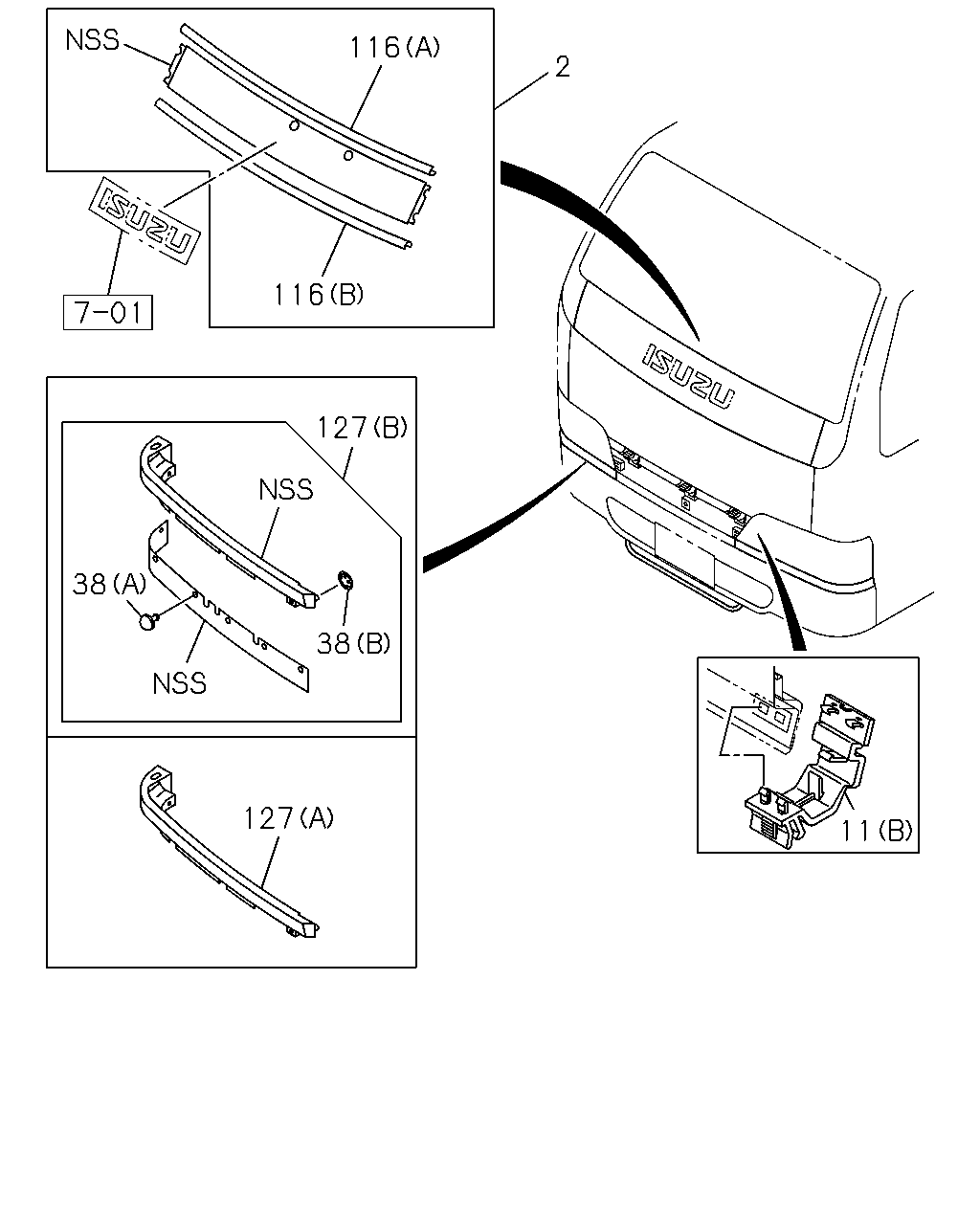

çizim 5478
116 2 116 127 38 38 127 11
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.266 GRILLE; ORNAMENT
WO/DECAL 		8-97868-580-3 01 1 0211-0501 ● ●
2 01.266 GRILLE; ORNAMENT
WO/DECAL 		8-97582-873-5 01 1 0502- ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0501 ● ●
11 01.269 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0502- ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0211- ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		1-09987-180-0 01 1 0211-0501 ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5 		8-97855-279-0 09 1 0211-0501 ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(A) 		8-97853-095-2 01 1 0211-0501 ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(C) 		8-97581-655-1 01 1 0502- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 0211-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> (A) PLEASE PAINT TO MATCH BODY COLOR 		8-97898-454-0 01 1 0211-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> (A) PLEASE PAINT TO MATCH BODY COLOR 		8-97898-455-0 01 1 0211-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE 		8-97898-366-1 01 1 0211-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE 		8-97898-387-1 01 1 0211-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER 		8-97898-362-1 01 1 0211-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER 		8-97898-383-1 01 1 0211-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE 		8-97898-370-1 01 1 0211-0501 ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE 		8-97898-391-1 01 1 0211-0501 ● ●

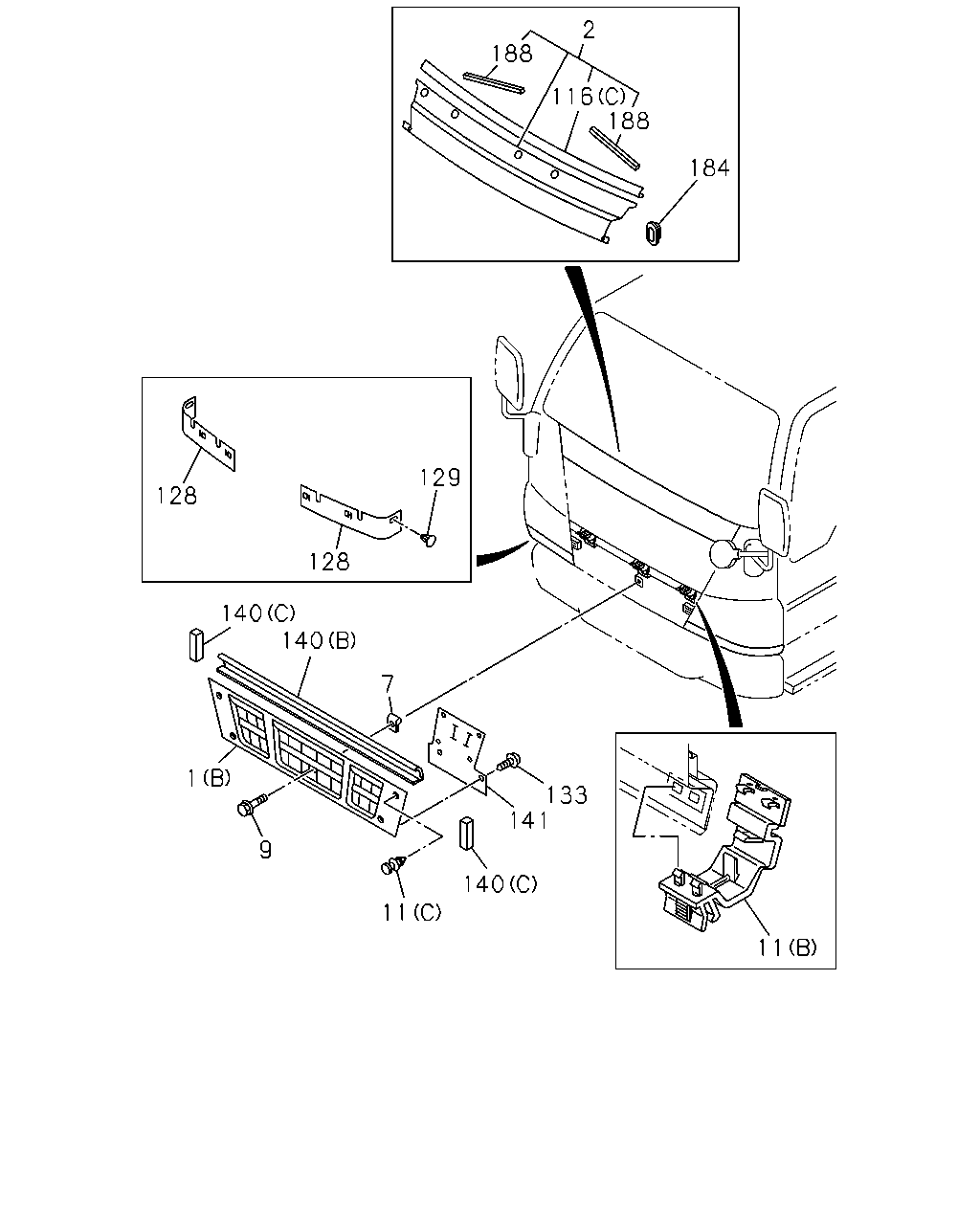

çizim 36744
2 188 116 188 184 129 128 128 140 140 7 1 133 141 9 140 11 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (B) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE 		8-97582-414-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER 		8-97582-410-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE 		8-97582-418-4 01 1 0502- ● ●
1 01.266 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR 		8-97890-871-1 01 1 0211-0501 ● ●
2 01.266 GRILLE; ORNAMENT
WO/DECAL 		8-97868-580-3 01 1 0211-0501 ● ●
2 01.266 GRILLE; ORNAMENT
WO/DECAL 		8-97582-873-5 01 1 0502- ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0211-0505 ● ●
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506- ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0211-0805 ● ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-730-0 02 1 0211-0501 ● ●
11 01.269 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0502- ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 0211- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(A) 		8-97853-095-2 01 1 0211-0501 ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(C) 		8-97581-655-1 01 1 0502- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 0211-0501 ● ●
128 01.267 COVER; HEADLAMP GRILLE 8-97581-653-3 02 1 0502- ● ●
129 01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 0502- ● ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0211-0501 ● ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 06 1 0502- ● ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-97581-664-0 01 1 0502- ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97061-039-3 02 1 0211-0501 ● ●
140 01.266 SEAL; RAD GRILLE
(C) 		8-97583-411-1 02 1 0502- ● ●
141 01.266 COVER; RAD GRILLE 8-97890-638-1 01 1 0211-0501 ● ●
141 01.266 COVER; RAD GRILLE 8-97581-648-1 01 1 0502- ● ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 03 1 0502-0602 ● ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 02 1 0603- ● ●
188 08.010 SEAL; ORNAMENT 8-97584-800-0 02 1 0502- ● ●
