◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#80259) — 72 parça

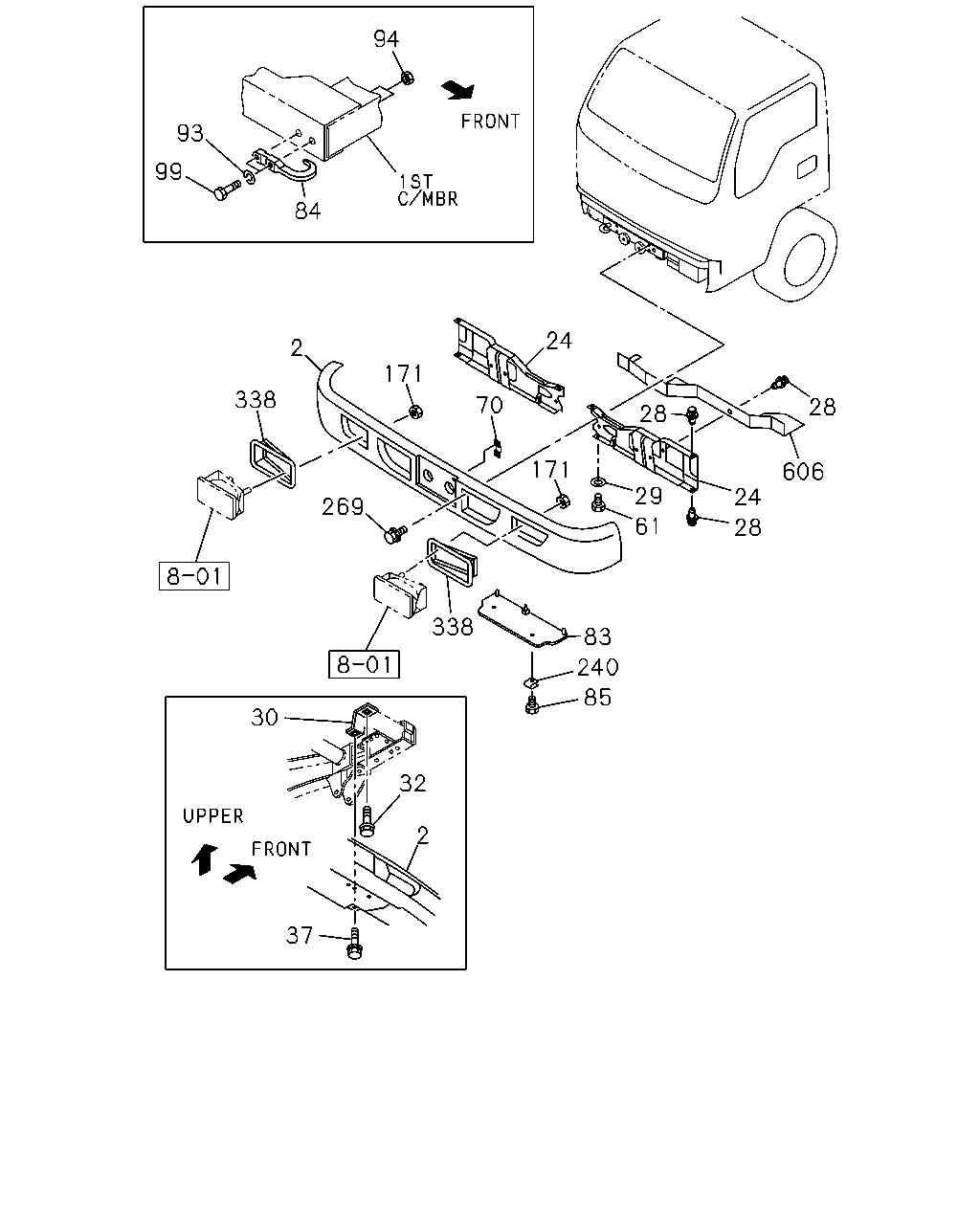

çizim 36061
94 93 99 84 24 2 171 338 70 28 28 171 606 29 24 269 61 28 338 83 240 85 30 32 2 37
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97582-635-0 01 1 0505- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> WHITE 		8-97582-423-0 01 1 0505- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97582-633-0 01 1 0505- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> PRIMER 		8-97581-871-0 01 1 0505- ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> DARK GRAY 		8-97999-023-0 01 1 0211-0301 ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97999-023-0 01 1 0302-0304 ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97582-634-0 01 1 0305-0501 ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> DARK GRAY 		8-97585-462-0 01 1 0502-0504 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97585-462-0 01 1 0505- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97585-462-0 01 1 0505- ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> DARK GRAY 		8-97999-003-0 01 1 0211-0301 ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-003-0 01 1 0302-0304 ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97582-631-0 01 1 0305-0501 ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> DARK GRAY 		8-97582-422-0 01 1 0502-0504 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97582-422-0 01 1 0505- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) EXC. FOG LAMP<T96> DARK GRAY 		8-97582-422-0 01 1 0505- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97999-024-0 01 1 0302-0304 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97582-635-0 01 1 0305-0501 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> WHITE 		8-97999-004-0 01 1 0302-0304 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> WHITE 		8-97582-423-0 01 1 0305-0501 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97999-022-0 01 1 0302-0304 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97582-633-0 01 1 0305-0501 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97998-069-0 01 1 0302-0304 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97581-871-0 01 1 0305-0501 ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97070-817-4 01 1 0211- ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97070-818-4 01 1 0211- ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97035-751-6 01 1 0211- ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97035-752-6 01 1 0211- ● ●
28 07.833 FASTENER; BACK BAR
FOG LAMP<T96> 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 12 1 0211- ● ●
28 07.833 FASTENER; BACK BAR
EXC. FOG LAMP<T96> 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 0211- ● ●
29 07.833 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 06 1 0211- ● ●
30 07.869 BRACKET; FRT BUMPER
01.263 		8-97093-639-3 02 1 0211- ● ●
32 07.874 BOLT; BRKT,BUMPER
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ● ●
32 07.874 BOLT; BRKT,BUMPER
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0211- ● ●
61 07.832 BOLT; BACK BAR
04.785 M8X18 W/LK WASHER 		0-50040-818-0 06 1 0211-0501 ● ●
61 07.832 BOLT; BACK BAR
04.785 M8X18 W/LK WASHER 		0-50040-818-0 06 1 0502-0909 ● ●
61 07.832 BOLT; BACK BAR
09.171 M8X18 W/LK WASHER 		0-50540-818-0 06 1 0910- ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 0211- ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-97076-832-2 01 1 0211- ● ●
84 07.068 HOOK 8-94249-270-2 01 1 0211- ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 03 1 0211- ● ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 0211-0603 ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 0604- ● ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0211-0512 ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 02 1 0601- ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0211-0512 ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0601-1408 ● ●
99 07.039 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1409- ● ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 04 1 0211- ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
16.085 M6 SPIRE NUT 		8-97210-973-1 03 1 0211- ● ●
269 07.874 BOLT; BUMPER BAR TO FRAME
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0211- ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-861-0 01 1 0505- ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-865-0 01 1 0505- ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-859-0 01 1 0505- ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-863-0 01 1 0505- ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97866-835-0 01 1 0211-0301 ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97866-835-0 01 1 0302-0501 ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97585-463-0 01 1 0502-0504 ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97585-463-0 01 1 0505- ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97585-463-0 01 1 0505- ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97866-836-0 01 1 0211-0301 ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97866-836-0 01 1 0302-0501 ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97585-464-0 01 1 0502-0504 ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97585-464-0 01 1 0505- ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97585-464-0 01 1 0505- ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97097-861-0 01 1 0302-0501 ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> WHITE 		8-97097-865-0 01 1 0302-0501 ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97097-859-0 01 1 0302-0501 ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> BLUE 		8-97097-863-0 01 1 0302-0501 ● ●
606 07.832 SEAL; BACK BAR
FOG LAMP<T96> 		8-97867-844-0 02 1 0211- ● ●
606 07.832 SEAL; BACK BAR
EXC. FOG LAMP<T96> 		8-97867-844-0 01 1 0211- ● ●
