Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

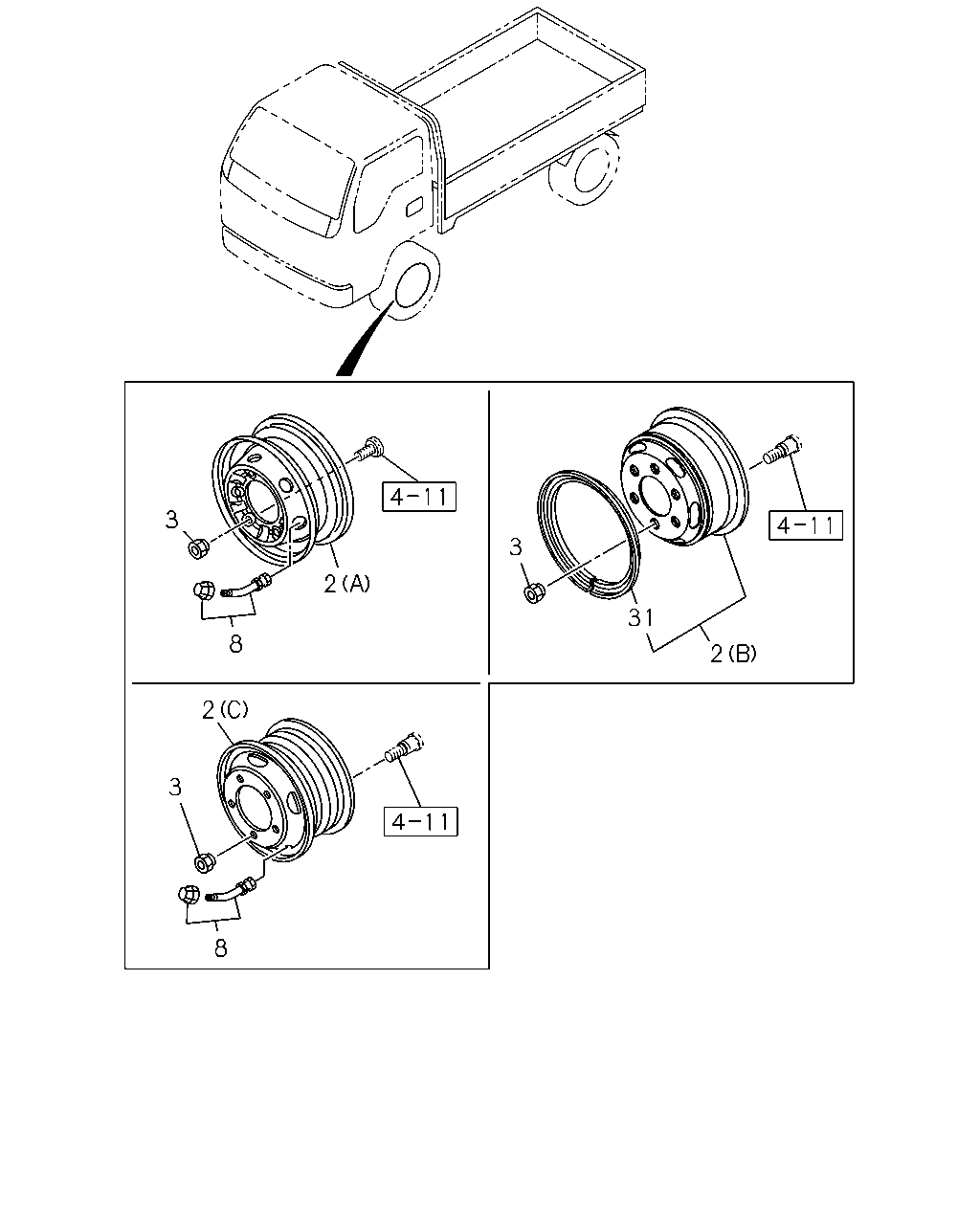

4-80 — ROAD WHEEL (#80253) — 100 parça

3 8 2 2 3 8 2 31 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	04	1	0506-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) SPARE 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	01	1	0506-	●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (A) SPARE 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	01	1	0506-		●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (C) SPARE 13X4J OFFSET=98 SILVER 6-HOLE	8-97145-127-0	01	1	0506-		●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (C) REAR 13X4J OFFSET=98 SILVER 6-HOLE	8-97145-127-0	04	1	0506-		●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (A) FRONT 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	02	1	0506-		●
2	05.803 WHEEL; DISC (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0211-0505	●
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0506-	●
2	05.803 WHEEL; DISC (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0211-0505	●
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0506-	●
2	05.803 WHEEL; DISC (C) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	01	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (C) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	01	1	0506-		●
2	05.803 WHEEL; DISC (C) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	04	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (C) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	04	1	0506-		●
2	05.803 WHEEL; DISC (A) SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	01	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (A) SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	01	1	0506-		●
2	05.803 WHEEL; DISC (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	02	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	02	1	0506-		●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0211-0610	●	●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0211-0610	●	●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-	●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) FRONT,REAR	8-98221-109-0	04	1	0506-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) SPARE	8-98221-109-0	01	1	0506-	●
8	05.875 VALVE; TIRE FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) SPARE	8-98221-109-0	01	1	0506-		●
8	05.875 VALVE; TIRE FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL),FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4J-98(CRZ) SPARE	8-98221-108-0	01	1	0211-		●
8	05.875 VALVE; TIRE FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL),FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4J-98(CRZ) REAR	8-98221-108-0	04	1	0211-		●
8	05.875 VALVE; TIRE FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) FRONT	8-98221-109-0	02	1	0506-		●
31	05.839 RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0211-0505	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0506-	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0211-0505	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0506-	●

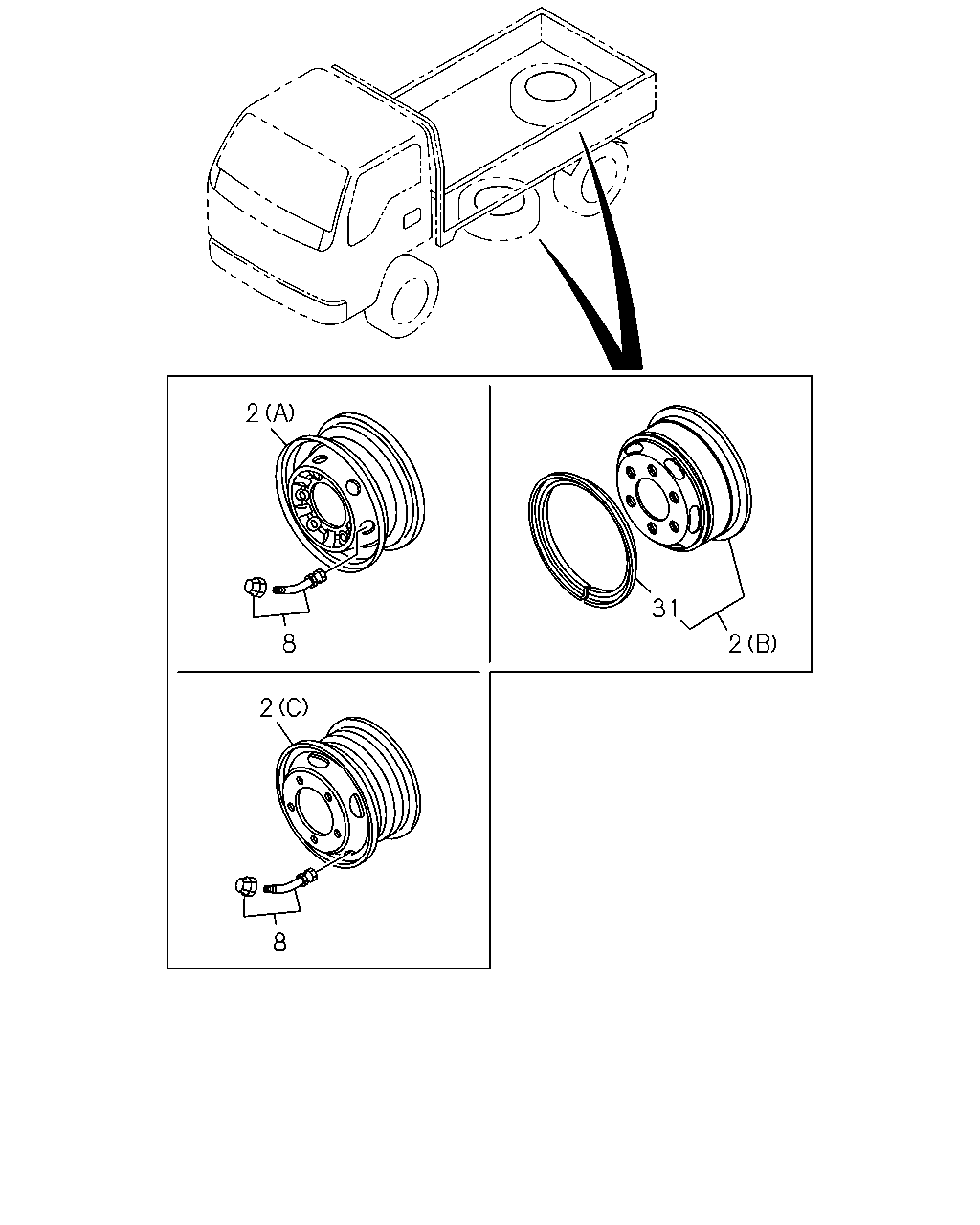

2 8 2 8 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	04	1	0506-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) SPARE 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	01	1	0506-	●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (A) SPARE 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	01	1	0506-		●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (C) SPARE 13X4J OFFSET=98 SILVER 6-HOLE	8-97145-127-0	01	1	0506-		●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (C) REAR 13X4J OFFSET=98 SILVER 6-HOLE	8-97145-127-0	04	1	0506-		●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (A) FRONT 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	02	1	0506-		●
2	05.803 WHEEL; DISC (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0211-0505	●
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0506-	●
2	05.803 WHEEL; DISC (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0211-0505	●
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0506-	●
2	05.803 WHEEL; DISC (C) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	01	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (C) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	01	1	0506-		●
2	05.803 WHEEL; DISC (C) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	04	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (C) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	04	1	0506-		●
2	05.803 WHEEL; DISC (A) SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	01	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (A) SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	01	1	0506-		●
2	05.803 WHEEL; DISC (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	02	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	02	1	0506-		●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) FRONT,REAR	8-98221-109-0	04	1	0506-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) SPARE	8-98221-109-0	01	1	0506-	●
8	05.875 VALVE; TIRE FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) SPARE	8-98221-109-0	01	1	0506-		●
8	05.875 VALVE; TIRE FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL),FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4J-98(CRZ) SPARE	8-98221-108-0	01	1	0211-		●
8	05.875 VALVE; TIRE FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL),FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4J-98(CRZ) REAR	8-98221-108-0	04	1	0211-		●
8	05.875 VALVE; TIRE FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) FRONT	8-98221-109-0	02	1	0506-		●
31	05.839 RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0211-0505	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0506-	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0211-0505	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0506-	●

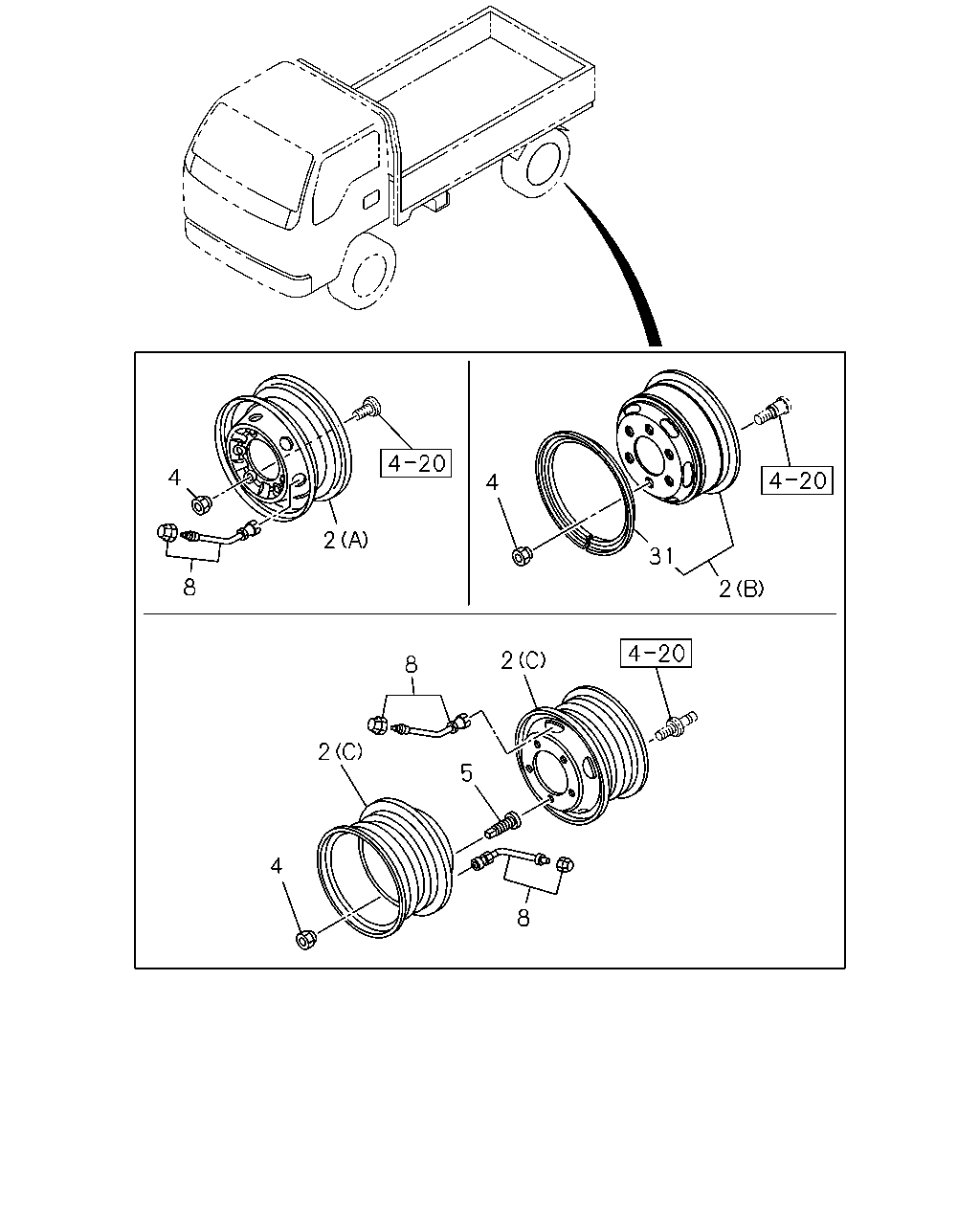

4 8 2 4 31 2 2 8 2 4 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) FRONT,REAR 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	04	1	0506-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) (A) SPARE 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	01	1	0506-	●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (A) SPARE 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	01	1	0506-		●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (C) SPARE 13X4J OFFSET=98 SILVER 6-HOLE	8-97145-127-0	01	1	0506-		●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (C) REAR 13X4J OFFSET=98 SILVER 6-HOLE	8-97145-127-0	04	1	0506-		●
2	05.803 WHEEL; DISC FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) (A) FRONT 15X5.5K OFFSET=30 PLATINUM SILVER	8-97258-374-1	02	1	0506-		●
2	05.803 WHEEL; DISC (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0211-0505	●
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT) (B) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0506-	●
2	05.803 WHEEL; DISC (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0211-0505	●
2	05.803 WHEEL; DISC FRT&RR 7-15-8 15X5.5F-30(BVT) (B) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0506-	●
2	05.803 WHEEL; DISC (C) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	01	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (C) SPARE 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	01	1	0506-		●
2	05.803 WHEEL; DISC (C) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	04	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (C) REAR 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	04	1	0506-		●
2	05.803 WHEEL; DISC (A) SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	01	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (A) SPARE 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	01	1	0506-		●
2	05.803 WHEEL; DISC (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	02	1	0211-0505		●
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL) (A) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	02	1	0506-		●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	0211-0610	●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-	●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	0211-0610	●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-	●
4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	9-42333-015-0	06	1	0211-0610		●
4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	8-98007-830-0	06	1	0611-		●
4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	9-42334-009-0	06	1	0211-0610		●
4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	8-98007-831-0	06	1	0611-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	5-42335-001-1	06	1	0211-0610		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	8-98007-828-0	06	1	0611-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	5-42336-001-1	06	1	0211-0610		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	8-98007-829-0	06	1	0611-		●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) FRONT,REAR	8-98221-109-0	04	1	0506-	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/80R15 DISC 15X5.5K-30(CRY) SPARE	8-98221-109-0	01	1	0506-	●
8	05.875 VALVE; TIRE FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) SPARE	8-98221-109-0	01	1	0506-		●
8	05.875 VALVE; TIRE FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL),FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4J-98(CRZ) SPARE	8-98221-108-0	01	1	0211-		●
8	05.875 VALVE; TIRE FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13 -98(BQL),FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4J-98(CRZ) REAR	8-98221-108-0	04	1	0211-		●
8	05.875 VALVE; TIRE FRT 185/80R15 15X5.5K-85 RR 155R13-8 13X4 J-98(CRZ) FRONT	8-98221-109-0	02	1	0506-		●
31	05.839 RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0211-0505	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0506-	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0211-0505	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-15-8 15X5.5F-30(BVT) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
