◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#80247) — 44 parça

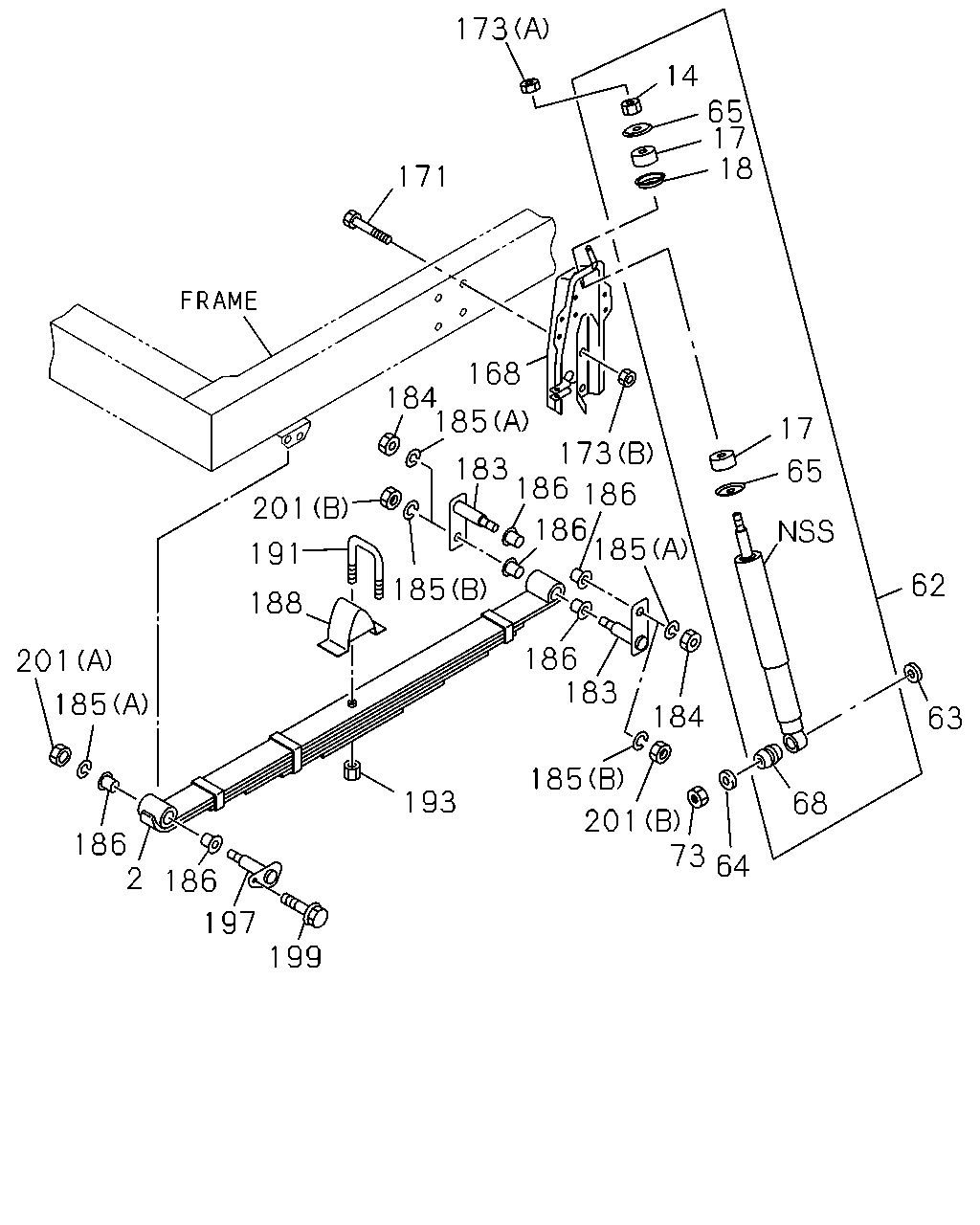

çizim 2966
173 14 65 17 18 171 168 184 185 17 173 183 186 65 186 186 185 201 191 185 62 188 186 183 201 185 184 63 185 193 68 201 73 64 186 2 186 197 199
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-97260-095-0 01 1 0211- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-97260-096-0 01 1 0211- ● ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0211- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0211- ● ●
18 07.347 WASHER; CENTERING,S/ABS
ID=13 OD=38 		9-51631-063-0 02 1 0211- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97253-599-1 02 1 0211- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-151-0 02 1 0211- ● ●
63 07.347 WASHER; PL,S/ABS,LWR
07.529 ID=17 OD=32 		9-09164-616-0 02 1 0211-1011 ● ●
63 07.347 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ●
64 07.347 WASHER; S/ABS,LWR
ID=12.5 		9-51679-022-0 02 1 0211- ● ●
65 07.347 WASHER; S/ABS
07.245 ID=10.5 OD=38 		9-51631-062-0 04 1 0211- ● ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 0211- ● ●
73 07.347 NUT; BRKT,SHOCK
M12 		9-99111-512-0 02 1 0211-0512 ● ●
73 07.347 NUT; BRKT,SHOCK
04.439 M12 		0-91111-512-0 02 1 0601- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97045-610-1 01 1 0211- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97045-611-1 01 1 0211- ● ●
171 07.395 BOLT; S/ABS BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 08 1 0211-0512 ● ●
171 07.395 BOLT; S/ABS BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
173 07.395 NUT; S/ABS
06.822 (A) M10 		9-09111-410-0 02 1 0211-0306 ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 08 1 0211-0602 ● ●
173 07.395 NUT; S/ABS
04.085 (B) M10 FLANGE 		0-91180-210-0 08 1 0603-1403 ● ●
173 07.395 NUT; S/ABS
03.162 (B) M10 FLANGE 		0-91180-110-0 08 1 1404- ● ●
183 07.436 SHACKLE; FRT SUSP 8-94468-235-2 04 1 0211-0607 ● ●
183 07.436 SHACKLE; FRT SUSP 8-98034-341-0 04 1 0608- ● ●
184 07.436 NUT; SHACKLE
KD PREPARATORY PACK<6HF> 06.870 M16 		9-99110-416-0 04 1 0211-0512 ● ●
184 07.436 NUT; SHACKLE
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 04 1 0601-0607 ● ●
184 07.436 NUT; SHACKLE
EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE 		8-97147-389-0 04 1 0211-0607 ● ●
185 07.427 WASHER; LK,PIN
(B) ID=16.5 		8-98011-489-0 04 1 0608- ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 06 1 0211-0607 ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 02 1 0608-0611 ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> (A) ID=16.5 		8-98011-489-0 02 1 0612- ● ●
186 07.105 BUSHING; SHACKLE
L=38.6 		8-94113-314-2 12 1 0211- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94150-265-3 02 1 0211- ● ●
191 07.417 U-BOLT; FRT SPR
L=85 		8-97304-072-1 04 1 0211- ● ●
193 07.417 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0211-0610 ● ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 0611- ● ●
197 07.427 PIN; FRT SPR,FRT 8-94117-900-1 02 1 0211- ● ●
199 07.427 BOLT
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512 ● ●
199 07.427 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
201 07.427 NUT; PIN LK
06.509 (B) M16 		0-91110-516-0 04 1 0608- ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.870 (A) M16 		9-99110-416-0 02 1 0211-0512 ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 02 1 0601- ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> 07.529 (A) M16 FLANGE 		8-97147-389-0 02 1 0211-0610 ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 02 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
