◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#80244) — 26 parça

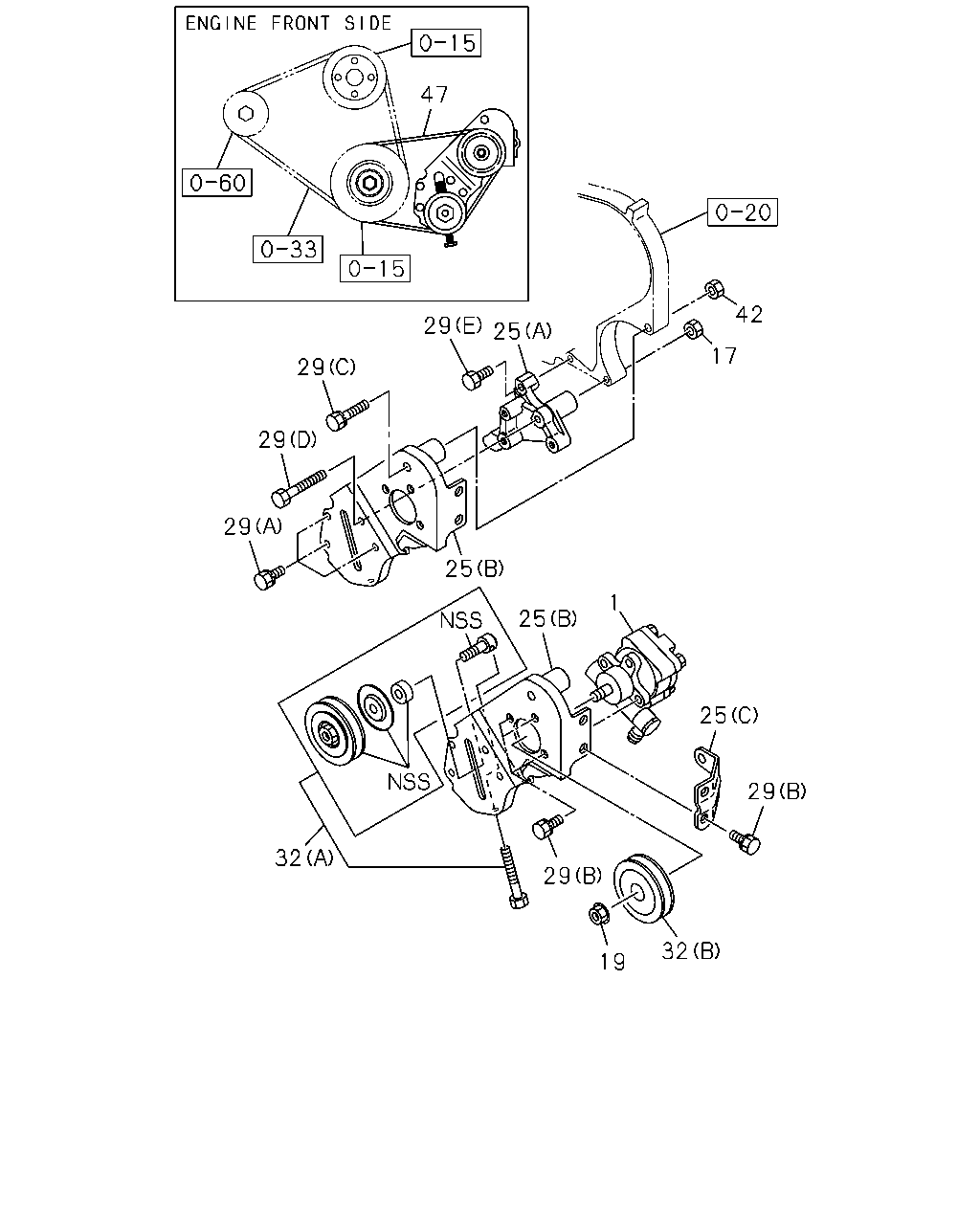

çizim 36056
47 42 29 25 17 29 29 29 25 1 25 25 29 32 29 32 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97354-730-1 01 1 0211-1303 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-98217-772-0 01 1 1304- ● ●
17 06.606 NUT; POWER STRG PUMP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
17 06.606 NUT; POWER STRG PUMP
POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
19 07.874 NUT; PULLEY,OIL PUMP
POWER STEERING<N40> 06.606 M12 		8-94139-015-0 01 1 0211-0610 ● ●
19 07.874 NUT; PULLEY,OIL PUMP
POWER STEERING<N40> 07.395 M12 		8-97360-126-0 01 1 0611- ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (B) 		8-97065-974-0 01 1 0211- ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (A) 		8-97107-869-0 01 1 0211- ● ●
25 06.606 BRACKET; P/S PUMP
POWER STEERING<N40> (C) 		8-97107-872-0 01 1 0211- ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0211-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0601- ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601- ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0211-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0601- ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0211-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0601- ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0211-0512 ● ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0601- ● ●
32 06.665 PULLEY; IDLER,P/S
POWER STEERING<N40> 06.655 (A) 		8-94128-866-0 01 1 0211- ● ●
32 06.665 PULLEY; IDLER,P/S
POWER STEERING<N40> (B) 		8-97084-332-2 01 1 0211-1303 ● ●
32 06.665 PULLEY; IDLER,P/S
POWER STEERING<N40> (B) 		8-98217-771-0 01 1 1304- ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0602 ● ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
47 01.066 BELT; P/S PUMP
POWER STEERING<N40> 		8-97085-131-0 01 1 0211- ● ●
47 01.066 BELT; P/S PUMP
POWER STEERING<N40> BEST VALUE PARTS 		5-87610-096-0 01 1 0211- ● ●
