4-30 — STEERING WHEEL AND COWL (#80240) — 48 parça

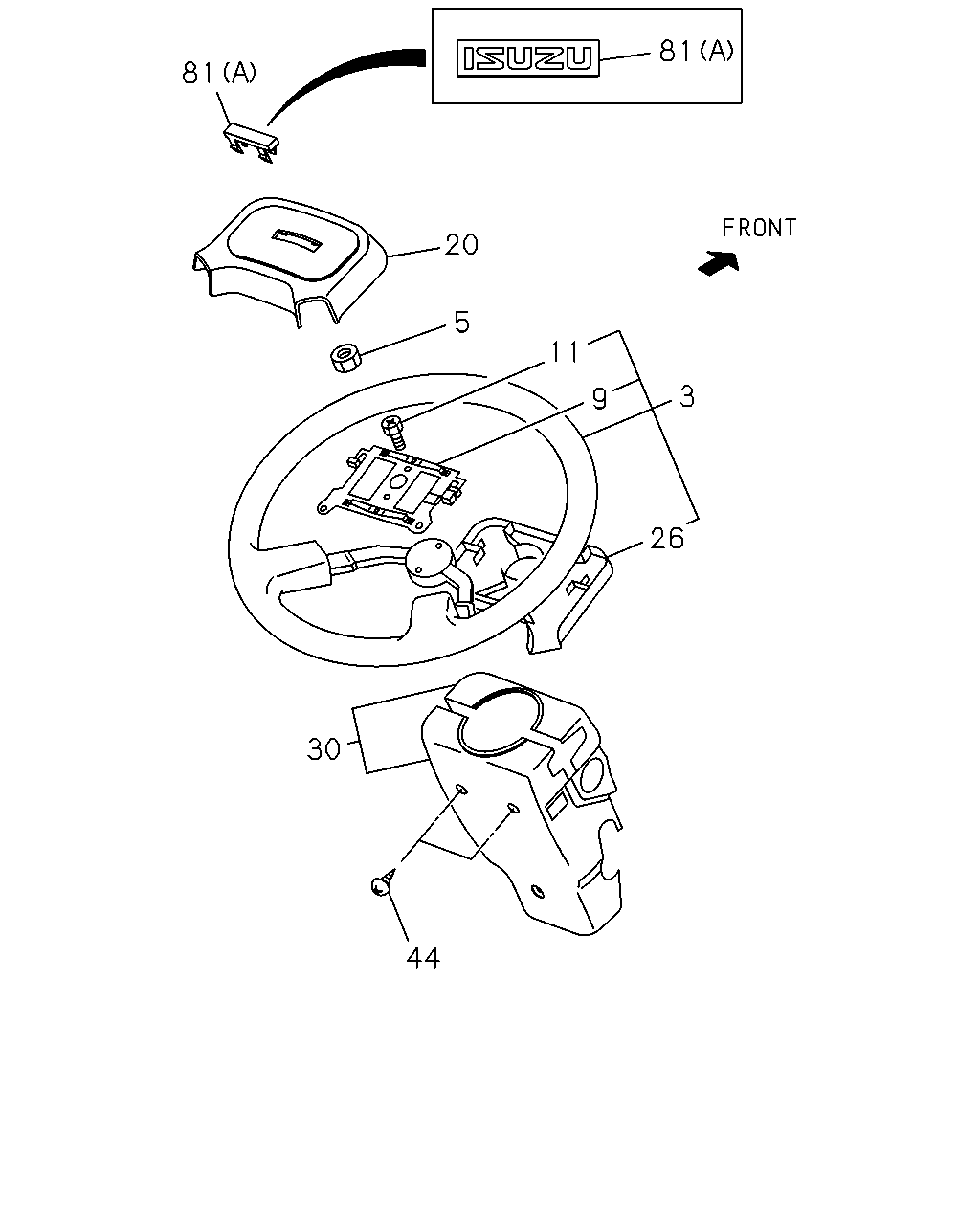

çizim 5172
81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97098-531-2 01 1 0211-0501 ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0502- ● ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-727-0 01 1 0211-0501 ● ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 0502- ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0211-0512 ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 0211- ● ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 01 1 0211- ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97098-526-0 01 1 0211-0501 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 0502- ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-724-0 01 1 0211-0501 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-396-0 01 1 0502- ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97098-534-1 01 1 0211-0501 ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97400-089-1 01 1 0502- ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> BLACK 		8-97197-936-8 01 1 0211-0501 ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 0502- ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> BLACK 		8-97997-903-7 01 1 0211-0501 ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0502- ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0211-0612 ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97098-527-0 01 1 0211-0501 ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97400-060-0 01 1 0502- ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 0211-0501 ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97400-397-0 01 1 0502- ● ●
çizim 37043
81 81 20 5 7 6 7 3 2 13 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
2 06.514 RING; HORN CONTACT
EXC. POWER STEERING<N40> 02.819 		8-94150-223-0 01 1 0211- ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97098-531-2 01 1 0211-0501 ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0502- ● ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-727-0 01 1 0211-0501 ● ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 0502- ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 0211-0512 ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. POWER STEERING<N40> 		8-94458-316-0 02 1 0211- ● ●
7 02.819 SPRING; HORN CONTACT
EXC. POWER STEERING<N40> 		8-94150-222-0 02 1 0211- ● ●
13 06.514 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 0211- ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97098-526-0 01 1 0211-0501 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 0502- ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97158-724-0 01 1 0211-0501 ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-396-0 01 1 0502- ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> BLACK 		8-97197-936-8 01 1 0211-0501 ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 0502- ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> BLACK 		8-97997-903-7 01 1 0211-0501 ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0502- ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0211-0612 ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0701- ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97098-527-0 01 1 0211-0501 ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> (A) DARK GRAY 		8-97400-060-0 01 1 0502- ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 0211-0501 ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97400-397-0 01 1 0502- ● ●
