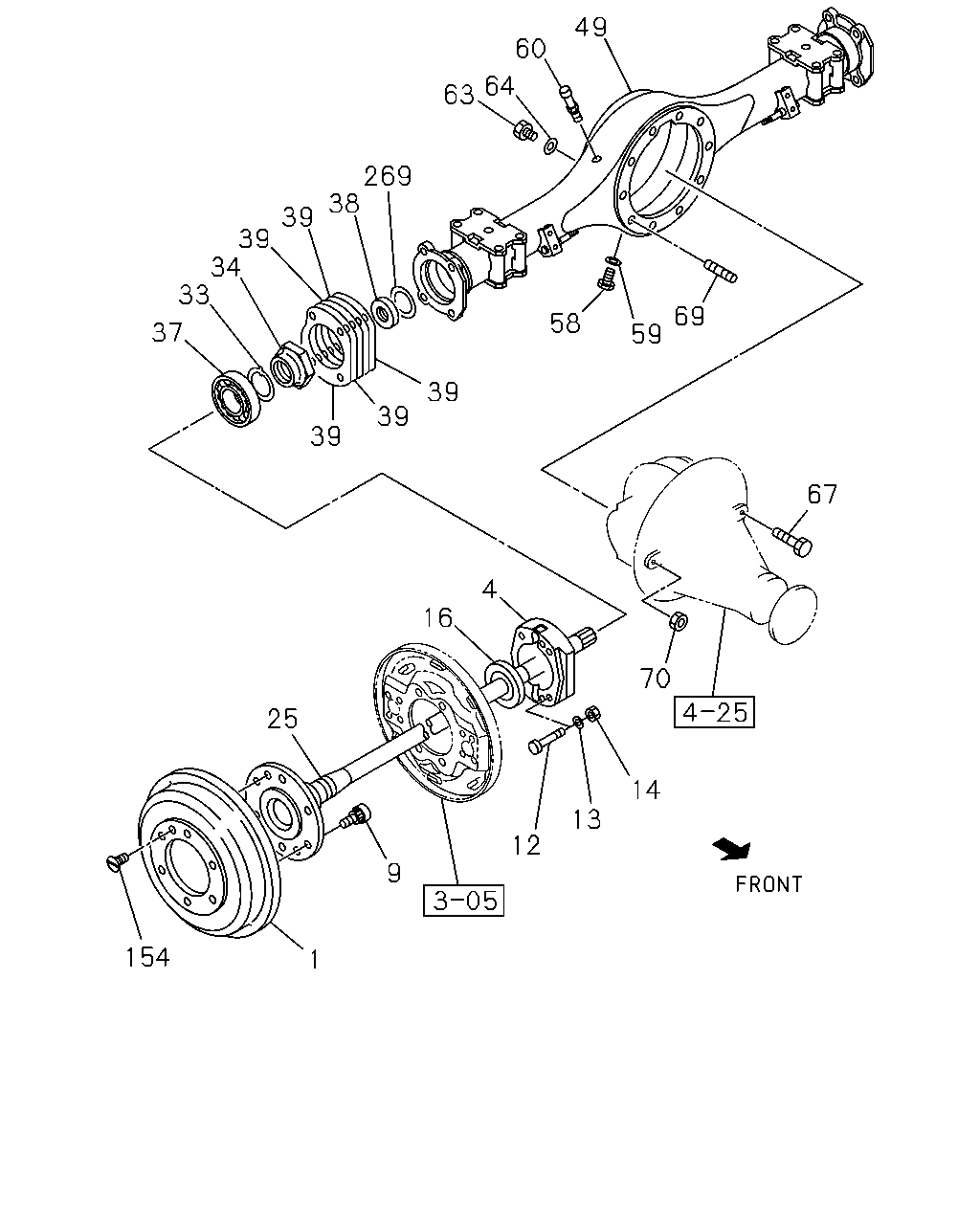

4-20 — REAR AXLE CASE AND SHAFT (#80238) — 128 parça

49 60 64 63 269 38 39 39 34 33 69 58 37 59 39 39 39 67 4 16 70 25 14 13 12 9 154 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR	8-97034-799-2	02	1	0211-	●
1	05.809 DRUM; BRK,RR	5-42315-041-4	02	1	0211-		●
4	05.816 HOLDER; BRG,AXLE SHAFT	8-97324-241-0	02	1	0211-	●
9	05.812 PIN; WHEEL,RR AXLE M14X42 RH THREAD	8-97126-488-0	06	1	0211-	●
9	05.812 PIN; WHEEL,RR AXLE M14X42 LH THREAD	8-97126-489-0	06	1	0211-	●
9	05.812 PIN; WHEEL,RR AXLE M16X35,M16X26 RH THREAD	8-94365-254-0	06	1	0211-0501		●
9	05.812 PIN; WHEEL,RR AXLE M16X26,M16X37 RH THREAD	8-98000-404-1	06	1	0502-		●
9	05.812 PIN; WHEEL,RR AXLE M16X35,M16X26 LH THREAD	8-94365-255-0	06	1	0211-0501		●
9	05.812 PIN; WHEEL,RR AXLE M16X26 LH THREAD,M16X37 RH THREAD	8-98000-406-1	06	1	0502-		●
12	05.816 BOLT; BRG HOLDER TO CASE M12X72	8-94477-674-2	04	1	0211-	●
12	05.816 BOLT; BRG HOLDER TO CASE M12X69 REAMER	9-42119-603-2	04	1	0211-	●
13	05.816 WASHER; LK,BRG HOLDER TO CASE 04.634 ID=12.2	9-09150-512-0	08	1	0211-0603	●
13	05.816 WASHER; LK,BRG HOLDER TO CASE 03.634 ID=12.2	0-91510-512-0	08	1	0604-	●
14	05.816 NUT; BRG HOLDER TO CASE M12	9-99110-412-0	08	1	0211-0512	●
14	05.816 NUT; BRG HOLDER TO CASE 05.002 M12	0-91110-512-0	08	1	0601-	●
16	05.822 SEAL; OIL,RR HUB,OUTER ID=50.5 OD=72	9-09724-022-1	02	1	0211-	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0211-1207		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0211-1106		●
25	05.420 SHAFT; AXLE,RR	8-94341-978-0	02	1	0211-		●
25	05.420 SHAFT; AXLE,RR	8-97083-094-1	02	1	0211-	●
33	05.422 WASHER; AXLE SHAFT	8-97086-472-0	02	1	0211-	●
34	05.387 NUT; AXLE SHAFT M45	8-94178-278-0	02	1	0211-	●
34	05.387 NUT; AXLE SHAFT 08.917 M10 FLANGE	0-91150-210-0	12	1	0211-0602		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	0603-		●
37	05.855 BEARING; HUB INNER,RR AXLE ID=45 OD=85	9-00032-209-0	02	1	0211-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0211-		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	0211-		●
38	05.822 SEAL; OIL,RR HUB,INNER 05.387 ID=37.5 OD=60	5-09625-092-0	02	1	0211-	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0211-		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0211-		●
39	05.816 SHIM; BRG HOLDER T=1.000	9-42119-616-0	AR	1	0211-	●
39	05.816 SHIM; BRG HOLDER T=0.500	9-42119-617-0	AR	1	0211-	●
39	05.816 SHIM; BRG HOLDER T=0.13	9-42119-618-0	AR	1	0211-	●
39	05.816 SHIM; BRG HOLDER T=0.076	9-42119-619-0	AR	1	0211-	●
39	05.816 SHIM; BRG HOLDER T=0.050	9-42119-620-0	AR	1	0211-	●
49	05.387 CASE; RR AXLE	8-97047-980-3	01	1	0211-	●
49	05.387 CASE; RR AXLE	8-97032-770-3	01	1	0211-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97109-869-0	01	1	0211-0611	●	●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0612-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0211-	●	●
60	05.387 BREATHER; RR AXLE CASE L=30	8-94416-611-1	01	1	0211-0409	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-97383-656-0	01	1	0410-0606	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0607-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE 04.103 M20X10.5	9-09662-005-0	01	1	0211-0611	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0612-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0211-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M10X40 W/LK WASHER	0-50061-040-0	08	1	0211-0909	●	●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	0910-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 43/11(GNA) M10X40 W/LK WASHER	0-50061-040-0	07	1	0211-0909		●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 43/11(GNA) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	0910-		●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 43/11(GNA) M10X100	0-50061-000-0	01	1	0211-0612		●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 43/11(GNA) M10X100	0-10956-000-0	01	1	0701-		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97026-282-0	02	1	0211-0610	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0611-	●	●
70	05.387 NUT; CARRIER 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0602	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
154	04.665 SCREW; SLOTTED 05.812 M6X16 CK-HEAD	9-03090-616-0	02	1	0211-0703	●
154	04.665 SCREW; SLOTTED 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	0704-	●
269	05.387 GASKET; REAR AXLE 05.822	9-09720-517-0	02	1	0211-	●

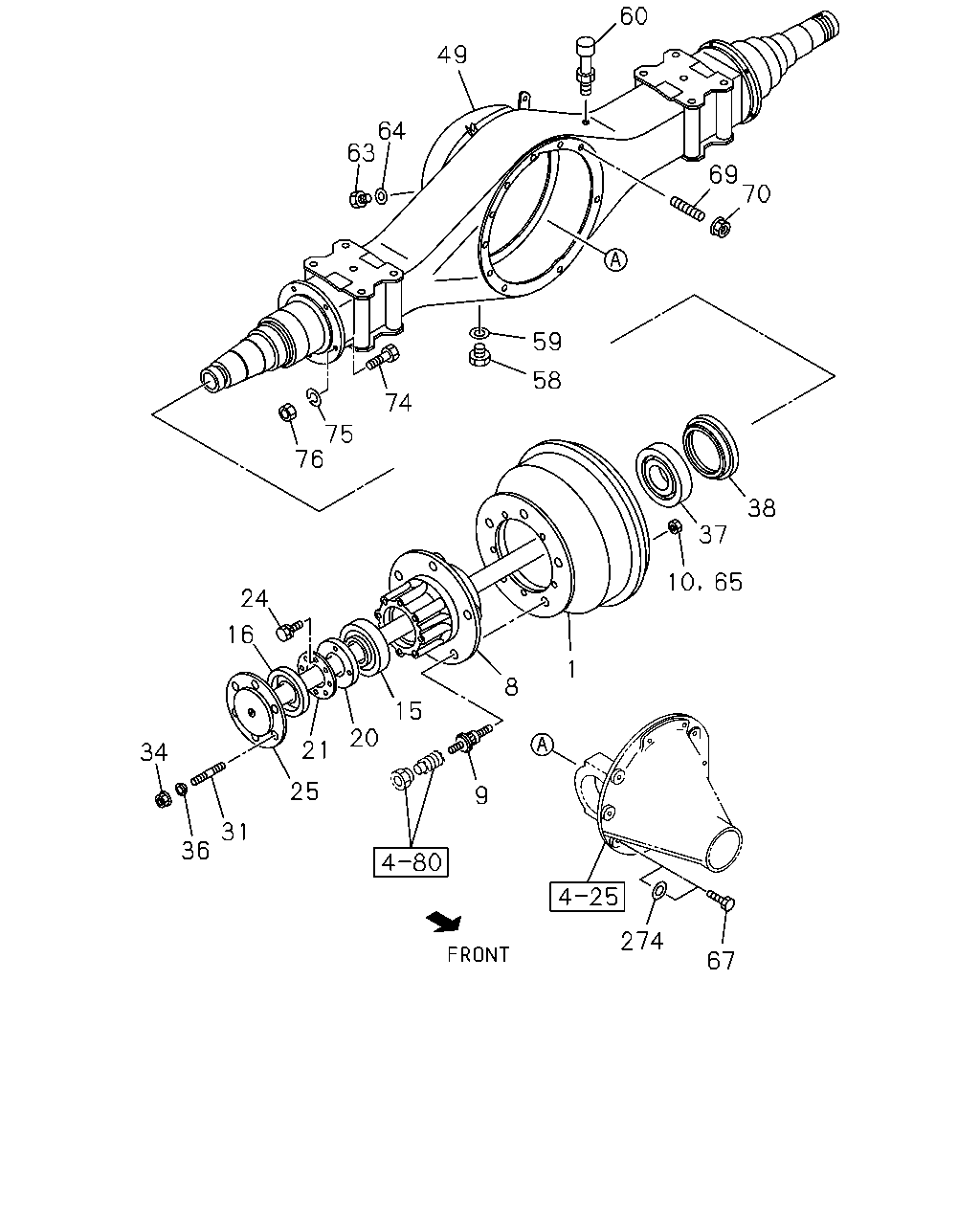

60 49 64 63 69 70 59 58 74 75 76 38 37 10 65 24 16 1 8 15 20 21 34 25 9 31 36 274 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR	8-97034-799-2	02	1	0211-	●
1	05.809 DRUM; BRK,RR	5-42315-041-4	02	1	0211-		●
8	05.809 HUB; RR AXLE	8-97032-606-3	02	1	0211-		●
9	05.812 PIN; WHEEL,RR AXLE M14X42 RH THREAD	8-97126-488-0	06	1	0211-	●
9	05.812 PIN; WHEEL,RR AXLE M14X42 LH THREAD	8-97126-489-0	06	1	0211-	●
9	05.812 PIN; WHEEL,RR AXLE M16X35,M16X26 RH THREAD	8-94365-254-0	06	1	0211-0501		●
9	05.812 PIN; WHEEL,RR AXLE M16X26,M16X37 RH THREAD	8-98000-404-1	06	1	0502-		●
9	05.812 PIN; WHEEL,RR AXLE M16X35,M16X26 LH THREAD	8-94365-255-0	06	1	0211-0501		●
9	05.812 PIN; WHEEL,RR AXLE M16X26 LH THREAD,M16X37 RH THREAD	8-98000-406-1	06	1	0502-		●
10	05.813 NUT; WHEEL PIN,RR AXLE M16 LH THREAD	8-94161-997-0	06	1	0211-0501		●
10	05.813 NUT; WHEEL PIN,RR AXLE 08.915 M16	9-99110-516-0	06	1	0211-0501		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	0211-		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	0211-		●
16	05.822 SEAL; OIL,RR HUB,OUTER ID=50.5 OD=72	9-09724-022-1	02	1	0211-	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	0211-1207		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	0211-1106		●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	0211-1303		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-		●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	0211-		●
24	05.830 BOLT; LK WASHER 00.685 M6X12 W/LK WASHER	0-50040-612-0	04	1	0211-0512		●
24	05.830 BOLT; LK WASHER 03.342 M6X12 W/LK WASHER	0-50540-612-0	04	1	0601-0611		●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0612-		●
25	05.420 SHAFT; AXLE,RR	8-94341-978-0	02	1	0211-		●
25	05.420 SHAFT; AXLE,RR	8-97083-094-1	02	1	0211-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	5-09300-066-1	12	1	0211-0709		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	0710-		●
34	05.387 NUT; AXLE SHAFT M45	8-94178-278-0	02	1	0211-	●
34	05.387 NUT; AXLE SHAFT 08.917 M10 FLANGE	0-91150-210-0	12	1	0211-0602		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	0603-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	9-09855-207-0	12	1	0211-0709		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	0710-		●
37	05.855 BEARING; HUB INNER,RR AXLE ID=45 OD=85	9-00032-209-0	02	1	0211-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	0211-		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	0211-		●
38	05.822 SEAL; OIL,RR HUB,INNER 05.387 ID=37.5 OD=60	5-09625-092-0	02	1	0211-	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	0211-		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	0211-		●
49	05.387 CASE; RR AXLE	8-97047-980-3	01	1	0211-	●
49	05.387 CASE; RR AXLE	8-97032-770-3	01	1	0211-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97109-869-0	01	1	0211-0611	●	●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	0612-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	0211-	●	●
60	05.387 BREATHER; RR AXLE CASE L=30	8-94416-611-1	01	1	0211-0409	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-97383-656-0	01	1	0410-0606	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	0607-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE 04.103 M20X10.5	9-09662-005-0	01	1	0211-0611	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	0612-	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	0211-	●	●
65	05.387 NUT 05.586 M16 FLANGE	1-09449-065-0	12	1	0502-		●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) M10X40 W/LK WASHER	0-50061-040-0	08	1	0211-0909	●	●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 39/8(RV9) 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	0910-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 43/11(GNA) M10X40 W/LK WASHER	0-50061-040-0	07	1	0211-0909		●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 43/11(GNA) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	0910-		●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 43/11(GNA) M10X100	0-50061-000-0	01	1	0211-0612		●
67	05.387 BOLT; FINAL DRIVE SETTING FINAL GEAR RATIO 43/11(GNA) M10X100	0-10956-000-0	01	1	0701-		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97026-282-0	02	1	0211-0610	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	0611-	●	●
70	05.387 NUT; CARRIER 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0602	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	5-09000-078-0	08	1	0211-0611		●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	08	1	0612-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING 06.515 ID=12.2	9-09150-612-0	08	1	0211-0603		●
75	05.002 WASHER; LK,RR BRK ASM SETTING 00.002 ID=12.2	0-91510-612-0	08	1	0604-0611		●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	08	1	0612-		●
76	05.002 NUT; RR BRK ASM SETTING 04.634 M12	9-99110-512-0	08	1	0211-0512		●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	08	1	0601-		●
274	05.822 WASHER; HSG FINAL GEAR RATIO 43/11(GNA) 02.277 ID=10.2	0-91510-810-0	01	1	0701-		●
