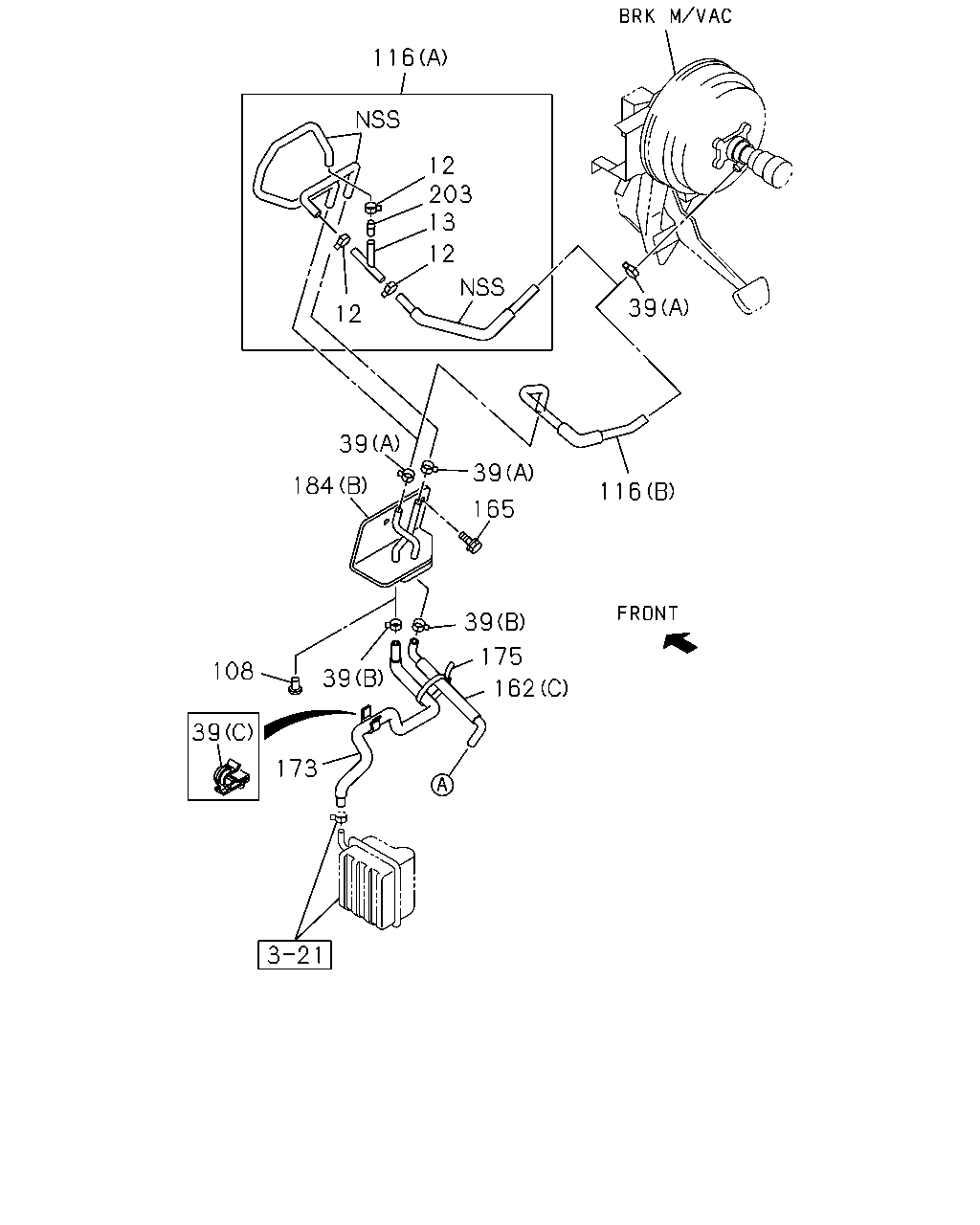

3-60 — BRAKE PIPING; VACUUM (#80234) — 53 parça

116 12 203 13 12 39 12 39 39 184 116 165 39 175 108 39 162 39 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 ID=14.5	8-94167-480-0	03	1	0211-	●	●
13	04.681 JOINT; HOSE,VAC EXHAUST BRAKE<NF8> 04.686 3WAY	8-94441-184-0	01	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	02	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	03	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (C) ID=25.5	8-97077-492-0	01	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	5-09707-023-2	01	1	0211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	02	1	0211-	●	●
108	04.931 GROMMET; PIPE EXC. EXHAUST BRAKE<NF8>	9-09956-353-0	01	1	0211-1312	●	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (A)	8-97035-969-2	01	1	0211-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (B)	8-97035-980-2	01	1	0211-	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0211-	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0211-	●	●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	0211-	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-872-0	01	1	0211-	●	●
175	04.930 CLIP; BAND,VAC HOSE EXHAUST BRAKE<NF8> 02.559 L=219.5	1-09987-136-0	01	1	0211-	●	●
184	04.685 BRACKET; UNION FIX EXC. EXHAUST BRAKE<NF8> (B)	8-98251-818-1	01	1	1401-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	0211-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0211-1312	●	●
184	04.685 BRACKET; UNION FIX EXHAUST BRAKE<NF8> (B)	8-97094-377-4	01	1	1401-	●	●
203	04.690 VALVE; CHECK EXHAUST BRAKE<NF8>	8-94386-540-0	01	1	0501-	●	●

201 184 200 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
184	04.685 BRACKET; UNION FIX EXC. EXHAUST BRAKE<NF8> (B)	8-98251-818-1	01	1	1401-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	0211-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0211-1312	●	●
184	04.685 BRACKET; UNION FIX EXHAUST BRAKE<NF8> (B)	8-97094-377-4	01	1	1401-	●	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0211-	●	●
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0211-0604	●	●
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-	●	●
202	04.686 SEAL EXC. EXHAUST BRAKE<NF8> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0211-	●	●

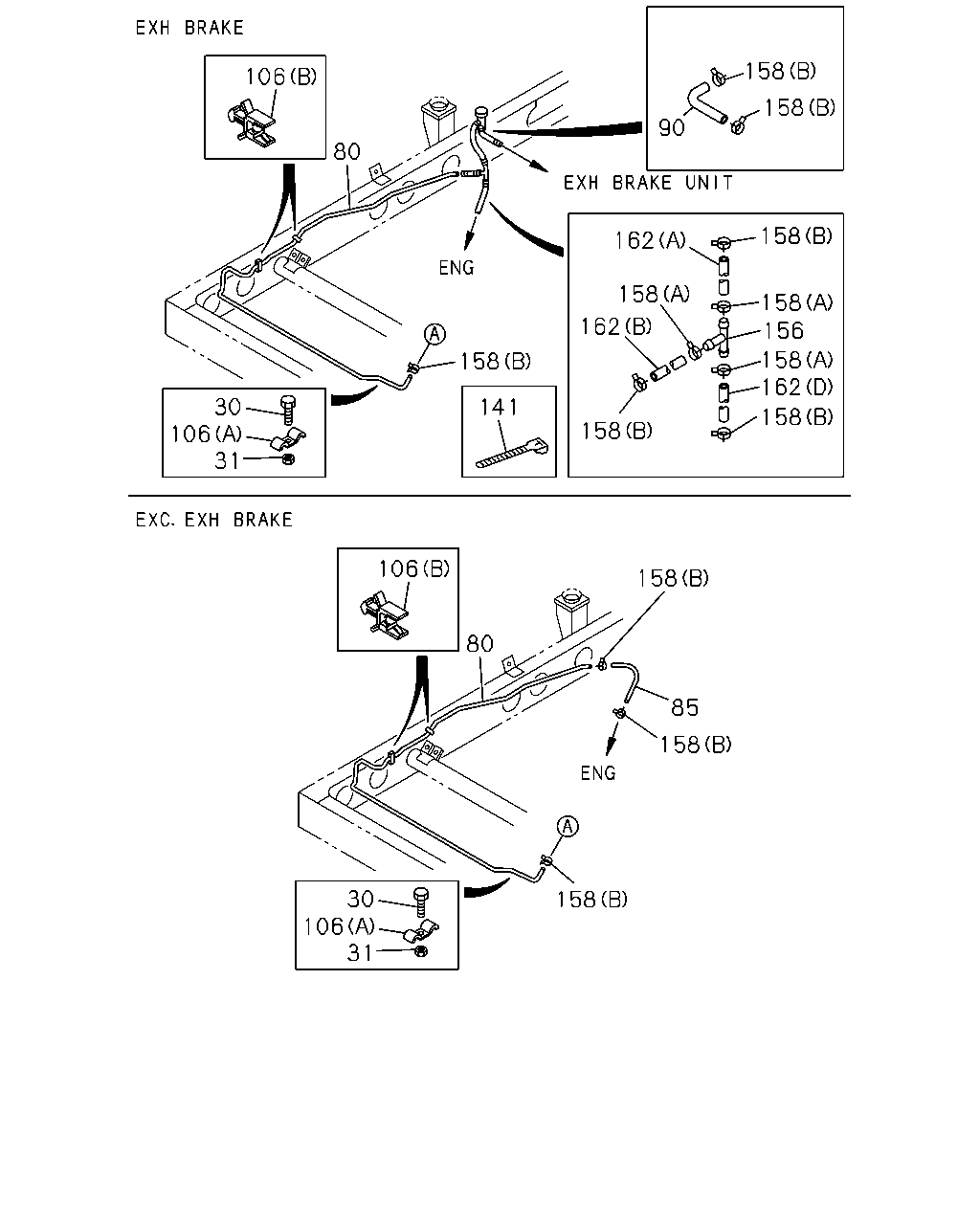

158 106 158 90 80 158 162 158 158 156 162 158 162 158 30 106 31 141 158 158 106 158 80 85 158 30 106 31 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
80	04.930 PIPE; VAC,ENG SIDE	8-97178-175-0	01	1	0211-	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0211-	●	●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0211-	●	●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0211-	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	0211-	●	●
141	04.686 CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	0211-	●	●
156	04.931 JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0211-	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0502-0911	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	05	1	0211-0501	●	●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	03	1	0211-0911	●	●
158	04.681 CLIP; HOSE EXC. EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	03	1	0912-	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0211-	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-393-0	01	1	0211-	●	●
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-402-0	01	1	0211-	●	●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	0211-	●	●
