Isuzu WW
▶
TRUCKS
▶
NHR
▶
51383 - NHR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

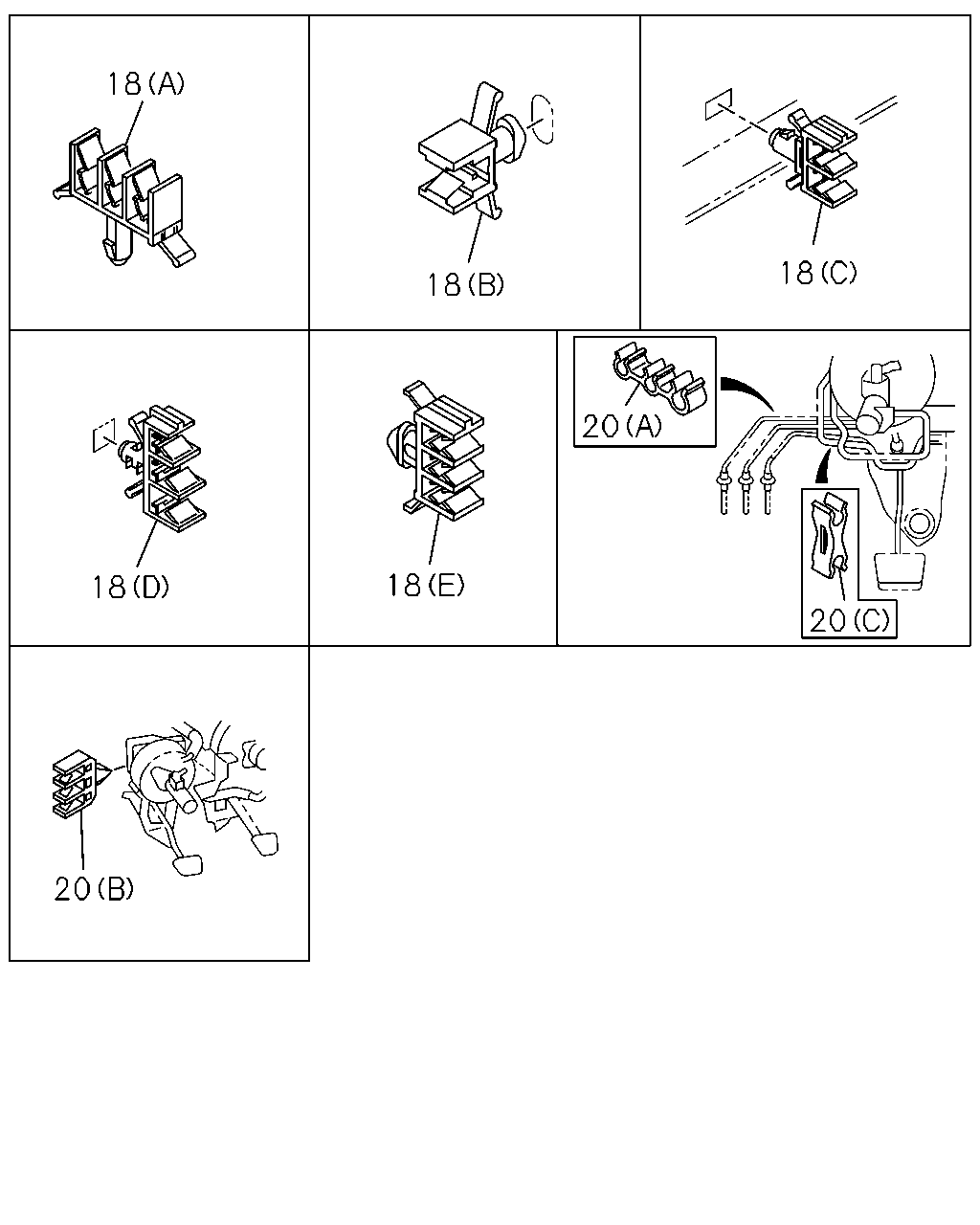

3-58 — FIXING PARTS; OIL PIPING
(#80233) — 17 parça
Tümü
A - NHB6SF
B - NHN6SF
18
18
18
20
18
18
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26
8-94249-685-0
05
1
0608-
●
●
18
04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26
8-94249-685-0
02
1
0211-0501
●
●
18
04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26
8-94249-685-0
02
1
0211-0501
●
●
18
04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26
8-94249-685-0
02
1
0211-0501
●
●
18
04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26
8-94249-685-0
02
1
0502-
●
●
18
04.686 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2
8-94131-710-2
01
1
0211-
●
●
18
04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26
8-94249-685-0
01
1
0211-0501
●
●
18
04.686 CLIP; BRK PIPE
(B) ID=4.8 H=26
8-94249-685-0
05
1
0502-0606
●
●
18
04.686 CLIP; BRK PIPE
(E) ID=6.5 & 4.8X2 H=29
8-94249-689-2
02
1
0211-
●
●
18
04.686 CLIP; BRK PIPE
(C) ID=4.8X2
8-94316-410-0
01
1
0211-
●
●
18
04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8
8-97064-484-1
03
1
0211-0312
●
●
18
04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8
8-97064-484-1
03
1
0211-0312
●
18
04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8
8-97064-484-1
03
1
0401-
●
●
18
04.686 CLIP; BRK PIPE
03.162 (D) ID=10 & 6.4 & 4.8
8-97064-484-1
03
1
0401-
●
●
20
04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2
8-94146-043-0
03
1
0211-
●
●
20
04.686 CLIP; BRK PIPE
04.868 (C) ID=4.6X2
8-94241-454-0
01
1
0211-
●
●
20
04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2
8-94250-923-2
01
1
0211-
●
●
