◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#80231) — 24 parça

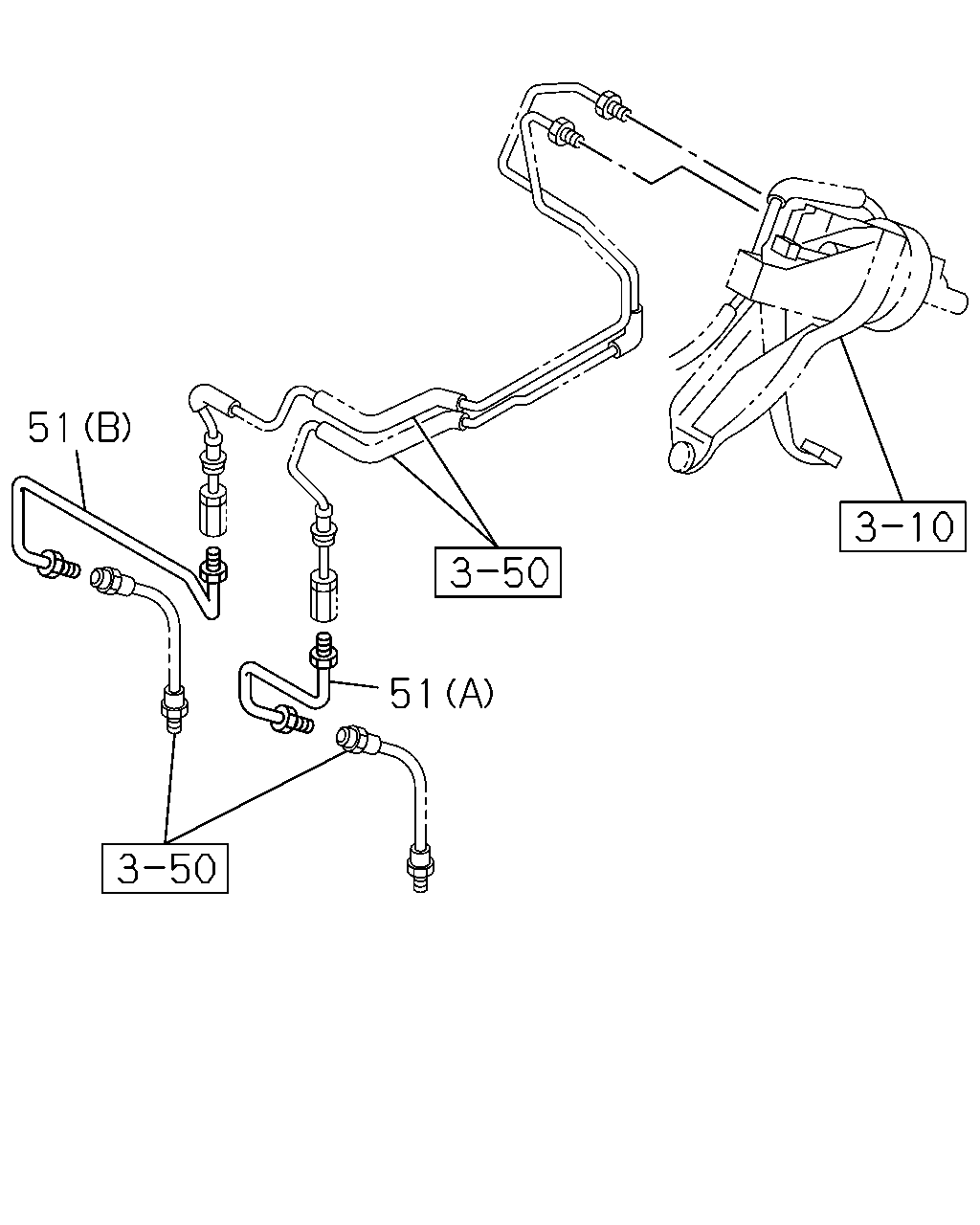

çizim 5249
51 51
BalonParca AdiParca NoAdetTipApplied Date A B
51 04.685 PIPE; BRK
(A) 		8-97070-296-2 01 1 0211- ● ●
51 04.685 PIPE; BRK
(B) 		5-47411-763-0 01 1 0211- ● ●

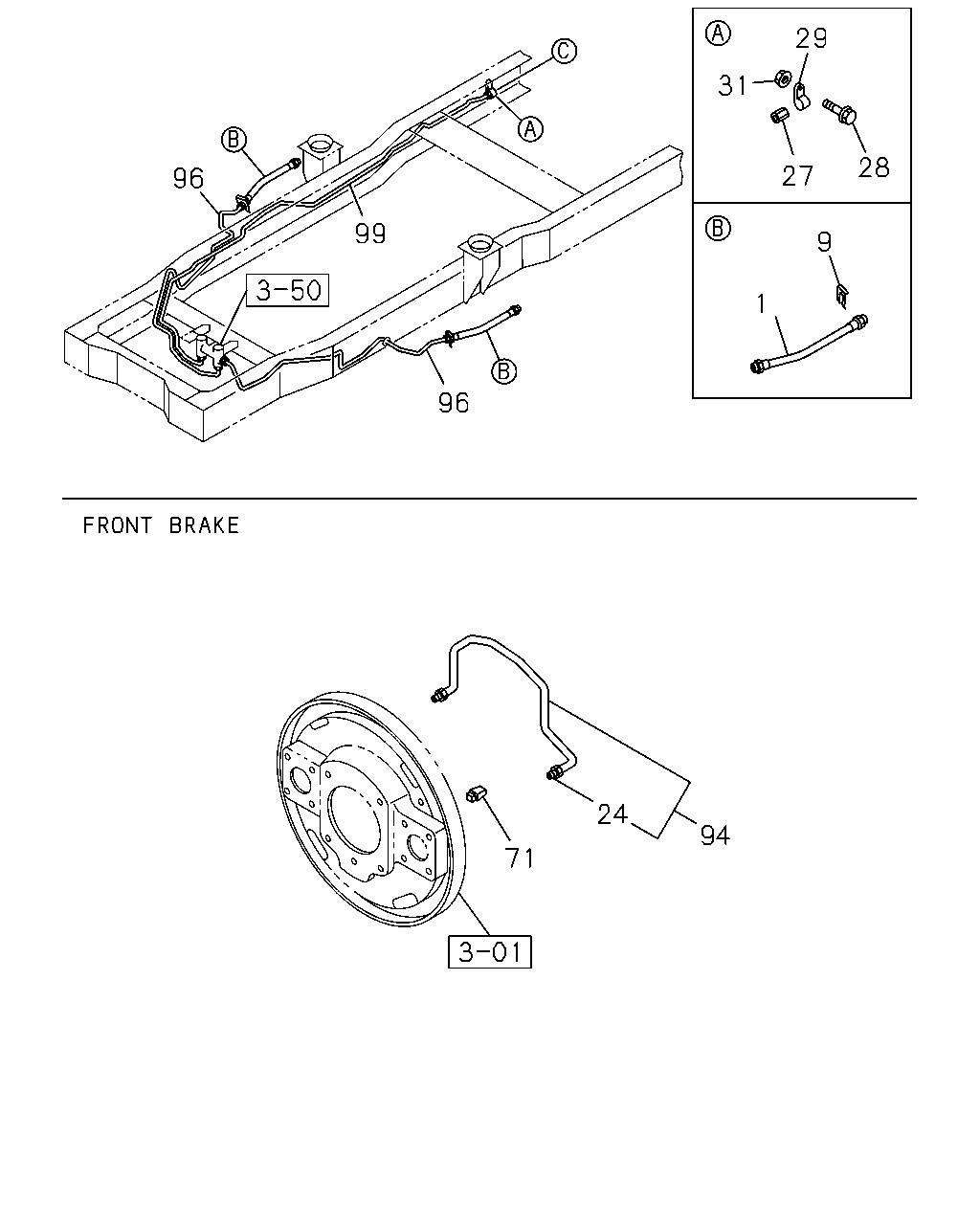

çizim 36334
29 31 28 27 96 99 9 1 96 24 94 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0211- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0610 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0211-0607 ● ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0608- ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0211-0607 ● ●
27 04.686 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 01 1 0608- ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0512 ● ●
28 04.686 BOLT; UNION CLIP
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ●
29 04.686 CLIP; UNION
03.162 ID=16 L=20 		9-09525-532-0 01 1 0211-0606 ● ●
29 04.686 CLIP; UNION
ID=16 L=20 		0-95235-532-0 01 1 0607- ● ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0602 ● ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09956-640-0 02 1 0211- ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-151-0 01 1 0211- ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97081-184-0 01 1 0211- ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97090-026-2 01 1 0211- ● ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97091-059-3 01 1 0211- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 		8-97089-975-2 01 1 0211- ● ●
çizim 36772
13
BalonParca AdiParca NoAdetTipApplied Date A B
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0211- ● ●
