Isuzu WW
▶
TRUCKS
▶
NHR
▶
51383 - NHR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#80230) — 29 parça
Tümü
A - NHB6SF
B - NHN6SF
◀

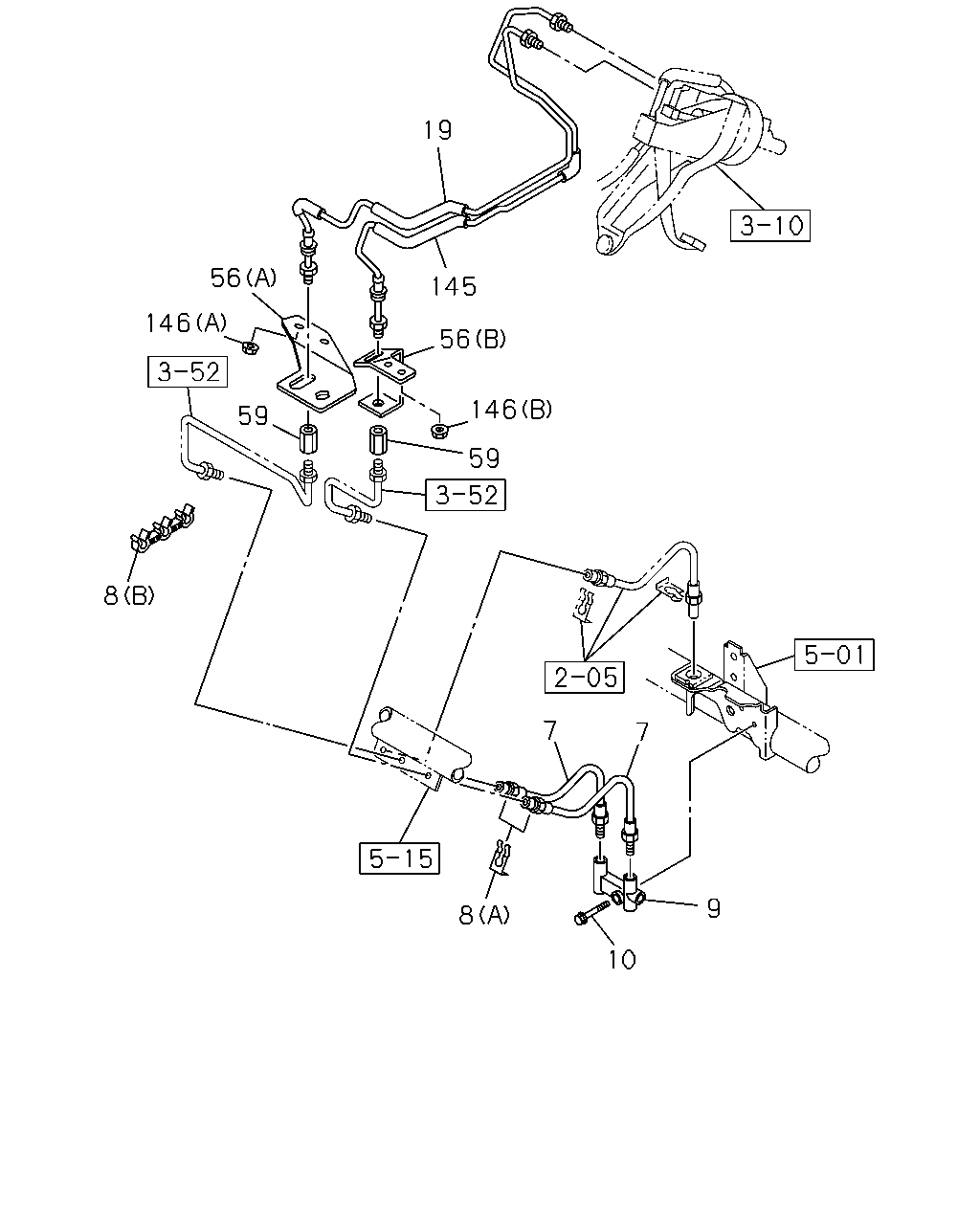

[350A] CAB SIDE (17 parça)
[350A] FRAME SIDE (12 parça)
▶
19
56
145
146
56
146
59
59
8
7
7
9
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97171-031-0
02
1
0211-
●
●
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B)
8-97076-471-0
01
1
0211-
●
●
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 (A)
8-94167-006-0
02
1
0211-0610
●
●
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0611-
●
●
9
04.686 JOINT; BRK & CLU PIPE,CAB SIDE
5-47456-009-1
01
1
0211-
●
●
10
04.686 BOLT; JOINT
03.163 M6X40 FLANGE
0-28680-640-0
01
1
0211-0512
●
●
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
0601-
●
●
19
04.685 PIPE; BRK,M/CYL TO UNION
8-97094-348-3
01
1
0211-
●
●
56
04.686 BRACKET; UNION,BRK
(A)
8-97102-365-0
01
1
0211-
●
●
56
04.686 BRACKET; UNION,BRK
(B)
8-97102-366-2
01
1
0211-
●
●
59
04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT
9-09227-005-0
02
1
0211-0607
●
●
59
04.686 UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0608-
●
●
145
04.685 PIPE; BRK,METERING VLV TO UNION
8-97094-346-3
01
1
0211-
●
●
146
04.685 NUT; BRKT
04.594 (B) M6 FLANGE
0-91150-106-0
02
1
0211-0602
●
●
146
04.685 NUT; BRKT
01.062 (B) M6 FLANGE
0-91180-106-0
02
1
0603-
●
●
146
04.685 NUT; BRKT
07.633 (A) M8 FLANGE
0-91150-108-0
02
1
0211-0602
●
●
146
04.685 NUT; BRKT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
38
40
36
149
150
37
34
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
04.685 PIPE; BRK,UNION TO DSPV
BRK WHL LK CONT DSPV<JL8>
8-97072-951-3
01
1
0211-
●
●
35
04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT DSPV<JL8>
8-97091-258-1
01
1
0211-
●
●
36
04.690 VALVE ASM; DSPV
BRK WHL LK CONT DSPV<JL8>
8-97082-058-0
01
1
0211-
●
●
37
04.690 BOLT; BRKT TO DSPV
BRK WHL LK CONT DSPV<JL8> 01.840 M8X70 W/LK WASHER
0-50040-870-0
02
1
0211-0501
●
●
37
04.690 BOLT; BRKT TO DSPV
BRK WHL LK CONT DSPV<JL8> 01.840 M8X70 FLANGE
0-28080-870-0
02
1
0502-0512
●
●
37
04.690 BOLT; BRKT TO DSPV
BRK WHL LK CONT DSPV<JL8> 00.206 M8X70 FLANGE
0-28050-870-0
02
1
0601-
●
●
38
04.690 BOLT; BRKT TO FRAME
BRK WHL LK CONT DSPV<JL8> 08.900 M8X20 W/LK WASHER
0-50040-820-0
02
1
0211-0501
●
●
38
04.690 BOLT; BRKT TO FRAME
BRK WHL LK CONT DSPV<JL8> 02.664 M8X20 FLANGE
0-28680-820-0
02
1
0502-0512
●
●
38
04.690 BOLT; BRKT TO FRAME
BRK WHL LK CONT DSPV<JL8> 01.531 M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
40
04.690 BRACKET
BRK WHL LK CONT DSPV<JL8>
8-94156-783-4
01
1
0211-
●
●
149
04.685 PLUG; BLEEDER,DSV
BRK WHL LK CONT DSPV<JL8>
8-97093-663-0
01
1
0211-
●
●
150
04.685 CAP; BLEEDER PLUG,DSV
BRK WHL LK CONT DSPV<JL8>
8-97093-662-0
01
1
0211-
●
●
