Isuzu WW
▶
TRUCKS
▶
NHR
▶
51383 - NHR(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#80226) — 36 parça
Tümü
A - NHB6SF
B - NHN6SF
◀
[311A] FIXING PARTS (14 parça)
[311A] STEM AND CABLE (22 parça)
▶
241
225
91
324
181
224
89
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
89
04.785 BRACKET; CLIP
8-97113-984-1
01
1
0211-
●
●
91
04.785 CLIP; PARKING BRK CABLE
ID=13 L=50
9-09525-286-0
01
1
0211-0606
●
●
91
04.785 CLIP; PARKING BRK CABLE
ID=13 L=50
0-95235-286-0
01
1
0607-
●
●
181
04.785 BOLT; BRKT
02.559 M8X25 FLANGE
0-28680-825-0
01
1
0211-0512
●
●
181
04.785 BOLT; BRKT
02.559 M8X25 FLANGE
0-28680-825-0
01
1
0211-0512
●
●
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
●
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
●
224
04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE
0-28680-825-0
01
1
0211-0512
●
●
224
04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
●
225
04.785 NUT; CABLE CLIP
07.633 M8 FLANGE
0-91150-108-0
01
1
0211-0602
●
●
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
241
04.785 NUT; BRKT
07.633 M8 FLANGE
0-91150-108-0
01
1
0211-0602
●
●
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
324
04.785 BRACKET
8-97101-815-2
01
1
0211-
●
●

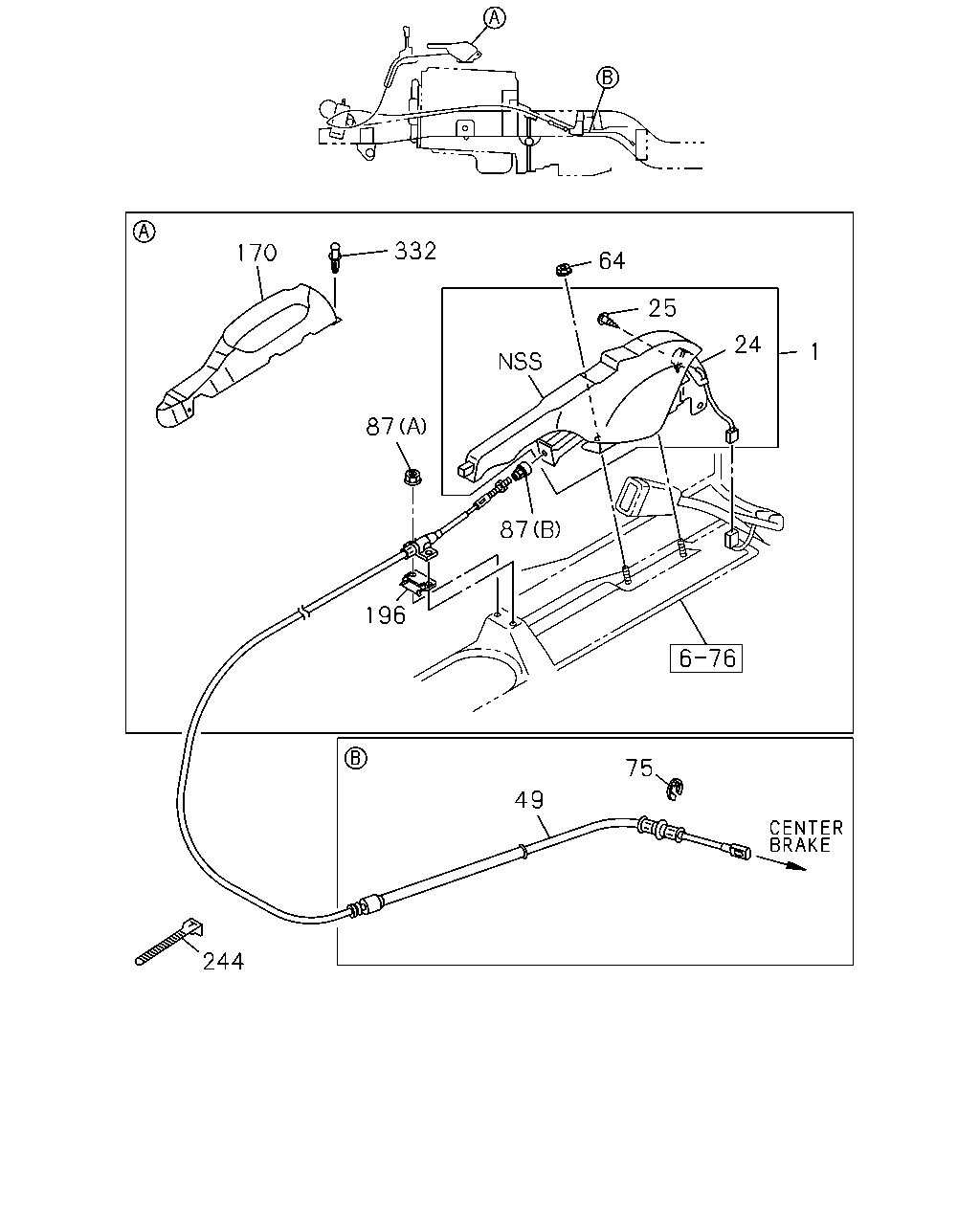

332
170
64
25
24
1
87
87
196
75
49
244
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.592 STEM ASM; PARKING BRK
DARK GRAY
8-97996-543-2
01
1
0211-0501
●
●
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97585-445-2
01
1
0502-0610
●
●
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97409-385-0
01
1
0611-1305
●
●
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97427-522-0
01
1
1306-
●
●
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0211-1305
●
●
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1306-
●
●
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0211-
●
●
49
04.779 CABLE; PARKING BRK
8-97184-272-0
01
1
0211-
●
●
64
04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER
8-94327-073-0
02
1
0211-0610
●
●
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0611-
●
●
75
04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12
9-09185-412-0
01
1
0211-0604
●
●
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
0605-
●
●
87
04.785 NUT
(B) M6
8-97088-730-1
01
1
0211-0310
●
●
87
04.785 NUT
(B) M6
1-71996-312-0
01
1
0311-0611
●
●
87
04.785 NUT
(B) M6
8-98034-313-1
01
1
0612-
●
●
87
04.785 NUT
07.633 (A) M8 FLANGE
0-91150-108-0
02
1
0211-0602
●
●
87
04.785 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
170
04.595 COVER; PARKING BRK LEVER
DARK GRAY
8-97158-915-0
01
1
0211-0501
●
●
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97400-347-1
01
1
0502-
●
●
196
04.784 SPACER; CABLE TO LEVER
8-97095-464-2
01
1
0211-
●
●
244
04.785 CLIP; BAND
03.162 L=140
5-09707-031-1
01
1
0211-
●
●
332
04.785 CLIP; COVER
03.602 D6X12.5
8-94146-425-0
01
1
0211-
●
●
