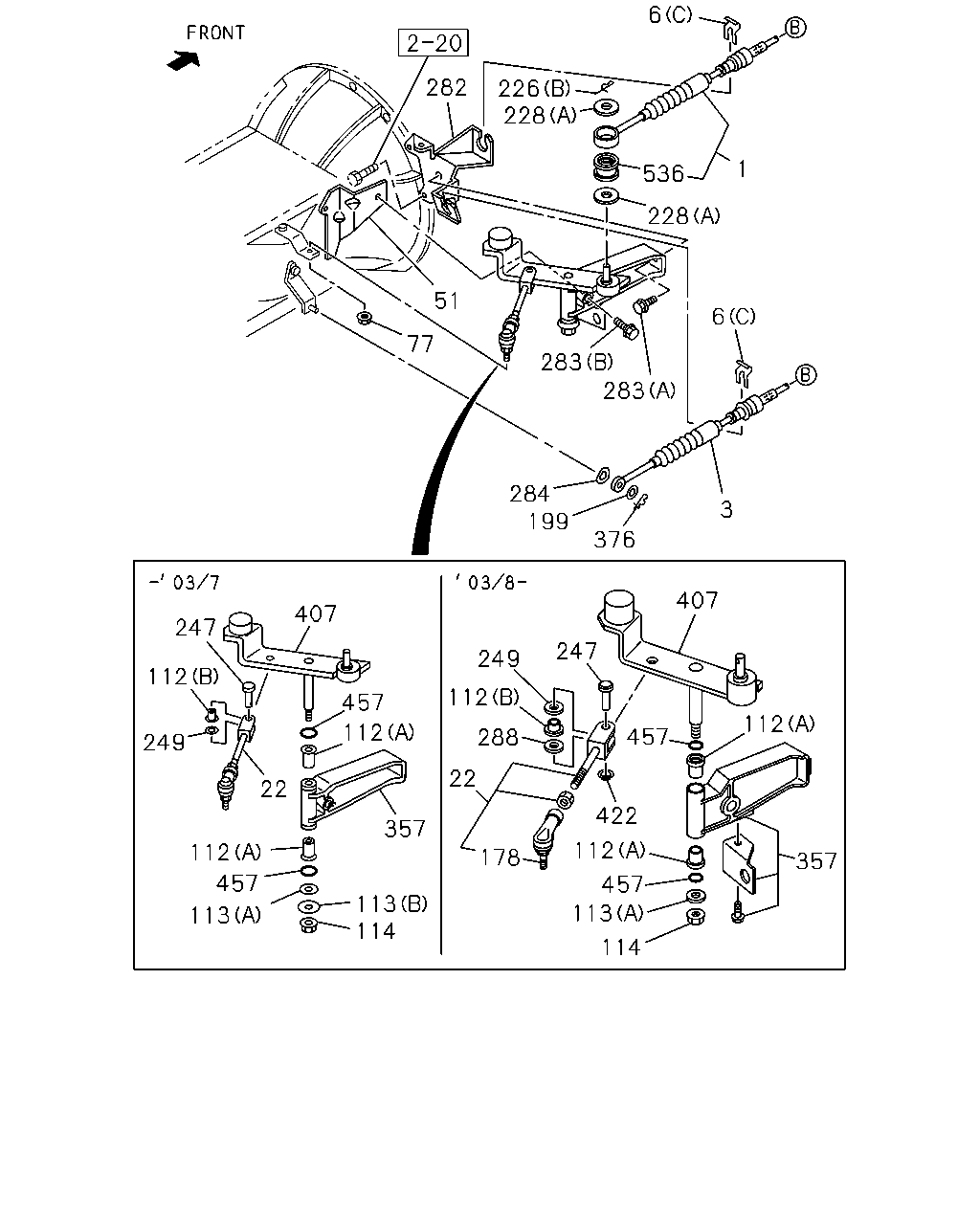

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#80220) — 89 parça

6 226 228 282 1 536 228 51 6 77 283 283 284 199 3 376 407 407 247 247 249 457 112 112 457 112 112 288 249 22 22 422 357 112 112 178 357 457 457 113 114 113 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT L=2540	8-97089-986-4	01	1	0211-0911
1	00.854 CABLE; SHIFT,TRANS CONT L=2540	8-98146-809-0	01	1	0912-
3	00.852 CABLE; SELECT,TRANS CONT L=2684	8-97089-987-3	01	1	0211-
6	04.047 CLIP; CABLE POWER STEERING<N40> (F)	8-98023-697-0	01	1	1212-
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	0211-
6	04.047 CLIP; CABLE (A)	8-97036-329-2	01	1	0211-
6	04.047 CLIP; CABLE (E)	8-97036-332-1	01	1	0211-1211
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (E)	8-97036-332-1	01	1	1212-
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	0211-
6	04.047 CLIP; CABLE (C) ID=19.2	8-97211-011-0	02	1	0211-
22	04.035 ROD; CONT,SHIFT	8-97174-058-0	01	1	0211-0307
22	04.035 ROD; CONT,SHIFT	8-97134-286-1	01	1	0308-
51	04.010 BRACKET; GEAR CONT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-335-1	01	1	1211-
51	04.010 BRACKET; GEAR CONT	8-97029-286-0	01	1	0211-1210
51	04.010 BRACKET; GEAR CONT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97029-286-0	01	1	1211-
77	04.037 NUT; LK,BALL JOINT,CONT ROD M8 T=8.0	8-94363-045-0	01	1	0211-
112	04.046 BUSHING; RELAY LEVER (A)	8-97174-057-0	02	1	0211-
112	04.046 BUSHING; RELAY LEVER (B)	8-97174-060-0	01	1	0211-0307
112	04.046 BUSHING; RELAY LEVER (B)	8-97085-157-0	01	1	0308-
113	04.046 WASHER; RELAY LEVER 08.929 (B) ID=15 OD=36	9-09164-714-0	01	1	0211-0307
113	04.046 WASHER; RELAY LEVER 16.682 (A) ID=10.5 OD=22	9-09160-610-0	02	1	0211-0307
113	04.046 WASHER; RELAY LEVER 16.682 (A) ID=10.5 OD=22	9-09160-610-0	01	1	0308-0605
113	04.046 WASHER; RELAY LEVER (A) ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0606-
114	04.037 NUT; RELAY LEVER 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0602
114	04.037 NUT; RELAY LEVER 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
178	04.040 JOINT; BALL,LINK ROD 04.037 L=45.5	1-09760-118-1	01	1	0404-
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0211-0605
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0211-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0211-
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0211-
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0211-0605
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-
247	04.010 PIN; CONT ROD TO LEVER 04.037	9-09876-059-1	01	1	0211-0307
247	04.010 PIN; CONT ROD TO LEVER	8-97373-728-0	01	1	0404-
249	04.010 WASHER; RUBBER,CONT ROD TO LEVER 04.037 ID=8.5 T=1.5	9-09851-889-0	01	1	0211-
282	04.010 BRACKET; TRANS SIDE	8-97034-142-1	01	1	0211-
283	04.037 BOLT; RELAY LEVER 03.405 (A) M10X25 FLANGE	0-28681-025-0	01	1	0211-0512
283	04.037 BOLT; RELAY LEVER 00.029 (A) M10X25 FLANGE	0-28651-025-0	01	1	0601-
283	04.037 BOLT; RELAY LEVER 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0211-0512
283	04.037 BOLT; RELAY LEVER 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0211-
288	04.047 WASHER; CABLE TO RELAY LEVER	8-97373-819-0	01	1	0404-
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
357	04.010 BRACKET; RELAY LEVER	8-97182-166-0	01	1	0211-
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0211-
407	04.030 LEVER; RELAY,SHIFT	8-97174-055-2	01	1	0211-
422	04.032 NUT; CONT ROD TO LEVER 04.047	8-97373-729-0	01	1	0404-
457	04.010 GASKET ID=13.8	9-09561-114-0	02	1	0211-
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	0711-

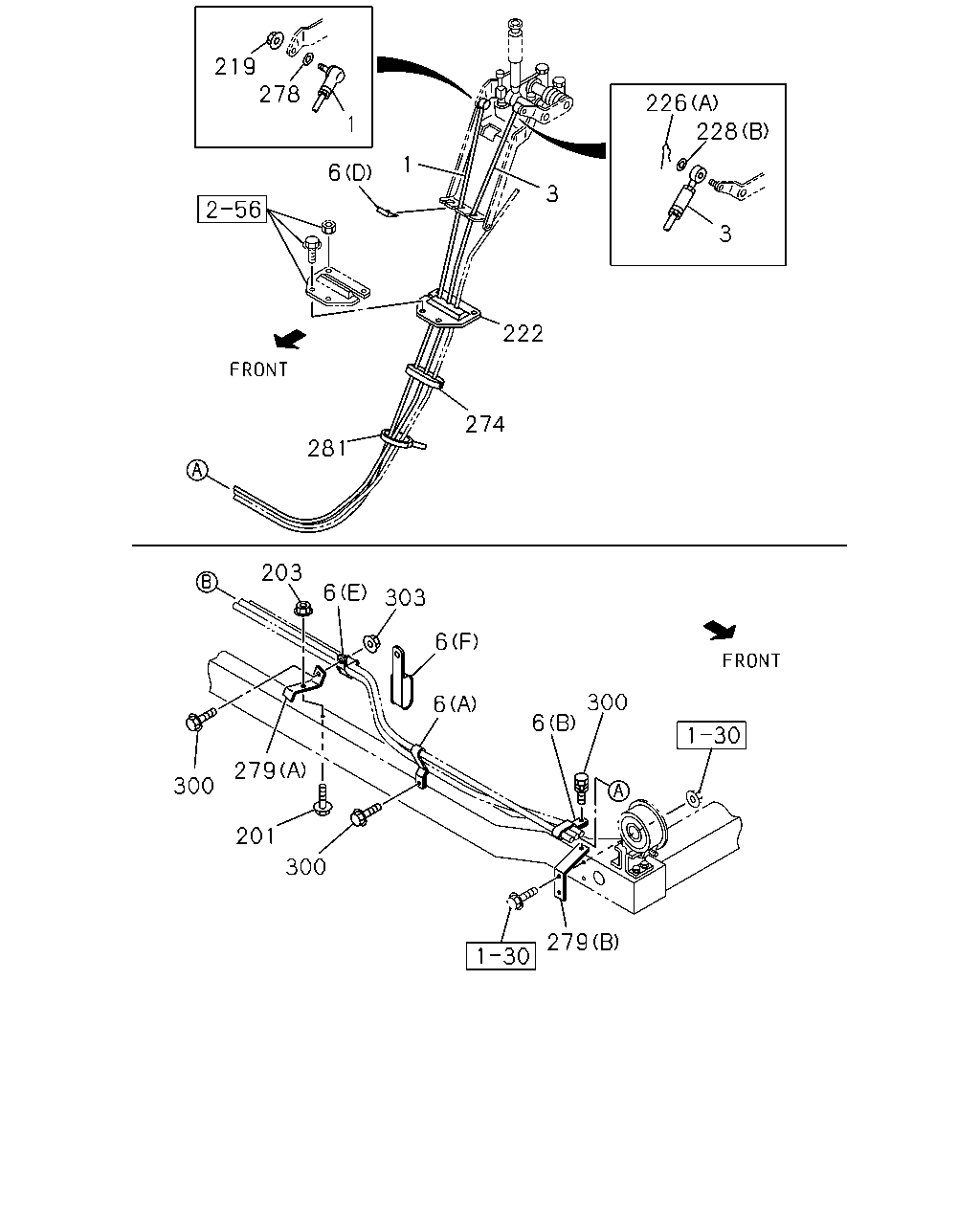

219 278 1 1 3 226 228 6 222 274 281 203 6 6 6 300 279 300 201 300 279 6 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT L=2540	8-97089-986-4	01	1	0211-0911
1	00.854 CABLE; SHIFT,TRANS CONT L=2540	8-98146-809-0	01	1	0912-
3	00.852 CABLE; SELECT,TRANS CONT L=2684	8-97089-987-3	01	1	0211-
6	04.047 CLIP; CABLE POWER STEERING<N40> (F)	8-98023-697-0	01	1	1212-
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	0211-
6	04.047 CLIP; CABLE (A)	8-97036-329-2	01	1	0211-
6	04.047 CLIP; CABLE (E)	8-97036-332-1	01	1	0211-1211
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (E)	8-97036-332-1	01	1	1212-
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	0211-
6	04.047 CLIP; CABLE (C) ID=19.2	8-97211-011-0	02	1	0211-
201	04.032 BOLT; BRKT EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512
201	04.032 BOLT; BRKT EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
203	04.032 NUT; BRKT FIX EXC. POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602
203	04.032 NUT; BRKT FIX EXC. POWER STEERING<N40> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0211-
222	04.010 GROMMET; CABLE	8-97089-851-0	01	1	0211-
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0211-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0211-
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0211-
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0211-0605
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-
274	04.008 CLIP; CONT CABLE	8-97093-491-1	01	1	0211-0501
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	0502-
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0211-0604
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-
279	04.047 BRACKET; CABLE TO FRAME (B)	8-97101-709-1	01	1	0211-
279	04.047 BRACKET; CABLE TO FRAME EXC. POWER STEERING<N40> (A)	8-97103-234-0	01	1	0211-
281	04.042 CLIP; BAND SGL TIRE(NHB***) 03.162 L=140	5-09707-031-1	01	1	0211-0501
281	04.042 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	0502-
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512
300	00.854 BOLT; CLIP 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
