◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#80213) — 13 parça

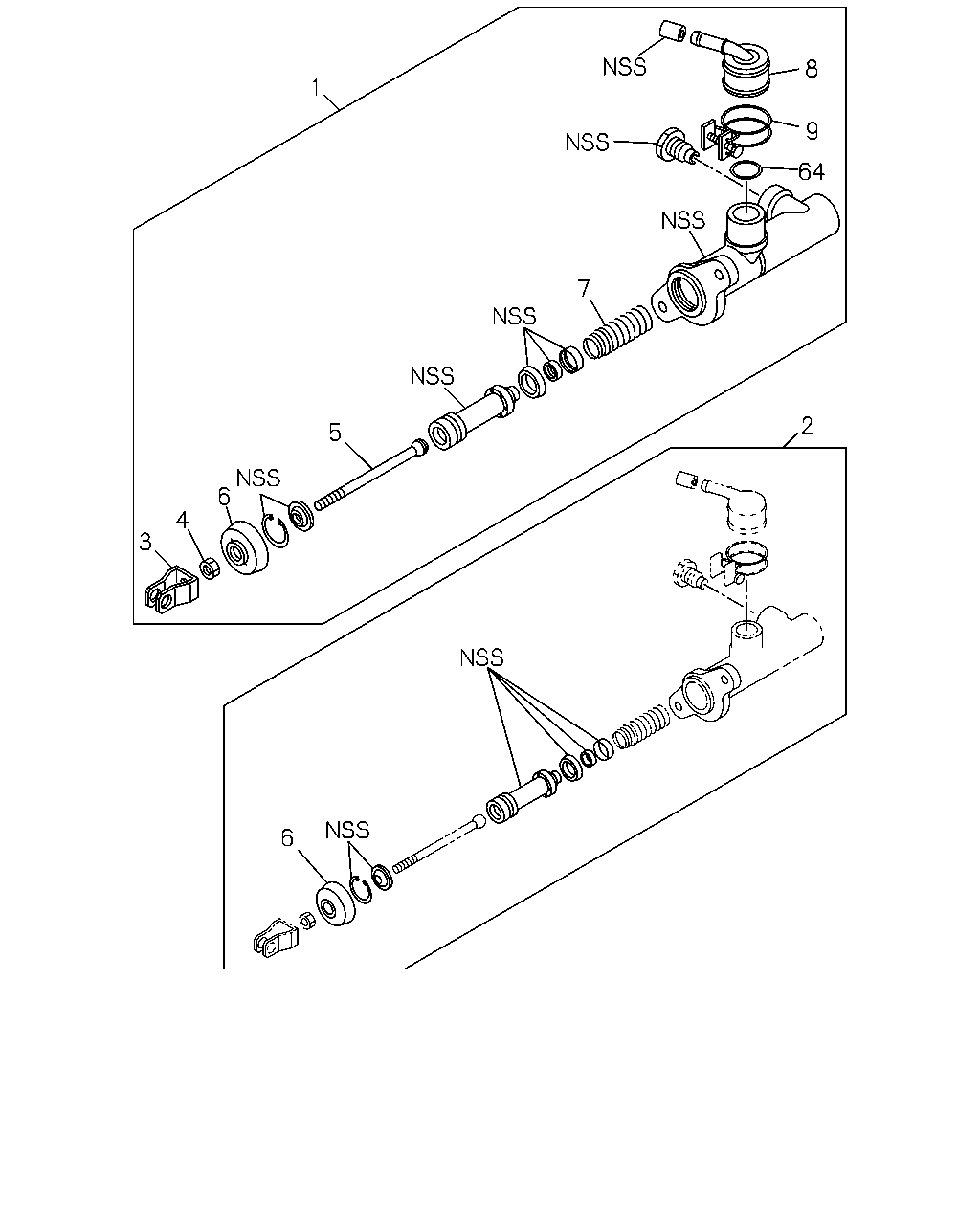

çizim 36597
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-97167-406-0 01 1 0211-0803
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-98117-644-0 01 1 0804-
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 0211-0803
2 00.775 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 0804-
3 00.777 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 0211-
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 0211-0511
4 00.777 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0512-
5 00.775 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 0211-
6 00.775 BOOT; CLU M/CYL 8-94412-200-0 01 1 0211-
7 00.775 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 0211-
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 0211-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0211-
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0211-
