6-20 — SIDE PANEL AND STEP (#8021) — 128 parça

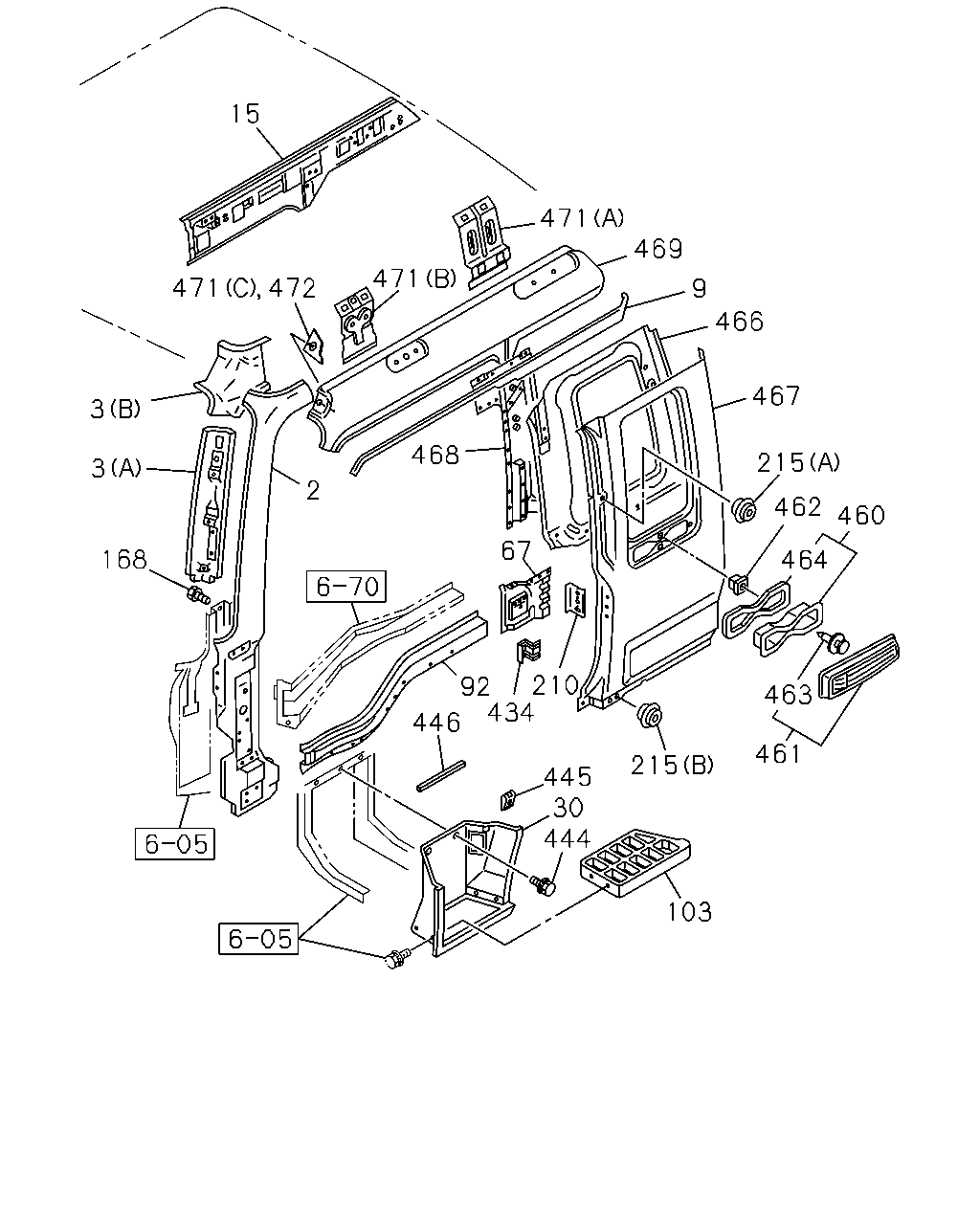

çizim 43414
15 472 471 3 3 168 2 468 67 92 446 434 210 215 445 30 444 103 461 463 464 460 462 215 467 466 9 469 471 471
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 PILLAR; FRT 1-61281-156-4 01 1 0005-0011 ● ● ●
2 PILLAR; FRT 1-61281-156-4 01 1 0012- ● ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0005-0011 ● ● ●
2 PILLAR; FRT 1-61281-155-4 01 1 0012- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0005-0011 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0012- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0005-0011 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0012- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 0005-0011 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 0012- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 0005-0011 ● ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 0012- ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-4 01 1 0005-0011 ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0012- ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-4 01 1 0005-0011 ● ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0012- ● ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0005-0011 ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0012- ● ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0005-0011 ● ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0012- ● ● ● ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0005-0011 ● ● ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0012- ● ● ● ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0005-0011 ● ● ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0012- ● ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0005-0011 ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0012- ● ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0005-0011 ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0012- ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 0005-0011 ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0012- ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 0005-0011 ● ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0012- ● ● ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0005-0011 ● ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0012- ● ● ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0005-0011 ● ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0012- ● ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0011 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0012-0512 ● ● ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0211- ● ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0005-0011 ● ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0012- ● ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0005-0011 ● ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0012- ● ● ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0005-0011 ● ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0012- ● ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0005-0011 ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0012-0904 ● ● ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0005-0011 ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0012-0404 ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 04 1 0405-0405 ● ● ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0405- ● ● ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0005-0011 ● ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0012- ● ● ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 0005-0011 ● ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0012- ● ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0005-0011 ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0012- ● ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0005-0011 ● ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0012- ● ● ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0005-0011 ● ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0012- ● ● ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0005-0011 ● ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0012- ● ● ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0005-0011 ● ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0012- ● ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0005-0011 ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0012- ● ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0005-0011 ● ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0012- ● ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-478-5 01 1 0211- ● ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-476-1 01 1 0005-0011 ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-476-1 01 1 0012-0210 ● ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-477-1 01 1 0005-0011 ● ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-477-3 01 1 0012- ● ● ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0005-0011 ● ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0012- ● ● ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0005-0011 ● ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0012- ● ● ● ●
469 ROOF; SIDE 1-61281-199-5 01 1 0005-0011 ● ● ●
469 ROOF; SIDE 1-61281-199-8 01 1 0012- ● ● ● ●
469 ROOF; SIDE 1-61281-198-5 01 1 0005-0011 ● ● ●
469 ROOF; SIDE 1-61281-198-8 01 1 0012- ● ● ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0005-0011 ● ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0012- ● ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0005-0011 ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0012- ● ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0005-0011 ● ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0012- ● ● ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-3 01 1 0005-0011 ● ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0012-0812 ● ● ● ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901- ● ● ● ●
472 PATCH; STAY,ROOF 1-61270-943-0 01 1 0005-0011 ● ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0012- ● ● ● ●

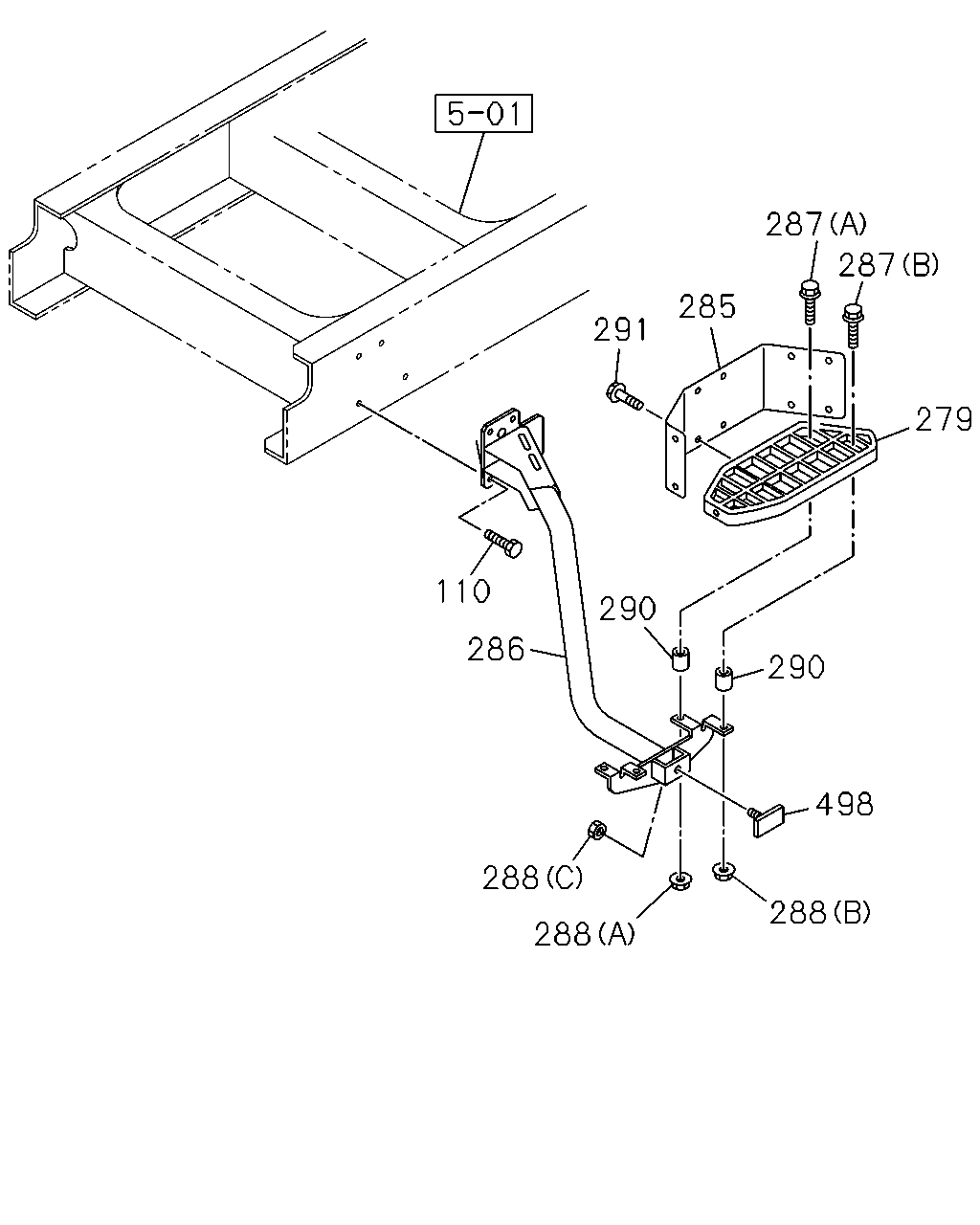

çizim 48903
287 287 285 291 279 110 290 286 290 498 288 288 288
BalonParca AdiParca NoAdetTipApplied Date A B C D
110 BOLT; 1ST STEP PLATE
M12X40 FLANGE 		0-28681-240-0 08 1 0005-0011 ● ● ●
110 BOLT; 1ST STEP PLATE
M12X40 FLANGE 		0-28681-240-0 08 1 0012-0512 ● ● ● ●
110 BOLT; 1ST STEP PLATE
M12X40 FLANGE 		0-28651-240-0 08 1 0601- ● ● ● ●
279 BOARD; STEP 1ST 1-53414-035-0 02 1 0005-0011 ● ● ●
279 BOARD; STEP 1ST 1-53414-035-0 02 1 0012- ● ● ● ●
285 PLATE; STEP,1ST STEP 1-53414-066-0 02 1 0010-0011 ● ● ●
285 PLATE; STEP,1ST STEP 1-53414-066-0 02 1 0012- ● ● ● ●
286 STEP ASM; 1ST 1-53414-217-1 01 1 0005-0011 ● ● ●
286 STEP ASM; 1ST 1-53414-217-1 01 1 0012- ● ● ● ●
286 STEP ASM; 1ST 1-53414-216-1 01 1 0005-0011 ● ● ●
286 STEP ASM; 1ST 1-53414-216-1 01 1 0012- ● ● ● ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28080-635-0 04 1 0005-0011 ● ● ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28080-635-0 04 1 0012-0512 ● ● ● ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28050-635-0 04 1 0601- ● ● ● ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28080-835-0 04 1 0005-0011 ● ● ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28080-835-0 04 1 0012-0512 ● ● ● ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28050-835-0 04 1 0601- ● ● ● ●
288 NUT; STEP
(A) M6 FLANGE 		0-91150-106-0 04 1 0005-0011 ● ● ●
288 NUT; STEP
(A) M6 FLANGE 		0-91150-106-0 04 1 0012-0602 ● ● ● ●
288 NUT; STEP
(A) M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91150-108-0 04 1 0005-0011 ● ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91150-108-0 04 1 0012-0602 ● ● ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
288 NUT; STEP
(C) M6 		9-09110-406-0 02 1 0005-0011 ● ● ●
288 NUT; STEP
(C) M6 		9-09110-406-0 02 1 0012-0512 ● ● ● ●
288 NUT; STEP
(C) M6 		0-91110-506-0 02 1 0601- ● ● ● ●
290 SPACER 1-53414-016-0 08 1 0005-0011 ● ● ●
290 SPACER 1-53414-016-0 08 1 0012- ● ● ● ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28080-616-0 10 1 0010-0011 ● ● ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28080-616-0 10 1 0012-0512 ● ● ● ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28050-616-0 10 1 0601- ● ● ● ●
498 REFLECTOR 1-82290-061-0 02 1 0005-0011 ● ● ●
498 REFLECTOR 1-82290-061-0 02 1 0012- ● ● ● ●
