Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#80204) — 167 parça

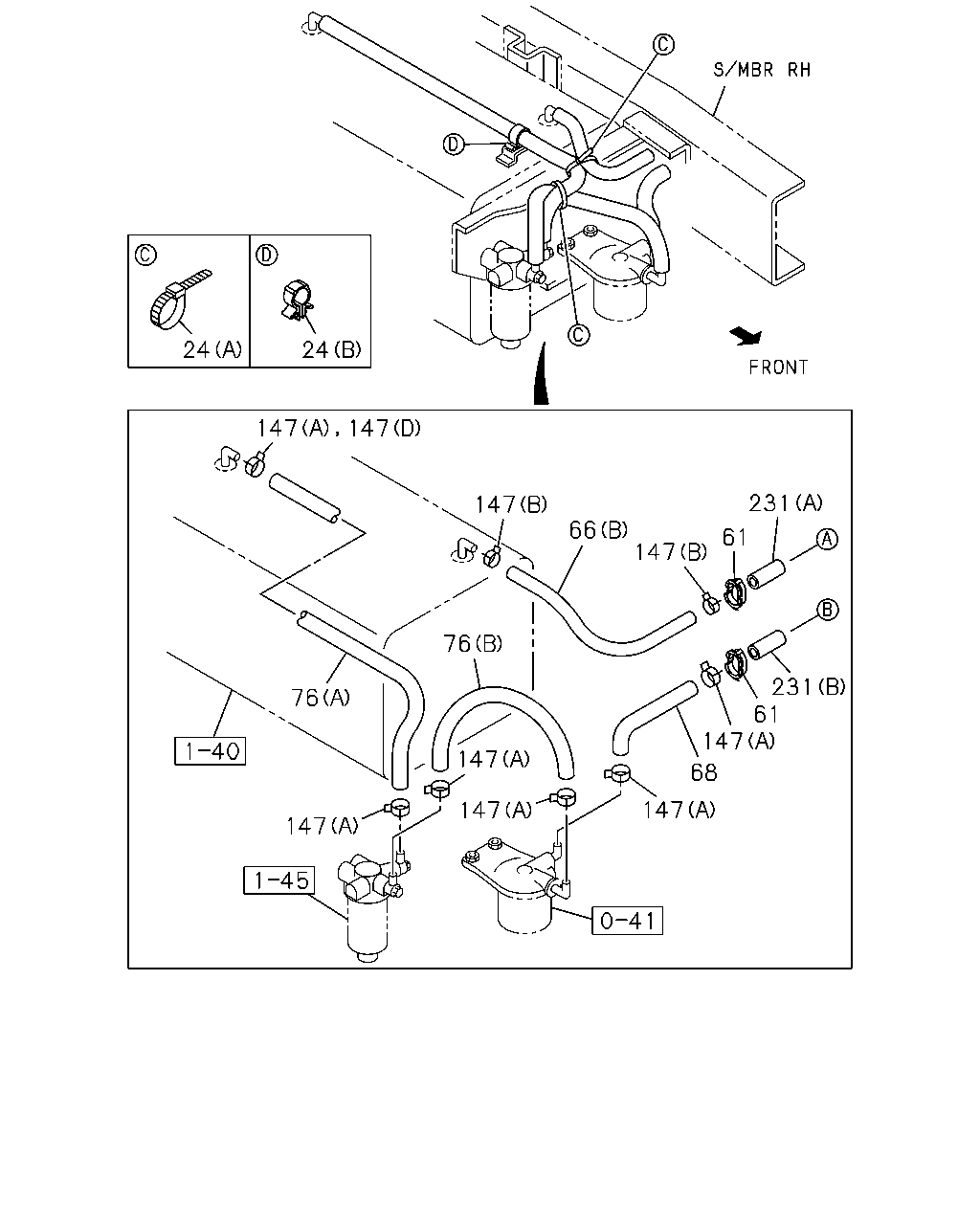

24 24 24 147 231 61 147 147 66 68 231 61 147 76 76 147 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0211-		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0211-	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-		●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0211-0302	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B)	8-97089-536-0	01	1	0303-0401	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0303-0401		●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0402-		●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	0211-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0302	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0402-	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	0211-	●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	0211-		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-	●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0211-		●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0211-		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0302	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0401	●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) L=350	8-97353-528-0	01	1	0303-0401	●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> (A) L=350	8-97353-528-0	01	1	0402-	●
76	03.163 HOSE; FUEL,TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. FUEL FILTER DUAL<S6B> (A) L=380	8-97353-524-0	01	1	0303-0401	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (A) L=380	8-97353-524-0	01	1	0402-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0211-1410	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	0211-0212	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0302	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0303-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0303-0401		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0402-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.762 (D) ID=19	8-94238-569-0	01	1	0303-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (D) ID=19	8-94238-569-0	01	1	0402-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=19	8-98150-356-0	01	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	09	1	0301-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0211-	●	●

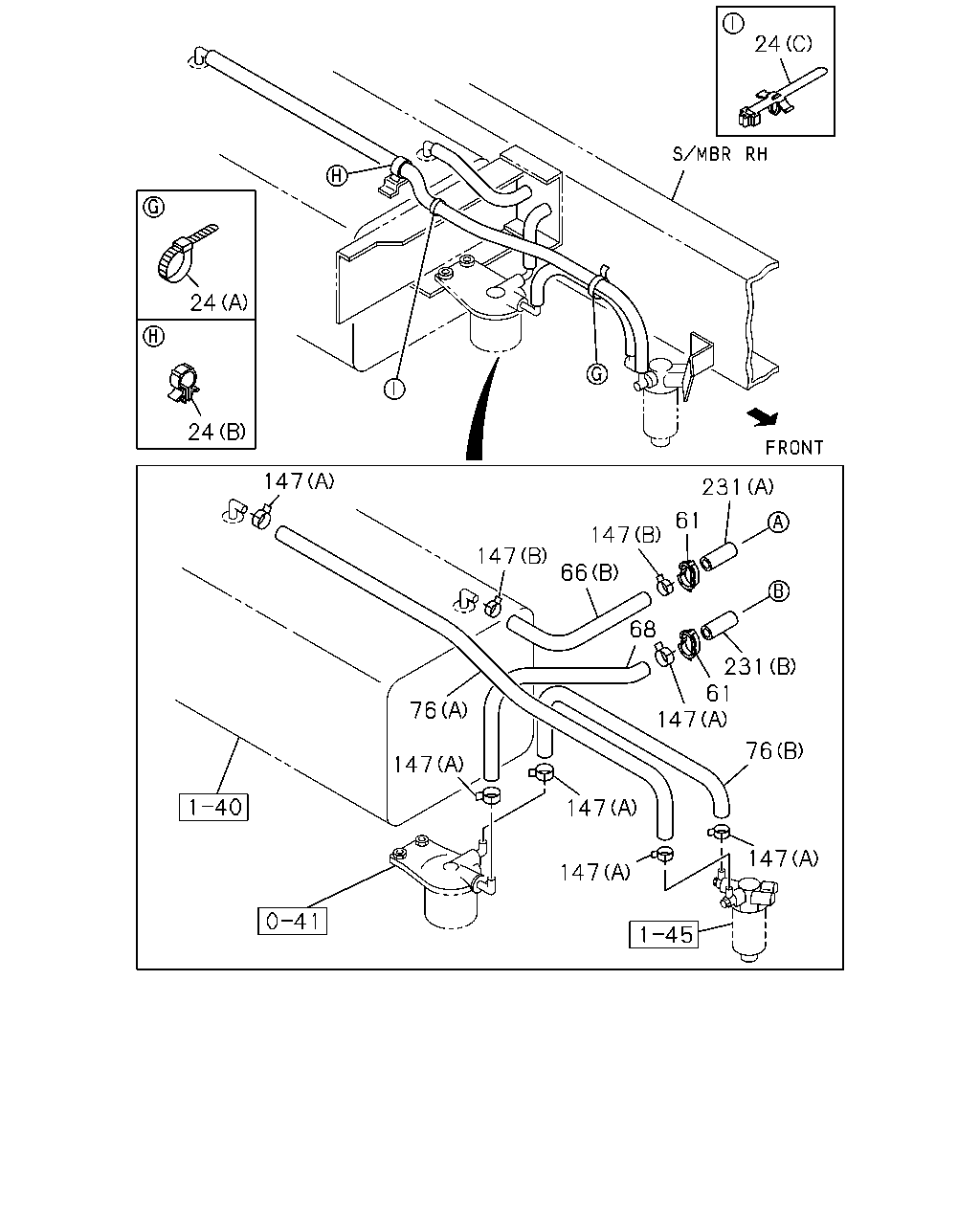

24 24 147 147 231 147 66 147 61 67 231 61 147 76 147 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0211-		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0211-	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-		●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0211-0302	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B)	8-97089-536-0	01	1	0303-0401	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0303-0401		●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0402-		●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	0211-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0302	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0402-	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> 03.003 L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0302	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.003 L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0401	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.003 L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0401	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> 03.003 L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0402-	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-	●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0211-		●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0211-		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0302	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0401	●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) L=350	8-97353-528-0	01	1	0303-0401	●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> (A) L=350	8-97353-528-0	01	1	0402-	●
76	03.163 HOSE; FUEL,TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. FUEL FILTER DUAL<S6B> (A) L=380	8-97353-524-0	01	1	0303-0401	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (A) L=380	8-97353-524-0	01	1	0402-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0211-1410	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	0211-0212	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0302	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0303-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0303-0401		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0402-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.762 (D) ID=19	8-94238-569-0	01	1	0303-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (D) ID=19	8-94238-569-0	01	1	0402-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=19	8-98150-356-0	01	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	09	1	0301-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0211-	●	●

46 147 39 65 147 51 147 66 147 147 147 78 147 45 79 47 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	03.163 PIPE; FUEL	8-97090-339-3	01	1	0211-	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0211-	●	●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-972-3	01	1	0211-	●	●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	0211-	●	●
51	03.162 NUT; CLIP,PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	0211-0602	●	●
51	03.162 NUT; CLIP,PIPE 01.062 M6 FLANGE	0-91180-106-0	03	1	0603-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	0211-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0302	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0402-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0211-	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0211-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0211-1410	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	0211-0212	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0302	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0303-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0303-0401		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0402-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.762 (D) ID=19	8-94238-569-0	01	1	0303-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (D) ID=19	8-94238-569-0	01	1	0402-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=19	8-98150-356-0	01	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	09	1	0301-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-	●	●

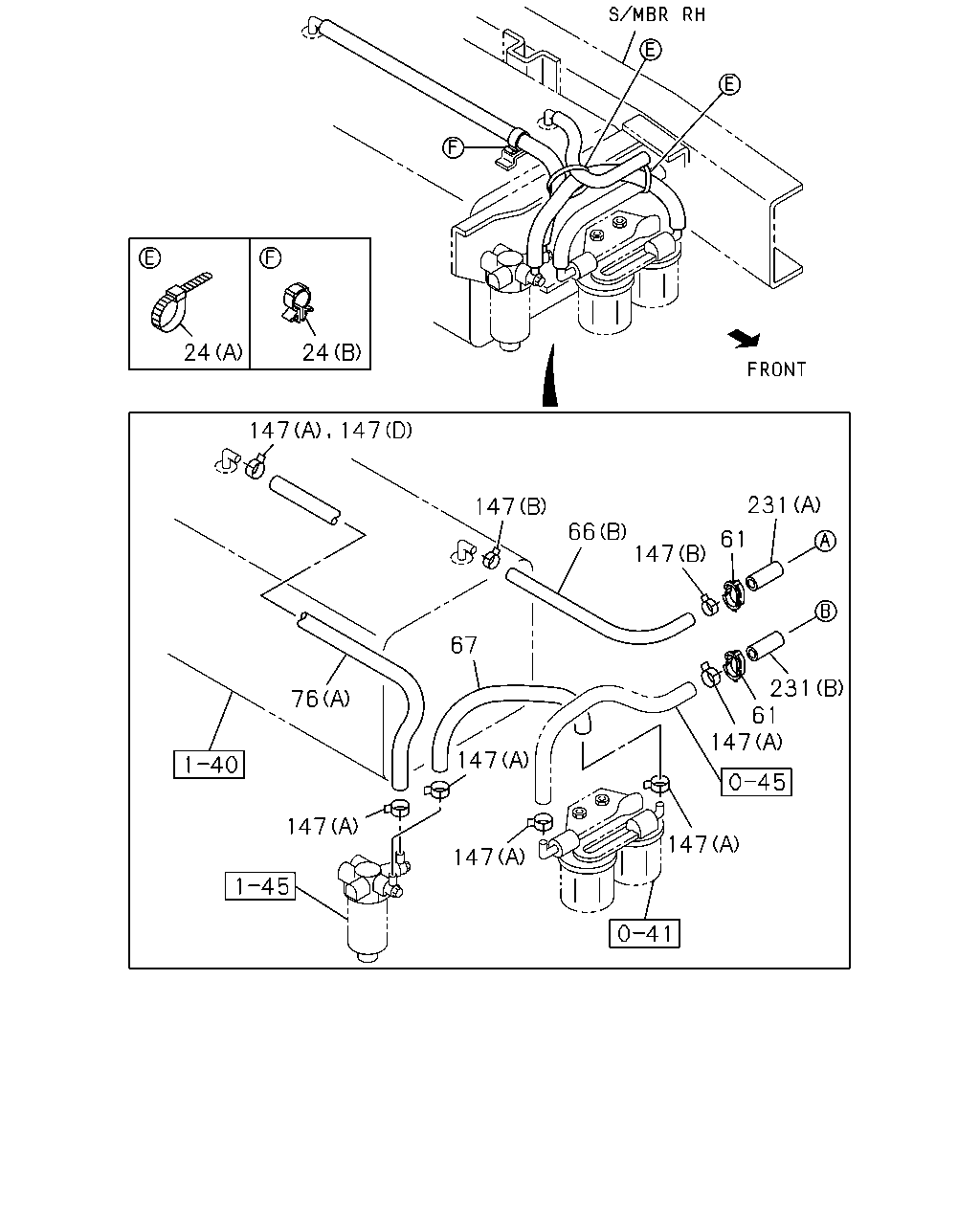

24 24 147 147 231 147 66 147 61 76 231 61 147 76 147 68 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0211-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0211-		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0211-	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	0211-		●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0211-0302	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B)	8-97089-536-0	01	1	0303-0401	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0303-0401		●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0402-		●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	0211-		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0302	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=320 SERVICED BY L=3000	0-01256-300-0	01	1	0402-	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	0211-	●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	0211-		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-	●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0211-		●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	0211-		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0302	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0401	●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) L=350	8-97353-528-0	01	1	0303-0401	●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> (A) L=350	8-97353-528-0	01	1	0402-	●
76	03.163 HOSE; FUEL,TANK FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. FUEL FILTER DUAL<S6B> (A) L=380	8-97353-524-0	01	1	0303-0401	●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (A) L=380	8-97353-524-0	01	1	0402-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0211-1410	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	0211-0212	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0302	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0303-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0303-0401		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	01	1	0402-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	01	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.762 (D) ID=19	8-94238-569-0	01	1	0303-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (D) ID=19	8-94238-569-0	01	1	0402-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=19	8-98150-356-0	01	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	09	1	0301-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	09	1	0912-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0211-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
