◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51383 - NHR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#80203) — 160 parça
çizim 36065
1 6 614 19 3 14 158 159 452 25 8 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
(A) 753X340X275 63L 		8-97350-986-0 01 1 0211-0211 ●
1 03.001 TANK; FUEL
(A) 753X340X275 63L 		8-97350-985-1 01 1 0212- ●
1 03.001 TANK; FUEL
(A) 753X340X327 75L 		8-97350-987-0 01 1 0211-0302 ●
1 03.001 TANK; FUEL
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) 753X340X327 75L 		8-97350-987-0 01 1 0303-0401 ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 732X375X375 75L 		8-97356-868-0 01 1 0303-0401 ●
1 03.001 TANK; FUEL
(B) 732X375X375 75L 		8-97356-868-0 01 1 0402-0402 ●
1 03.001 TANK; FUEL
(B) 732X375X375 75L 		8-97375-633-4 01 1 0402- ●
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-188-0 01 1 0211-0211 ●
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-188-0 01 1 0302- ●
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-190-0 01 1 0211-0302 ●
3 03.107 UNIT; FUEL TANK,SUB
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.001 		8-94316-190-0 01 1 0303-0401 ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97363-006-0 01 1 0303-0401 ●
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 0402- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0604-0604 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0605- ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0211-0211 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0212-0301 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0302-0603 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0604-0604 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 0211-0211 ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 0212-0301 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0302-0302 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0303-0401 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 0302- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0303-0401 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0402- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0211 ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0212-0301 ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 0302-0302 ●
11 03.890 PLUG; DRAIN,FUEL TANK
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.453 M14X14 		9-09862-156-0 01 1 0303-0401 ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0303-0401 ●
11 03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0402-0512 ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0302-0512 ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
14 03.163 HOSE; BREATHER,OUTLET
L=320 		8-98157-805-0 01 1 1004- ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0211-0211 ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0302- ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=320 SERVICED BY L=10000 		9-09914-701-0 01 1 0211-0302 ●
14 03.163 HOSE; BREATHER,OUTLET
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 00.034 L=320 SERVICED BY L=10000 		9-09914-701-0 01 1 0303-0401 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0211-0211 ● ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0212-0301 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0302-0302 ● ●
19 03.112 GASKET; FUEL TANK UNIT
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> ID=42 OD=71 		5-83148-001-0 01 1 0303-0401 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0303-0401 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0402- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97363-616-0 01 1 0303-0401 ●
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 0402- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0211- ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97179-645-0 01 1 0303-0401 ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0402- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97326-488-0 01 1 0303-0401 ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0402- ●
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0301-0302 ● ●
452 03.028 BREATHER; FUEL TANK
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97062-954-1 01 1 0303-0401 ●
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0303-0401 ●
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0402- ●
452 03.028 BREATHER; FUEL TANK
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97357-261-0 01 1 0303-0401 ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0402- ●
614 03.028 HARNESS; FUEL
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97363-614-0 01 1 0303-0401 ●
614 03.028 HARNESS; FUEL 8-97363-614-0 01 1 0402- ●

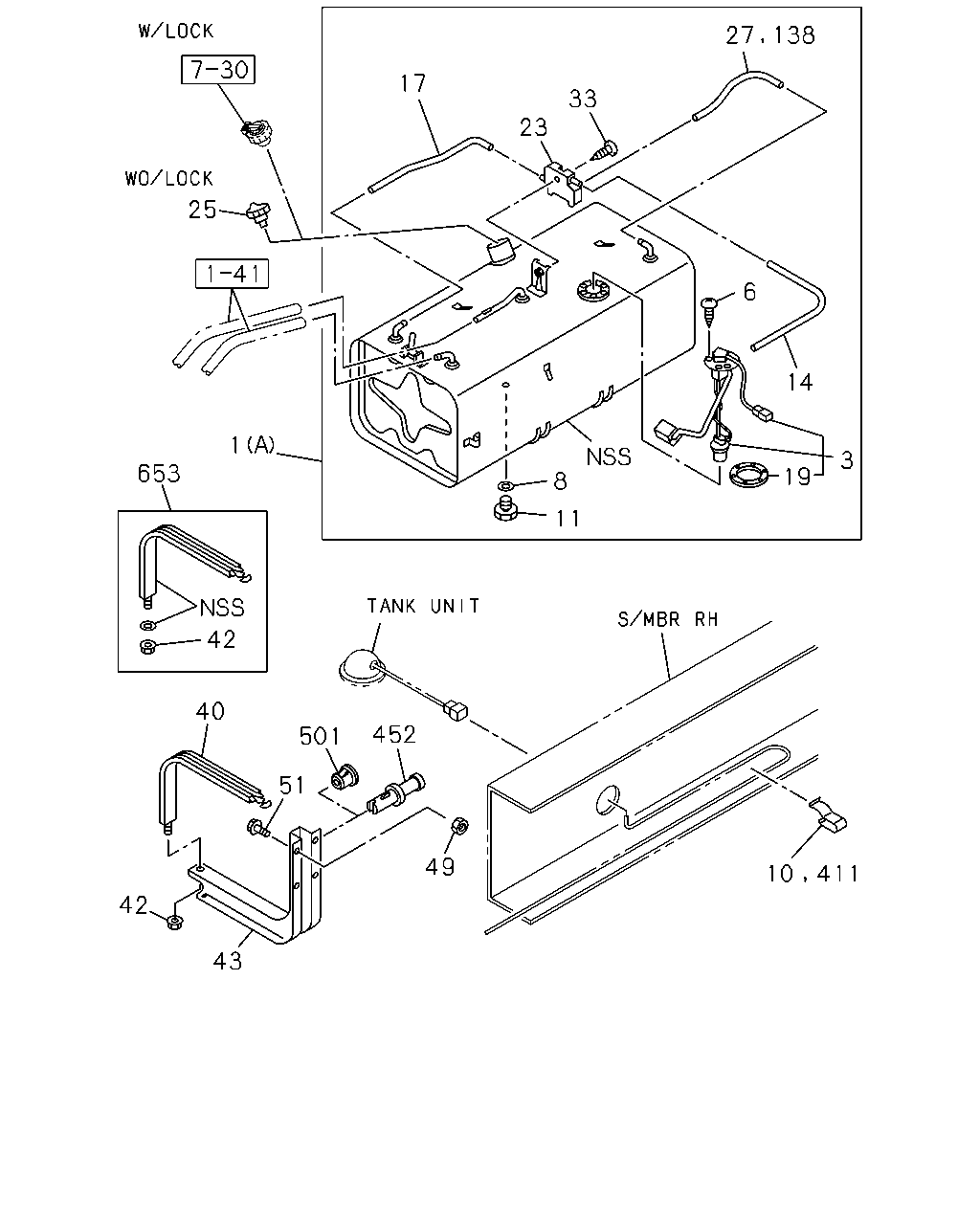

çizim 36319
17 23 33 27 138 6 14 19 3 8 1 11 653 42 501 452 49 40 42 43 51 10 411 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
(A) 753X340X275 63L 		8-97350-986-0 01 1 0211-0211 ●
1 03.001 TANK; FUEL
(A) 753X340X275 63L 		8-97350-985-1 01 1 0212- ●
1 03.001 TANK; FUEL
(A) 753X340X327 75L 		8-97350-987-0 01 1 0211-0302 ●
1 03.001 TANK; FUEL
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (A) 753X340X327 75L 		8-97350-987-0 01 1 0303-0401 ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> (B) 732X375X375 75L 		8-97356-868-0 01 1 0303-0401 ●
1 03.001 TANK; FUEL
(B) 732X375X375 75L 		8-97356-868-0 01 1 0402-0402 ●
1 03.001 TANK; FUEL
(B) 732X375X375 75L 		8-97375-633-4 01 1 0402- ●
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-188-0 01 1 0211-0211 ●
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-188-0 01 1 0302- ●
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-190-0 01 1 0211-0302 ●
3 03.107 UNIT; FUEL TANK,SUB
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.001 		8-94316-190-0 01 1 0303-0401 ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97363-006-0 01 1 0303-0401 ●
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 0402- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0604-0604 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0605- ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0211-0211 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0212-0301 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0302-0603 ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0604-0604 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 0211-0211 ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 0212-0301 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0302-0302 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0303-0401 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 0302- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0303-0401 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0402- ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
01.240 T=5.5 		5-09709-047-0 03 1 0211-0501 ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0211 ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0212-0301 ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 0302-0302 ●
11 03.890 PLUG; DRAIN,FUEL TANK
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 01.453 M14X14 		9-09862-156-0 01 1 0303-0401 ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0303-0401 ●
11 03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0402-0512 ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0302-0512 ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
14 03.163 HOSE; BREATHER,OUTLET
L=320 		8-98157-805-0 01 1 1004- ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0211-0211 ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0302- ●
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=320 SERVICED BY L=10000 		9-09914-701-0 01 1 0211-0302 ●
14 03.163 HOSE; BREATHER,OUTLET
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 00.034 L=320 SERVICED BY L=10000 		9-09914-701-0 01 1 0303-0401 ●
17 03.163 HOSE; BREATHER
L=440 SERVICED BY L=3000 		8-94128-826-0 01 1 0211-0211 ●
17 03.163 HOSE; BREATHER
L=430 SERVICED BY L=3000 		8-94128-826-0 01 1 0211-0302 ●
17 03.163 HOSE; BREATHER
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> L=430 SERVICED BY L=3000 		8-94128-826-0 01 1 0303-0401 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0211-0211 ● ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0212-0301 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0302-0302 ● ●
19 03.112 GASKET; FUEL TANK UNIT
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> ID=42 OD=71 		5-83148-001-0 01 1 0303-0401 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0303-0401 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0402- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97363-616-0 01 1 0303-0401 ●
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 0402- ●
23 03.162 JOINT; BREATHER HOSE 8-97077-713-1 01 1 0211-0211 ● ●
23 03.162 JOINT; BREATHER HOSE 8-97077-713-1 01 1 0212-0301 ●
23 03.162 JOINT; BREATHER HOSE 8-97077-713-1 01 1 0302-0302 ● ●
23 03.162 JOINT; BREATHER HOSE
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97077-713-1 01 1 0303-0401 ●
23 03.162 JOINT; BREATHER HOSE 8-97077-713-1 01 1 0303-0401 ●
23 03.162 JOINT; BREATHER HOSE 8-97077-713-1 01 1 0402- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0211- ● ●
27 03.163 HOSE; BREATHER
L=340 SERVICED BY L=3000 		8-94128-826-0 01 1 0211-0211 ● ●
27 03.163 HOSE; BREATHER
L=340 SERVICED BY L=3000 		8-94128-826-0 01 1 0212-0302 ●
27 03.163 HOSE; BREATHER
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> L=340 SERVICED BY L=3000 		8-94128-826-0 01 1 0303-0401 ●
33 03.162 SCREW; JOINT TO FUEL TANK
02.334 M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0211-0211 ● ●
33 03.162 SCREW; JOINT TO FUEL TANK
02.334 M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0212-0301 ●
33 03.162 SCREW; JOINT TO FUEL TANK
02.334 M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0302-0302 ● ●
33 03.162 SCREW; JOINT TO FUEL TANK
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 02.334 M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0303-0401 ●
33 03.162 SCREW; JOINT TO FUEL TANK
02.334 M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0303-0401 ●
33 03.162 SCREW; JOINT TO FUEL TANK
02.334 M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0402-0604 ●
33 03.162 SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER 		0-36230-620-0 01 1 0605- ●
40 03.022 BELT; SUPPORT,FUEL TANK 8-94438-384-3 02 1 0211- ●
40 03.022 BELT; SUPPORT,FUEL TANK 8-94438-385-4 02 1 0211-0302 ●
40 03.022 BELT; SUPPORT,FUEL TANK
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-94438-385-4 02 1 0303-0401 ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0211- ● ●
43 03.015 BRACKET; FUEL TANK 8-97035-514-1 02 1 0211- ●
43 03.015 BRACKET; FUEL TANK
RR BODY FLAT BED<RS6> 		8-97035-516-0 02 1 0211-0212 ●
43 03.015 BRACKET; FUEL TANK
RR BODY FLAT BED<RS6> FRONT 		8-97035-516-0 01 1 0301- ●
43 03.015 BRACKET; FUEL TANK
RR BODY FLAT BED<RS6> REAR 		8-97181-223-0 01 1 0301- ●
43 03.015 BRACKET; FUEL TANK
EXC. RR BODY FLAT BED<RS6> 		8-97035-517-0 02 1 0211-0302 ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. RR BODY FLAT BED<RS6> FRONT 		8-97035-517-0 01 1 0303-0401 ●
43 03.015 BRACKET; FUEL TANK
EXC. RR BODY FLAT BED<RS6> FRONT 		8-97035-517-0 01 1 0402- ●
43 03.015 BRACKET; FUEL TANK
EXC. RR BODY FLAT BED<RS6>,FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97035-517-0 02 1 0303-0401 ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> EXC. RR BODY FLAT BED<RS6> REAR 		8-97181-220-0 01 1 0303-0401 ●
43 03.015 BRACKET; FUEL TANK
EXC. RR BODY FLAT BED<RS6> REAR 		8-97181-220-0 01 1 0402- ●
49 03.023 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 08 1 0211-0602 ● ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
51 03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28691-030-0 08 1 0211-0512 ● ●
51 03.023 BOLT; BRKT TO FRAME
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0601- ● ●
138 03.163 HOSE; BREATHER,BODY TO JOINT
L=440 SERVICED BY L=3000 		8-94128-826-0 01 1 0302- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
01.240 T=5.5 		5-09709-047-0 04 1 0502- ● ●
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0301-0302 ● ●
452 03.028 BREATHER; FUEL TANK
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97062-954-1 01 1 0303-0401 ●
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0303-0401 ●
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0402- ●
452 03.028 BREATHER; FUEL TANK
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97357-261-0 01 1 0303-0401 ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0402- ●
501 03.028 GROMMET; BRKT 8-97096-990-0 01 1 0301-0302 ●
501 03.028 GROMMET; BRKT
EXC. FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		8-97096-990-0 01 1 0303-0401 ●
653 03.022 BAND KIT; FUEL TANK
FUEL TANK 75 LITTER "NON BOX TYPE"<7GX> 		5-87411-970-0 02 1 0301-0401 ●
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 0402- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
