Isuzu WW
▶
TRUCKS
▶
NHR
▶
51383 - NHR(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#80200) — 23 parça
Tümü
A - NHB6SF
B - NHN6SF
◀
[111A] FIXING;RADIATOR HOSE (7 parça)

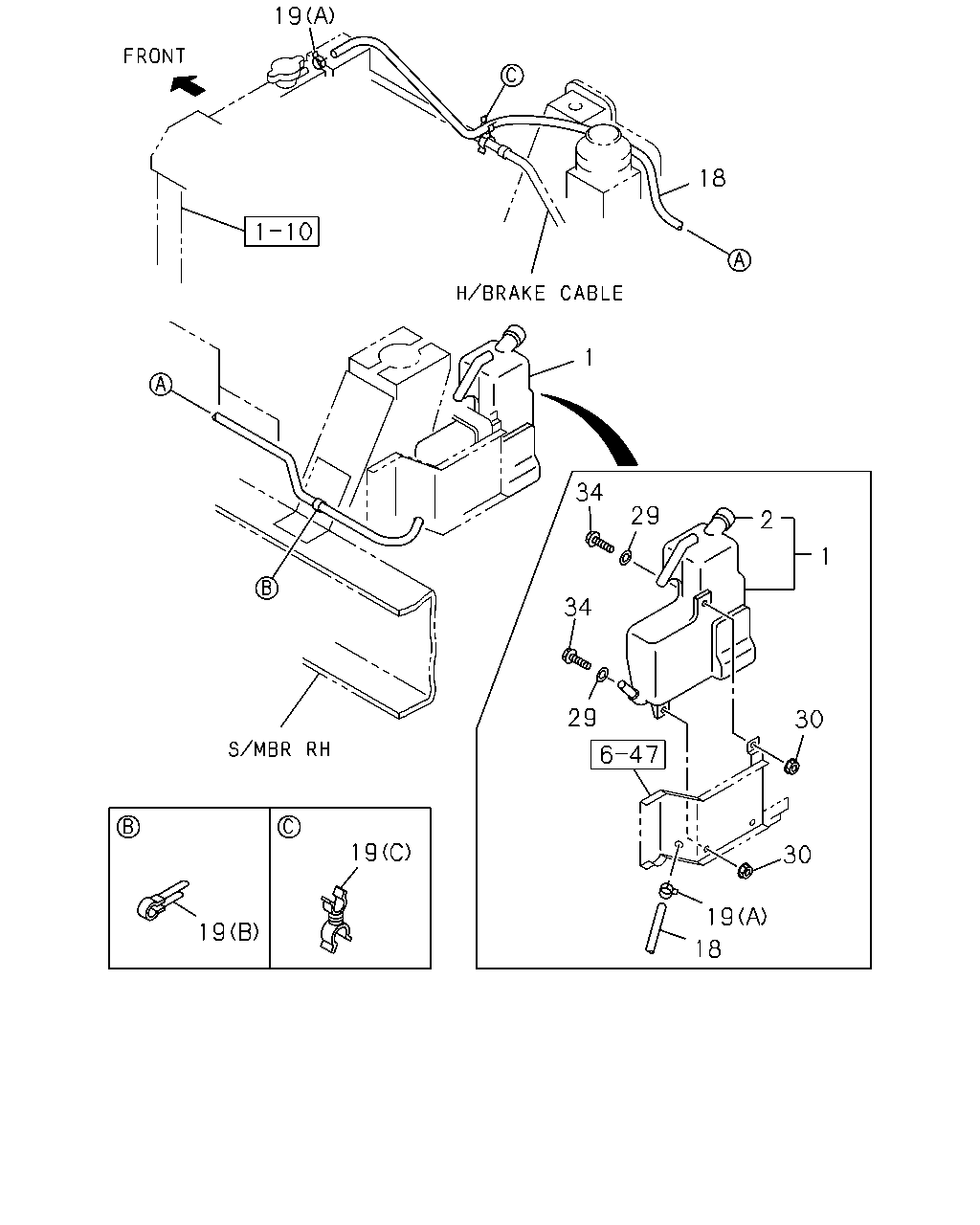

[111A] SURGE TANK AND HOSE (16 parça)
▶
56
56
128
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
55
01.173 HOSE; WATER,RAD OUTLET
8-97089-916-1
01
1
0211-
●
●
56
01.166 CLIP; WATER HOSE,RAD
(A) ID=48
5-09704-049-0
03
1
0211-0610
●
●
56
01.166 CLIP; WATER HOSE,RAD
(A) ID=48
8-98036-282-0
03
1
0611-0901
●
●
56
01.166 CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
03
1
0902-
●
●
56
01.166 CLIP; WATER HOSE,RAD
(B) ID=42
5-09704-047-1
01
1
0211-0901
●
●
56
01.166 CLIP; WATER HOSE,RAD
(B) ID=42
8-98133-958-0
01
1
0902-
●
●
128
01.159 HOSE; WATER,RAD INL
8-97147-473-0
01
1
0211-
●
●
19
18
1
34
29
2
1
34
29
30
19
30
19
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.219 TANK; SURGE,RAD
8-97210-844-0
01
1
0211-1010
●
●
1
01.219 TANK; SURGE,RAD
8-98178-177-0
01
1
1011-
●
●
2
01.203 CAP; SURGE TANK
8-97217-796-0
01
1
0211-1010
●
●
2
01.203 CAP; SURGE TANK
8-98178-074-0
01
1
1011-
●
●
18
01.240 HOSE; RAD TO SURGE TANK
L=1450
8-97162-122-2
01
1
0211-
●
●
19
01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5
8-94400-865-0
02
1
0211-
●
●
19
01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47
5-09700-319-0
01
1
0211-
●
●
19
01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11
8-94438-996-0
02
1
0211-
●
●
19
01.240 CLIP; HOSE,SURGE TANK
01.219 (A) ID=12
8-94238-610-0
02
1
0211-0911
●
●
19
01.240 CLIP; HOSE,SURGE TANK
(A) ID=12
8-98150-358-0
02
1
0912-
●
●
29
01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18
9-09160-706-0
03
1
0211-0605
●
●
29
01.203 WASHER; PL,RESERVE TANK
00.413 ID=6.4 OD=18
0-91610-706-0
03
1
0606-
●
●
30
01.203 NUT
04.594 M6 FLANGE
0-91150-106-0
03
1
0211-0602
●
●
30
01.203 NUT
01.062 M6 FLANGE
0-91180-106-0
03
1
0603-
●
●
34
01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE
0-28680-620-0
03
1
0211-0512
●
●
34
01.203 BOLT; RESERVE TANK
03.162 M6X20 FLANGE
0-28650-620-0
03
1
0601-
●
●
