1-10 — RADIATOR (#80199) — 39 parça

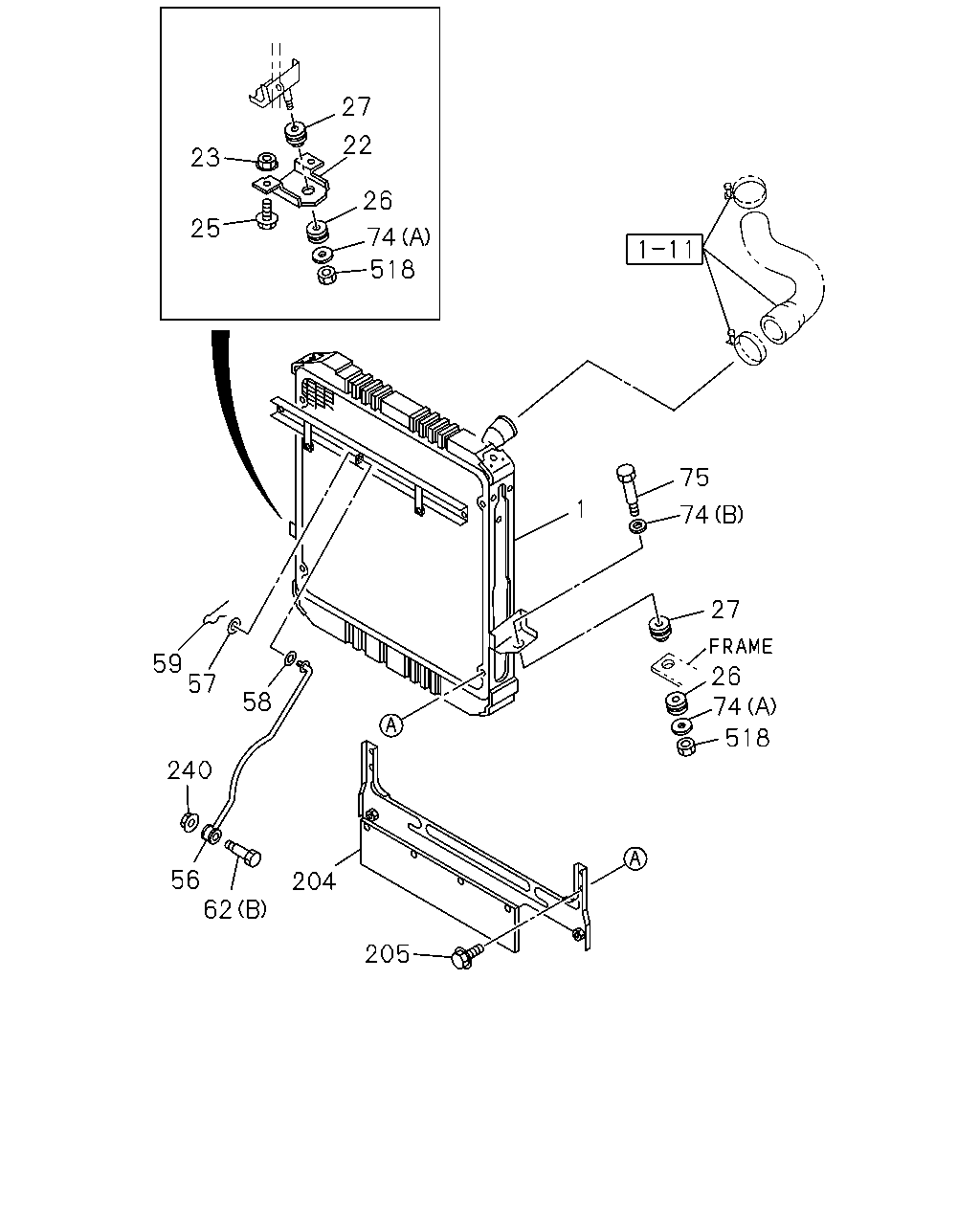

çizim 35877
27 22 23 26 25 74 518 75 1 74 27 59 57 26 74 58 518 240 56 62 204 205
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 RADIATOR ASM 8-97162-135-1 01 1 0211-0305 ● ●
1 01.219 RADIATOR ASM 8-97371-007-0 01 1 0306- ● ●
22 01.270 BRACKET; RAD MTG 8-94257-949-1 01 1 0211- ● ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 02 1 0211- ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ● ●
25 01.271 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0211- ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0211- ● ●
56 01.270 STAY; RAD 8-97350-324-0 01 1 0211- ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0211-0605 ● ●
57 01.271 WASHER; PL,STAY
17.198 ID=10.5 		0-91610-510-0 01 1 0606- ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0211- ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0211-0610 ● ●
59 01.271 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 01 1 0611- ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211- ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0211- ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0211-0610 ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-97359-049-1 02 1 0611- ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0211- ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0211- ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) 		8-97089-919-3 01 1 0211- ● ●
205 01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0512 ● ●
205 01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 0601- ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0211- ● ●
518 01.270 NUT
00.854 M8 FLANGE 		5-09440-005-0 02 1 0211-0610 ● ●
518 01.270 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●

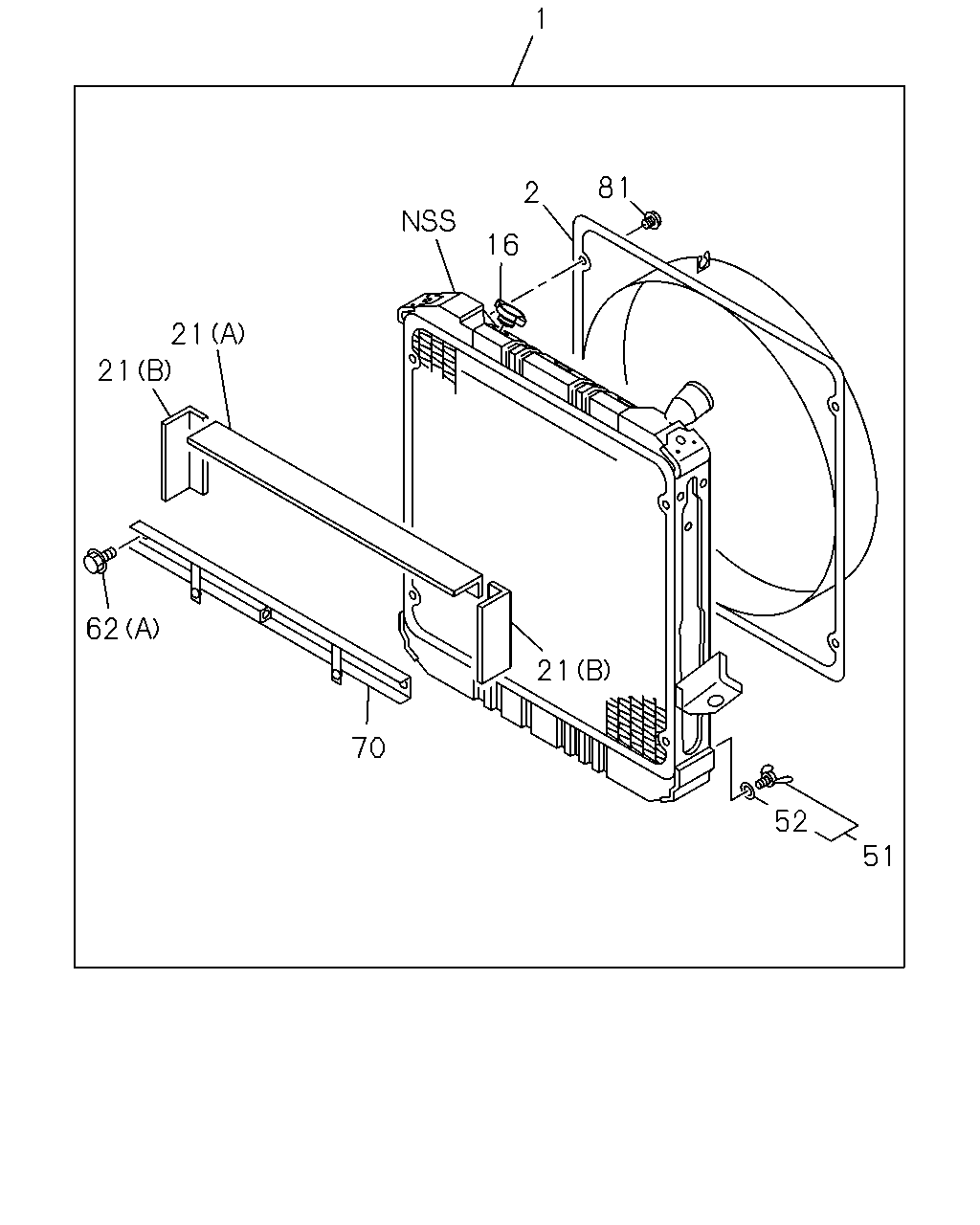

çizim 36044
1 81 2 16 21 21 62 21 70 52 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 RADIATOR ASM 8-97162-135-1 01 1 0211-0305 ● ●
1 01.219 RADIATOR ASM 8-97371-007-0 01 1 0306- ● ●
2 01.277 GUIDE; FAN 8-97066-011-0 01 1 0211- ● ●
16 01.203 CAP; RAD 8-97177-872-0 01 1 0211-0305 ● ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0306- ● ●
21 01.276 SEAL; RAD
(A) 		8-97085-689-0 01 1 0211- ● ●
21 01.276 SEAL; RAD
(B) 		8-97085-690-0 02 1 0211- ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0211- ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0211- ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211- ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0211- ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 0211- ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 0211- ● ●
