1-01 — ACCELERATOR PEDAL AND CONTROL (#80198) — 30 parça

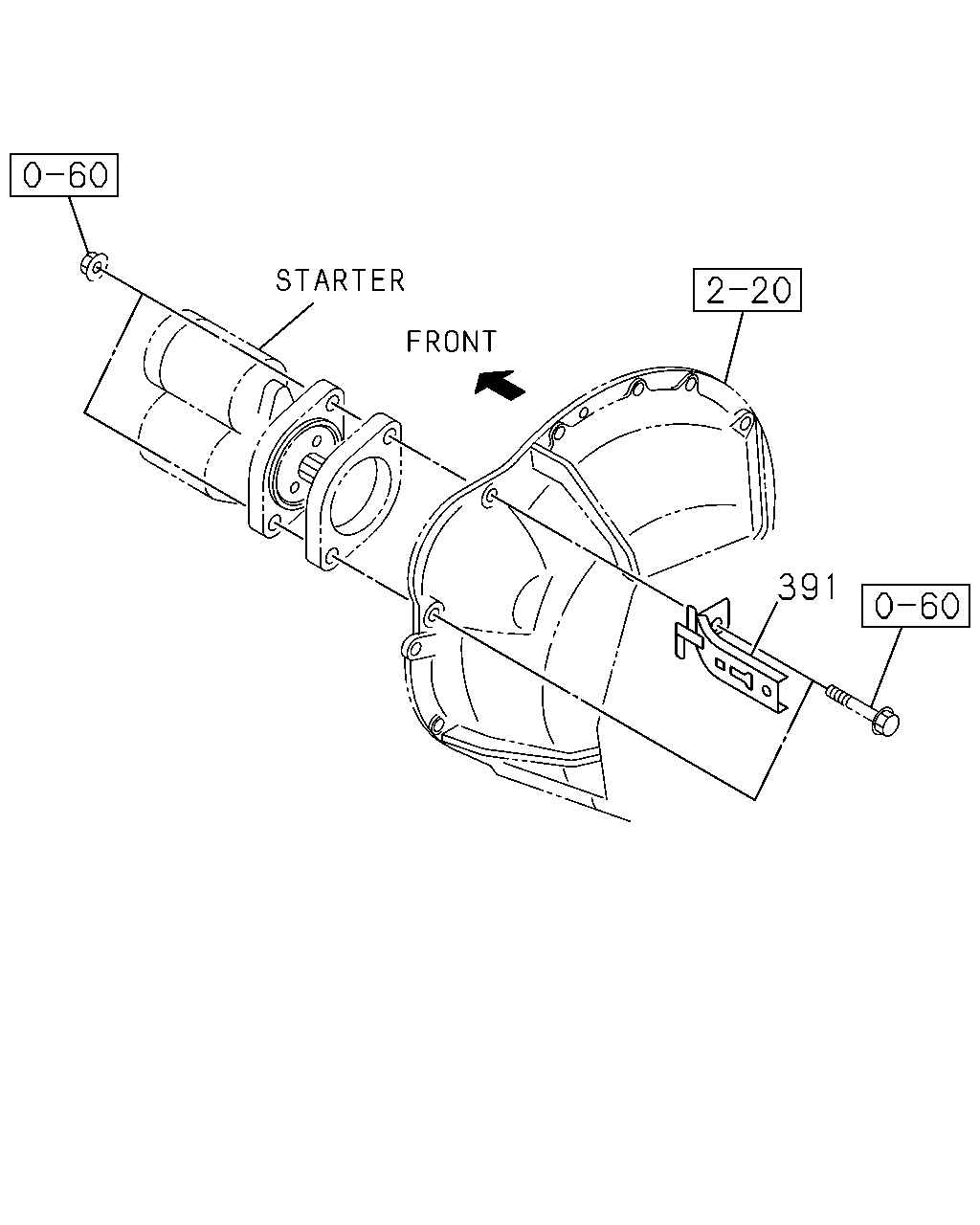

çizim 5197
391
BalonParca AdiParca NoAdetTipApplied Date A B
391 03.452 BRACKET; ENG CONT
02.483 		8-97068-801-1 01 1 0211- ● ●
çizim 35725
158 83 80 35 89 35 90 545 81 124 61 54 392
BalonParca AdiParca NoAdetTipApplied Date A B
35 03.459 STOPPER; ACCEL PEDAL 8-97302-305-0 02 1 0211- ● ●
54 03.430 CABLE; ENG CONT
L=1701 		8-97118-537-3 01 1 0211- ● ●
61 03.483 BOLT; BRKT TO FRAME ENG CONT CAB
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0211-0512 ● ●
61 03.483 BOLT; BRKT TO FRAME ENG CONT CAB
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ●
80 03.452 LINK ASM; ENG CONT
(B) 		8-97859-100-0 01 1 0211- ● ●
80 03.452 LINK ASM; ENG CONT
(A) 		8-97859-518-3 01 1 0211- ● ●
81 03.459 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 0211- ● ●
83 03.452 BRACKET; CONT LINK 8-97859-519-0 01 1 0211- ● ●
89 03.454 LEVER; RELAY 8-97857-617-4 01 1 0211- ● ●
90 03.454 LEVER; RELAY,ENG CONT 8-97857-613-6 01 1 0211- ● ●
124 03.463 NUT; LEVER
09.011 ID=9.9 PUSH NUT 		8-97012-098-0 01 1 0211- ● ●
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 0211- ● ●
392 03.483 CLIP; ACCEL CONT CABLE
04.930 ID=10 H=40 		8-94462-219-0 01 1 0211- ● ●
545 03.463 WASHER; NYLON
12.242 ID=10.5 OD=16 		9-09855-178-0 01 1 0211- ● ●
çizim 37264
537 537 70 68 67 80 80 65 80 14 230 24 242 46 171
BalonParca AdiParca NoAdetTipApplied Date A B
14 03.451 PAD; PEDAL,ACCEL 8-97859-101-0 01 1 0211- ● ●
24 03.483 BOLT; BRKT
03.459 		0-20800-840-0 01 1 0211- ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
04.040 ID=4 		9-09185-404-0 01 1 0211-0604 ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0605- ● ●
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0211- ● ●
67 03.480 CABLE ASM; IDLE CONT
L=945 		8-97856-223-4 01 1 0211- ● ●
68 03.480 KNOB; IDLE CONT 8-97853-765-1 01 1 0211- ● ●
70 03.483 NUT; CONT CABLE
M18 		8-97853-233-0 01 1 0211- ● ●
80 03.452 LINK ASM; ENG CONT
(B) 		8-97859-100-0 01 1 0211- ● ●
80 03.452 LINK ASM; ENG CONT
(A) 		8-97859-518-3 01 1 0211- ● ●
171 03.483 BRACKET ASM; ACCEL PEDAL 8-97857-482-1 01 1 0211- ● ●
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 0211- ● ●
242 03.483 NUT; ACCEL PEDAL
02.559 M8 		9-09110-408-0 01 1 0211-0512 ● ●
242 03.483 NUT; ACCEL PEDAL
02.334 M8 		0-91110-508-0 01 1 0601- ● ●
537 03.483 CLIP; IDLING CONT CABLE
04.342 ID=7 		5-09707-053-0 02 1 0211- ● ●
