Sayfa 0-81 - Isuzu EPC

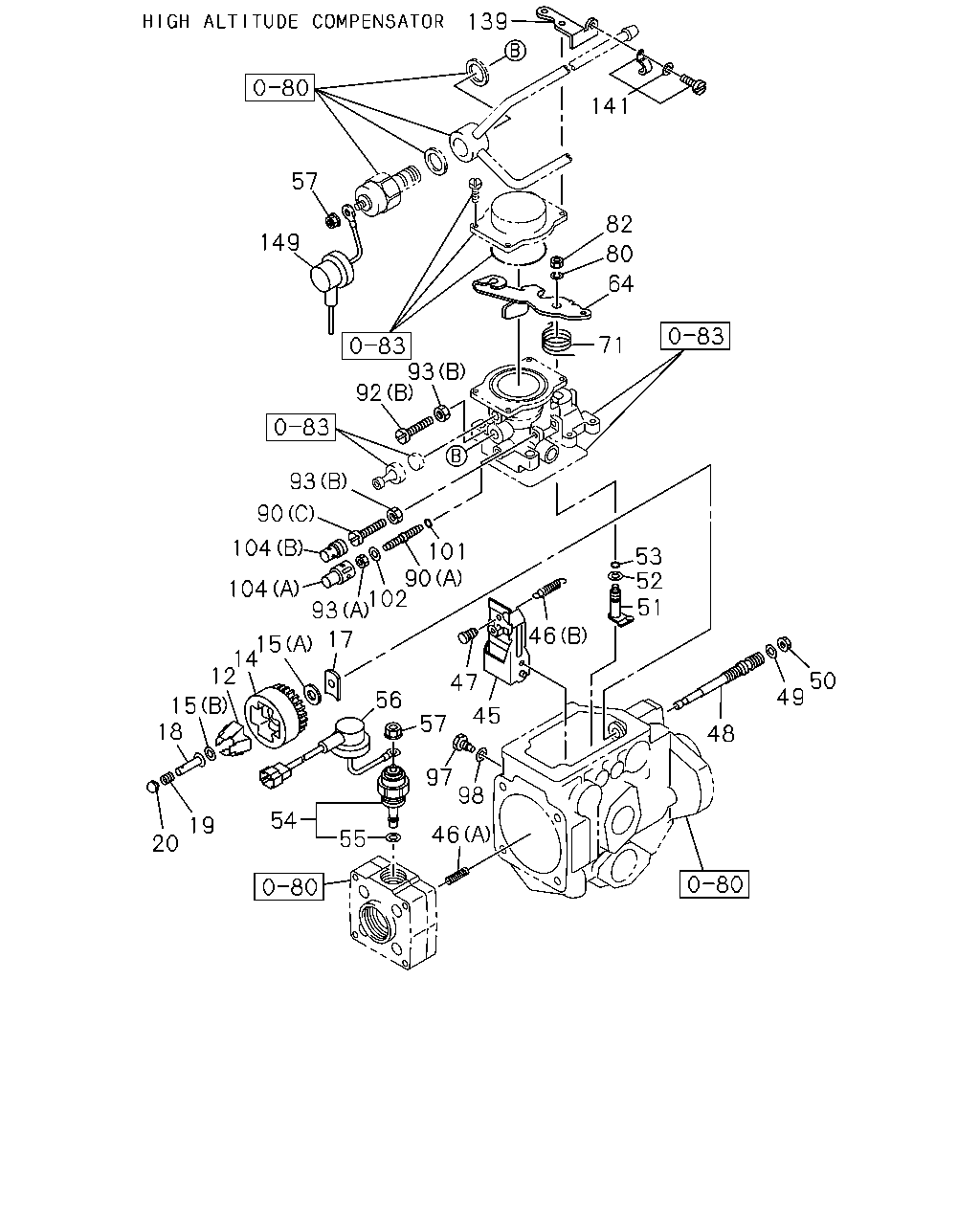

0-81 — GOVERNOR; INJECTION PUMP (#80194) — 184 parça

139 141 57 82 149 80 64 71 93 92 93 90 104 101 90 102 53 52 51 104 93 46 17 15 14 12 50 49 47 56 15 18 45 57 48 97 98 54 19 46 55 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.308 FLYWEIGHT ASM; GOV 03.318 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94228-403-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP 03.318 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-613-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (A) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-612-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (B) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-614-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.05 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-607-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.25 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-608-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.45 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-609-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.65 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-610-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.85 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-611-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.15 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94231-123-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.35 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94231-124-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.55 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94231-125-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.75 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94231-126-0	AR	1	-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94433-222-0	01	1	-
19	03.308 CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-519-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94372-499-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94372-500-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94372-501-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94372-502-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-520-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-521-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-522-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-523-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-524-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-525-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-526-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-527-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-528-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-529-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-530-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-531-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-532-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-533-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-534-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-535-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-868-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-869-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-870-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-871-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-872-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-873-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-874-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-875-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-876-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-877-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-878-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-879-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-880-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-881-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-882-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-97125-517-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94473-128-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-97077-837-0	01	1	-
47	03.308 PIN; RET ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-97096-706-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94248-002-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP 03.318 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-606-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94473-129-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94174-807-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-590-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV 03.306 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-585-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP 03.314 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94242-275-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP 03.318 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94239-373-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94470-582-0	01	1	-
57	03.318 NUT; VLV 03.308 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94473-135-0	02	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 519A ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94443-055-1	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 520A ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94443-056-1	01	1	-
71	03.306 SPRING; CONT LEVER,GOV 03.330 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94132-785-0	01	1	-
80	03.308 WASHER; LK,CONT LEVER,GOV 00.206, ID=6.1 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	9-09150-506-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV 16.176, M6 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	9-09110-406-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (C) ASM PART: C = 8-97120-181-1, 97120181	8-94313-253-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=53.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-274-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=55.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-275-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=57.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-276-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (B) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180	8-94426-049-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531, (B) ASM PART: C = 8-97120-181-1, 97120181	8-94313-253-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531, (A) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180	8-94426-049-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (A) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-277-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94426-047-1	02	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-601-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER 03.306 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-602-0	02	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-598-0	01	1	-
102	03.308 WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-593-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-262-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), L=18.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-263-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-264-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-265-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-266-0	01	1	-
139	03.485 BRACKET; INJ PUMP ASM PART: C = 8-97120-181-1, 97120181	8-94177-919-0	01	1	-
141	03.308 PLATE ASM; PIPE BRKT ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94174-822-0	01	1	-
149	03.330 WIRE; VLV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-278-0	01	1	-

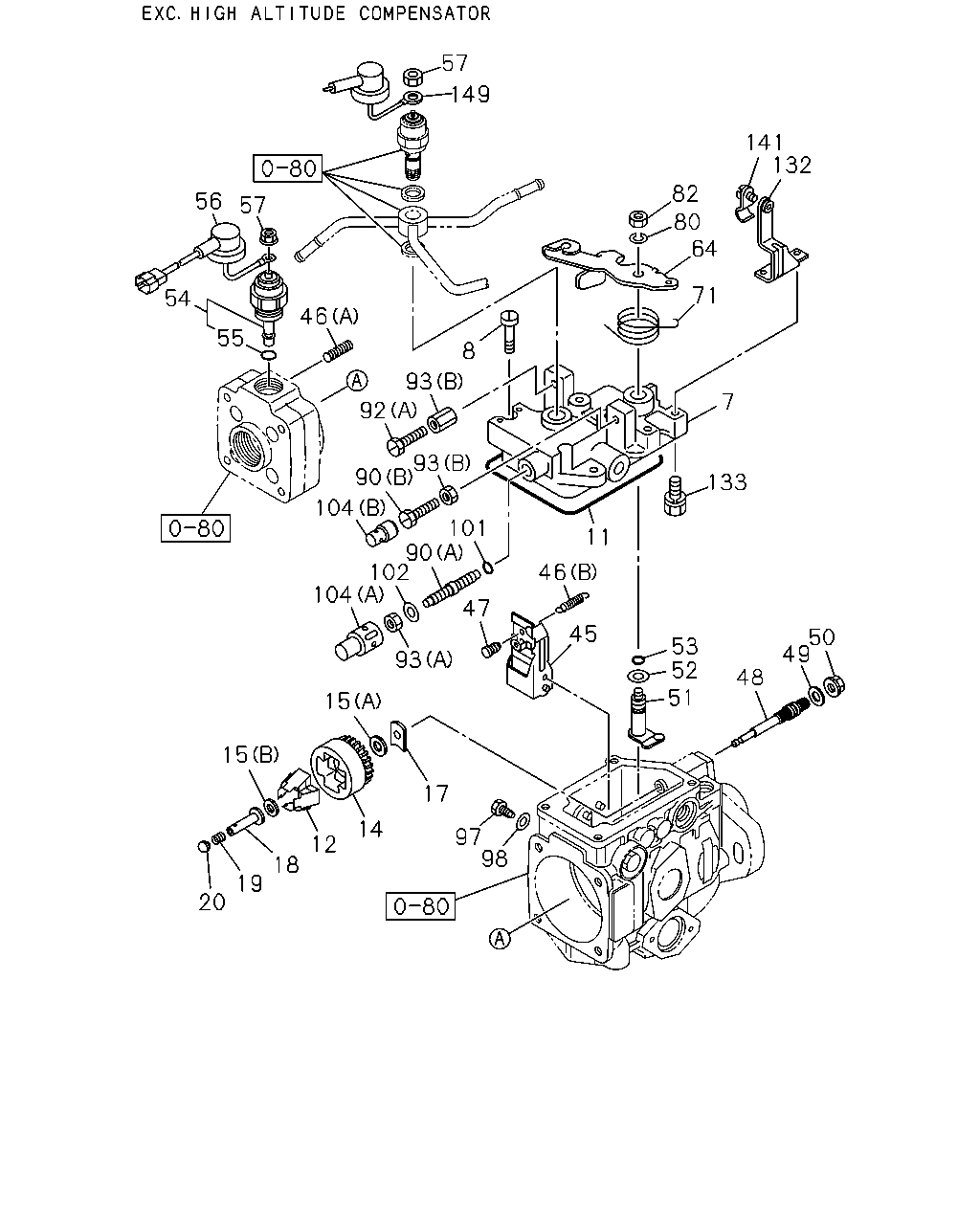

57 149 141 132 82 56 57 80 64 71 54 46 55 8 93 7 92 93 90 133 104 101 90 102 104 11 46 47 45 50 49 53 52 51 93 48 15 15 17 14 97 98 12 18 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180	8-94320-283-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP 03.330 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180	8-94227-636-0	04	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180	8-94227-599-0	01	1	-
12	03.308 FLYWEIGHT ASM; GOV 03.318 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94228-403-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP 03.318 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-613-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (A) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-612-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (B) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-614-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.05 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-607-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.25 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-608-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.45 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-609-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.65 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-610-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.85 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-611-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.15 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94231-123-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.35 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94231-124-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.55 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94231-125-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.75 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94231-126-0	AR	1	-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94433-222-0	01	1	-
19	03.308 CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-519-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94372-499-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94372-500-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94372-501-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94372-502-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-520-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-521-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-522-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-523-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-524-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-525-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-526-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-527-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-528-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-529-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-530-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-531-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-532-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-533-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-534-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94408-535-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-868-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-869-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-870-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-871-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-872-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-873-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-874-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-875-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-876-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-877-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-878-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-879-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-880-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-881-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94428-882-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-97125-517-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94473-128-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-97077-837-0	01	1	-
47	03.308 PIN; RET ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-97096-706-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94248-002-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP 03.318 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-606-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94473-129-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94174-807-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-590-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV 03.306 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-585-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP 03.314 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94242-275-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP 03.318 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94239-373-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94470-582-0	01	1	-
57	03.318 NUT; VLV 03.308 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94473-135-0	02	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 519A ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94443-055-1	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 520A ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94443-056-1	01	1	-
71	03.306 SPRING; CONT LEVER,GOV 03.330 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94132-785-0	01	1	-
80	03.308 WASHER; LK,CONT LEVER,GOV 00.206, ID=6.1 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	9-09150-506-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV 16.176, M6 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	9-09110-406-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (C) ASM PART: C = 8-97120-181-1, 97120181	8-94313-253-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=53.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-274-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=55.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-275-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=57.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-276-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (B) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180	8-94426-049-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531, (B) ASM PART: C = 8-97120-181-1, 97120181	8-94313-253-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531, (A) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180	8-94426-049-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (A) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-277-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94426-047-1	02	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-601-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER 03.306 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-602-0	02	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-598-0	01	1	-
102	03.308 WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94227-593-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-262-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), L=18.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-263-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-264-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-265-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-266-0	01	1	-
132	03.308 BRACKET; ADJ SCREW,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180	8-94174-810-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180	8-94313-264-0	02	1	-
141	03.308 PLATE ASM; PIPE BRKT ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94174-822-0	01	1	-
149	03.330 WIRE; VLV ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180, C = 8-97120-181-1, 97120181	8-94316-278-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
