0-66 — GENERATOR (#80192) — 82 parça

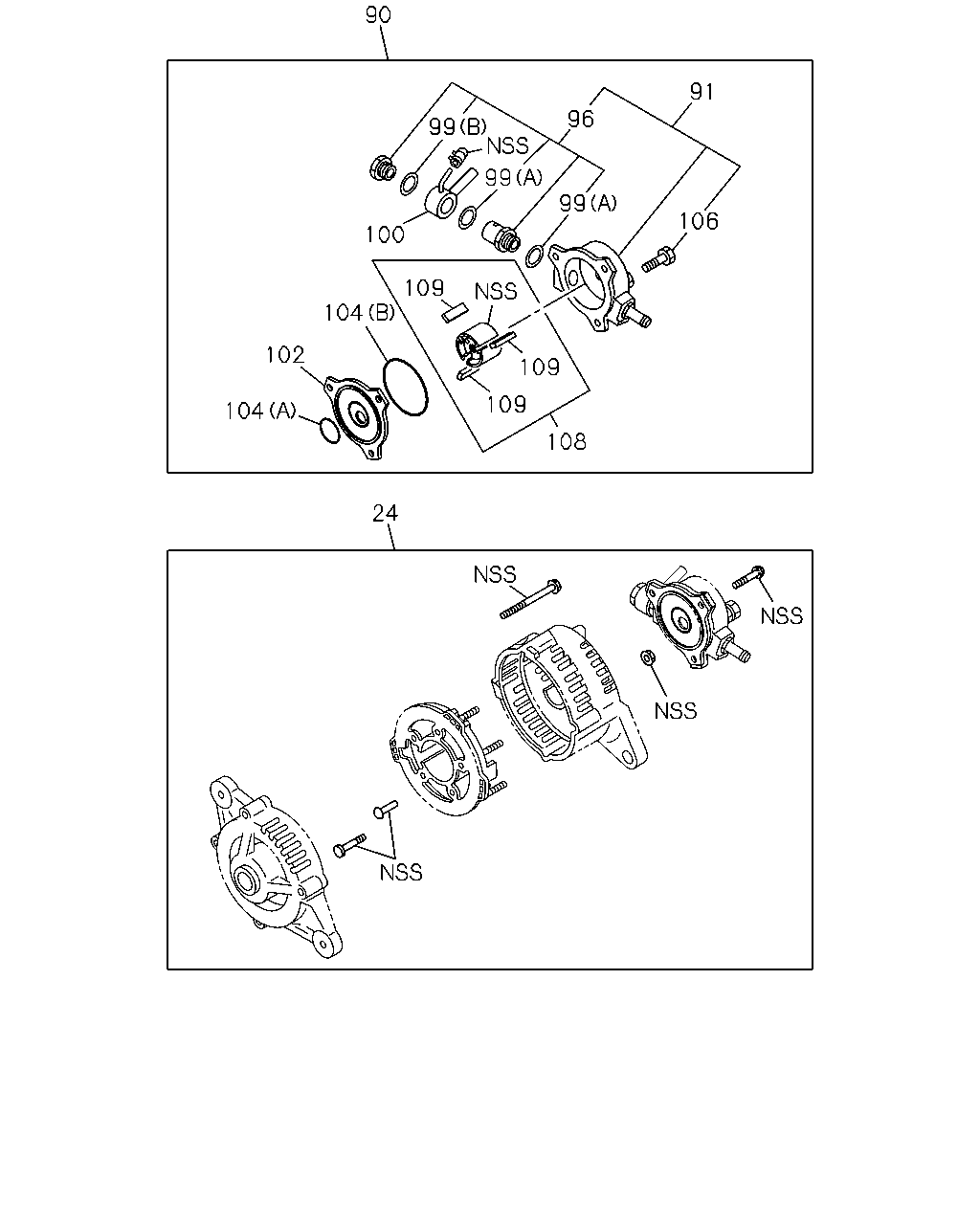

90 91 96 99 99 99 106 100 109 104 102 109 109 104 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97187-657-2, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-

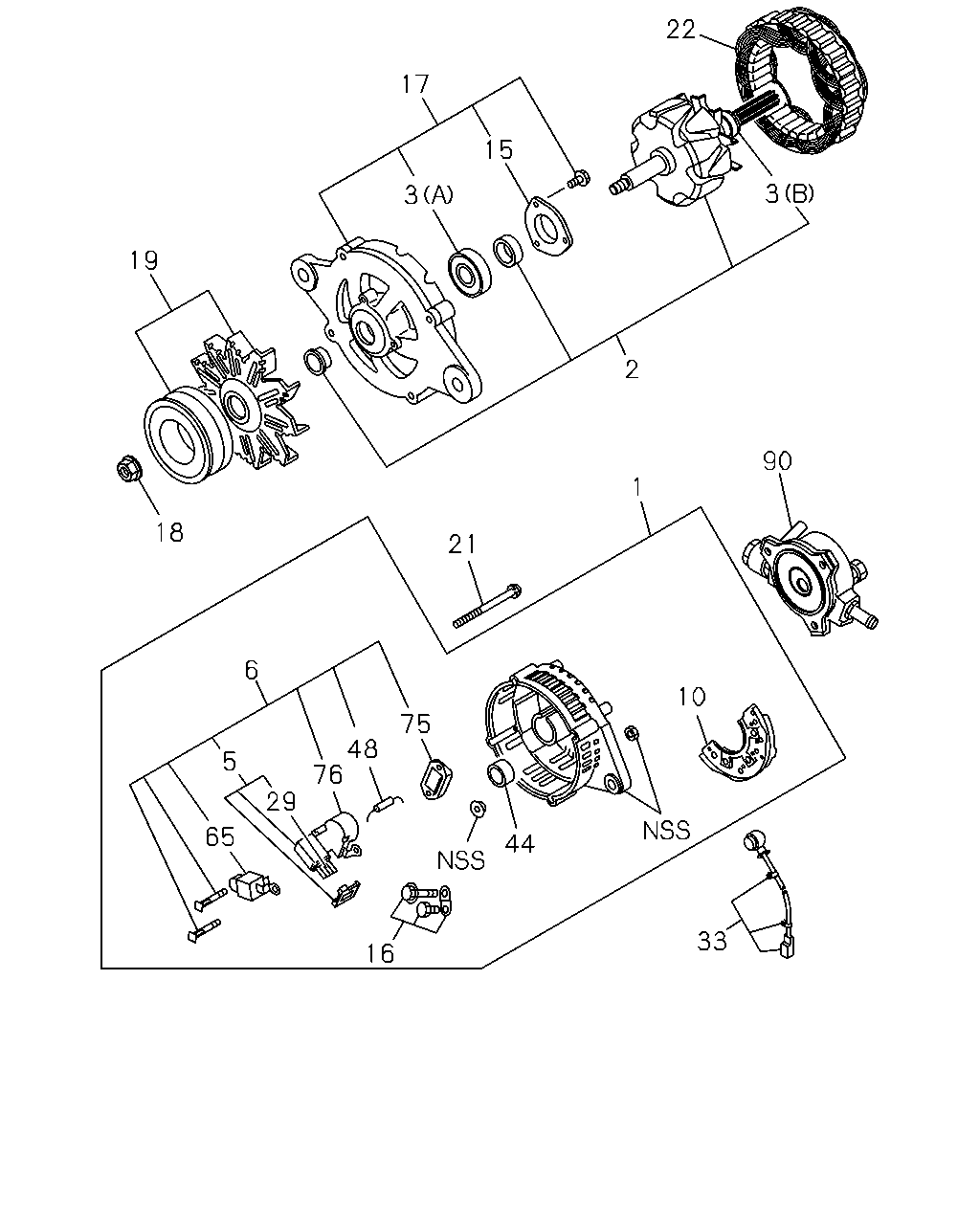

22 17 15 3 3 19 2 90 1 18 21 6 10 75 48 76 5 29 65 44 33 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: A = 8-97187-657-2, 97187657	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97187-657-2, 97187657	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97187-657-2, 97187657	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97187-657-2, 97187657	8-98159-457-0	01	1	1008-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-97187-657-2, 97187657	8-97026-053-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97187-657-2, 97187657	8-97026-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-97187-657-2, 97187657	8-94223-974-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97187-657-2, 97187657	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97187-657-2, 97187657	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-98284-007-0, 98284007	8-98284-598-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-98300-335-0, 98300335	8-98305-117-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-97187-657-2, 97187657	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97187-657-2, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-97187-657-2, 97187657	8-94156-602-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-97187-657-2, 97187657	8-94156-593-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: A = 8-97187-657-2, 97187657	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98284-597-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: A = 8-97187-657-2, 97187657	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-97187-657-2, 97187657	8-94156-594-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: A = 8-97187-657-2, 97187657	8-94250-964-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: A = 8-97187-657-2, 97187657	8-94156-591-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-

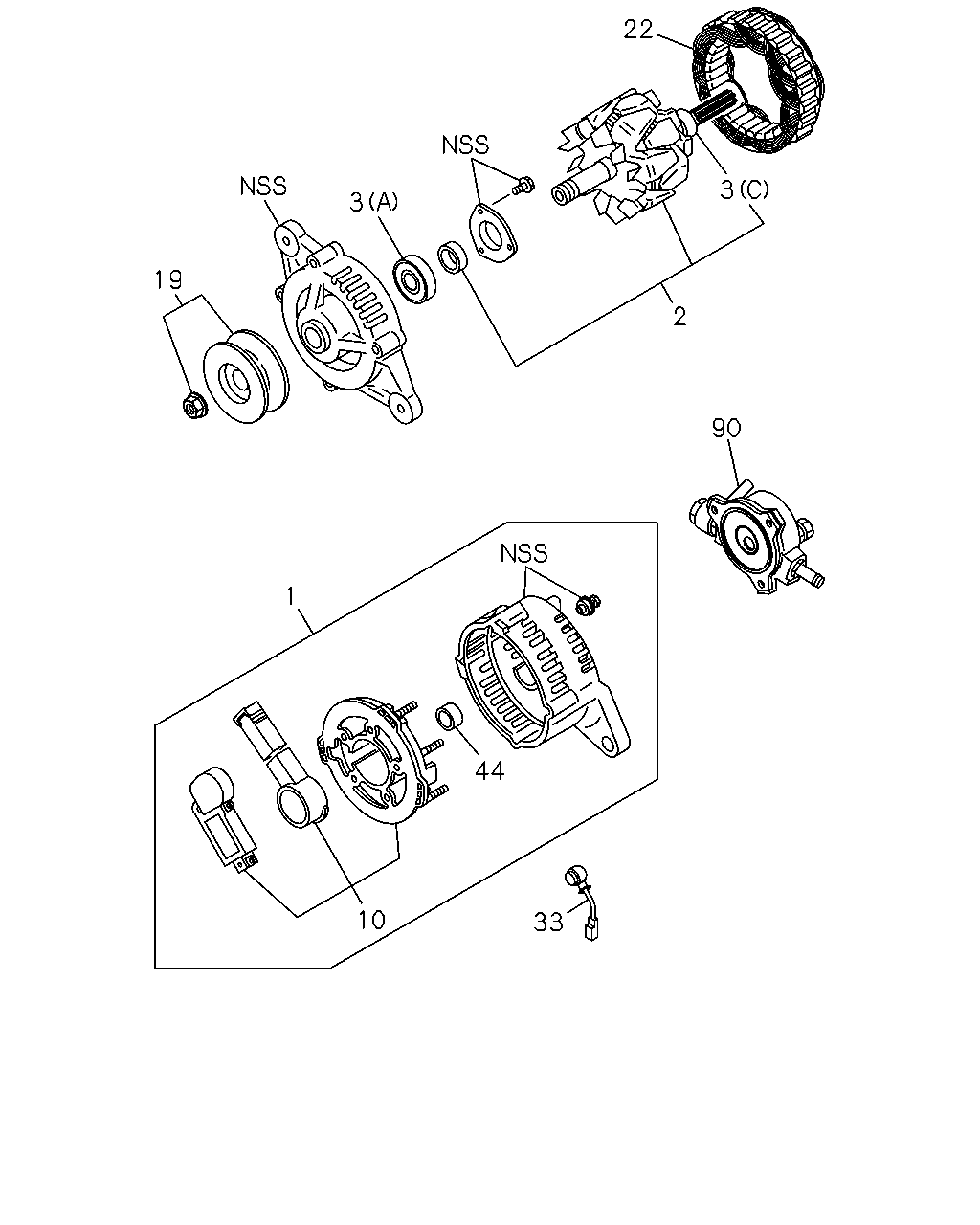

19 3 22 3 2 90 1 10 44 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97187-657-2, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98284-594-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97187-657-2, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98284-593-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: A = 8-97187-657-2, 97187657	8-94121-178-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97187-657-2, 97187657	8-97062-654-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97187-657-2, 97187657	8-97248-128-0	01	1	1008-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97187-657-2, 97187657	8-98159-457-0	01	1	1008-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97187-657-2, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98284-596-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97187-657-2, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98284-599-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97187-657-2, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97313-437-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: A = 8-97187-657-2, 97187657	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-98284-597-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-

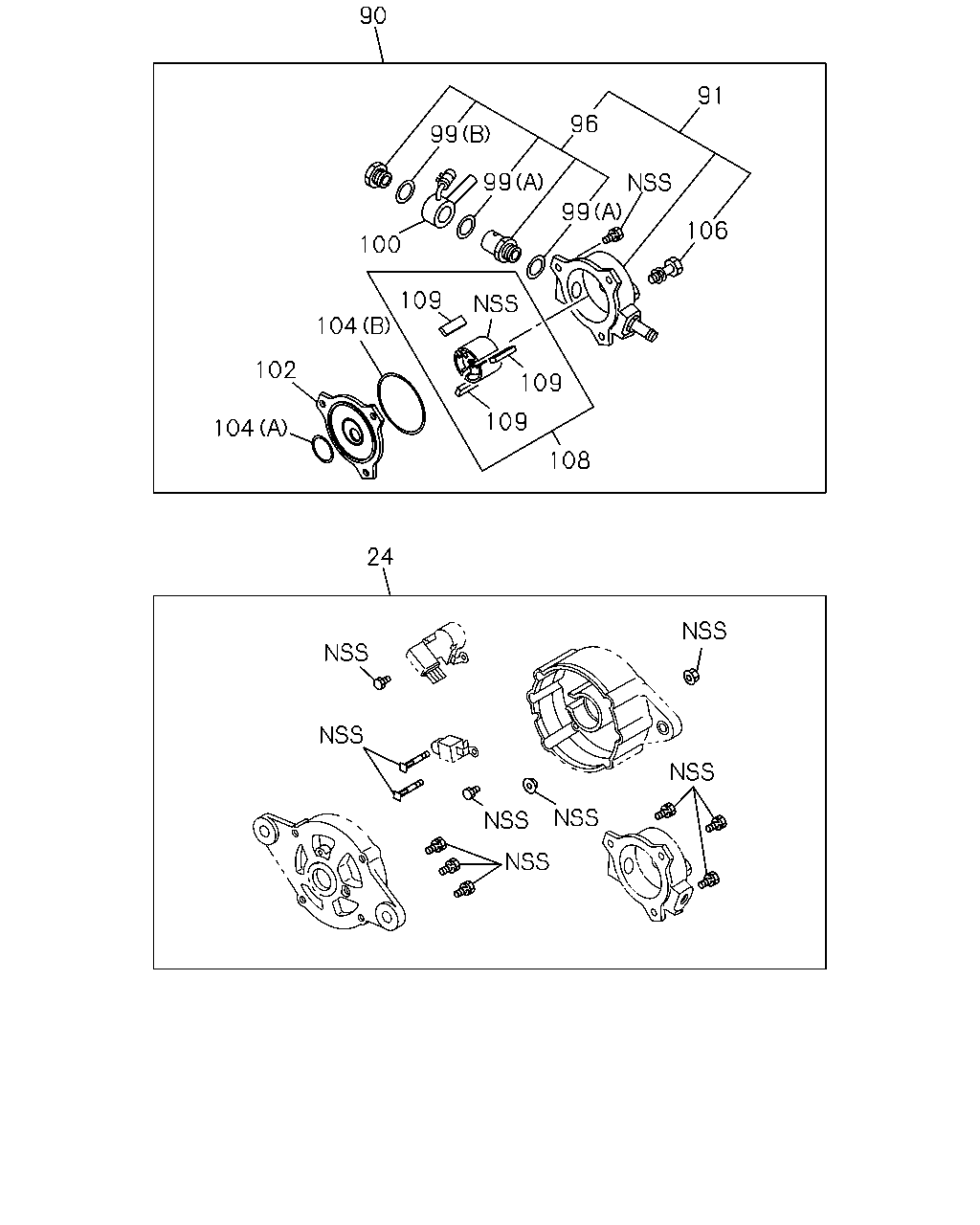

90 99 96 91 99 106 99 108 109 109 109 104 102 104 100 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97187-657-2, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97351-341-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97209-180-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-994-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97187-657-2, 97187657, B = 8-98284-007-0, 98284007, C = 8-98300-335-0, 98300335	8-94223-985-0	03	1	-
